| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_174T01_9000000766_05925cztM0_level2.evt | modeM0/AS1A02_174T01_9000000766_05925cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,157,120 | 77,440,320 |
| Size | 542.8 MB | 73.9 MB |
| Events in quadrant A | 3,771,530 | 449,170 |
| Events in quadrant B | 4,288,308 | 452,311 |
| Events in quadrant C | 3,772,468 | 448,757 |
| Events in quadrant D | 4,850,830 | 428,253 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17182 | 102 |
| B | 0 | 18293 | 96 |
| C | 0 | 17208 | 102 |
| D | 0 | 20063 | 121 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 2 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 4 |
| D | 0 | 166 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8147 | 503 | 6.174052% |
| B | 8159 | 550 | 6.741022% |
| C | 8148 | 329 | 4.037801% |
| D | 8150 | 441 | 5.411043% |

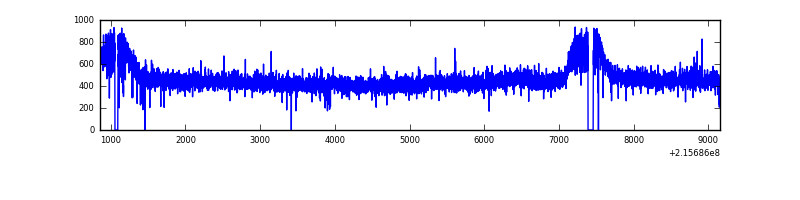

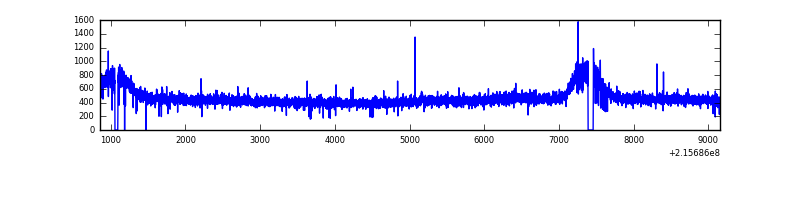

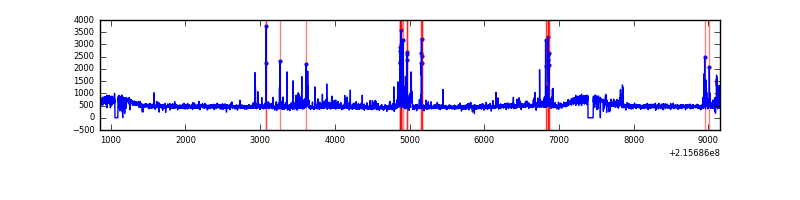

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8300 | 8189 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8301 | 8191 | 32 | 32 | 0.39% | 0.39% |  |
| C | 8301 | 8191 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8301 | 8190 | 19 | 19 | 0.23% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 9718 | 43.35 | 976 | 946 | 202.3 |
| A | 0 | 226 | 9661 | 43.07 | 976 | 946 | 202.3 |
| A | 8 | 15 | 8497 | 37.32 | 976 | 946 | 202.3 |
| B | 15 | 255 | 208801 | 1082.41 | 986 | 959 | 192.0 |
| B | 15 | 85 | 63922 | 327.9 | 986 | 959 | 192.0 |
| B | 15 | 204 | 51558 | 263.51 | 986 | 959 | 192.0 |
| C | 1 | 16 | 9073 | 36.25 | 960 | 961 | 223.8 |
| C | 13 | 61 | 7797 | 30.54 | 960 | 961 | 223.8 |
| C | 8 | 128 | 6523 | 24.85 | 960 | 961 | 223.8 |
| D | 2 | 63 | 525647 | 2220.74 | 956 | 921 | 236.3 |
| D | 8 | 195 | 308861 | 1303.26 | 956 | 921 | 236.3 |
| D | 2 | 152 | 292712 | 1234.92 | 956 | 921 | 236.3 |

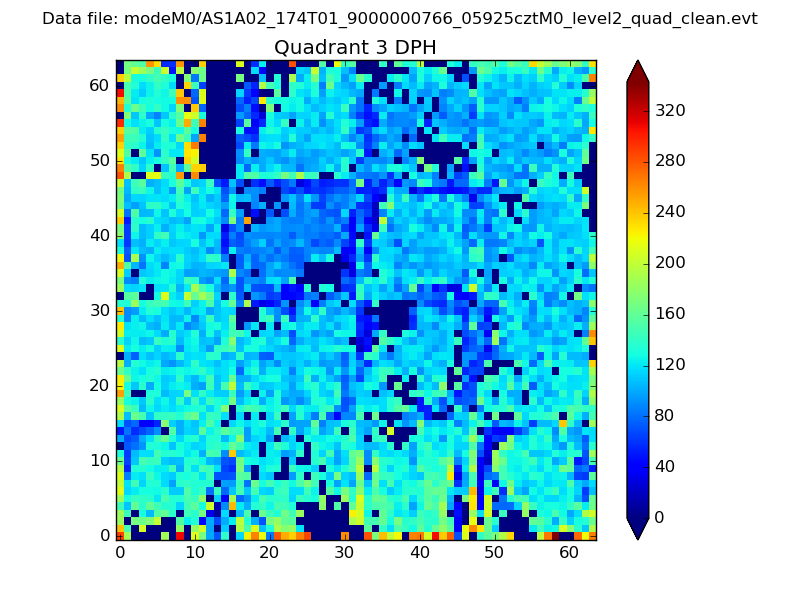

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

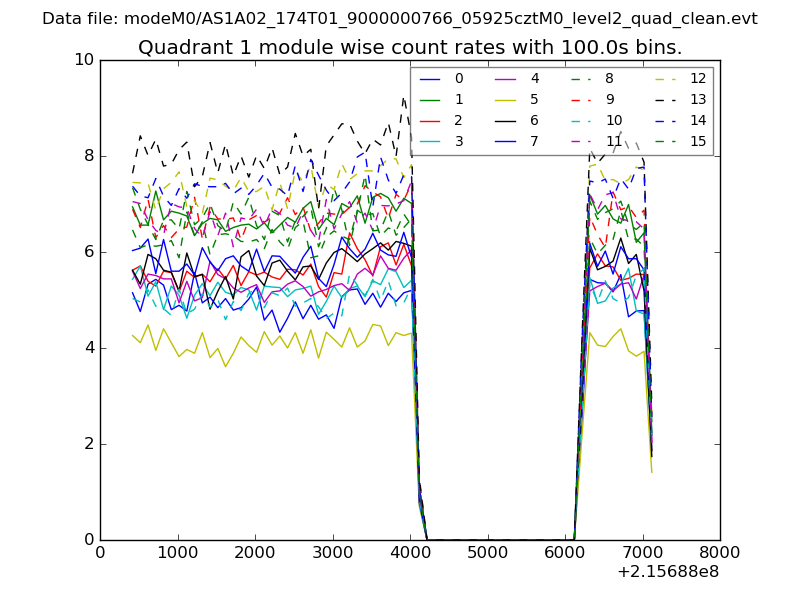

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

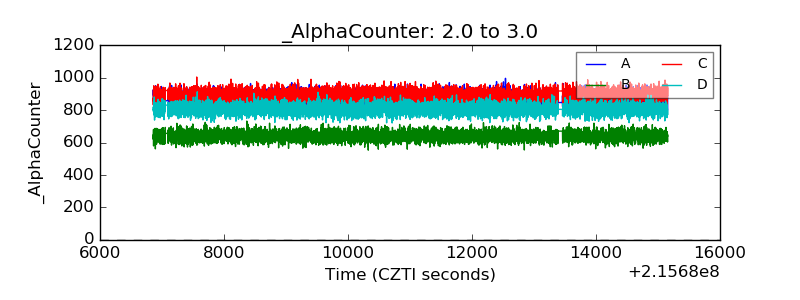

| Alpha Counter |  |
| _CPM_Rate |  |

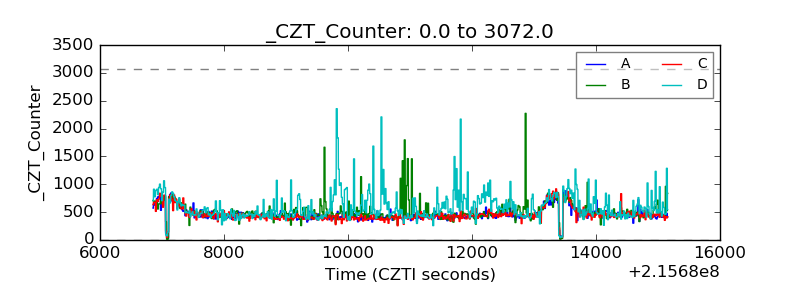

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

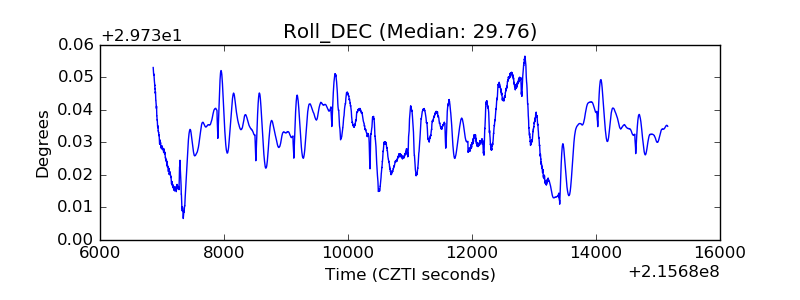

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
