| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_157T01_9000000772_05949cztM0_level2.evt | modeM0/AS1G06_157T01_9000000772_05949cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,109,440 | 95,281,920 |
| Size | 437.8 MB | 90.9 MB |
| Events in quadrant A | 4,201,528 | 600,121 |
| Events in quadrant B | 3,024,451 | 631,720 |
| Events in quadrant C | 2,947,808 | 617,418 |
| Events in quadrant D | 3,288,423 | 582,490 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16858 | 3 |
| B | 0 | 13352 | 2 |
| C | 0 | 13249 | 2 |
| D | 0 | 14495 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6505 | 193 | 2.966949% |
| B | 6505 | 14 | 0.215219% |
| C | 6505 | 13 | 0.199846% |
| D | 6505 | 29 | 0.445811% |

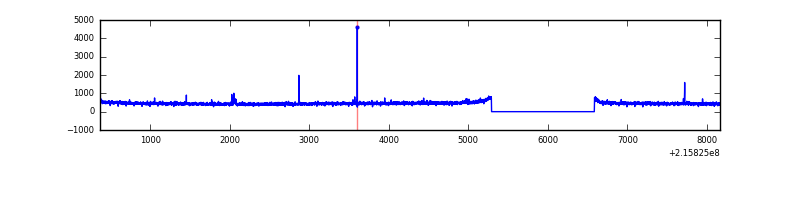

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7800 | 6506 | 132 | 132 | 1.69% | 2.03% |  |
| B | 7800 | 6506 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7800 | 6506 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7800 | 6506 | 15 | 15 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 711575 | 4721.46 | 743 | 727 | 150.6 |
| A | 4 | 2 | 590514 | 3917.37 | 743 | 727 | 150.6 |
| A | 8 | 192 | 15297 | 96.77 | 743 | 727 | 150.6 |
| B | 0 | 219 | 23736 | 158.1 | 772 | 754 | 145.4 |
| B | 12 | 111 | 13624 | 88.54 | 772 | 754 | 145.4 |
| B | 11 | 111 | 10665 | 68.18 | 772 | 754 | 145.4 |
| C | 9 | 54 | 22312 | 125.44 | 747 | 754 | 171.9 |
| C | 13 | 61 | 6005 | 30.55 | 747 | 754 | 171.9 |
| C | 14 | 128 | 5375 | 26.89 | 747 | 754 | 171.9 |
| D | 2 | 63 | 235552 | 1319.59 | 733 | 709 | 178.0 |
| D | 1 | 20 | 229612 | 1286.21 | 733 | 709 | 178.0 |
| D | 2 | 14 | 23150 | 126.1 | 733 | 709 | 178.0 |

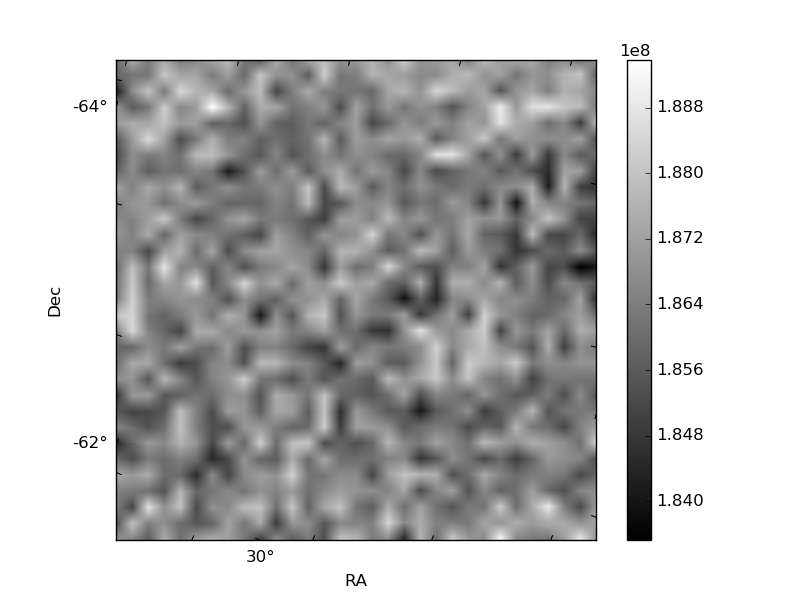

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

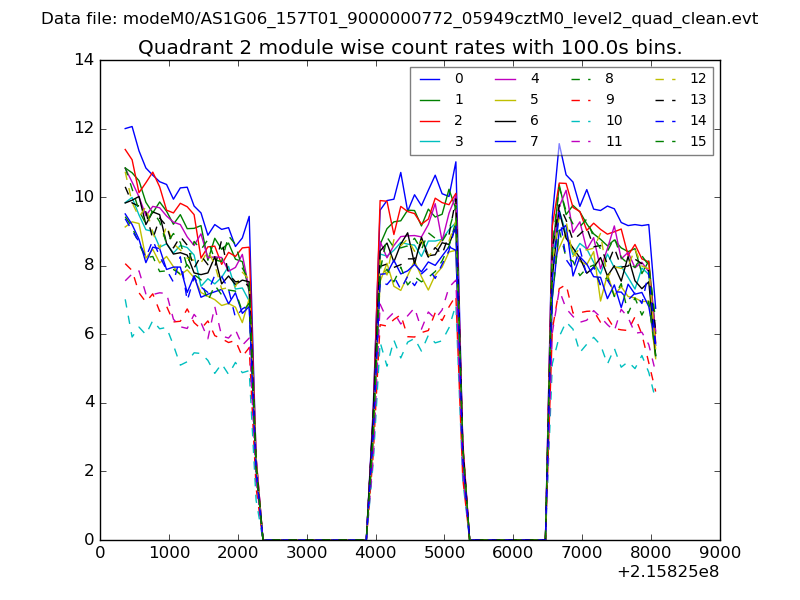

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

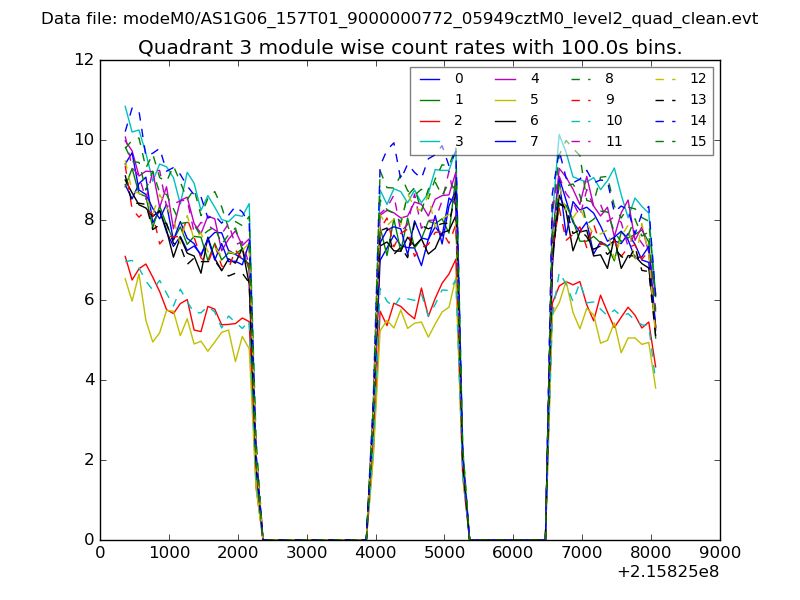

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

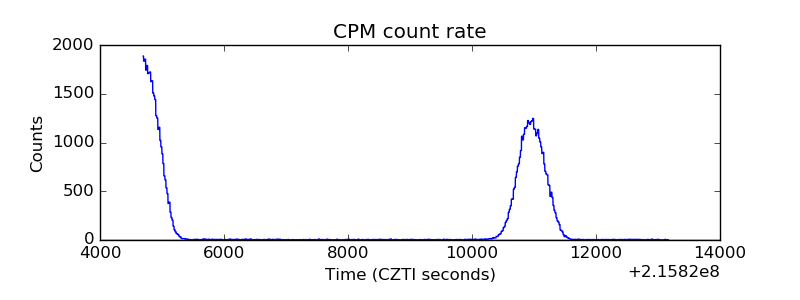

| _CPM_Rate |  |

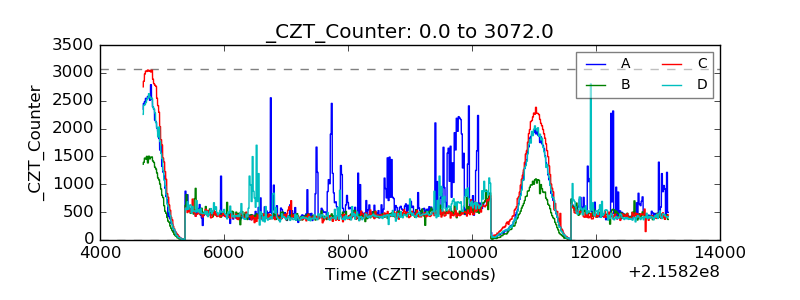

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

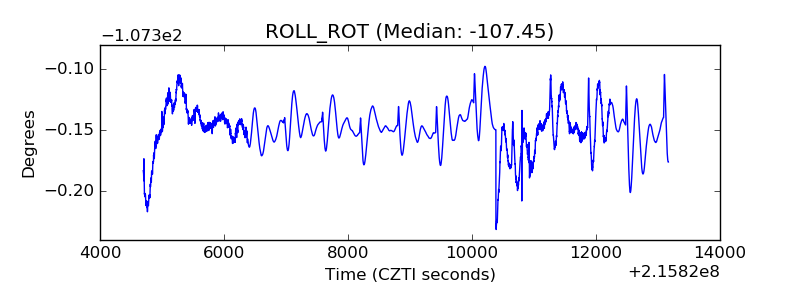

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

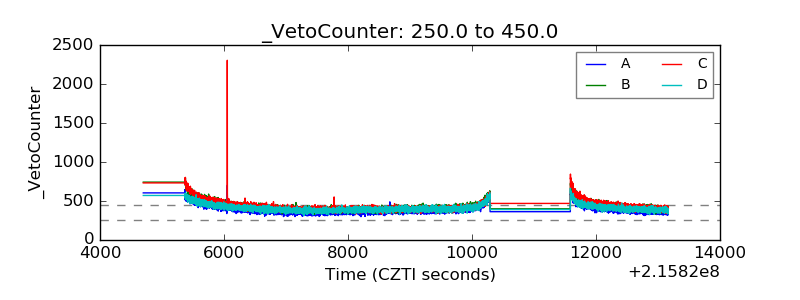

| Veto Counter |  |
