| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_05963cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_05963cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,482,880 | 116,864,640 |
| Size | 452.5 MB | 111.5 MB |
| Events in quadrant A | 2,807,039 | 790,239 |
| Events in quadrant B | 3,049,078 | 813,946 |
| Events in quadrant C | 5,148,692 | 759,054 |
| Events in quadrant D | 2,944,524 | 744,028 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12701 | 3 |
| B | 0 | 13156 | 2 |
| C | 0 | 19615 | 2 |
| D | 0 | 13356 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 40 | 0.646204% |
| B | 6190 | 54 | 0.872375% |
| C | 6190 | 504 | 8.142165% |
| D | 6190 | 70 | 1.130856% |

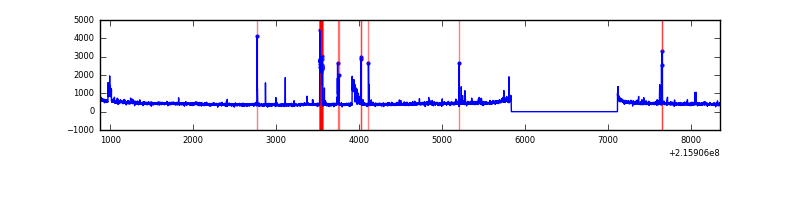

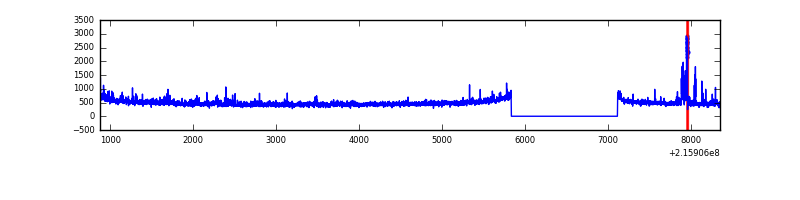

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7470 | 6191 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7470 | 6191 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7470 | 6191 | 443 | 443 | 5.93% | 7.16% |  |
| D | 7470 | 6191 | 39 | 39 | 0.52% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 29186 | 197.65 | 713 | 698 | 144.1 |
| A | 15 | 234 | 18111 | 120.81 | 713 | 698 | 144.1 |
| A | 8 | 192 | 10187 | 65.83 | 713 | 698 | 144.1 |
| B | 0 | 229 | 89389 | 641.62 | 731 | 714 | 138.2 |
| B | 7 | 221 | 58163 | 415.68 | 731 | 714 | 138.2 |
| B | 4 | 81 | 30510 | 215.59 | 731 | 714 | 138.2 |
| C | 9 | 247 | 2456477 | 15653.44 | 683 | 686 | 156.9 |
| C | 9 | 68 | 11531 | 69.13 | 683 | 686 | 156.9 |
| C | 13 | 61 | 5428 | 30.23 | 683 | 686 | 156.9 |
| D | 2 | 206 | 192555 | 1149.84 | 690 | 670 | 166.9 |
| D | 8 | 195 | 44376 | 261.9 | 690 | 670 | 166.9 |
| D | 1 | 20 | 32620 | 191.45 | 690 | 670 | 166.9 |

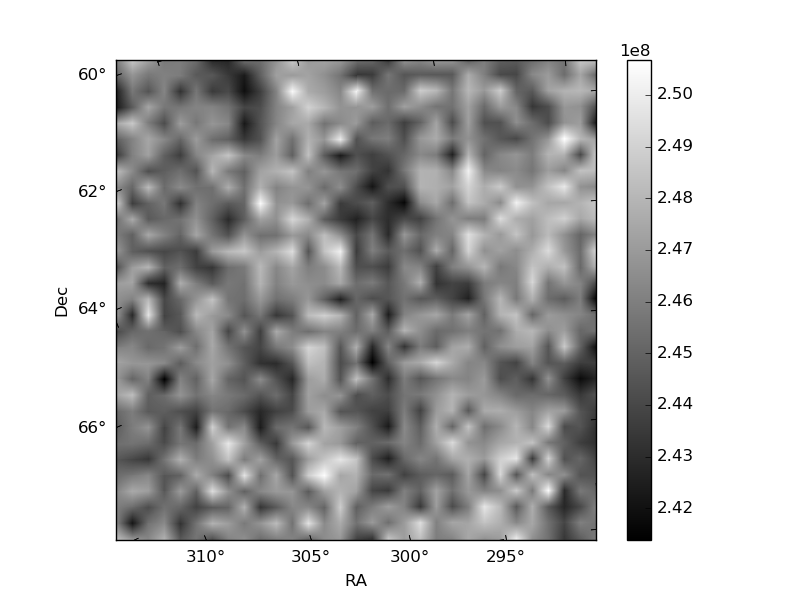

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

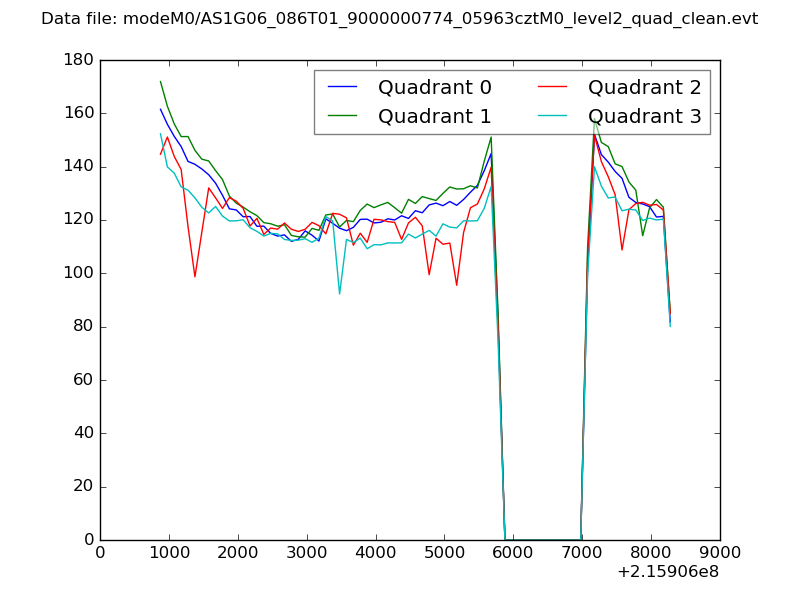

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

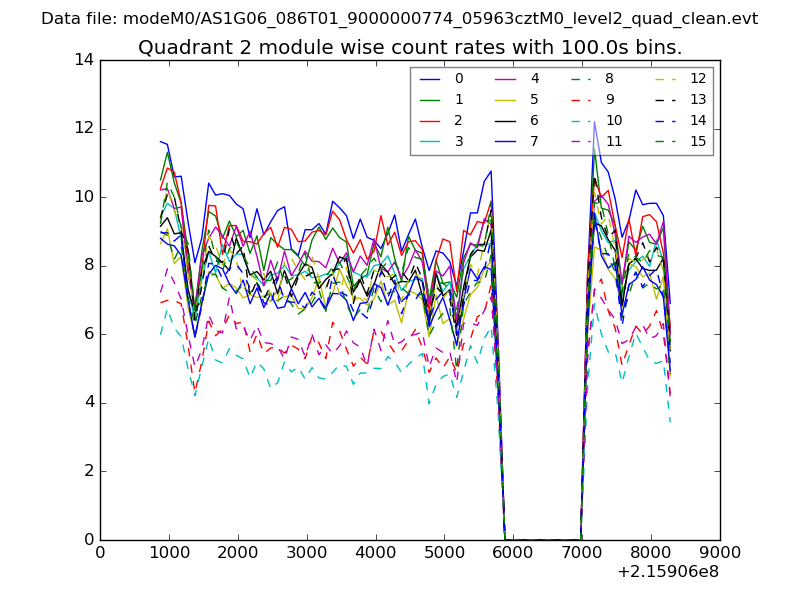

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

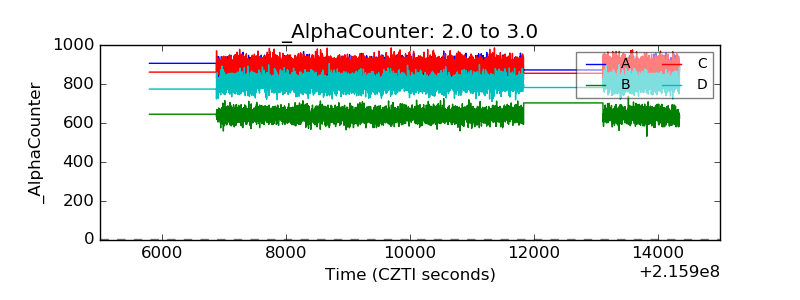

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

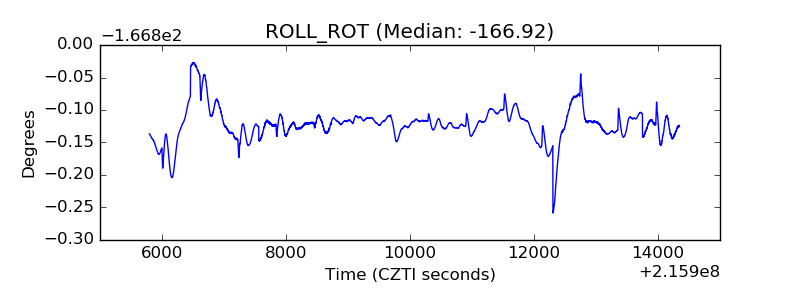

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

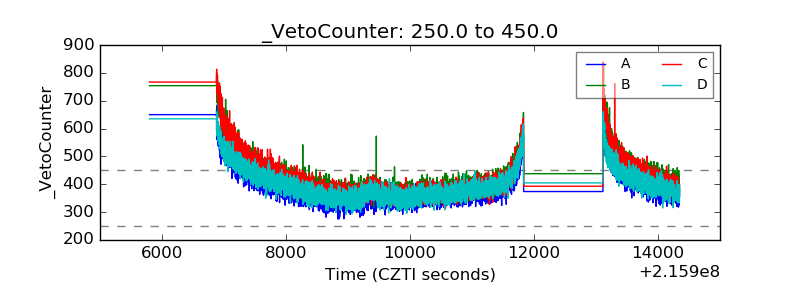

| Veto Counter |  |
