| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_05973cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_05973cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,589,440 | 112,032,000 |
| Size | 383.9 MB | 106.8 MB |
| Events in quadrant A | 3,127,370 | 743,086 |
| Events in quadrant B | 2,990,162 | 763,439 |
| Events in quadrant C | 2,709,923 | 744,092 |
| Events in quadrant D | 2,940,902 | 707,765 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 2 |
| B | 0 | 126 | 2 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14046 | 447 |
| B | 0 | 13325 | 176 |
| C | 0 | 12772 | 132 |
| D | 0 | 13434 | 146 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6201 | 82 | 1.322367% |
| B | 6235 | 37 | 0.593424% |
| C | 6251 | 27 | 0.431931% |
| D | 6250 | 55 | 0.880000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

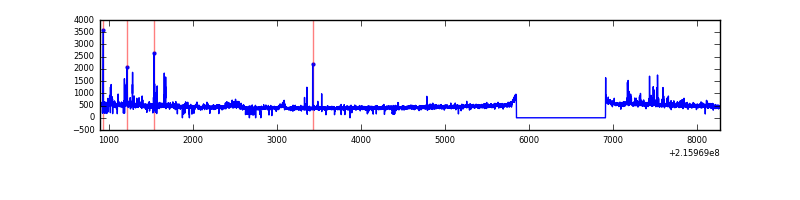

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7377 | 6296 | 60 | 60 | 0.81% | 0.95% |  |
| B | 7377 | 6312 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7377 | 6315 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7377 | 6313 | 18 | 18 | 0.24% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 378927 | 2660.03 | 698 | 682 | 142.2 |
| A | 8 | 192 | 34446 | 237.45 | 698 | 682 | 142.2 |
| A | 15 | 234 | 25351 | 173.49 | 698 | 682 | 142.2 |
| B | 4 | 52 | 69962 | 508.05 | 713 | 696 | 136.3 |
| B | 0 | 219 | 58405 | 423.28 | 713 | 696 | 136.3 |
| B | 15 | 204 | 48372 | 349.69 | 713 | 696 | 136.3 |
| C | 1 | 16 | 6799 | 38.27 | 691 | 693 | 159.6 |
| C | 13 | 61 | 5554 | 30.47 | 691 | 693 | 159.6 |
| C | 9 | 54 | 4187 | 21.9 | 691 | 693 | 159.6 |
| D | 2 | 63 | 80380 | 476.16 | 687 | 665 | 167.4 |
| D | 8 | 195 | 55476 | 327.4 | 687 | 665 | 167.4 |
| D | 1 | 239 | 51121 | 301.38 | 687 | 665 | 167.4 |

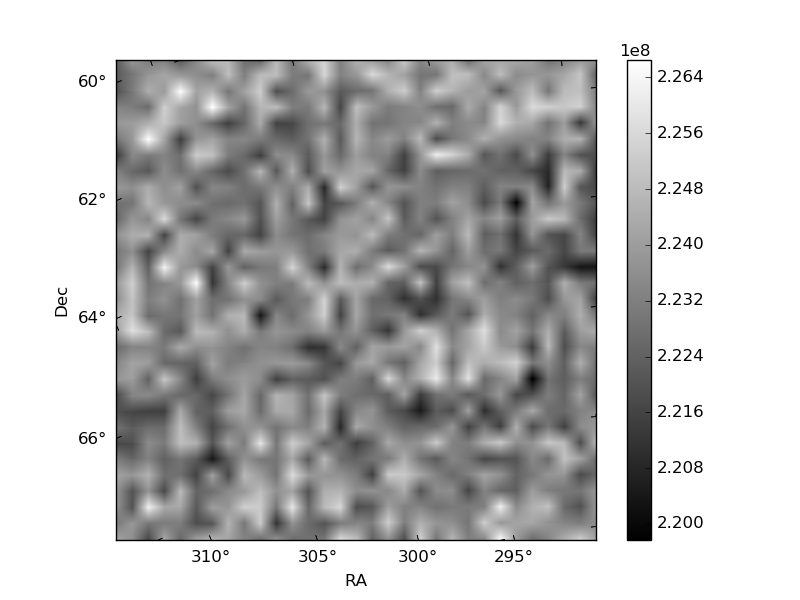

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

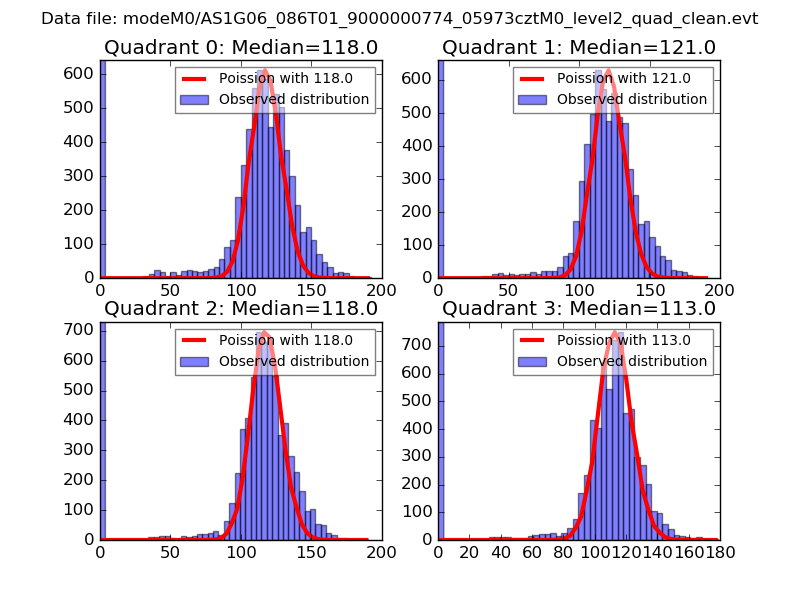

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

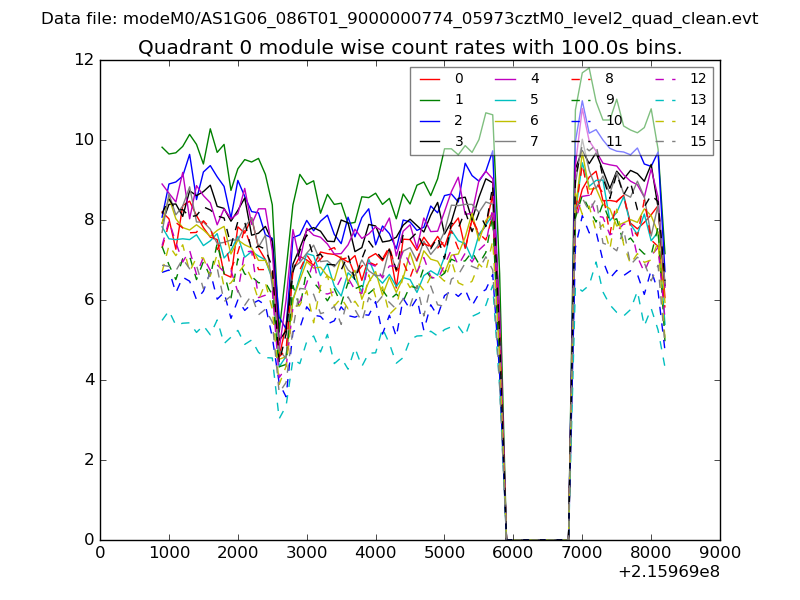

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

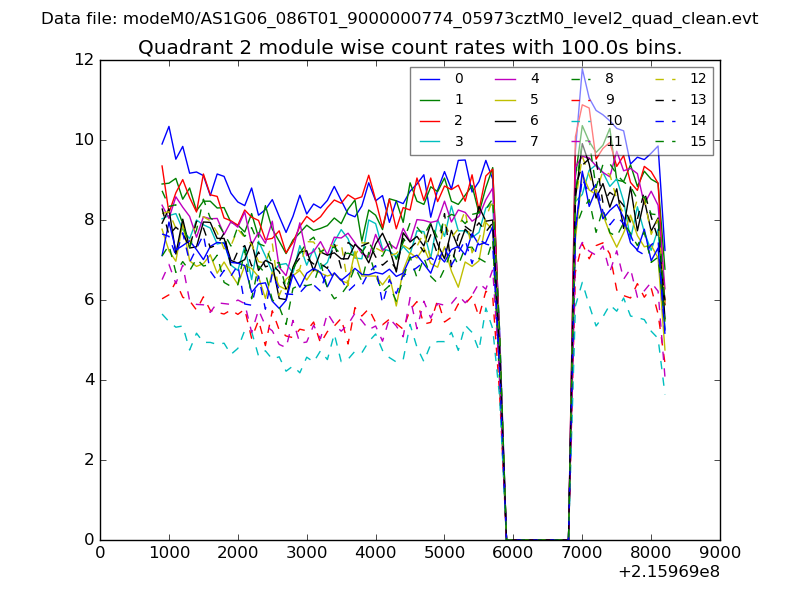

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

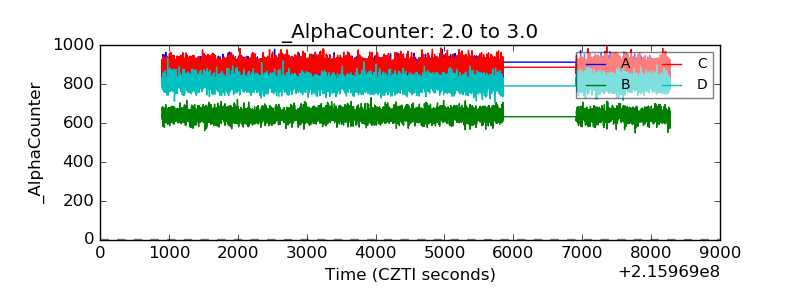

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

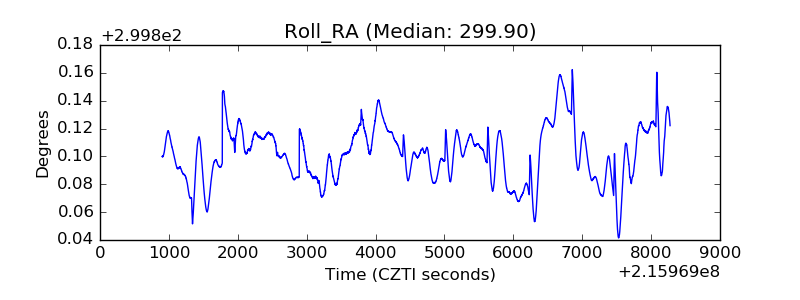

| _Roll_RA |  |

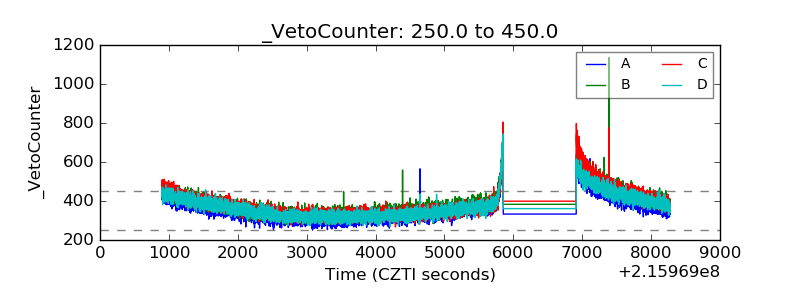

| Veto Counter |  |
