| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_05977cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_05977cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,193,920 | 117,930,240 |
| Size | 372.1 MB | 112.5 MB |
| Events in quadrant A | 2,826,904 | 784,161 |
| Events in quadrant B | 2,936,041 | 817,933 |
| Events in quadrant C | 2,831,336 | 793,766 |
| Events in quadrant D | 2,804,564 | 747,056 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12753 | 3 |
| B | 0 | 12938 | 2 |
| C | 0 | 12699 | 4 |
| D | 0 | 12840 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6146 | 24 | 0.390498% |
| B | 6146 | 23 | 0.374227% |
| C | 6145 | 18 | 0.292921% |
| D | 6146 | 16 | 0.260332% |

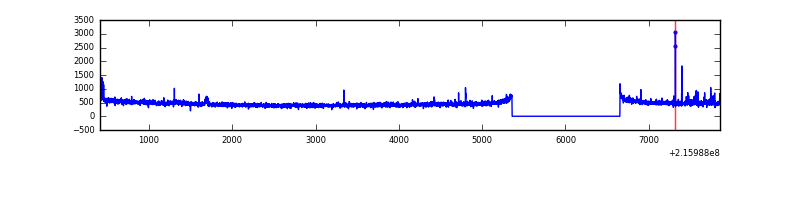

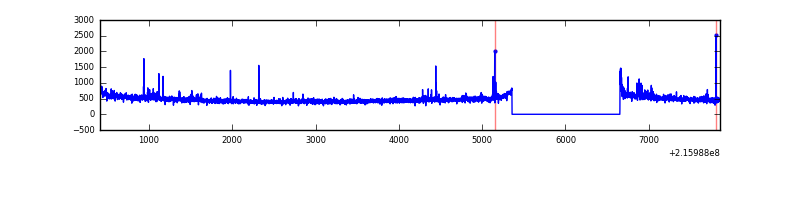

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7441 | 6147 | 4 | 4 | 0.05% | 0.07% |  |
| B | 7441 | 6147 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7441 | 6147 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7441 | 6147 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 25568 | 174.22 | 708 | 694 | 142.8 |
| A | 8 | 192 | 20923 | 141.69 | 708 | 694 | 142.8 |
| A | 4 | 2 | 16750 | 112.46 | 708 | 694 | 142.8 |
| B | 0 | 214 | 34775 | 249.63 | 729 | 712 | 136.5 |
| B | 0 | 219 | 24019 | 170.8 | 729 | 712 | 136.5 |
| B | 4 | 81 | 21339 | 151.16 | 729 | 712 | 136.5 |
| C | 1 | 16 | 48624 | 295.9 | 703 | 707 | 161.9 |
| C | 14 | 206 | 14168 | 83.13 | 703 | 707 | 161.9 |
| C | 9 | 54 | 12933 | 75.5 | 703 | 707 | 161.9 |
| D | 8 | 195 | 39750 | 231.6 | 692 | 669 | 168.7 |
| D | 2 | 63 | 36744 | 213.78 | 692 | 669 | 168.7 |
| D | 2 | 14 | 26211 | 151.36 | 692 | 669 | 168.7 |

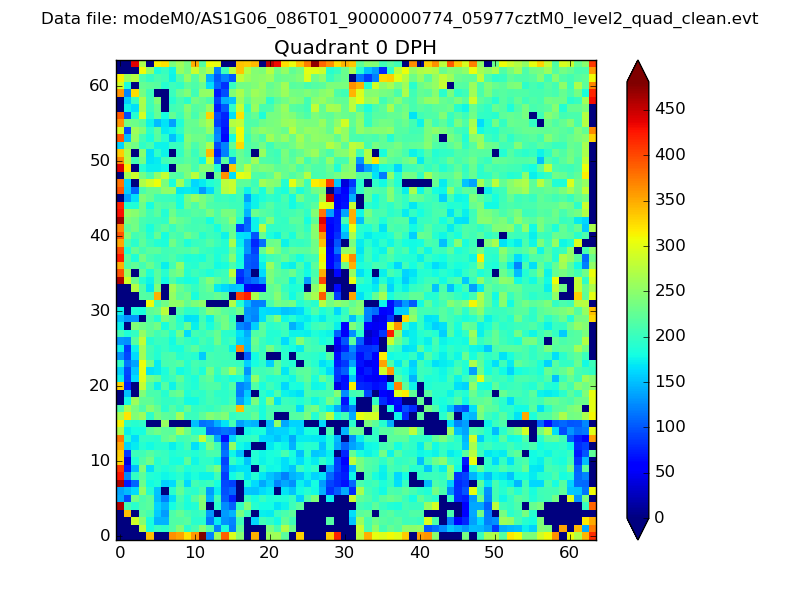

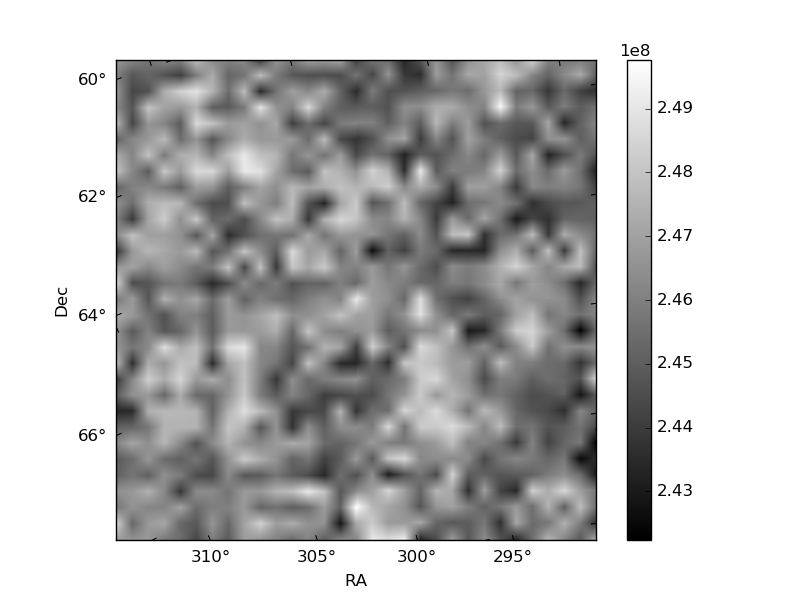

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

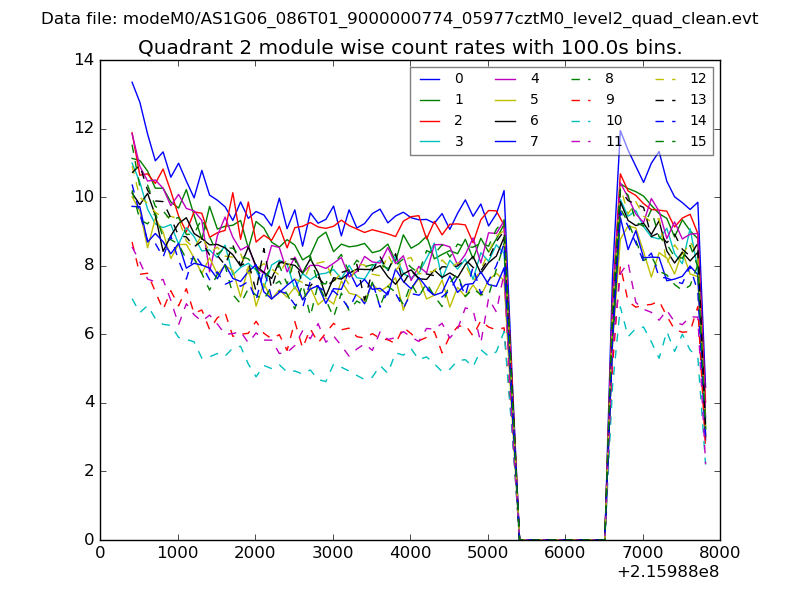

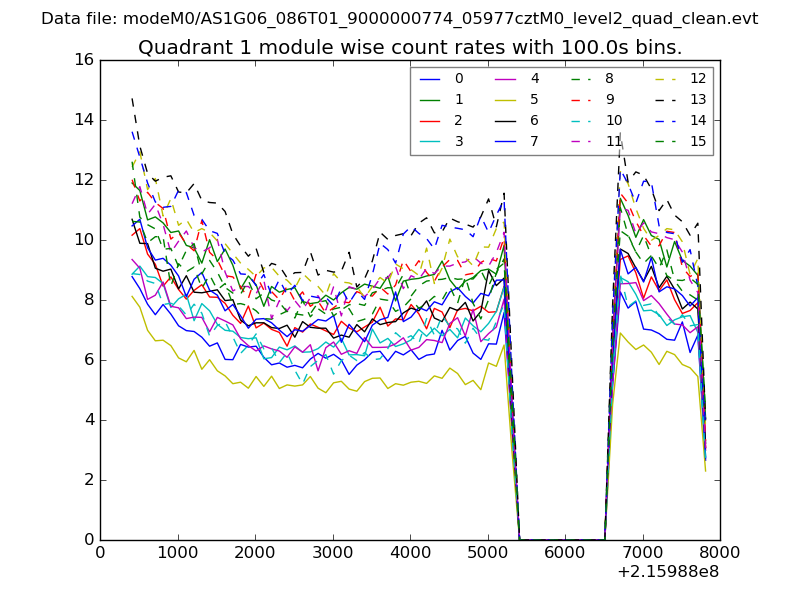

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

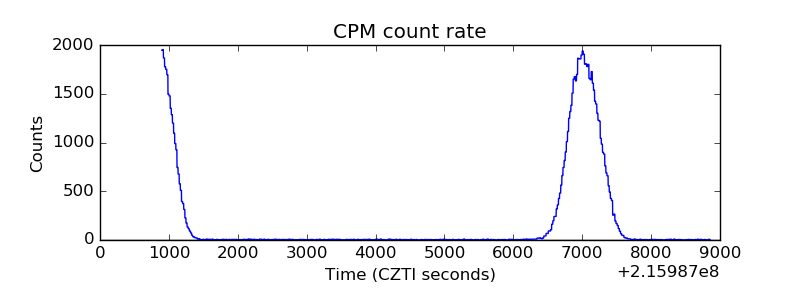

| _CPM_Rate |  |

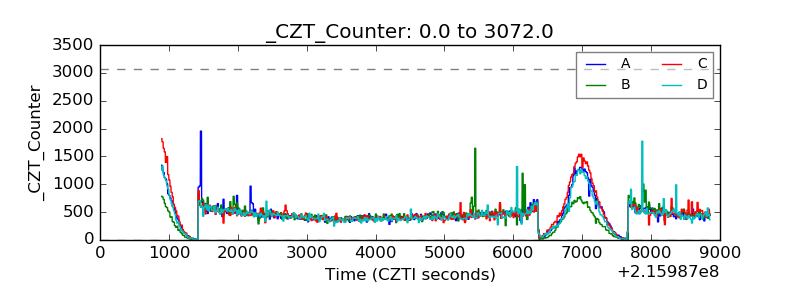

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
