| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_05981cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_05981cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,374,400 | 123,197,760 |
| Size | 412.3 MB | 117.5 MB |
| Events in quadrant A | 3,128,146 | 815,741 |
| Events in quadrant B | 3,428,234 | 835,199 |
| Events in quadrant C | 3,033,355 | 816,615 |
| Events in quadrant D | 3,026,412 | 774,626 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 8 |
| B | 0 | 150 | 6 |
| C | 0 | 150 | 10 |
| D | 0 | 150 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 1 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15311 | 822 |
| B | 0 | 15673 | 824 |
| C | 0 | 15074 | 764 |
| D | 0 | 15254 | 804 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7011 | 95 | 1.355014% |
| B | 7013 | 109 | 1.554256% |
| C | 7020 | 34 | 0.484330% |
| D | 7015 | 36 | 0.513186% |

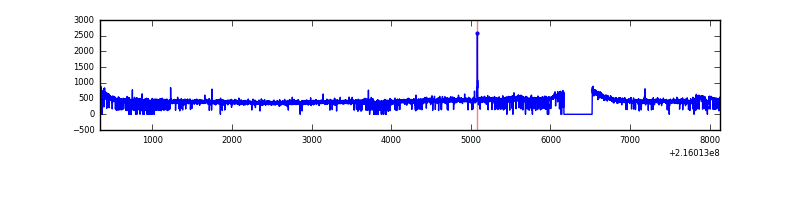

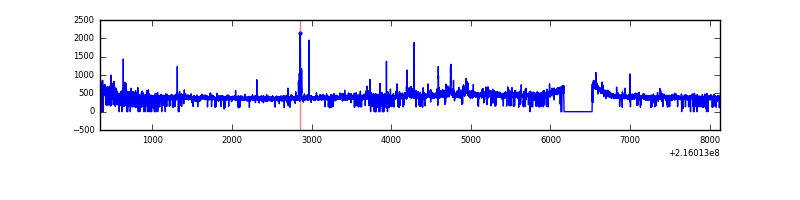

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7785 | 7341 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7785 | 7348 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7785 | 7341 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7785 | 7340 | 1 | 1 | 0.01% | 0.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 77220 | 475.61 | 783 | 767 | 160.7 |
| A | 14 | 111 | 16630 | 98.68 | 783 | 767 | 160.7 |
| A | 15 | 234 | 14198 | 83.55 | 783 | 767 | 160.7 |
| B | 15 | 204 | 179965 | 1179.63 | 796 | 777 | 151.9 |
| B | 0 | 219 | 54896 | 356.28 | 796 | 777 | 151.9 |
| B | 4 | 81 | 38468 | 248.13 | 796 | 777 | 151.9 |
| C | 14 | 206 | 29126 | 160.78 | 765 | 767 | 176.4 |
| C | 9 | 54 | 11031 | 58.19 | 765 | 767 | 176.4 |
| C | 13 | 61 | 5976 | 29.53 | 765 | 767 | 176.4 |
| D | 1 | 239 | 73390 | 391.68 | 756 | 730 | 185.5 |
| D | 8 | 195 | 36640 | 193.58 | 756 | 730 | 185.5 |
| D | 2 | 33 | 20562 | 106.91 | 756 | 730 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

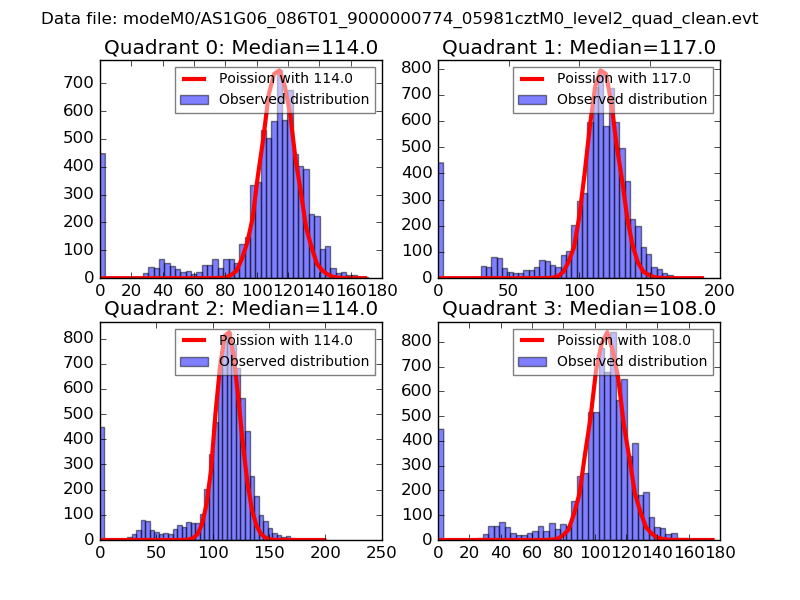

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

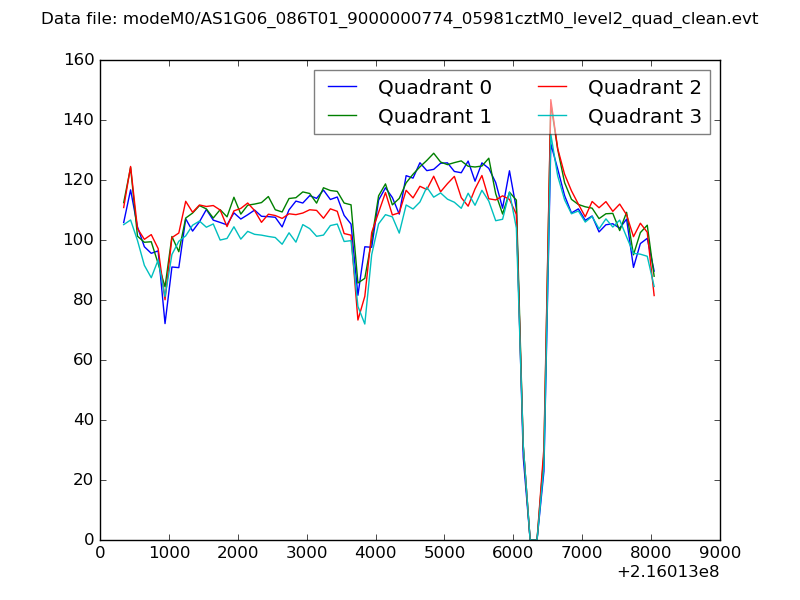

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

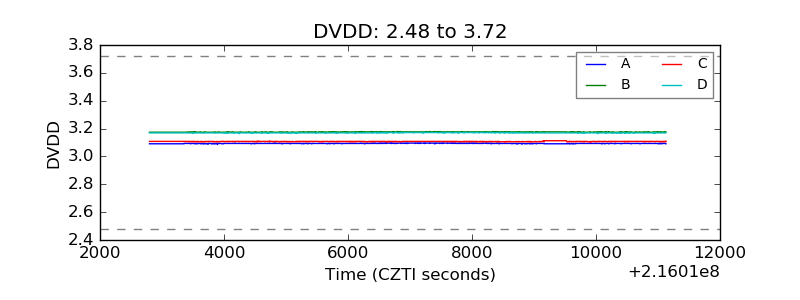

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

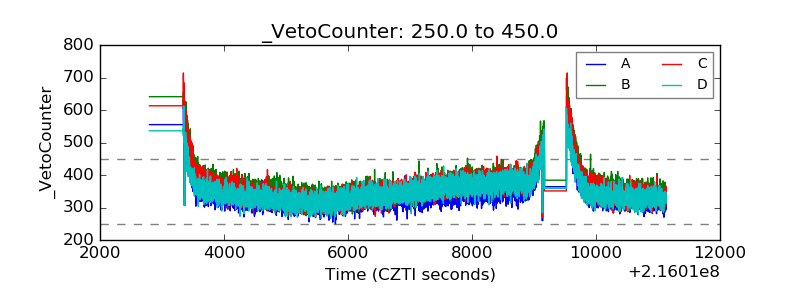

| Veto Counter |  |
