| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_05990cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_05990cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,482,848,000 | 510,076,800 |
| Size | 2.3 GB | 486.4 MB |
| Events in quadrant A | 27,415,959 | 3,162,696 |
| Events in quadrant B | 14,367,827 | 3,565,308 |
| Events in quadrant C | 17,397,381 | 3,386,838 |
| Events in quadrant D | 14,001,842 | 3,285,274 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 606 | 0 |
| B | 0 | 606 | 0 |
| C | 0 | 606 | 0 |
| D | 0 | 606 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102550 | 6 |
| B | 0 | 62803 | 5 |
| C | 0 | 73630 | 5 |
| D | 0 | 64022 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29806 | 6359 | 21.334631% |
| B | 29806 | 348 | 1.167550% |
| C | 29806 | 677 | 2.271355% |
| D | 29806 | 422 | 1.415822% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32876 | 29808 | 5266 | 5266 | 16.02% | 17.67% |  |
| B | 32876 | 29813 | 28 | 28 | 0.09% | 0.09% |  |
| C | 32876 | 29812 | 381 | 381 | 1.16% | 1.28% |  |
| D | 32876 | 29810 | 97 | 97 | 0.30% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 15278519 | 24378.22 | 3091 | 3021 | 626.6 |
| A | 15 | 236 | 74037 | 113.33 | 3091 | 3021 | 626.6 |
| A | 7 | 16 | 70400 | 107.53 | 3091 | 3021 | 626.6 |
| B | 15 | 204 | 334929 | 513.39 | 3398 | 3316 | 645.9 |
| B | 0 | 219 | 245705 | 375.26 | 3398 | 3316 | 645.9 |
| B | 0 | 214 | 234305 | 357.61 | 3398 | 3316 | 645.9 |
| C | 1 | 241 | 4480097 | 5978.36 | 3247 | 3255 | 748.8 |
| C | 9 | 54 | 177641 | 232.87 | 3247 | 3255 | 748.8 |
| C | 1 | 16 | 30478 | 36.35 | 3247 | 3255 | 748.8 |
| D | 12 | 110 | 654725 | 820.97 | 3259 | 3151 | 793.7 |
| D | 2 | 63 | 331019 | 413.11 | 3259 | 3151 | 793.7 |
| D | 1 | 239 | 309468 | 385.95 | 3259 | 3151 | 793.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

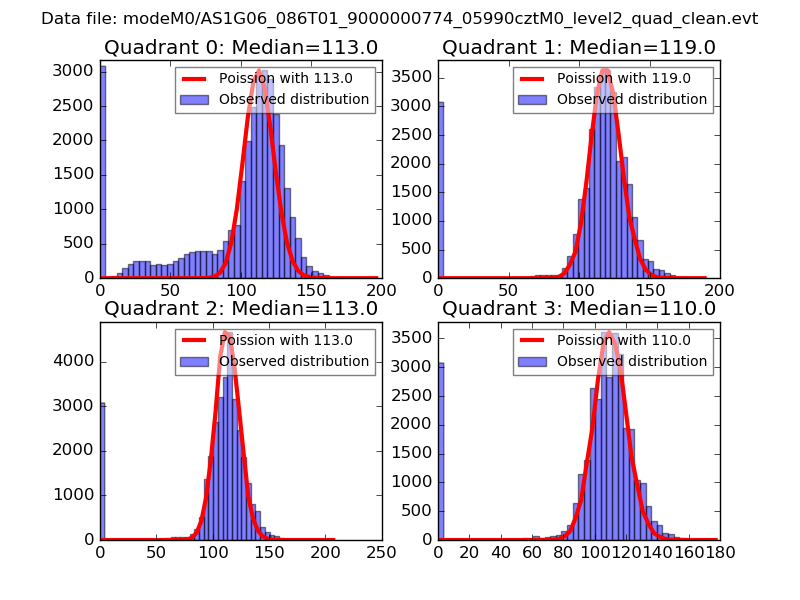

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

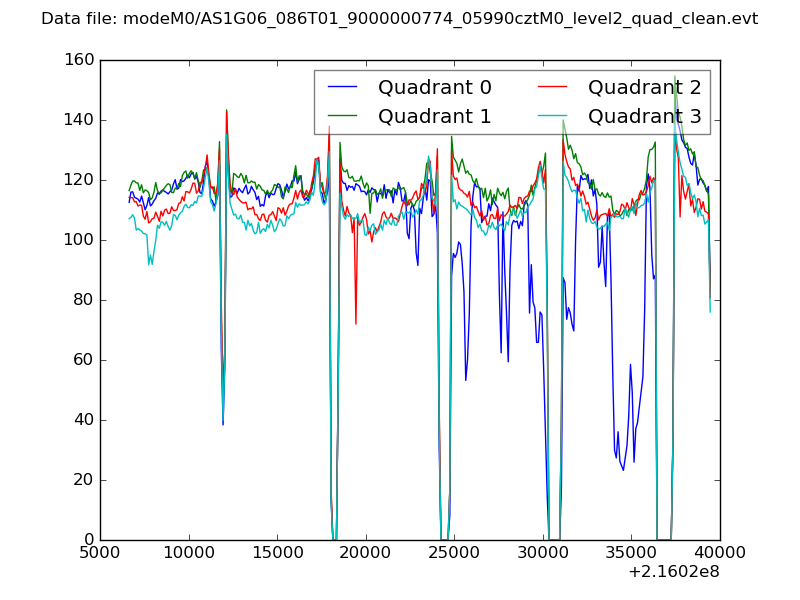

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

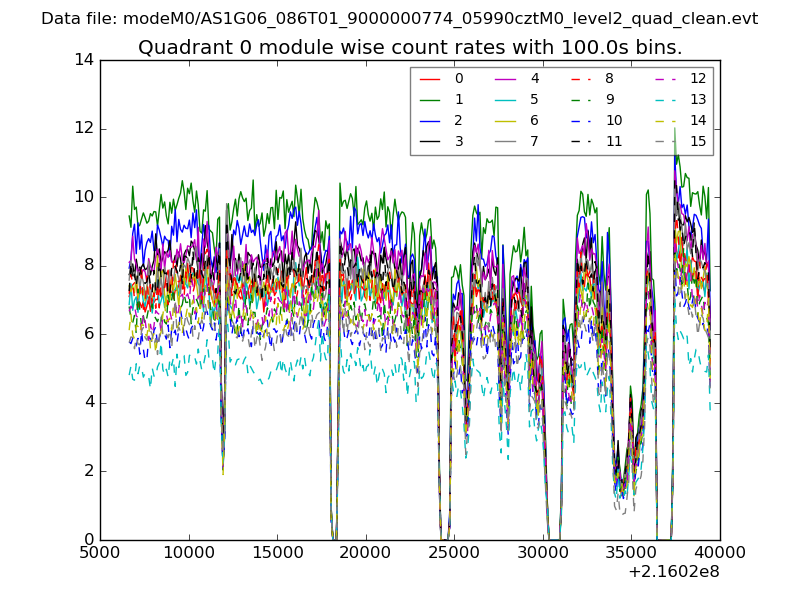

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

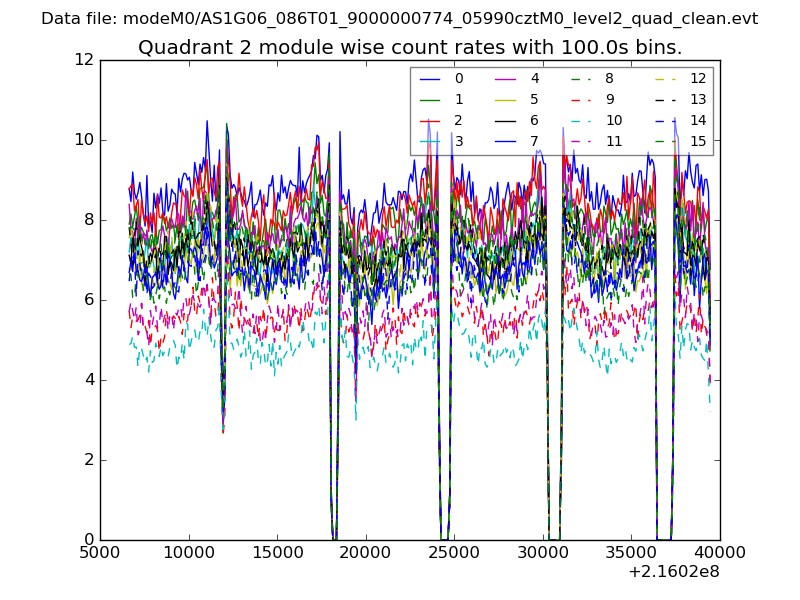

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

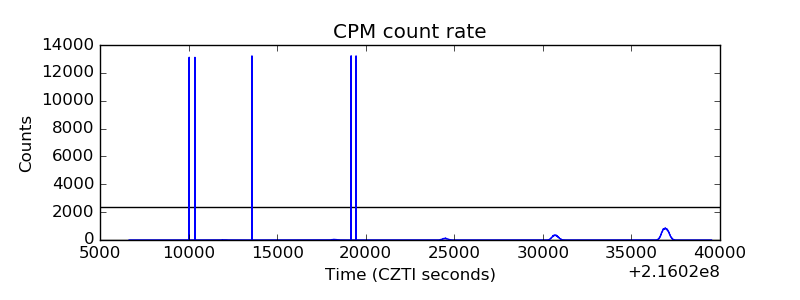

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

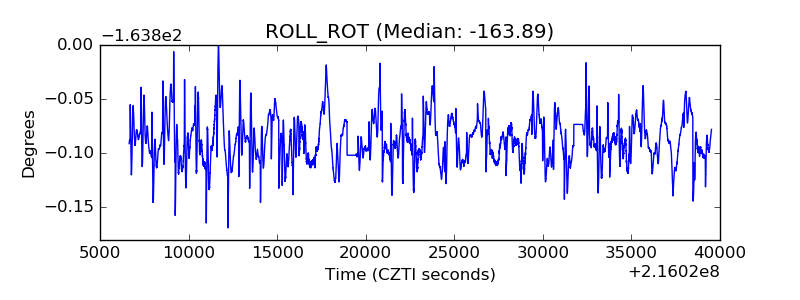

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
