| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_06005cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_06005cztM0_level2_quad_clean.evt |
| Size (bytes) | 398,684,160 | 118,664,640 |
| Size | 380.2 MB | 113.2 MB |
| Events in quadrant A | 2,927,124 | 794,885 |
| Events in quadrant B | 3,112,720 | 816,608 |
| Events in quadrant C | 2,814,216 | 799,546 |
| Events in quadrant D | 2,805,116 | 757,351 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 2 |
| B | 0 | 126 | 2 |
| C | 0 | 126 | 2 |
| D | 0 | 126 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13163 | 229 |
| B | 0 | 13701 | 273 |
| C | 0 | 12814 | 245 |
| D | 0 | 12985 | 234 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6107 | 33 | 0.540364% |
| B | 6094 | 43 | 0.705612% |
| C | 6098 | 28 | 0.459167% |
| D | 6104 | 34 | 0.557012% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6161 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7444 | 6151 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7445 | 6153 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7445 | 6148 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 116591 | 803.32 | 717 | 701 | 144.3 |
| A | 13 | 251 | 30631 | 207.47 | 717 | 701 | 144.3 |
| A | 4 | 2 | 13867 | 91.26 | 717 | 701 | 144.3 |
| B | 15 | 204 | 105250 | 766.0 | 730 | 715 | 136.5 |
| B | 0 | 219 | 77942 | 565.9 | 730 | 715 | 136.5 |
| B | 4 | 48 | 57246 | 414.24 | 730 | 715 | 136.5 |
| C | 1 | 16 | 21496 | 128.26 | 712 | 716 | 162.0 |
| C | 13 | 61 | 5703 | 30.78 | 712 | 716 | 162.0 |
| C | 12 | 4 | 4142 | 21.15 | 712 | 716 | 162.0 |
| D | 8 | 195 | 32066 | 184.22 | 705 | 684 | 170.4 |
| D | 2 | 14 | 26064 | 148.99 | 705 | 684 | 170.4 |
| D | 5 | 97 | 21465 | 121.99 | 705 | 684 | 170.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

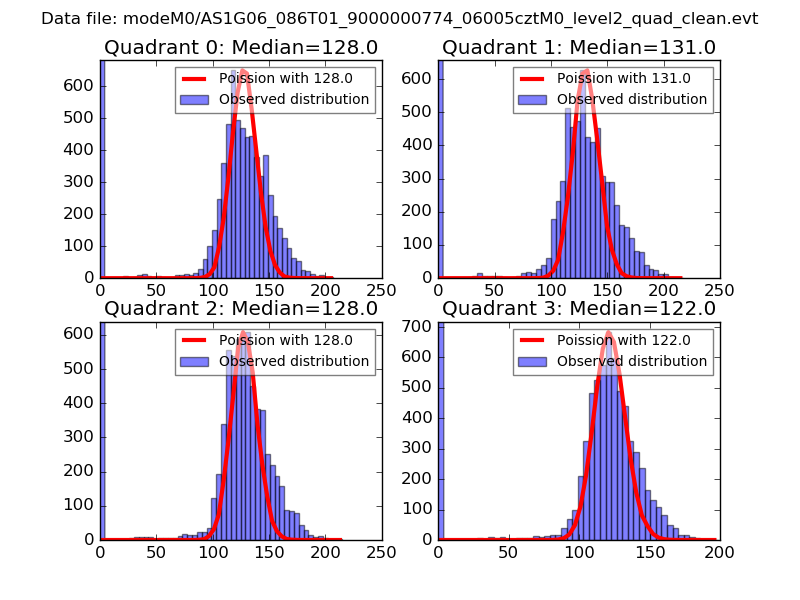

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

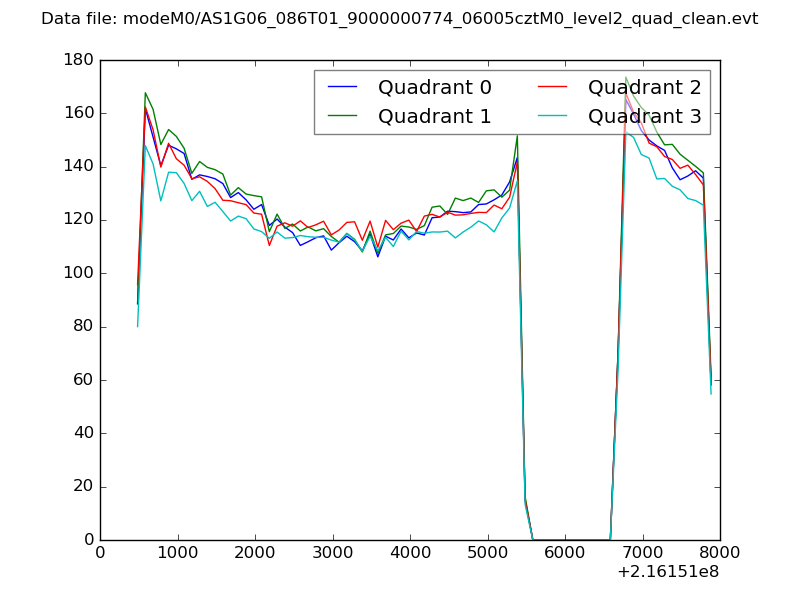

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

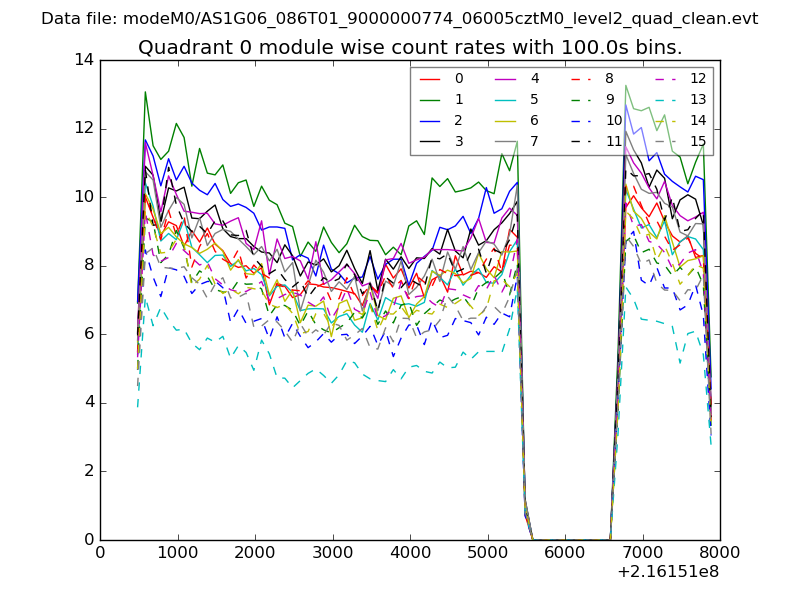

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

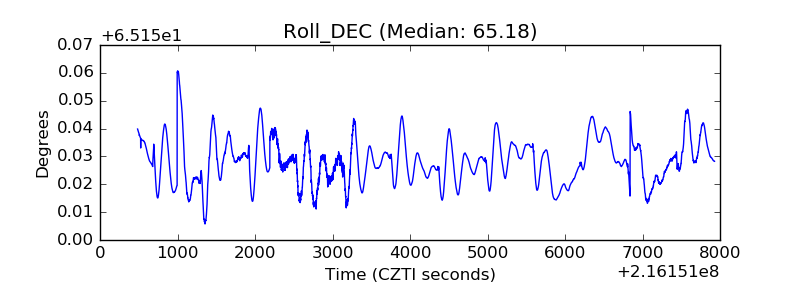

| _Roll_DEC |  |

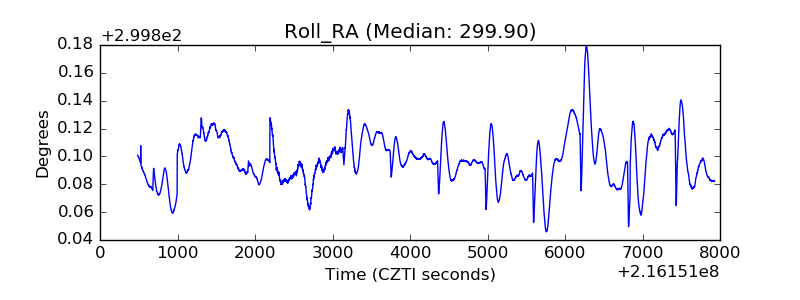

| _Roll_RA |  |
| Veto Counter |  |
