| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T01_9000000774_06006cztM0_level2.evt | modeM0/AS1G06_086T01_9000000774_06006cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,433,920 | 120,772,800 |
| Size | 383.8 MB | 115.2 MB |
| Events in quadrant A | 2,987,642 | 806,417 |
| Events in quadrant B | 3,119,329 | 836,066 |
| Events in quadrant C | 2,859,502 | 815,026 |
| Events in quadrant D | 2,800,530 | 768,963 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13174 | 22 |
| B | 0 | 13498 | 17 |
| C | 0 | 12747 | 15 |
| D | 0 | 12861 | 12 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6179 | 33 | 0.534067% |
| B | 6181 | 36 | 0.582430% |
| C | 6181 | 27 | 0.436823% |
| D | 6182 | 34 | 0.549984% |

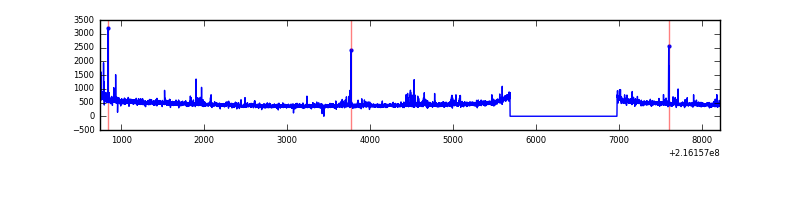

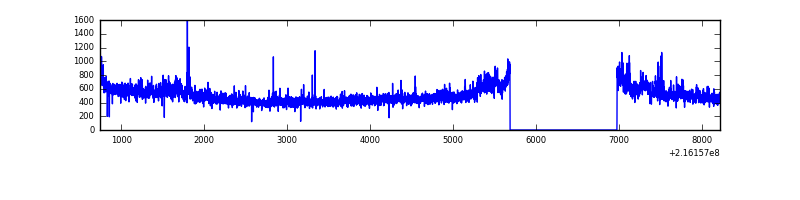

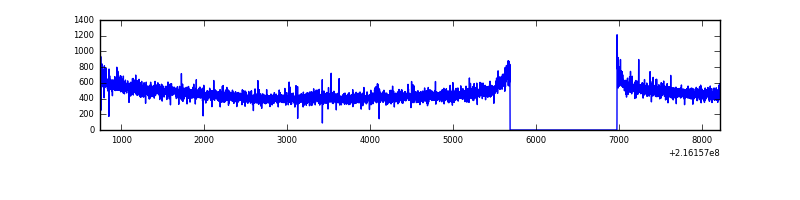

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7477 | 6188 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7477 | 6188 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7477 | 6188 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7477 | 6187 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 164403 | 1113.47 | 724 | 708 | 147.0 |
| A | 13 | 251 | 20800 | 136.67 | 724 | 708 | 147.0 |
| A | 15 | 236 | 11142 | 70.97 | 724 | 708 | 147.0 |
| B | 0 | 219 | 111386 | 792.26 | 743 | 726 | 139.7 |
| B | 15 | 204 | 78669 | 558.03 | 743 | 726 | 139.7 |
| B | 0 | 214 | 26318 | 183.22 | 743 | 726 | 139.7 |
| C | 1 | 16 | 19284 | 111.47 | 722 | 726 | 166.5 |
| C | 1 | 241 | 18236 | 105.17 | 722 | 726 | 166.5 |
| C | 13 | 61 | 5762 | 30.25 | 722 | 726 | 166.5 |
| D | 8 | 195 | 29987 | 168.41 | 712 | 688 | 174.0 |
| D | 13 | 105 | 28018 | 157.09 | 712 | 688 | 174.0 |
| D | 5 | 97 | 22938 | 127.89 | 712 | 688 | 174.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

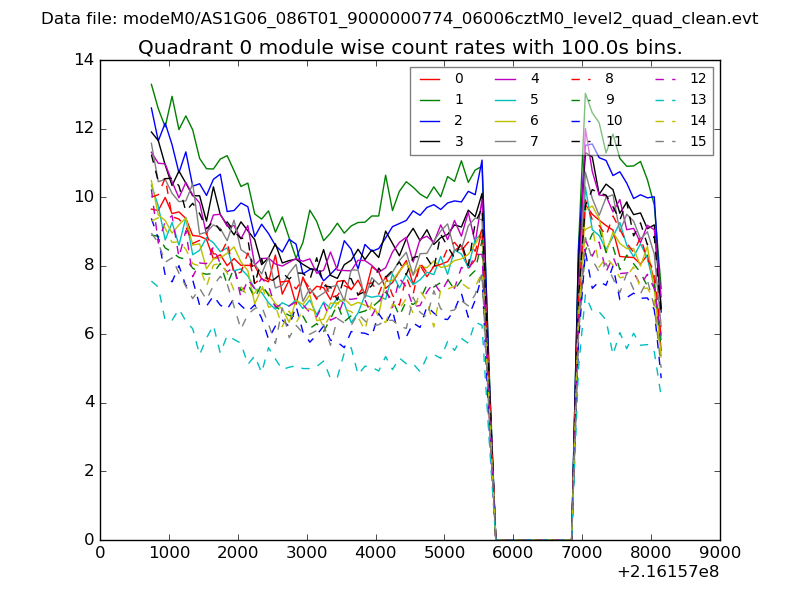

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

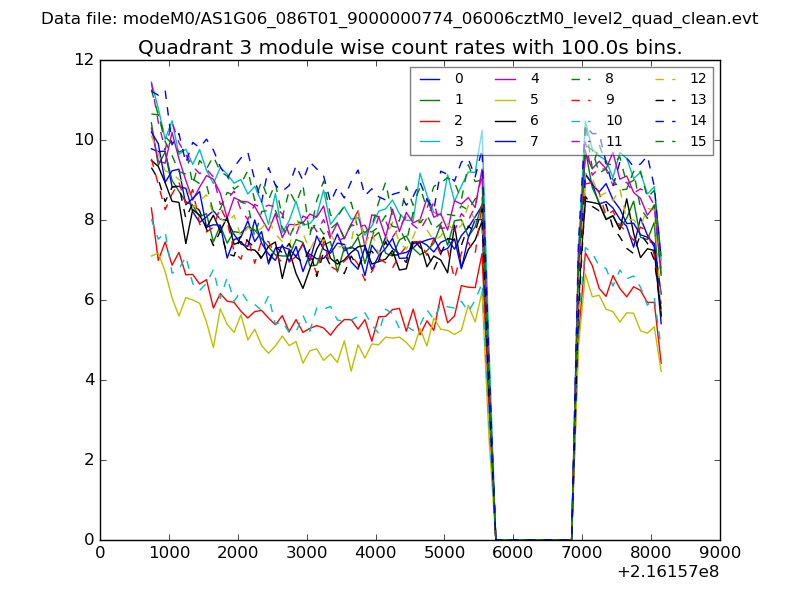

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

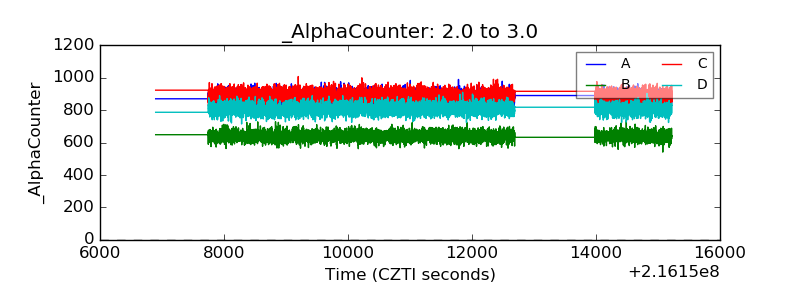

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

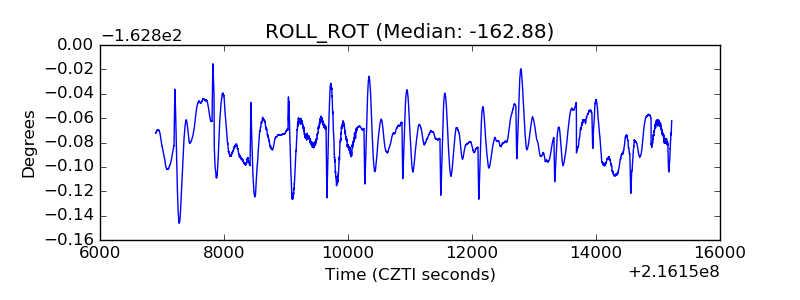

| _ROLL_ROT |  |

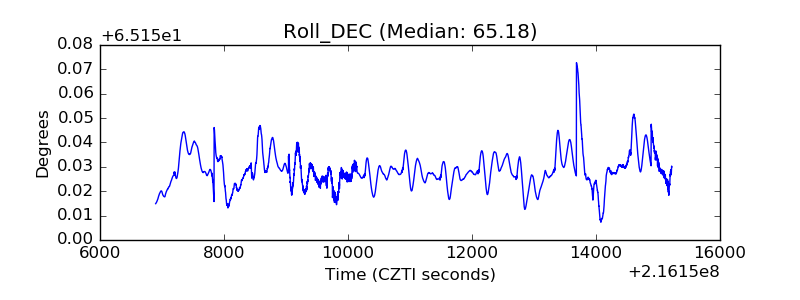

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
