| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_006T01_9000000776_06020cztM0_level2.evt | modeM0/AS1A02_006T01_9000000776_06020cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,048,960 | 99,259,200 |
| Size | 446.4 MB | 94.7 MB |
| Events in quadrant A | 3,981,409 | 642,907 |
| Events in quadrant B | 3,459,847 | 674,733 |
| Events in quadrant C | 3,453,550 | 628,951 |
| Events in quadrant D | 2,846,222 | 613,789 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16064 | 2 |
| B | 0 | 14343 | 1 |
| C | 0 | 14709 | 1 |
| D | 0 | 13152 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6393 | 65 | 1.016737% |
| B | 6393 | 65 | 1.016737% |
| C | 6393 | 222 | 3.472548% |
| D | 6393 | 21 | 0.328484% |

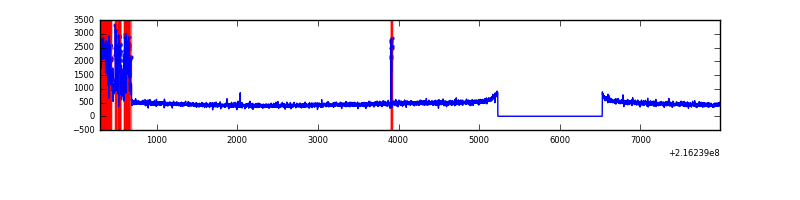

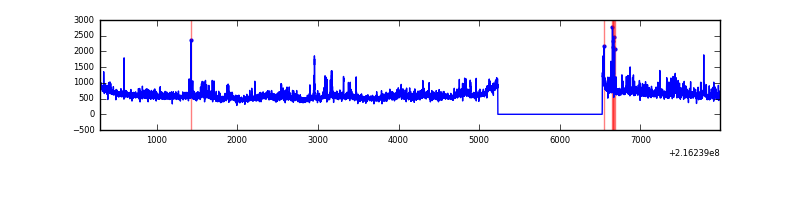

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7688 | 6394 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7688 | 6394 | 27 | 27 | 0.35% | 0.42% |  |
| C | 7688 | 6394 | 195 | 195 | 2.54% | 3.05% |  |
| D | 7688 | 6394 | 11 | 11 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 812076 | 5175.0 | 767 | 754 | 156.8 |
| A | 15 | 236 | 185948 | 1181.26 | 767 | 754 | 156.8 |
| A | 4 | 2 | 23746 | 146.65 | 767 | 754 | 156.8 |
| B | 3 | 64 | 212752 | 1422.74 | 783 | 765 | 149.0 |
| B | 15 | 204 | 61087 | 404.85 | 783 | 765 | 149.0 |
| B | 0 | 219 | 54733 | 362.2 | 783 | 765 | 149.0 |
| C | 1 | 241 | 558130 | 3276.32 | 734 | 740 | 170.1 |
| C | 9 | 54 | 22559 | 128.25 | 734 | 740 | 170.1 |
| C | 13 | 61 | 5854 | 30.06 | 734 | 740 | 170.1 |
| D | 5 | 97 | 36775 | 201.2 | 734 | 710 | 179.3 |
| D | 2 | 206 | 32811 | 179.08 | 734 | 710 | 179.3 |
| D | 8 | 195 | 11135 | 58.16 | 734 | 710 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

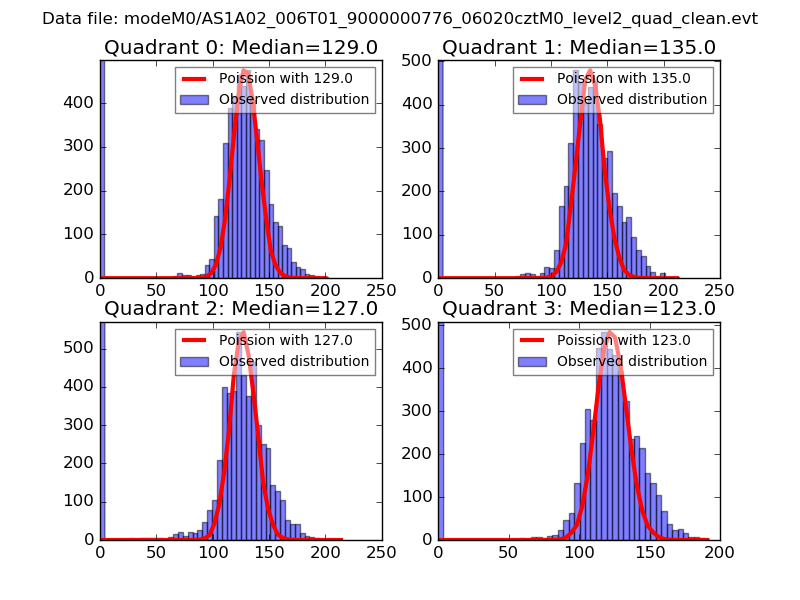

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

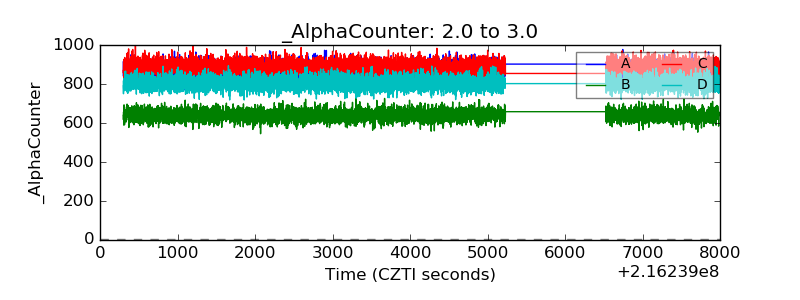

| Alpha Counter |  |

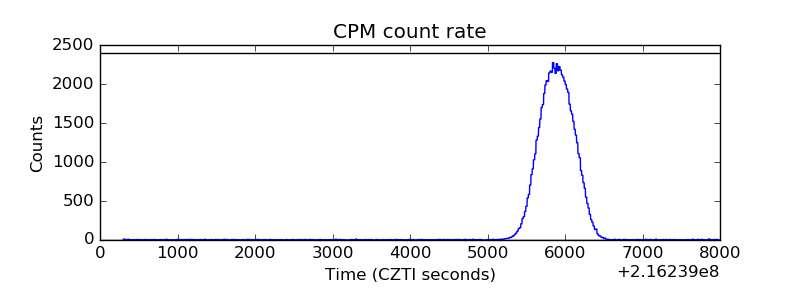

| _CPM_Rate |  |

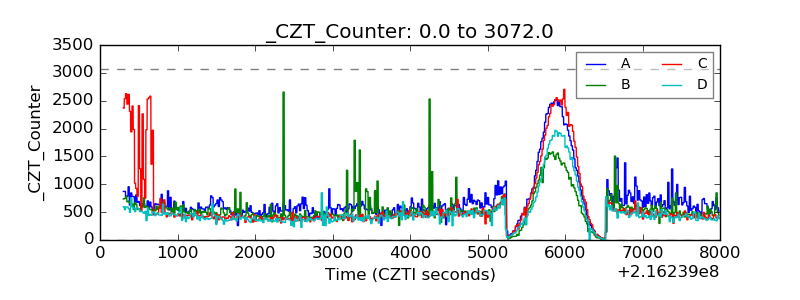

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

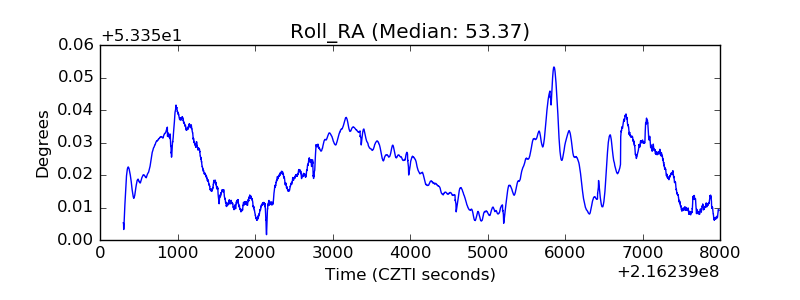

| _Roll_RA |  |
| Veto Counter |  |
