| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T01_9000000778_06053cztM0_level2.evt | modeM0/AS1A02_090T01_9000000778_06053cztM0_level2_quad_clean.evt |
| Size (bytes) | 162,812,160 | 38,177,280 |
| Size | 155.3 MB | 36.4 MB |
| Events in quadrant A | 1,246,022 | 239,648 |
| Events in quadrant B | 1,218,793 | 245,487 |
| Events in quadrant C | 1,134,818 | 243,308 |
| Events in quadrant D | 1,140,601 | 229,705 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5580 | 4 |
| B | 0 | 5621 | 4 |
| C | 0 | 5526 | 2 |
| D | 0 | 5573 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2759 | 3 | 0.108735% |
| B | 2759 | 7 | 0.253715% |
| C | 2760 | 0 | 0.000000% |
| D | 2761 | 1 | 0.036219% |

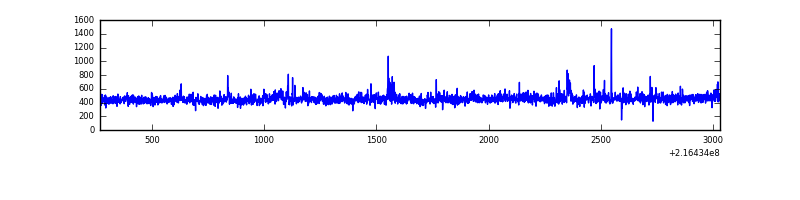

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2761 | 2761 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2761 | 2761 | 8 | 8 | 0.29% | 0.29% |  |
| C | 2761 | 2761 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2761 | 2761 | 1 | 1 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 83736 | 1314.92 | 300 | 293 | 63.5 |
| A | 7 | 16 | 9277 | 141.57 | 300 | 293 | 63.5 |
| A | 0 | 226 | 2821 | 39.84 | 300 | 293 | 63.5 |
| B | 3 | 64 | 22367 | 371.47 | 302 | 296 | 59.4 |
| B | 4 | 48 | 17721 | 293.27 | 302 | 296 | 59.4 |
| B | 12 | 111 | 5573 | 88.82 | 302 | 296 | 59.4 |
| C | 13 | 61 | 2360 | 29.82 | 290 | 293 | 69.3 |
| C | 9 | 54 | 1187 | 12.9 | 290 | 293 | 69.3 |
| C | 1 | 16 | 892 | 8.64 | 290 | 293 | 69.3 |
| D | 8 | 195 | 16421 | 221.56 | 290 | 282 | 72.8 |
| D | 11 | 241 | 12802 | 171.88 | 290 | 282 | 72.8 |
| D | 2 | 206 | 12509 | 167.86 | 290 | 282 | 72.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

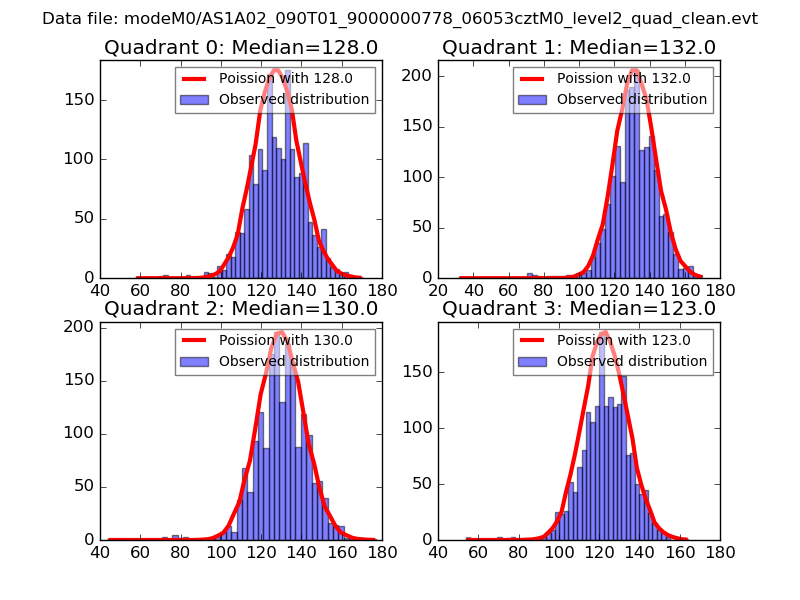

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

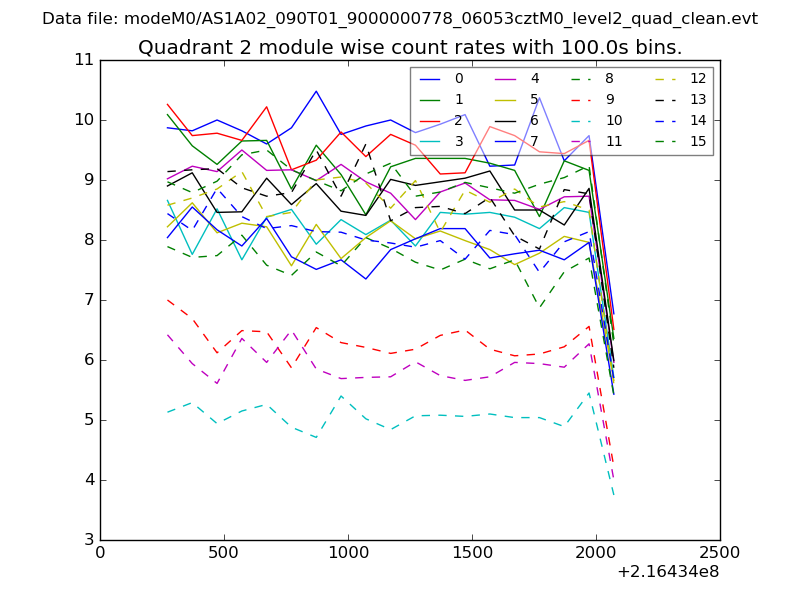

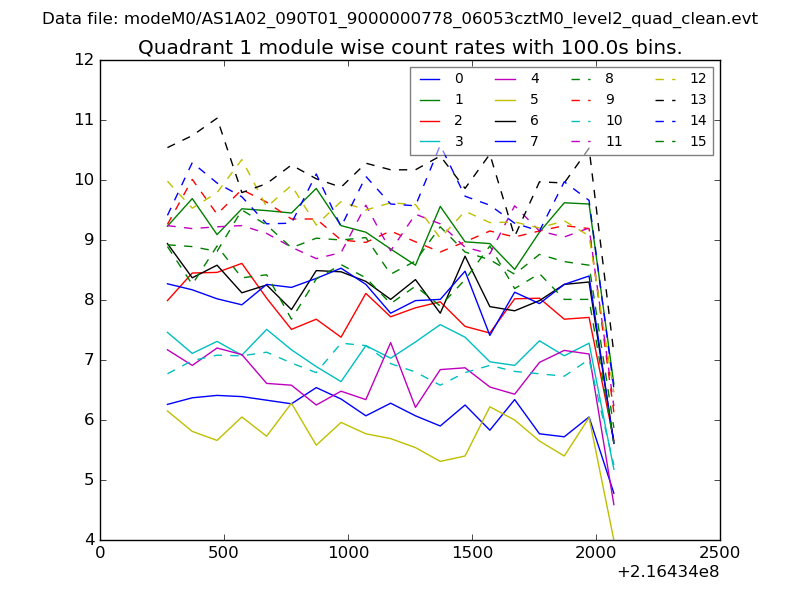

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

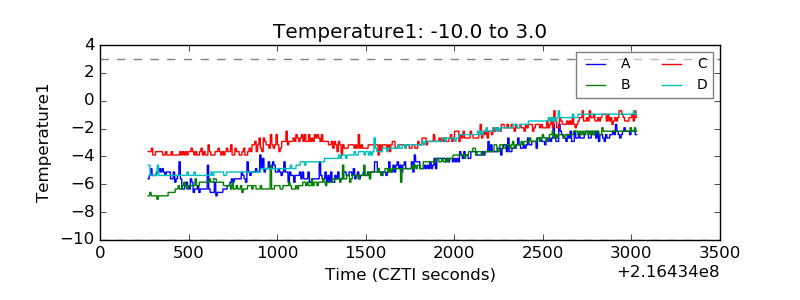

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

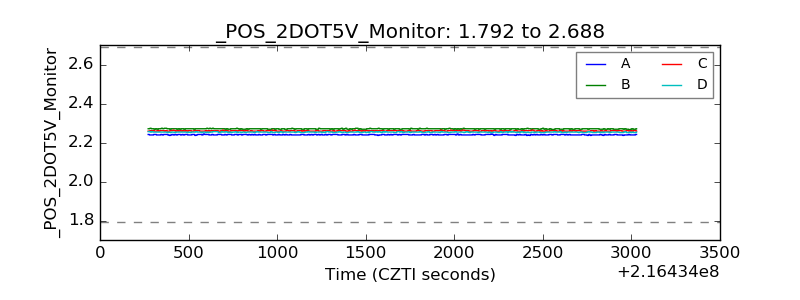

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

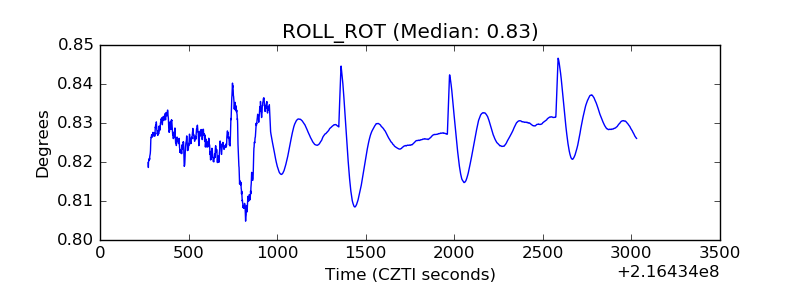

| _ROLL_ROT |  |
| _Roll_DEC |  |

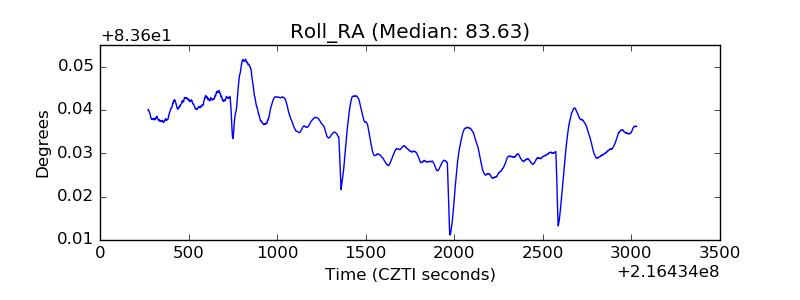

| _Roll_RA |  |
| Veto Counter |  |
