| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_130T01_9000000782_06064cztM0_level2.evt | modeM0/AS1G06_130T01_9000000782_06064cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,005,760 | 114,500,160 |
| Size | 403.4 MB | 109.2 MB |
| Events in quadrant A | 3,023,724 | 770,989 |
| Events in quadrant B | 3,586,593 | 778,756 |
| Events in quadrant C | 2,782,843 | 765,547 |
| Events in quadrant D | 3,006,581 | 730,448 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12911 | 2 |
| B | 0 | 14662 | 1 |
| C | 0 | 12618 | 1 |
| D | 0 | 13264 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6048 | 38 | 0.628307% |
| B | 6048 | 176 | 2.910053% |
| C | 6048 | 30 | 0.496032% |
| D | 6048 | 30 | 0.496032% |

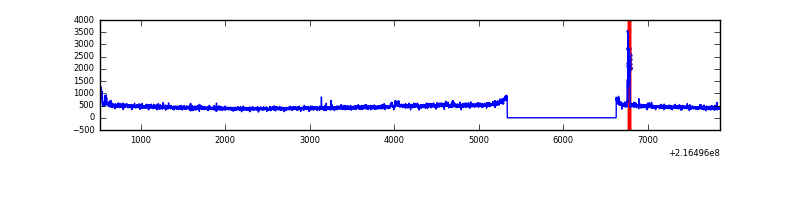

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7338 | 6049 | 7 | 7 | 0.10% | 0.12% |  |
| B | 7338 | 6049 | 103 | 103 | 1.40% | 1.70% |  |
| C | 7338 | 6049 | 21 | 21 | 0.29% | 0.35% |  |
| D | 7338 | 6049 | 12 | 12 | 0.16% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 246108 | 1722.33 | 703 | 689 | 142.5 |
| A | 4 | 2 | 57831 | 401.02 | 703 | 689 | 142.5 |
| A | 0 | 226 | 7019 | 44.42 | 703 | 689 | 142.5 |
| B | 3 | 64 | 561804 | 4204.55 | 711 | 695 | 133.5 |
| B | 4 | 81 | 103658 | 771.53 | 711 | 695 | 133.5 |
| B | 15 | 204 | 90750 | 674.81 | 711 | 695 | 133.5 |
| C | 1 | 16 | 65694 | 416.0 | 680 | 683 | 156.3 |
| C | 9 | 54 | 63575 | 402.44 | 680 | 683 | 156.3 |
| C | 13 | 61 | 5509 | 30.88 | 680 | 683 | 156.3 |
| D | 11 | 241 | 138104 | 839.6 | 673 | 652 | 163.7 |
| D | 12 | 221 | 107340 | 651.69 | 673 | 652 | 163.7 |
| D | 1 | 2 | 50878 | 306.8 | 673 | 652 | 163.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

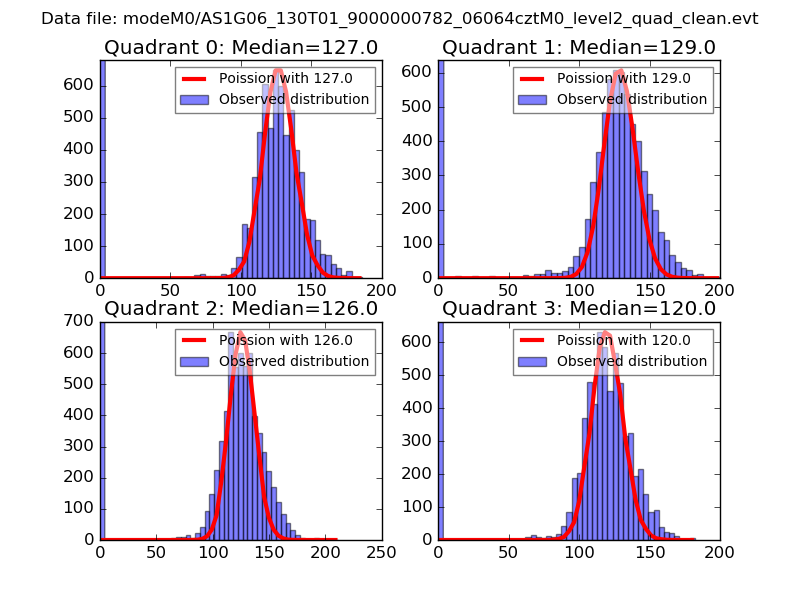

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

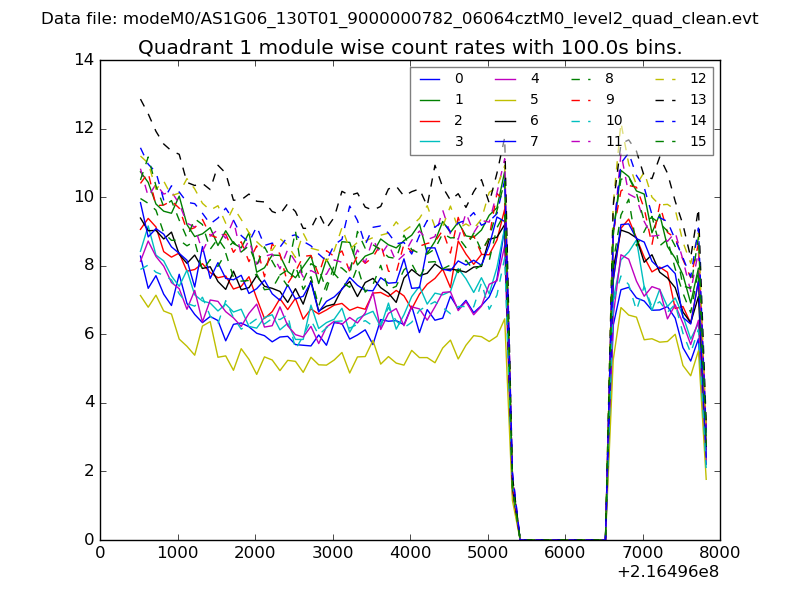

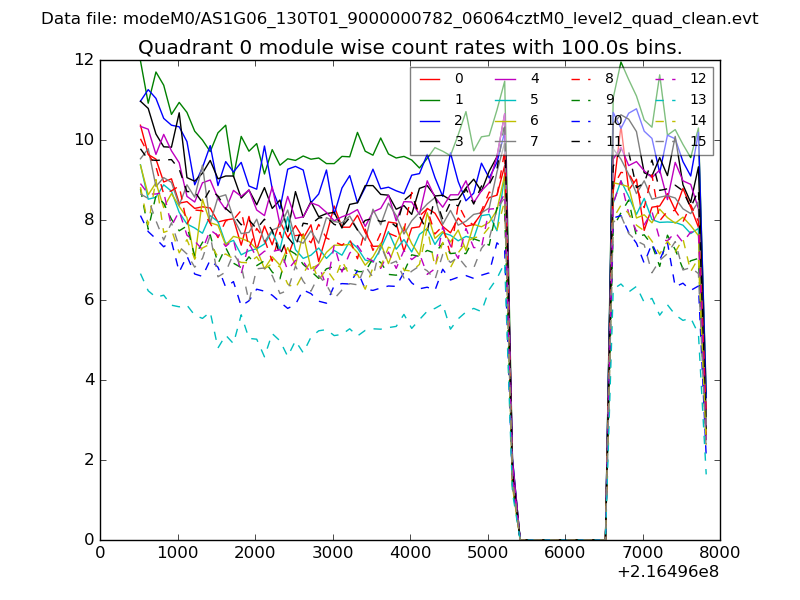

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

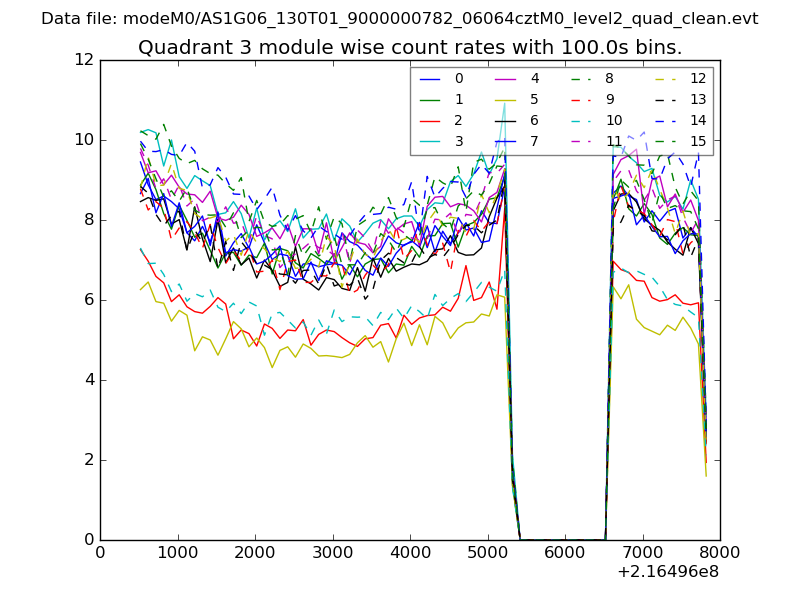

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

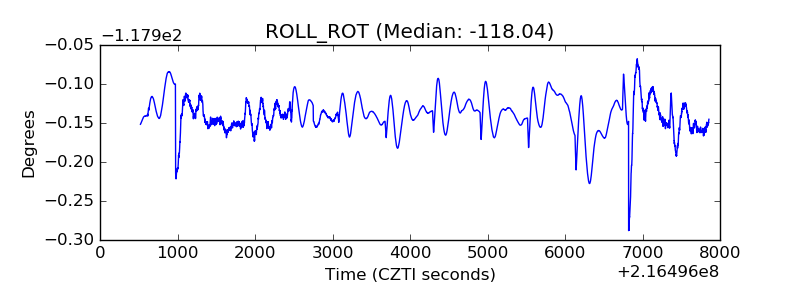

| _ROLL_ROT |  |

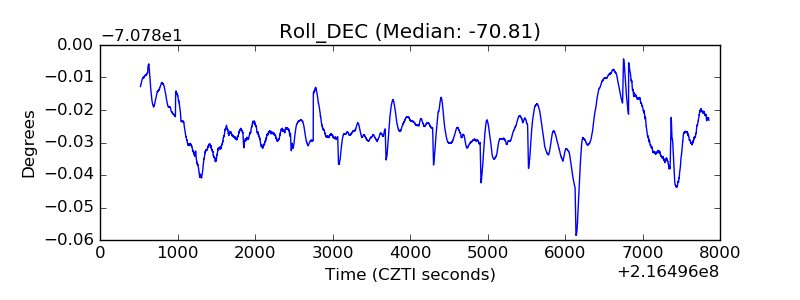

| _Roll_DEC |  |

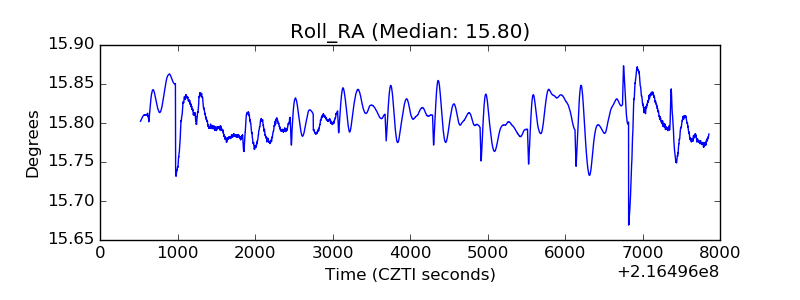

| _Roll_RA |  |
| Veto Counter |  |
