| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_130T01_9000000782_06068cztM0_level2.evt | modeM0/AS1G06_130T01_9000000782_06068cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,064,640 | 136,586,880 |
| Size | 573.2 MB | 130.3 MB |
| Events in quadrant A | 3,695,846 | 918,478 |
| Events in quadrant B | 4,318,057 | 921,837 |
| Events in quadrant C | 5,201,344 | 877,261 |
| Events in quadrant D | 4,453,440 | 871,153 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16615 | 3 |
| B | 0 | 18315 | 6 |
| C | 0 | 21247 | 2 |
| D | 0 | 18906 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7885 | 152 | 1.927711% |
| B | 7883 | 357 | 4.528733% |
| C | 7885 | 733 | 9.296132% |
| D | 7885 | 251 | 3.183259% |

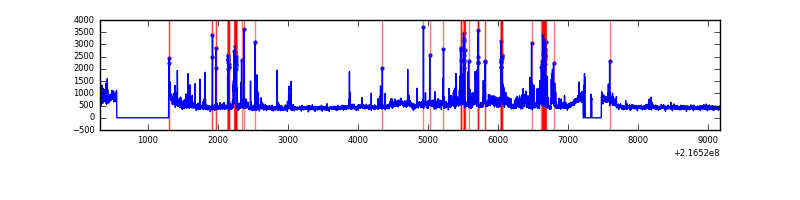

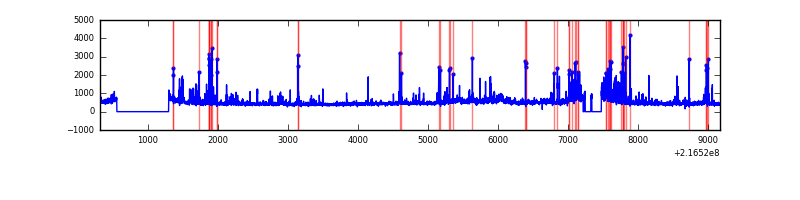

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8855 | 7889 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8855 | 7887 | 53 | 53 | 0.60% | 0.67% |  |
| C | 8855 | 7888 | 519 | 519 | 5.86% | 6.58% |  |
| D | 8855 | 7889 | 95 | 95 | 1.07% | 1.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 213289 | 1154.2 | 895 | 871 | 184.0 |
| A | 13 | 251 | 20288 | 105.5 | 895 | 871 | 184.0 |
| A | 14 | 111 | 12994 | 65.87 | 895 | 871 | 184.0 |
| B | 3 | 64 | 430373 | 2497.79 | 900 | 874 | 172.0 |
| B | 15 | 204 | 101009 | 582.34 | 900 | 874 | 172.0 |
| B | 4 | 81 | 85204 | 490.43 | 900 | 874 | 172.0 |
| C | 9 | 16 | 1744671 | 8893.74 | 848 | 849 | 196.1 |
| C | 9 | 68 | 112456 | 569.21 | 848 | 849 | 196.1 |
| C | 8 | 128 | 14521 | 69.73 | 848 | 849 | 196.1 |
| D | 12 | 221 | 275012 | 1294.45 | 866 | 835 | 211.8 |
| D | 2 | 33 | 257046 | 1209.63 | 866 | 835 | 211.8 |
| D | 13 | 169 | 218836 | 1029.23 | 866 | 835 | 211.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

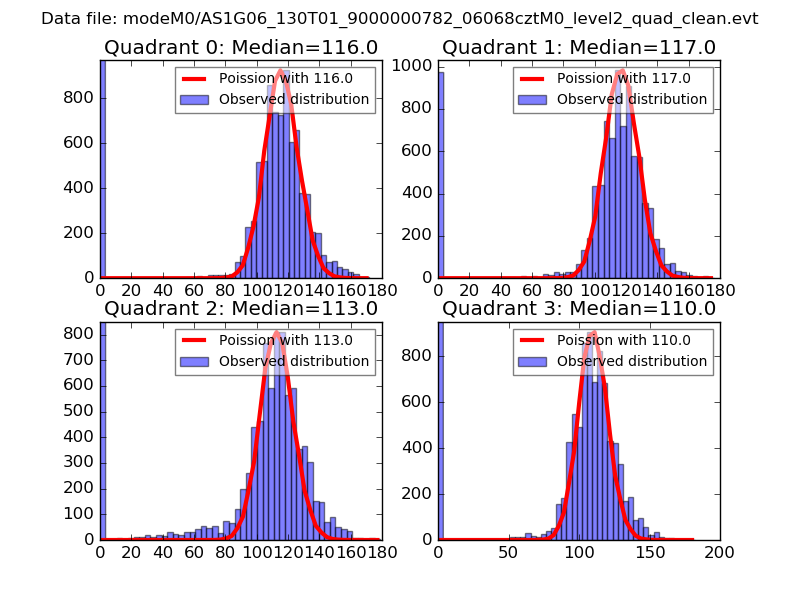

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

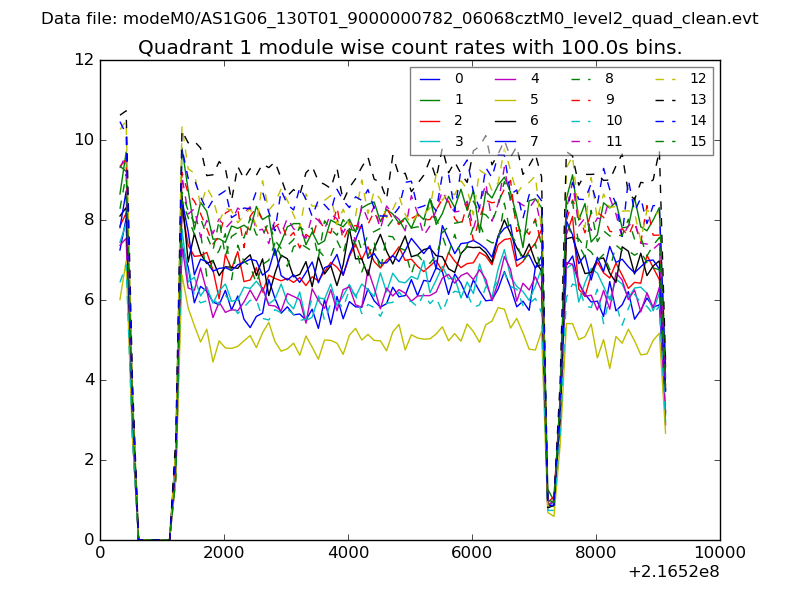

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

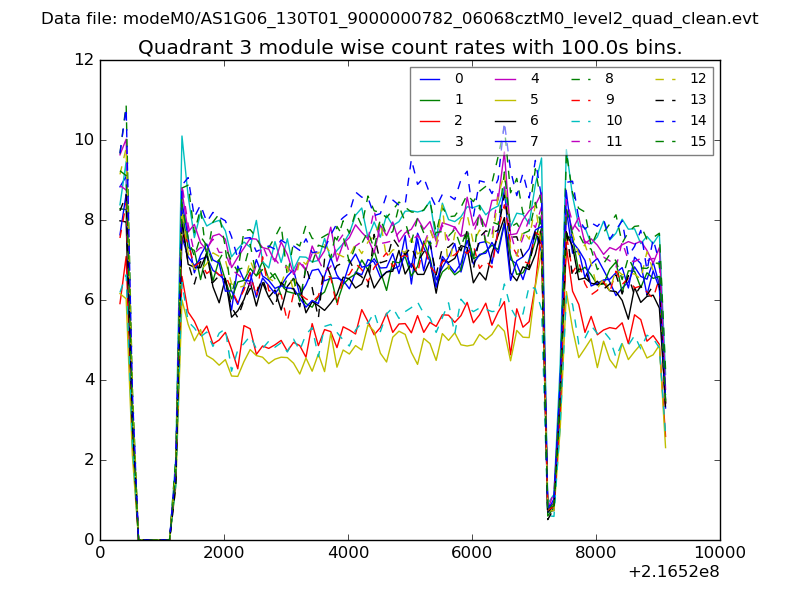

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

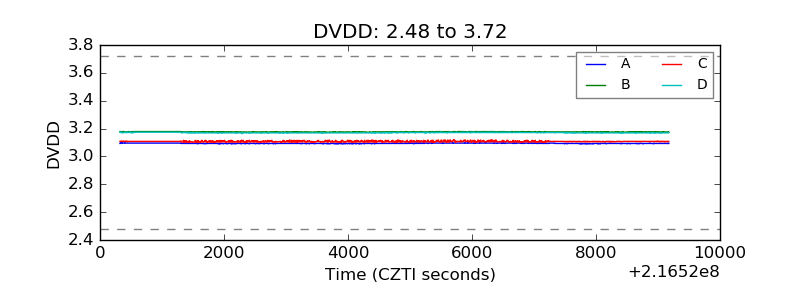

| D_VDD |  |

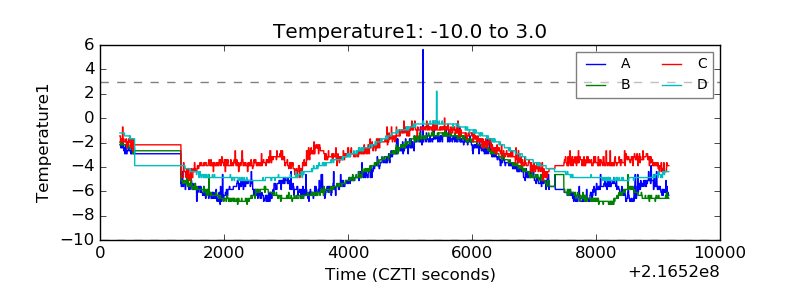

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

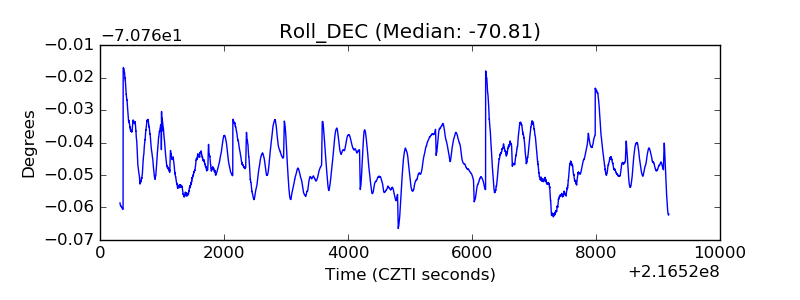

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
