| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_028T03_9000000788_06078cztM0_level2.evt | modeM0/AS1A02_028T03_9000000788_06078cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,108,800 | 97,214,400 |
| Size | 447.4 MB | 92.7 MB |
| Events in quadrant A | 3,127,128 | 646,574 |
| Events in quadrant B | 4,091,749 | 629,294 |
| Events in quadrant C | 2,977,845 | 643,556 |
| Events in quadrant D | 3,584,534 | 587,270 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13425 | 4 |
| B | 0 | 16367 | 3 |
| C | 0 | 13052 | 3 |
| D | 0 | 14979 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6262 | 67 | 1.069946% |
| B | 6262 | 403 | 6.435644% |
| C | 6262 | 53 | 0.846375% |
| D | 6262 | 296 | 4.726924% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 6263 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7547 | 6263 | 265 | 265 | 3.51% | 4.23% |  |
| C | 7547 | 6263 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7547 | 6264 | 210 | 210 | 2.78% | 3.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 63530 | 403.03 | 776 | 760 | 155.7 |
| A | 3 | 1 | 33798 | 212.13 | 776 | 760 | 155.7 |
| A | 14 | 111 | 25851 | 161.1 | 776 | 760 | 155.7 |
| B | 3 | 64 | 979571 | 6873.04 | 760 | 744 | 142.4 |
| B | 10 | 245 | 48411 | 334.7 | 760 | 744 | 142.4 |
| B | 0 | 214 | 33903 | 232.83 | 760 | 744 | 142.4 |
| C | 13 | 61 | 6103 | 30.68 | 761 | 766 | 174.0 |
| C | 1 | 16 | 5687 | 28.29 | 761 | 766 | 174.0 |
| C | 9 | 54 | 4647 | 22.31 | 761 | 766 | 174.0 |
| D | 13 | 169 | 670898 | 3722.88 | 741 | 721 | 180.0 |
| D | 8 | 195 | 28912 | 156.6 | 741 | 721 | 180.0 |
| D | 2 | 14 | 21822 | 117.22 | 741 | 721 | 180.0 |

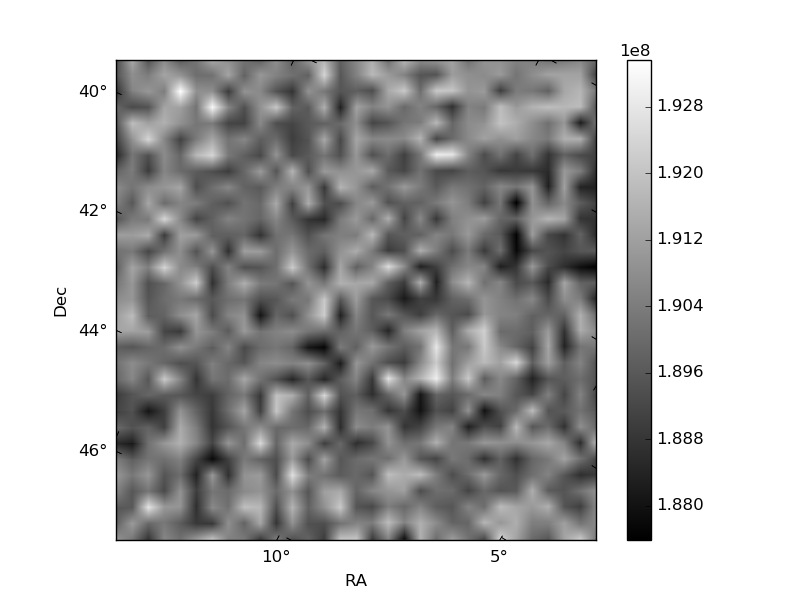

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

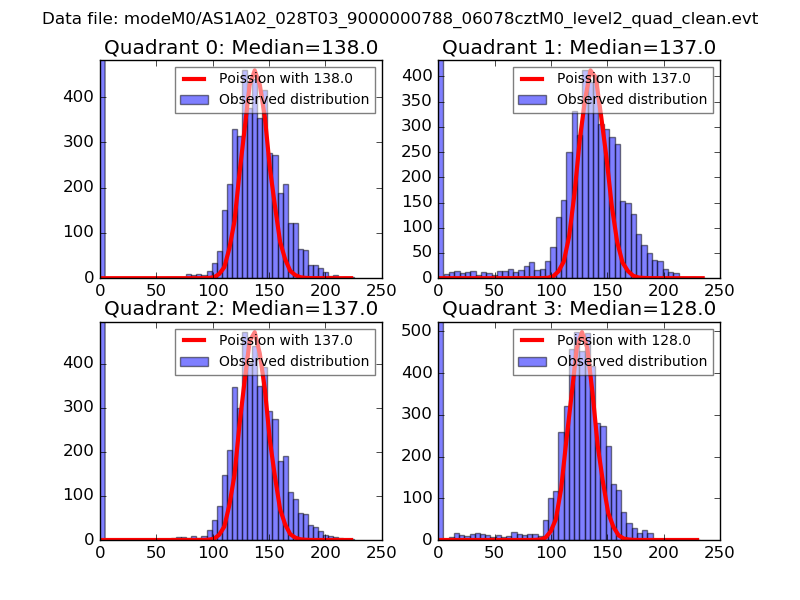

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

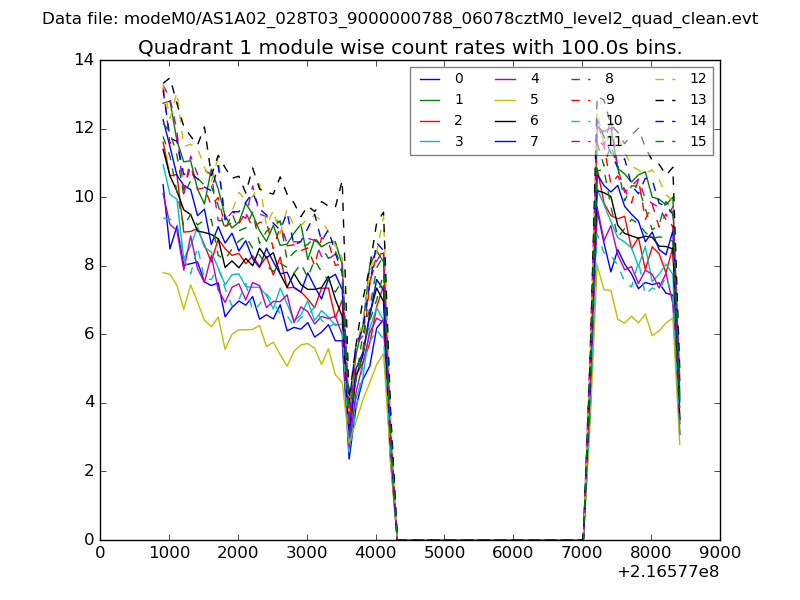

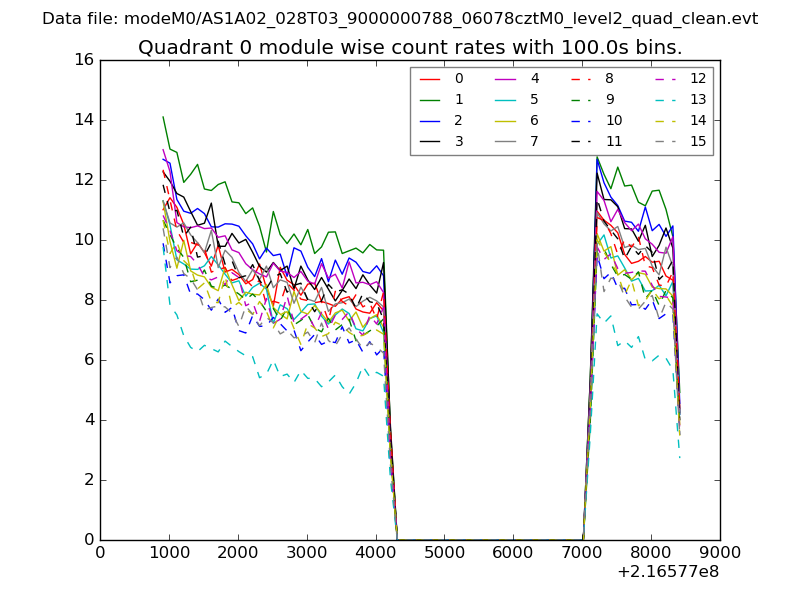

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

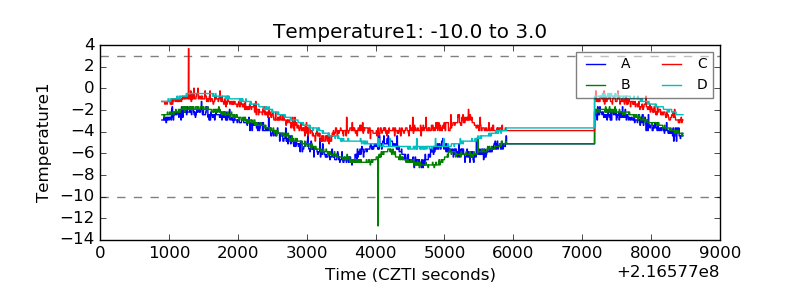

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

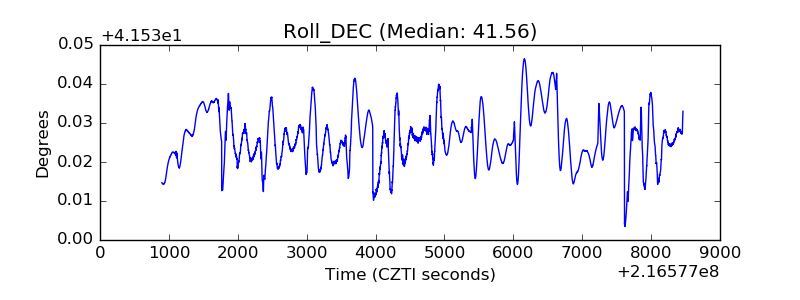

| _Roll_DEC |  |

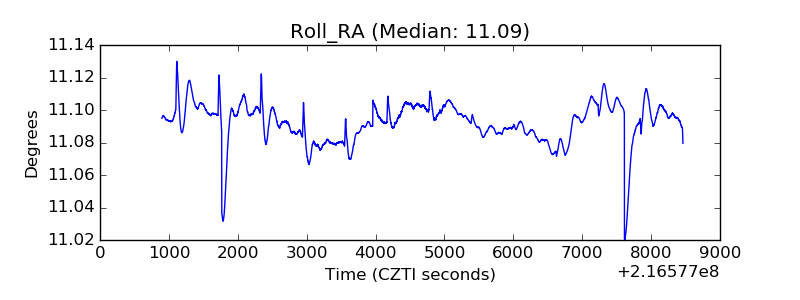

| _Roll_RA |  |
| Veto Counter |  |
