| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000792_06091cztM0_level2.evt | modeM0/AS1G06_033T01_9000000792_06091cztM0_level2_quad_clean.evt |
| Size (bytes) | 213,399,360 | 38,508,480 |
| Size | 203.5 MB | 36.7 MB |
| Events in quadrant A | 1,563,910 | 241,818 |
| Events in quadrant B | 1,585,776 | 249,425 |
| Events in quadrant C | 1,465,537 | 241,062 |
| Events in quadrant D | 1,645,468 | 223,325 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6435 | 2 |
| B | 0 | 6528 | 1 |
| C | 0 | 6210 | 1 |
| D | 0 | 6852 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2942 | 39 | 1.325629% |
| B | 2942 | 41 | 1.393610% |
| C | 2942 | 22 | 0.747791% |
| D | 2942 | 83 | 2.821210% |

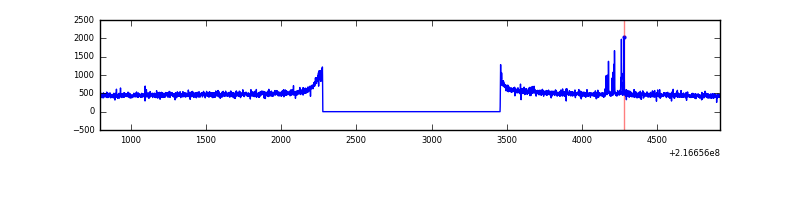

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4122 | 2943 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4122 | 2943 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4122 | 2943 | 1 | 1 | 0.02% | 0.03% |  |
| D | 4122 | 2943 | 19 | 19 | 0.46% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 82813 | 1062.83 | 377 | 369 | 77.6 |
| A | 14 | 111 | 22394 | 283.94 | 377 | 369 | 77.6 |
| A | 0 | 254 | 9064 | 112.09 | 377 | 369 | 77.6 |
| B | 15 | 204 | 40540 | 536.07 | 381 | 371 | 74.9 |
| B | 3 | 64 | 35919 | 474.4 | 381 | 371 | 74.9 |
| B | 0 | 219 | 26310 | 346.16 | 381 | 371 | 74.9 |
| C | 1 | 16 | 24600 | 281.43 | 364 | 365 | 86.1 |
| C | 9 | 16 | 20617 | 235.17 | 364 | 365 | 86.1 |
| C | 13 | 61 | 2883 | 29.24 | 364 | 365 | 86.1 |
| D | 11 | 241 | 161616 | 1801.36 | 360 | 349 | 89.5 |
| D | 13 | 169 | 68058 | 756.31 | 360 | 349 | 89.5 |
| D | 2 | 33 | 20728 | 227.63 | 360 | 349 | 89.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

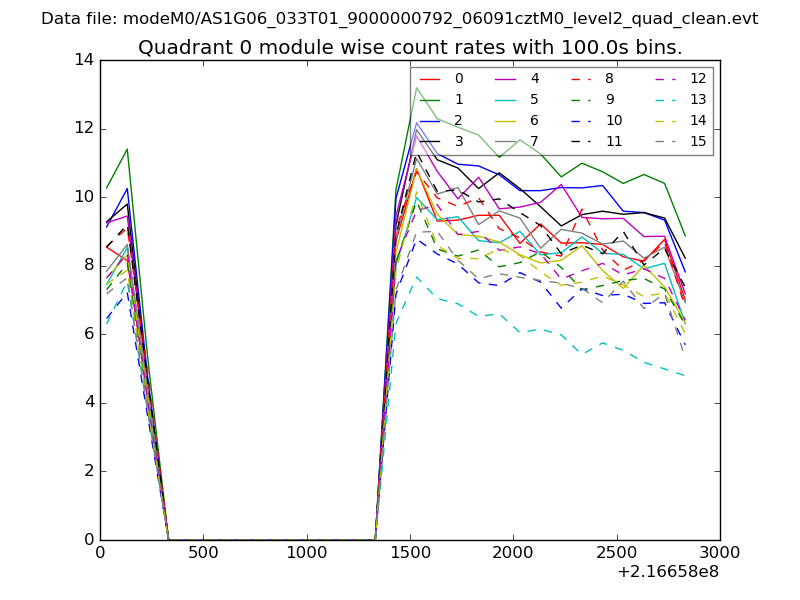

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

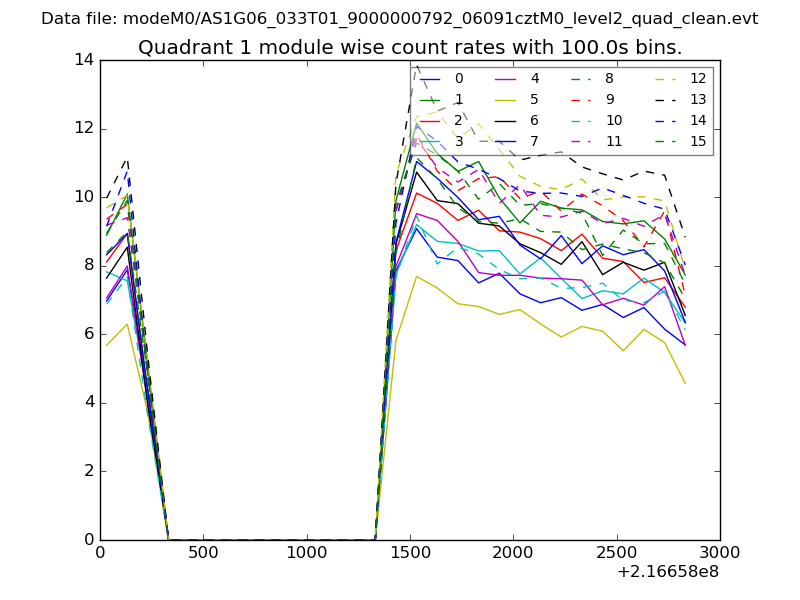

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

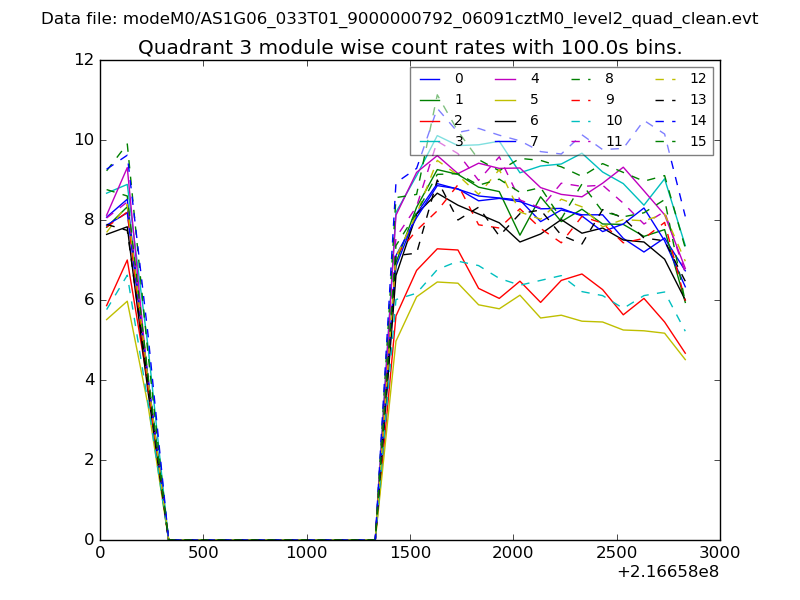

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

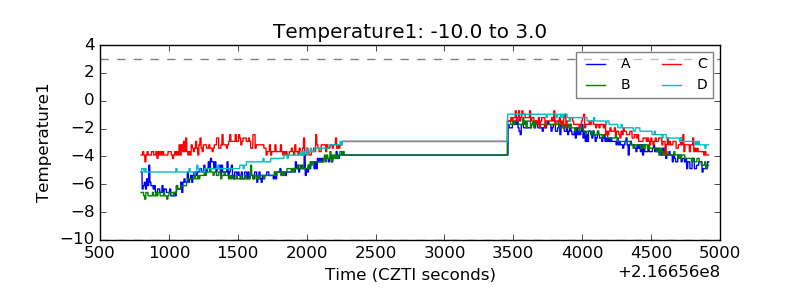

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

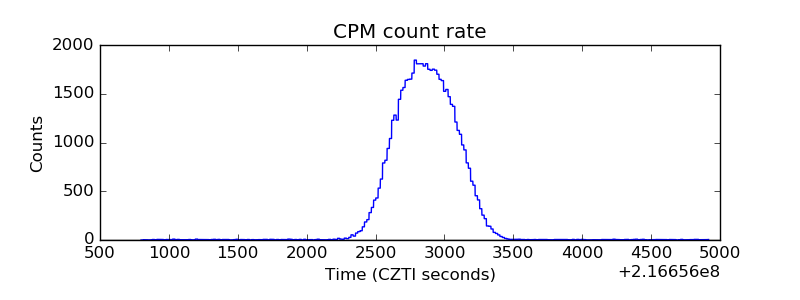

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

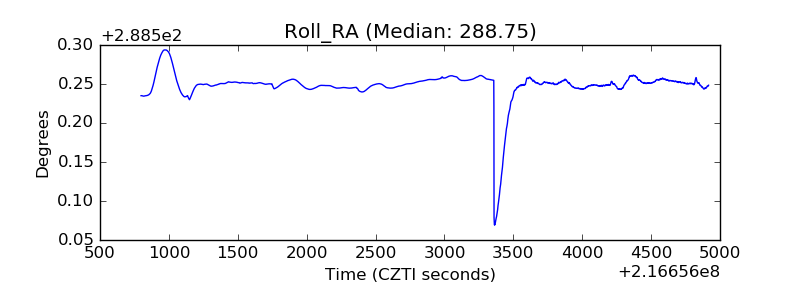

| _Roll_RA |  |
| Veto Counter |  |
