| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000792_06093cztM0_level2.evt | modeM0/AS1G06_033T01_9000000792_06093cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,020,800 | 68,774,400 |
| Size | 582.7 MB | 65.6 MB |
| Events in quadrant A | 4,188,801 | 441,110 |
| Events in quadrant B | 3,077,617 | 463,297 |
| Events in quadrant C | 2,640,249 | 451,150 |
| Events in quadrant D | 8,220,520 | 335,612 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16064 | 2 |
| B | 0 | 12729 | 1 |
| C | 0 | 11549 | 1 |
| D | 0 | 28266 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5581 | 134 | 2.401003% |
| B | 5581 | 62 | 1.110912% |
| C | 5581 | 14 | 0.250851% |
| D | 5581 | 1774 | 31.786418% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

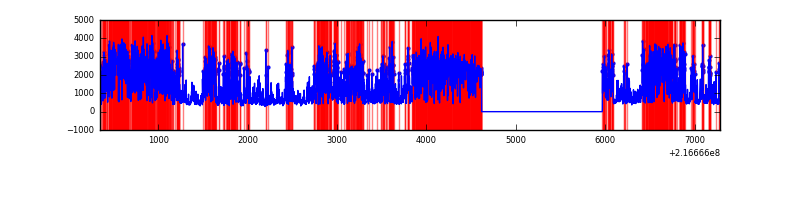

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6931 | 5582 | 145 | 145 | 2.09% | 2.60% |  |
| B | 6931 | 5582 | 21 | 21 | 0.30% | 0.38% |  |
| C | 6931 | 5582 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6931 | 5581 | 1660 | 1660 | 23.95% | 29.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1479971 | 10827.2 | 666 | 654 | 136.6 |
| A | 4 | 2 | 135107 | 984.07 | 666 | 654 | 136.6 |
| A | 14 | 111 | 6544 | 43.11 | 666 | 654 | 136.6 |
| B | 3 | 64 | 193966 | 1481.44 | 682 | 667 | 130.5 |
| B | 4 | 81 | 161900 | 1235.69 | 682 | 667 | 130.5 |
| B | 15 | 204 | 51514 | 389.69 | 682 | 667 | 130.5 |
| C | 1 | 16 | 61427 | 394.96 | 657 | 664 | 153.8 |
| C | 9 | 16 | 10180 | 61.85 | 657 | 664 | 153.8 |
| C | 13 | 61 | 5375 | 30.62 | 657 | 664 | 153.8 |
| D | 11 | 241 | 5929457 | 42071.75 | 574 | 558 | 140.9 |
| D | 8 | 195 | 39787 | 278.37 | 574 | 558 | 140.9 |
| D | 2 | 33 | 34933 | 243.93 | 574 | 558 | 140.9 |

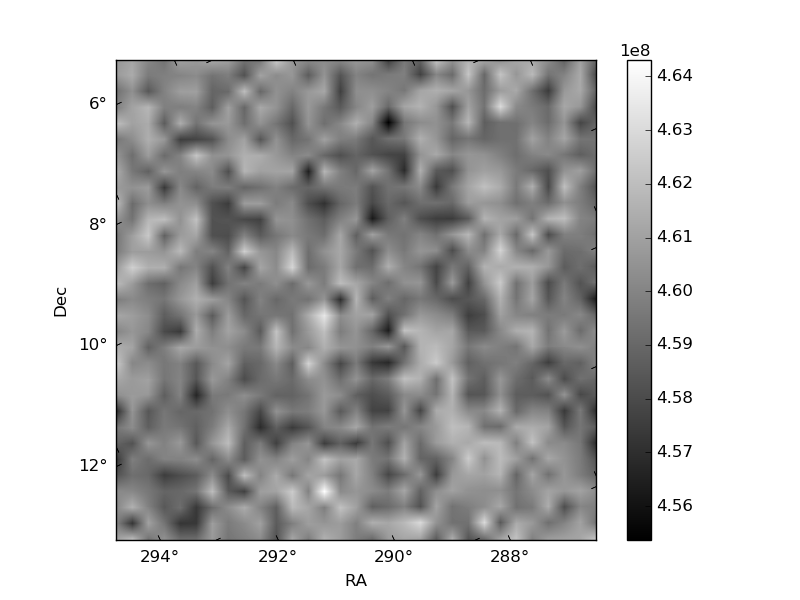

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

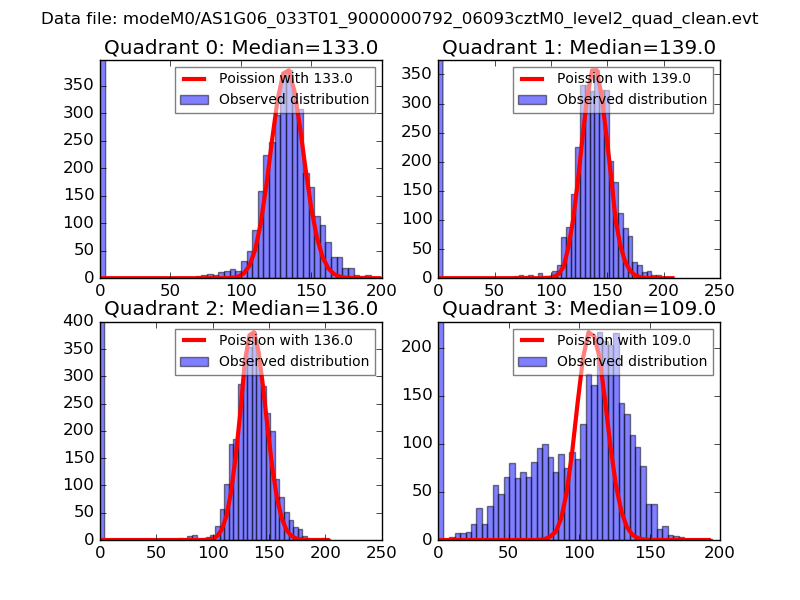

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

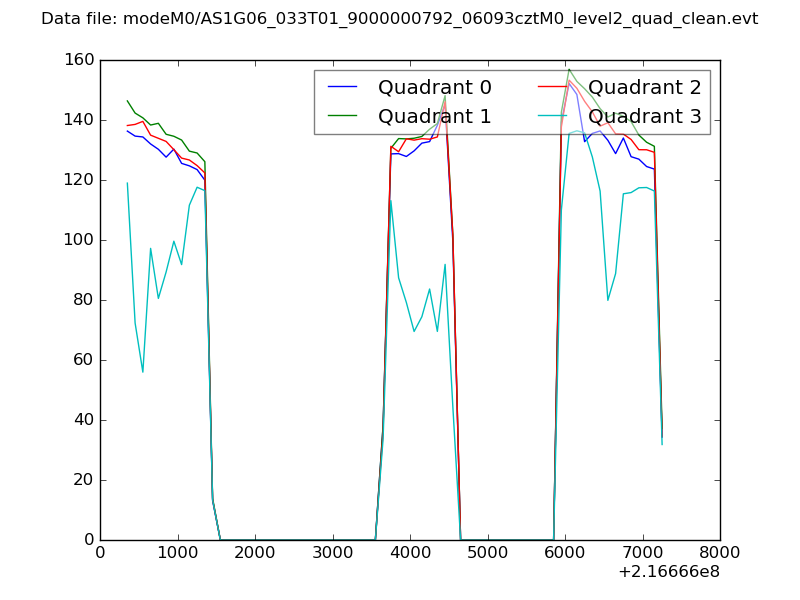

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

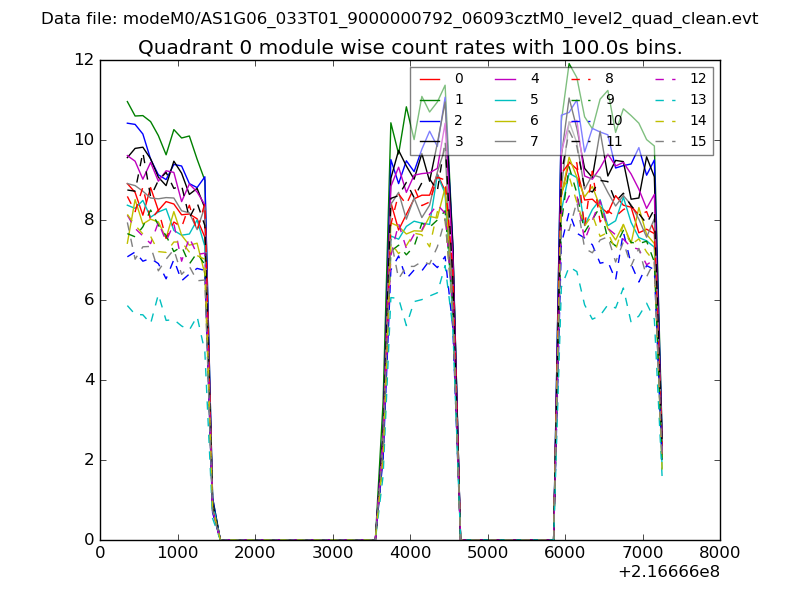

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

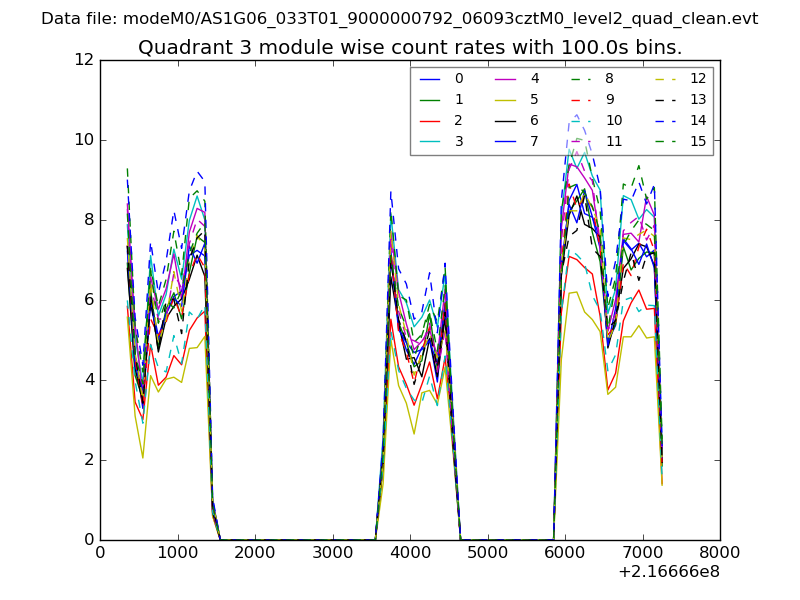

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

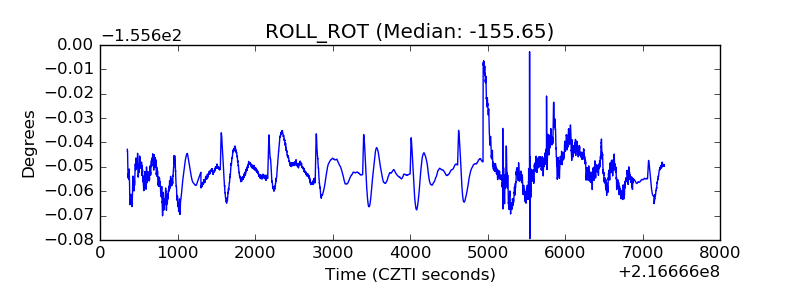

| _ROLL_ROT |  |
| _Roll_DEC |  |

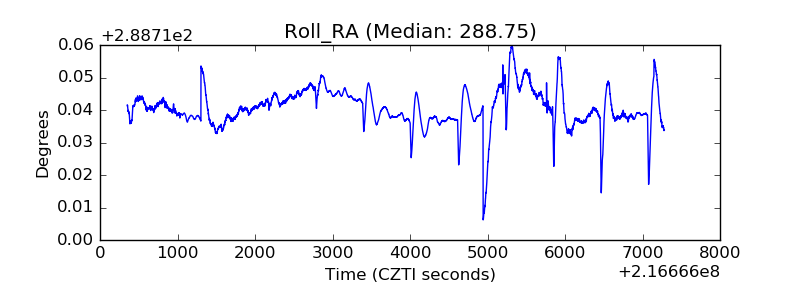

| _Roll_RA |  |
| Veto Counter |  |
