| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000792_06094cztM0_level2.evt | modeM0/AS1G06_033T01_9000000792_06094cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,256,000 | 65,090,880 |
| Size | 494.2 MB | 62.1 MB |
| Events in quadrant A | 5,148,972 | 389,215 |
| Events in quadrant B | 2,839,579 | 414,056 |
| Events in quadrant C | 2,649,355 | 402,930 |
| Events in quadrant D | 4,676,631 | 371,216 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19131 | 2 |
| B | 0 | 11986 | 1 |
| C | 0 | 11642 | 1 |
| D | 0 | 17661 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5616 | 171 | 3.044872% |
| B | 5616 | 37 | 0.658832% |
| C | 5616 | 23 | 0.409544% |
| D | 5616 | 492 | 8.760684% |

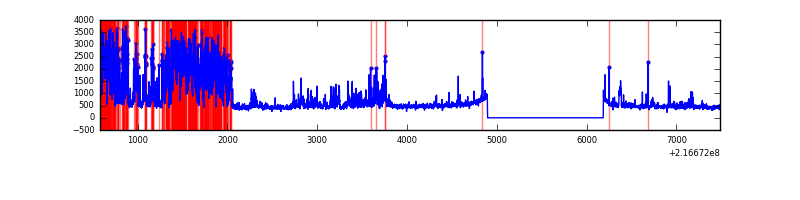

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6906 | 5617 | 59 | 59 | 0.85% | 1.05% |  |
| B | 6906 | 5617 | 3 | 3 | 0.04% | 0.05% |  |
| C | 6906 | 5617 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6906 | 5617 | 530 | 530 | 7.67% | 9.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 2579441 | 19030.37 | 664 | 651 | 135.5 |
| A | 13 | 48 | 7884 | 53.38 | 664 | 651 | 135.5 |
| A | 12 | 194 | 6560 | 43.61 | 664 | 651 | 135.5 |
| B | 3 | 64 | 104628 | 800.11 | 684 | 668 | 129.9 |
| B | 0 | 219 | 28057 | 210.79 | 684 | 668 | 129.9 |
| B | 0 | 214 | 17508 | 129.61 | 684 | 668 | 129.9 |
| C | 1 | 16 | 66419 | 425.87 | 660 | 663 | 154.4 |
| C | 13 | 61 | 5322 | 30.17 | 660 | 663 | 154.4 |
| C | 9 | 54 | 4464 | 24.62 | 660 | 663 | 154.4 |
| D | 11 | 241 | 2108160 | 13237.67 | 640 | 620 | 159.2 |
| D | 2 | 33 | 42878 | 265.43 | 640 | 620 | 159.2 |
| D | 8 | 195 | 38229 | 236.23 | 640 | 620 | 159.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

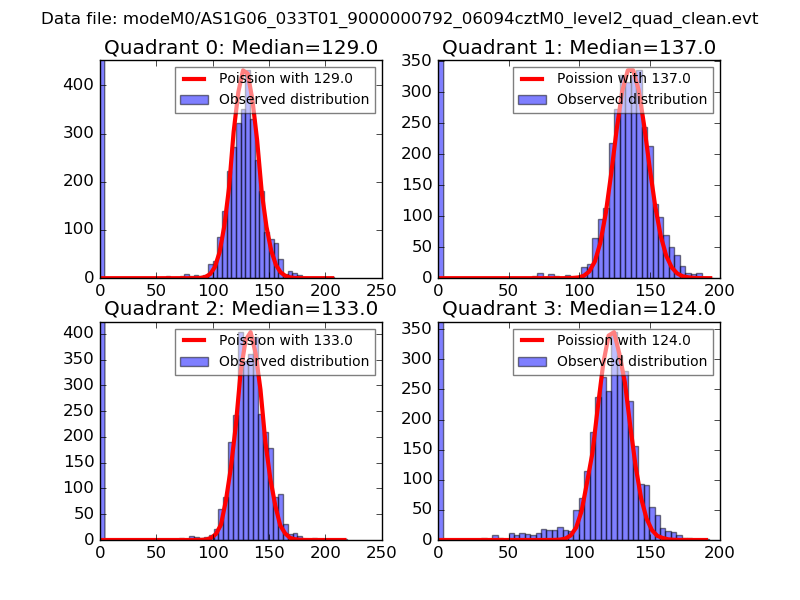

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

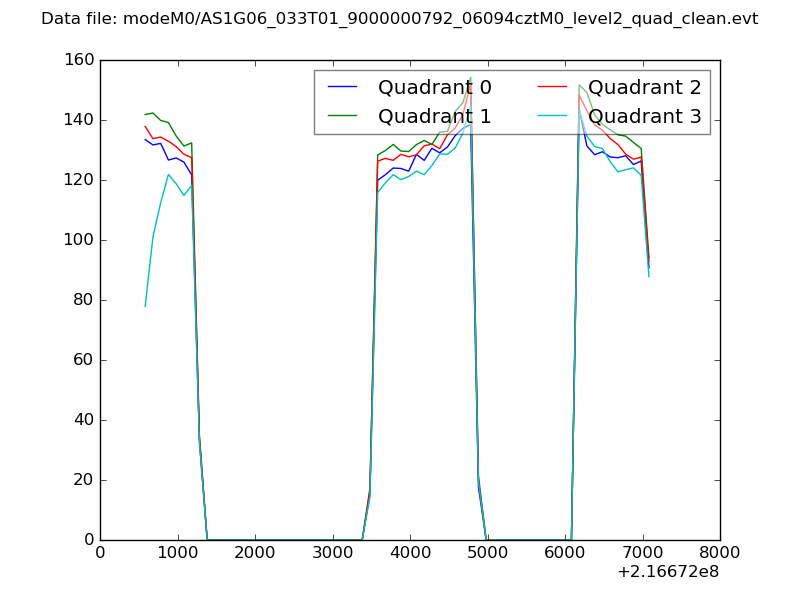

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

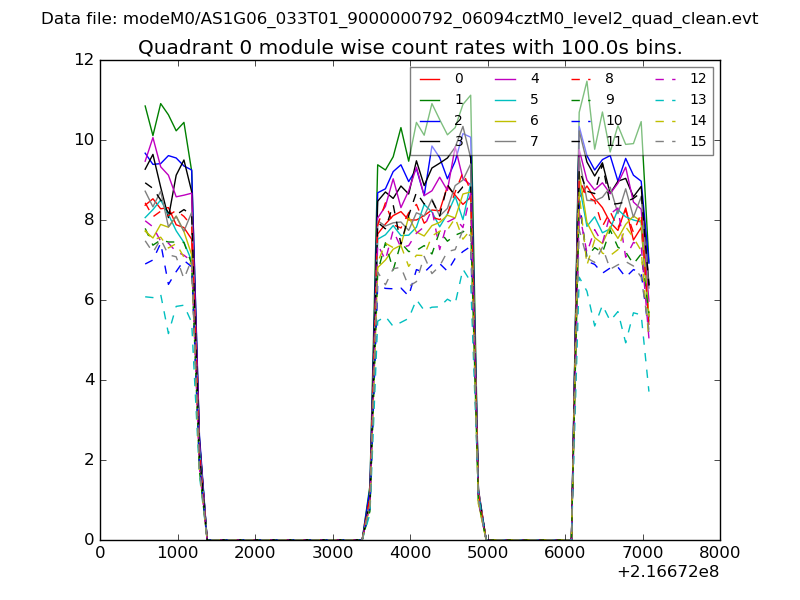

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

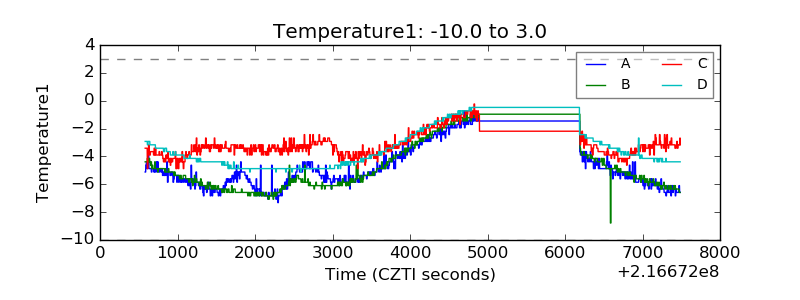

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

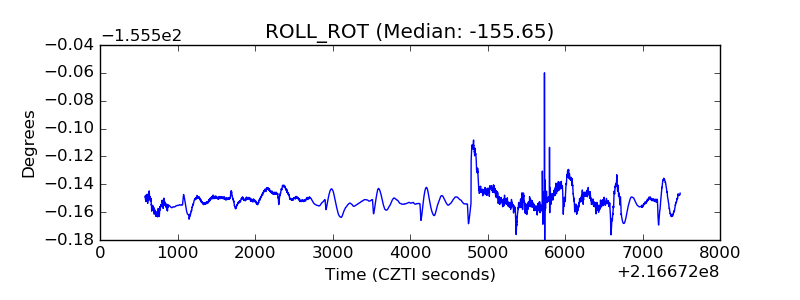

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
