| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000792_06101cztM0_level2.evt | modeM0/AS1G06_033T01_9000000792_06101cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,448,320 | 79,280,640 |
| Size | 469.6 MB | 75.6 MB |
| Events in quadrant A | 4,984,889 | 453,989 |
| Events in quadrant B | 3,302,976 | 501,011 |
| Events in quadrant C | 2,988,938 | 502,274 |
| Events in quadrant D | 3,181,124 | 476,160 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23211 | 4222 |
| B | 0 | 16659 | 2564 |
| C | 0 | 15916 | 2246 |
| D | 0 | 16800 | 2520 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 30 |
| B | 0 | 160 | 34 |
| C | 0 | 160 | 26 |
| D | 0 | 160 | 22 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 1 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6595 | 581 | 8.809704% |
| B | 6706 | 56 | 0.835073% |
| C | 6781 | 17 | 0.250700% |
| D | 6721 | 57 | 0.848088% |

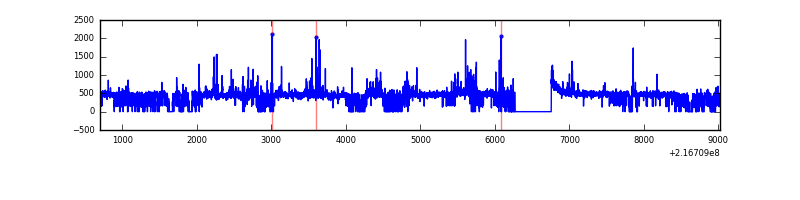

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8320 | 7207 | 416 | 416 | 5.00% | 5.77% |  |
| B | 8320 | 7298 | 3 | 3 | 0.04% | 0.04% |  |
| C | 8320 | 7360 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8320 | 7287 | 43 | 43 | 0.52% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 170 | 1784626 | 11711.5 | 740 | 723 | 152.3 |
| A | 8 | 15 | 349028 | 2286.66 | 740 | 723 | 152.3 |
| A | 12 | 194 | 7275 | 43.01 | 740 | 723 | 152.3 |
| B | 4 | 81 | 138229 | 909.42 | 776 | 756 | 151.2 |
| B | 0 | 219 | 36608 | 237.17 | 776 | 756 | 151.2 |
| B | 15 | 204 | 35663 | 230.92 | 776 | 756 | 151.2 |
| C | 8 | 128 | 12108 | 64.08 | 757 | 763 | 177.0 |
| C | 1 | 16 | 10089 | 52.68 | 757 | 763 | 177.0 |
| C | 13 | 61 | 6136 | 30.35 | 757 | 763 | 177.0 |
| D | 13 | 169 | 174115 | 929.43 | 751 | 727 | 186.6 |
| D | 2 | 206 | 46717 | 246.53 | 751 | 727 | 186.6 |
| D | 2 | 33 | 30367 | 158.88 | 751 | 727 | 186.6 |

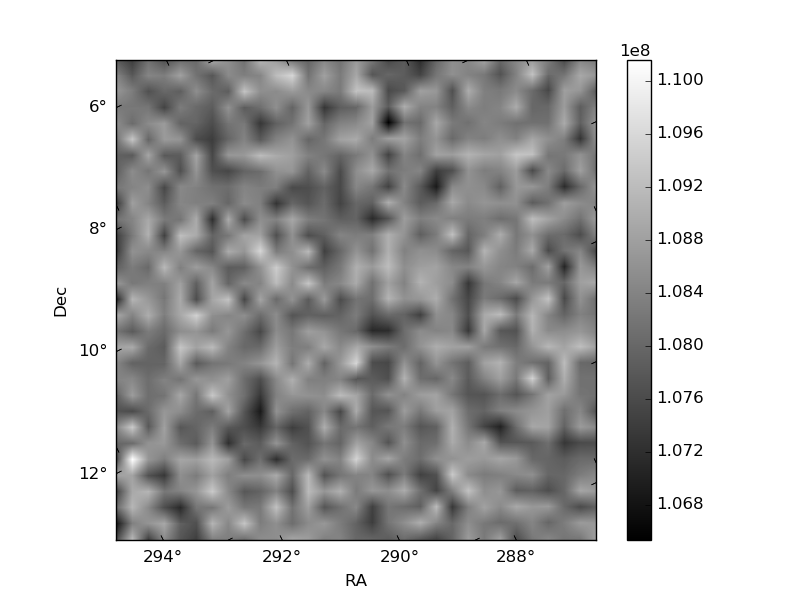

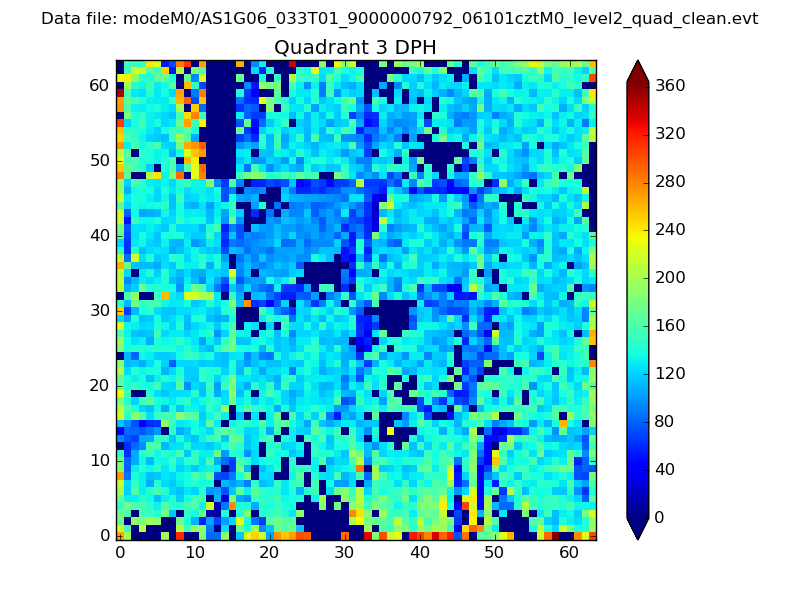

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

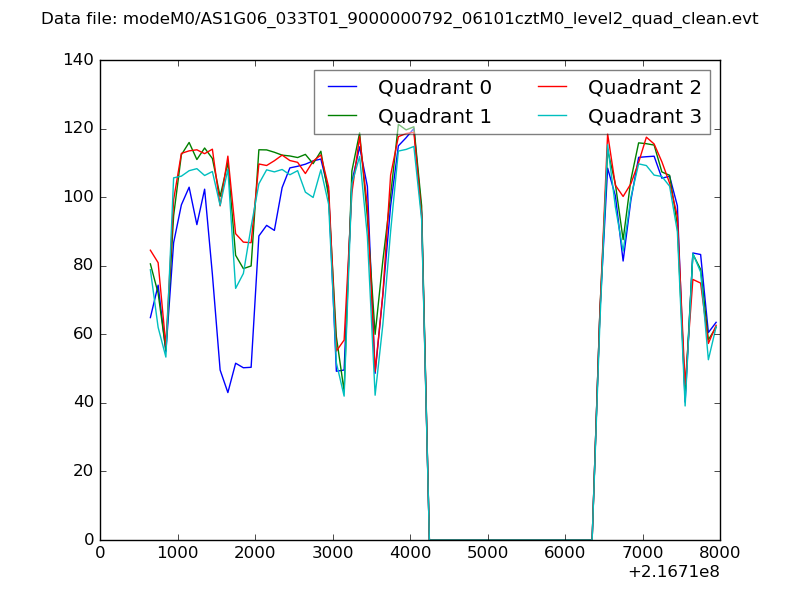

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

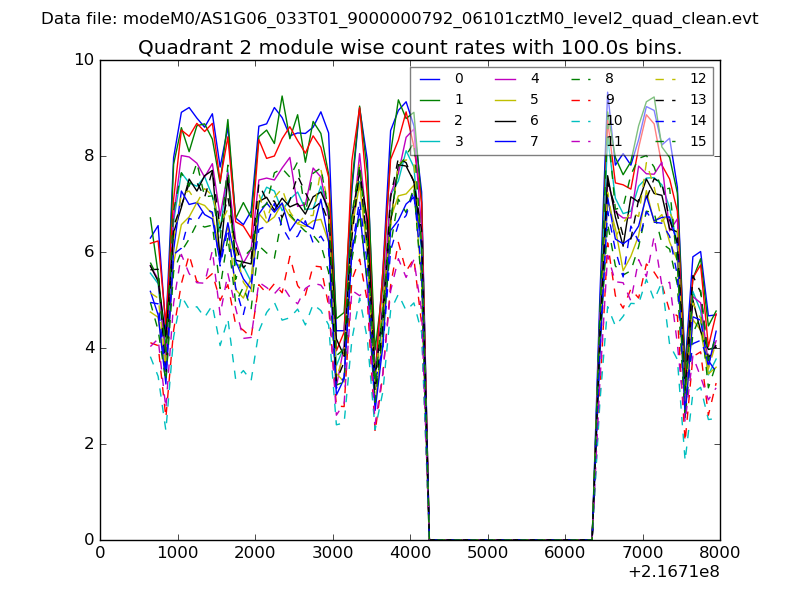

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

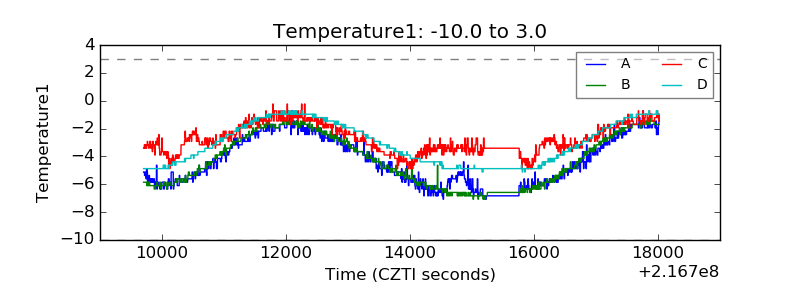

| Temperature 1 |  |

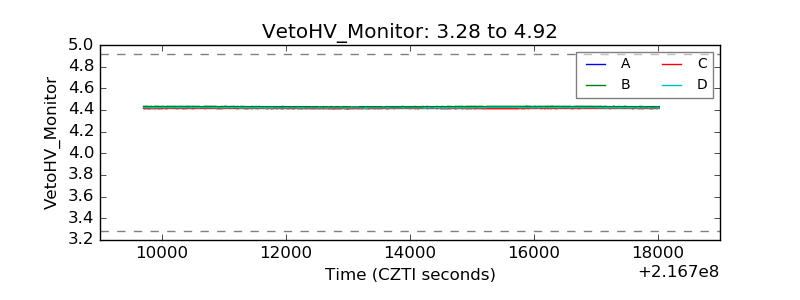

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

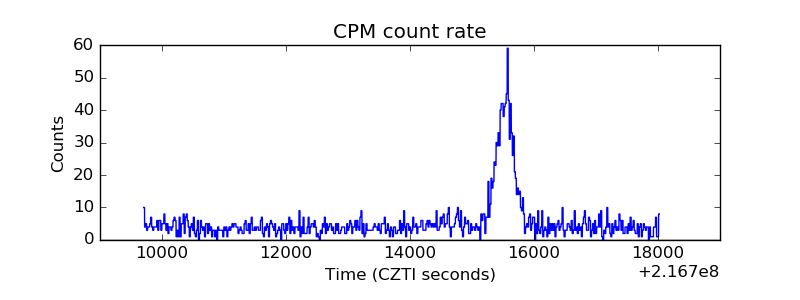

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
