| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000792_06105cztM0_level2.evt | modeM0/AS1G06_033T01_9000000792_06105cztM0_level2_quad_clean.evt |
| Size (bytes) | 394,784,640 | 76,380,480 |
| Size | 376.5 MB | 72.8 MB |
| Events in quadrant A | 2,923,836 | 479,090 |
| Events in quadrant B | 3,160,474 | 480,720 |
| Events in quadrant C | 2,722,091 | 473,698 |
| Events in quadrant D | 2,738,180 | 457,117 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13052 | 2 |
| B | 0 | 13357 | 1 |
| C | 0 | 12496 | 1 |
| D | 0 | 12603 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6049 | 41 | 0.677798% |
| B | 6049 | 99 | 1.636634% |
| C | 6049 | 25 | 0.413291% |
| D | 6049 | 38 | 0.628203% |

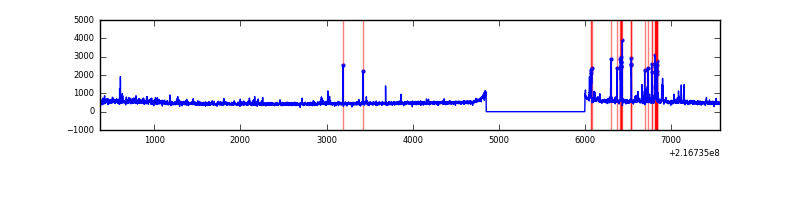

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

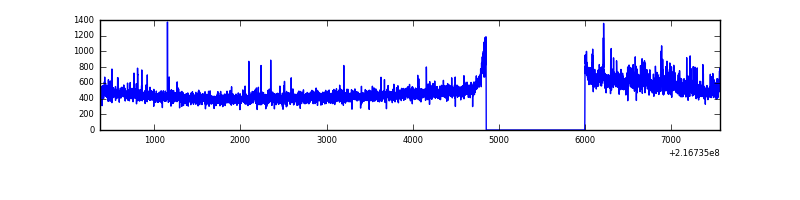

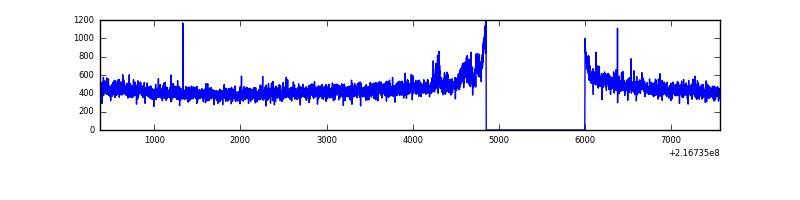

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7194 | 6050 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7194 | 6050 | 39 | 39 | 0.54% | 0.64% |  |
| C | 7194 | 6050 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7194 | 6050 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 176048 | 1238.17 | 701 | 686 | 141.6 |
| A | 14 | 111 | 40705 | 282.56 | 701 | 686 | 141.6 |
| A | 12 | 194 | 6830 | 43.38 | 701 | 686 | 141.6 |
| B | 3 | 64 | 156779 | 1154.42 | 705 | 688 | 135.2 |
| B | 0 | 214 | 111875 | 822.32 | 705 | 688 | 135.2 |
| B | 15 | 204 | 78955 | 578.85 | 705 | 688 | 135.2 |
| C | 1 | 16 | 69735 | 436.73 | 678 | 682 | 158.1 |
| C | 9 | 54 | 6184 | 34.8 | 678 | 682 | 158.1 |
| C | 13 | 61 | 5439 | 30.09 | 678 | 682 | 158.1 |
| D | 13 | 105 | 41156 | 241.59 | 680 | 657 | 167.6 |
| D | 2 | 14 | 35467 | 207.65 | 680 | 657 | 167.6 |
| D | 8 | 195 | 24797 | 144.0 | 680 | 657 | 167.6 |

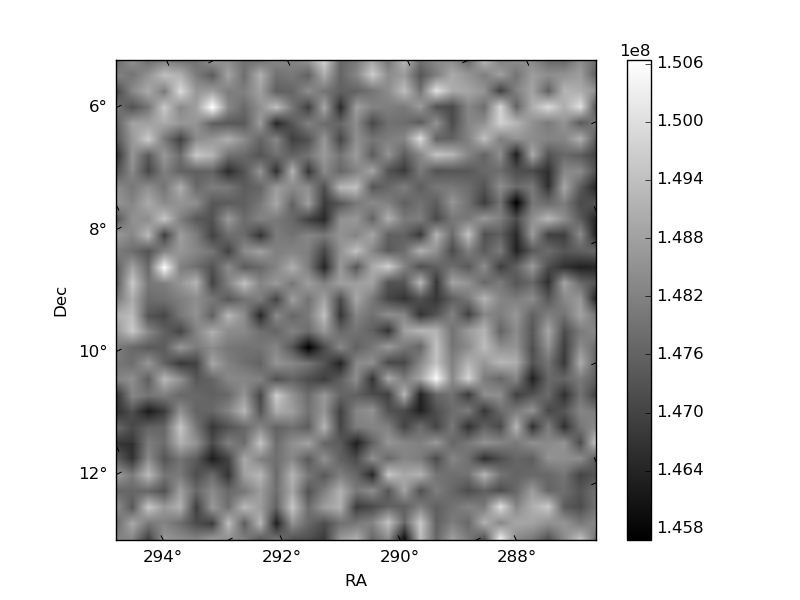

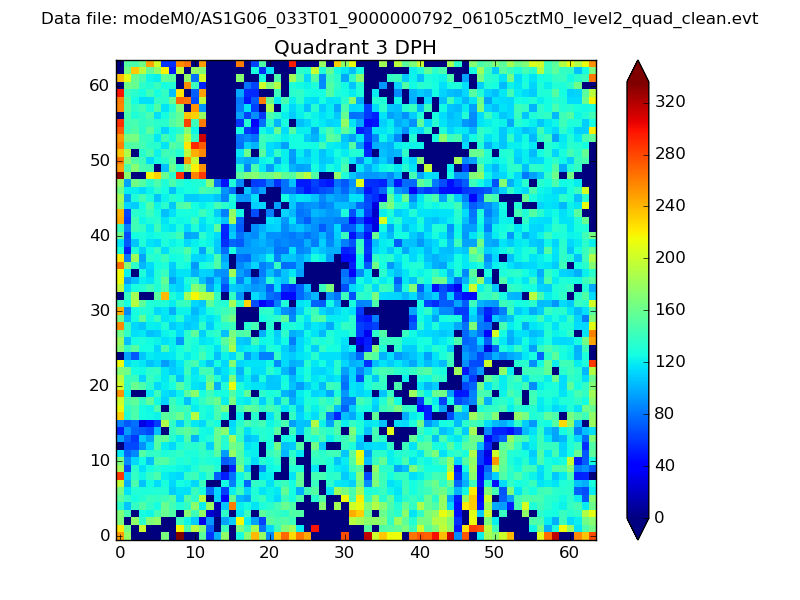

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

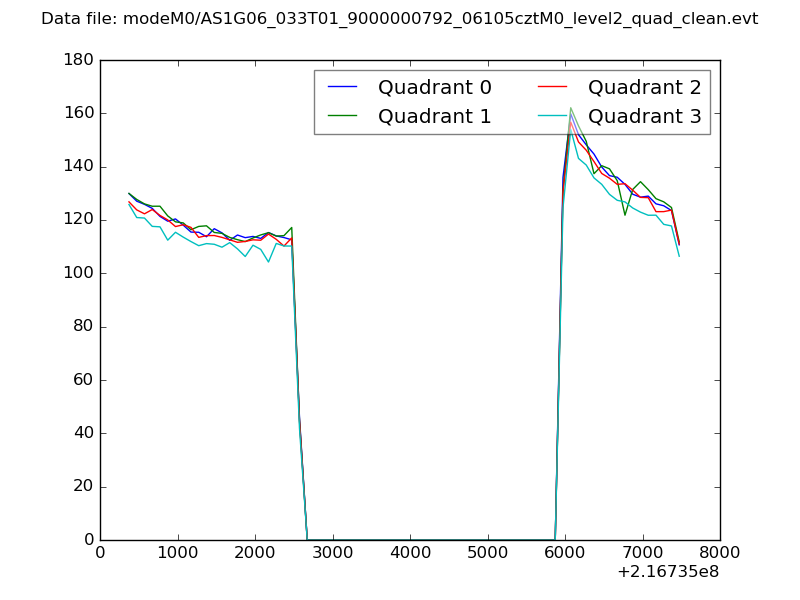

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

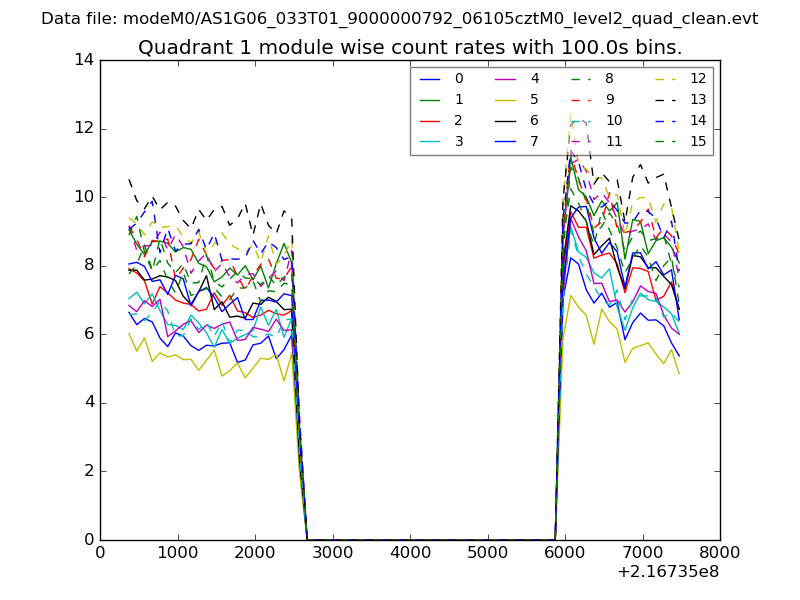

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

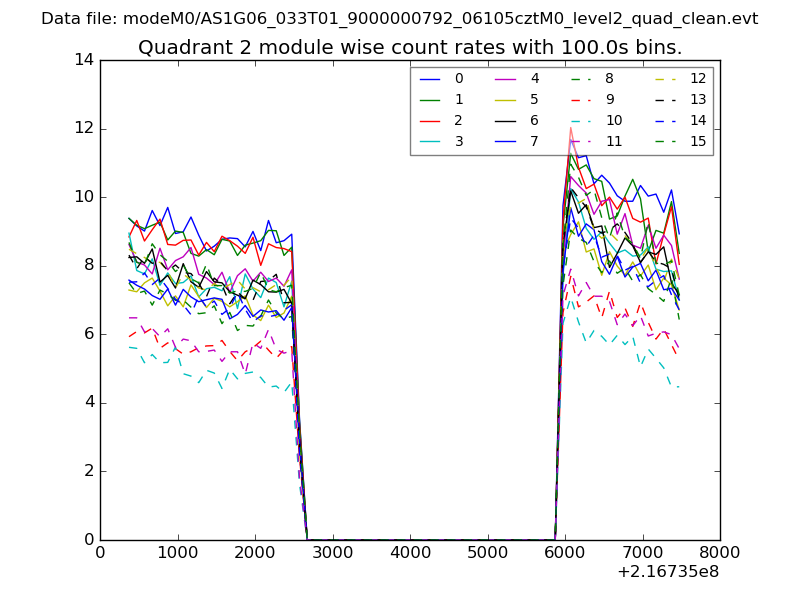

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

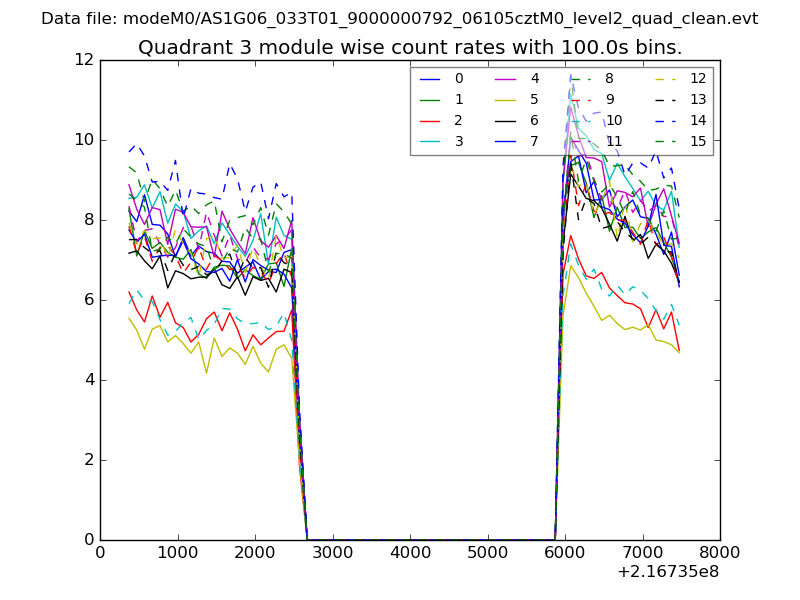

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

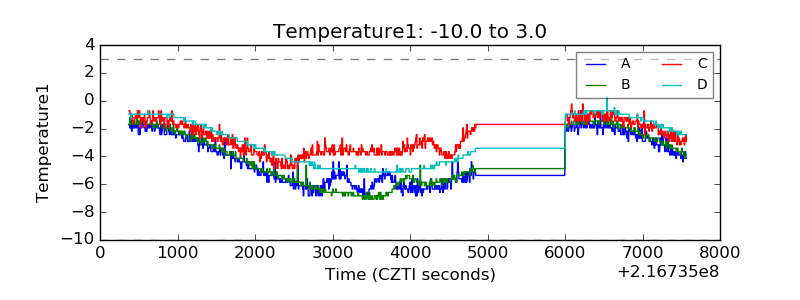

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

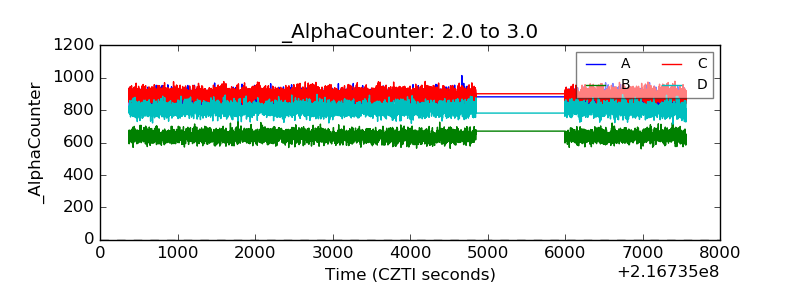

| Alpha Counter |  |

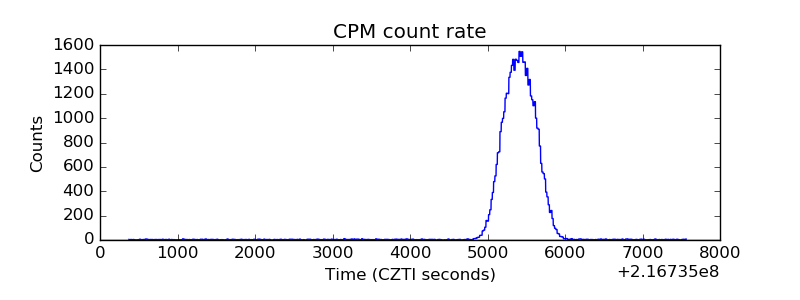

| _CPM_Rate |  |

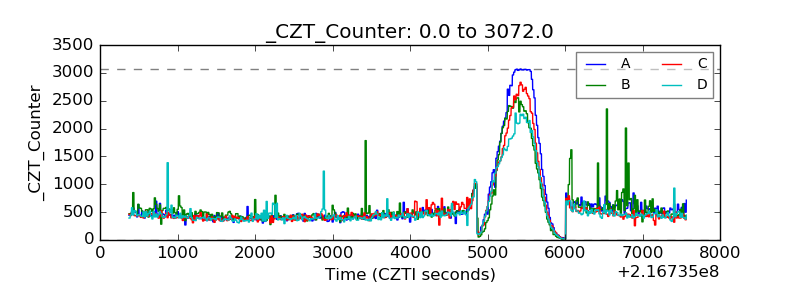

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

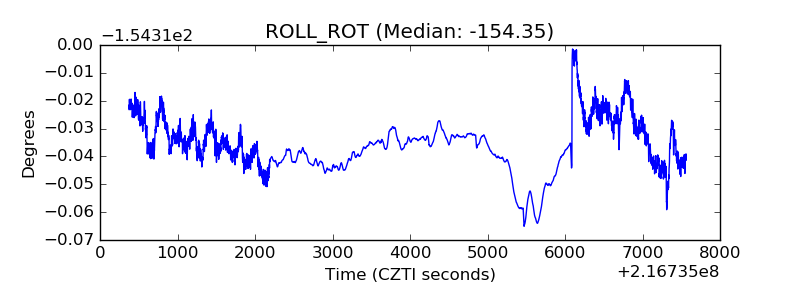

| _ROLL_ROT |  |

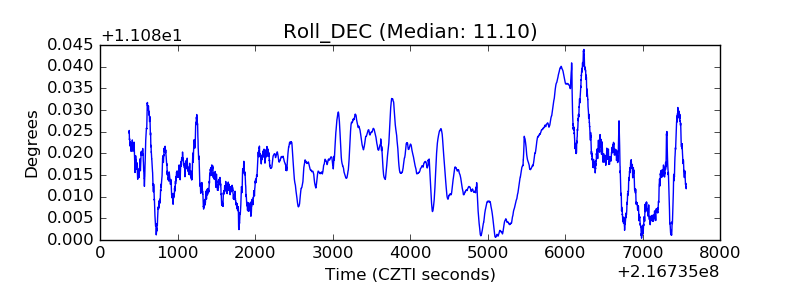

| _Roll_DEC |  |

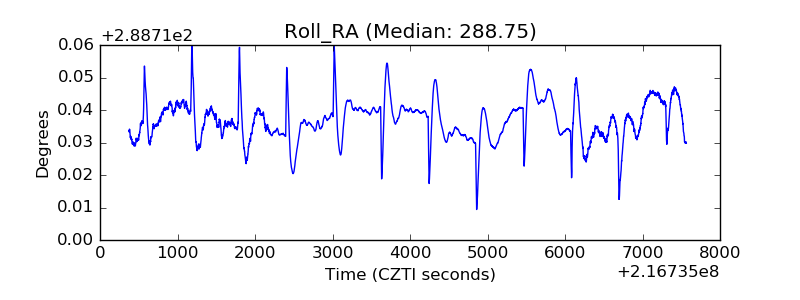

| _Roll_RA |  |

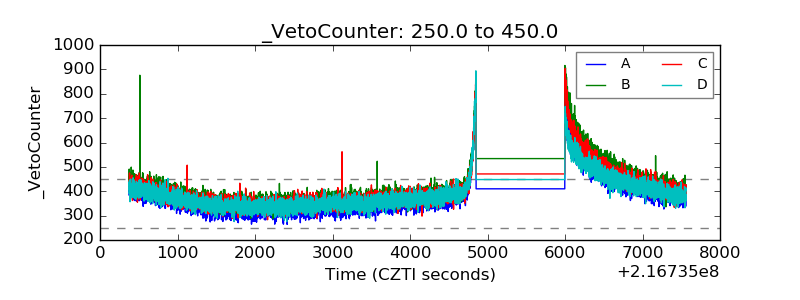

| Veto Counter |  |
