| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_168T02_9000000790_06090cztM0_level2.evt | modeM0/AS1G06_168T02_9000000790_06090cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,221,120 | 88,306,560 |
| Size | 473.2 MB | 84.2 MB |
| Events in quadrant A | 3,429,874 | 559,069 |
| Events in quadrant B | 3,915,645 | 569,692 |
| Events in quadrant C | 2,999,903 | 559,784 |
| Events in quadrant D | 4,239,871 | 530,625 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14429 | 5 |
| B | 0 | 16017 | 10 |
| C | 0 | 13455 | 2 |
| D | 0 | 17226 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6524 | 68 | 1.042305% |
| B | 6524 | 330 | 5.058246% |
| C | 6525 | 41 | 0.628352% |
| D | 6524 | 282 | 4.322502% |

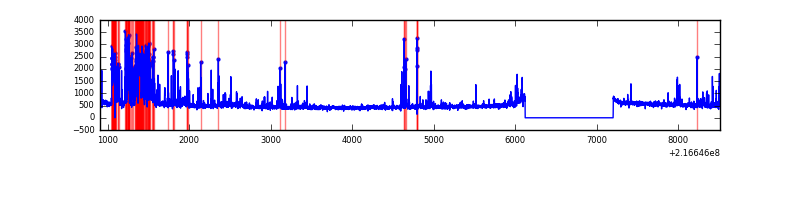

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7605 | 6525 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7605 | 6524 | 162 | 162 | 2.13% | 2.48% |  |
| C | 7605 | 6526 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7605 | 6525 | 169 | 169 | 2.22% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 357838 | 2185.96 | 795 | 777 | 163.3 |
| A | 0 | 226 | 7671 | 42.2 | 795 | 777 | 163.3 |
| A | 12 | 194 | 7559 | 41.52 | 795 | 777 | 163.3 |
| B | 3 | 64 | 794237 | 5152.96 | 784 | 765 | 154.0 |
| B | 0 | 219 | 42426 | 270.55 | 784 | 765 | 154.0 |
| B | 4 | 81 | 17178 | 106.59 | 784 | 765 | 154.0 |
| C | 1 | 16 | 17301 | 92.57 | 763 | 768 | 178.6 |
| C | 13 | 61 | 6079 | 29.74 | 763 | 768 | 178.6 |
| C | 9 | 16 | 4592 | 21.41 | 763 | 768 | 178.6 |
| D | 11 | 241 | 1082000 | 5729.6 | 764 | 740 | 188.7 |
| D | 13 | 169 | 144792 | 763.33 | 764 | 740 | 188.7 |
| D | 2 | 14 | 23443 | 120.3 | 764 | 740 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

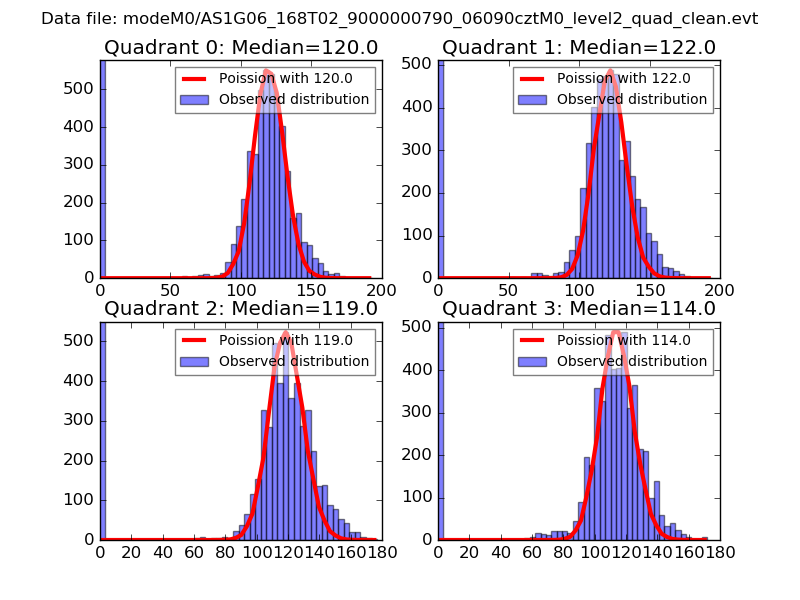

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

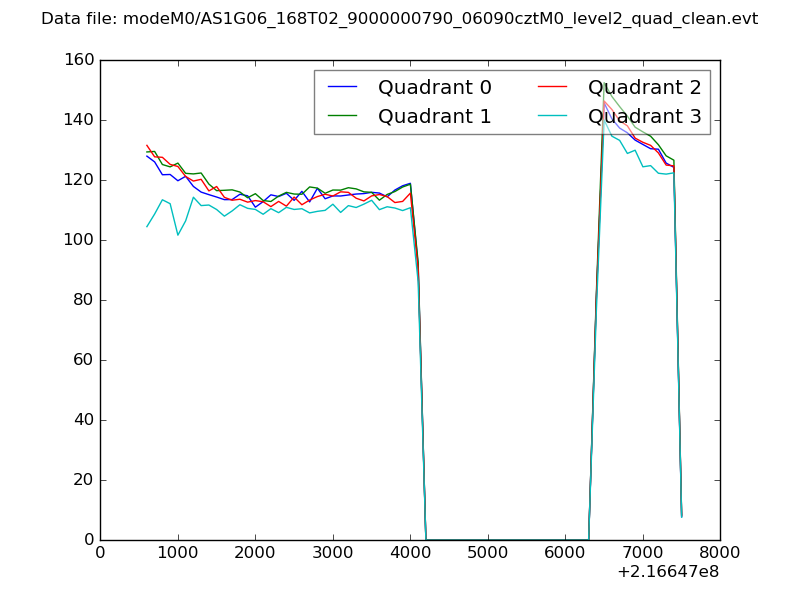

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

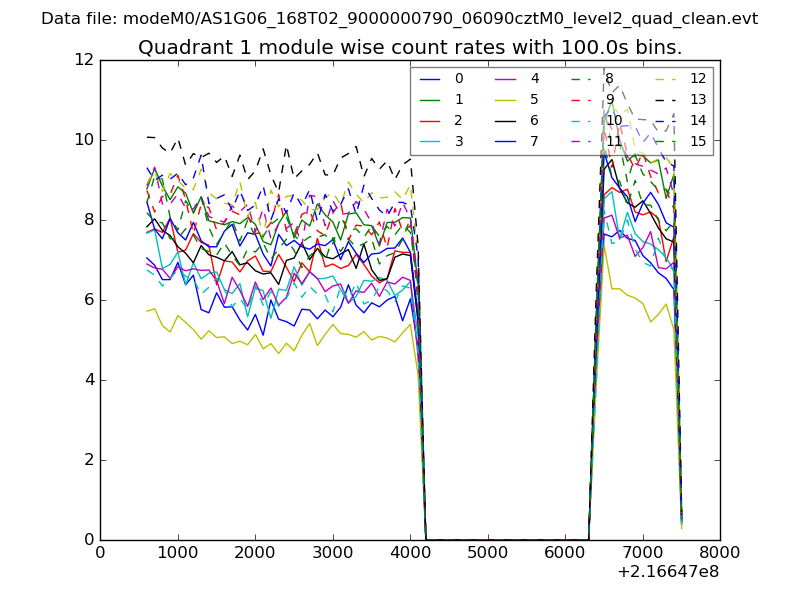

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

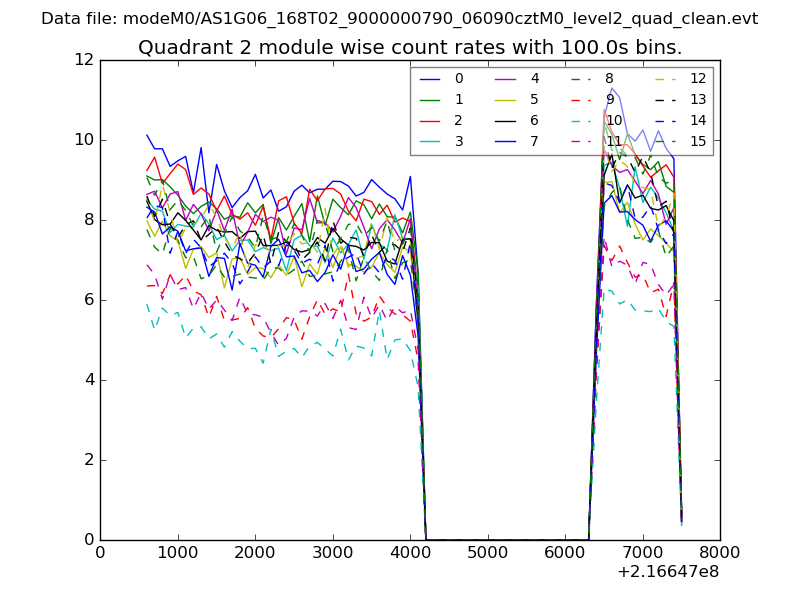

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

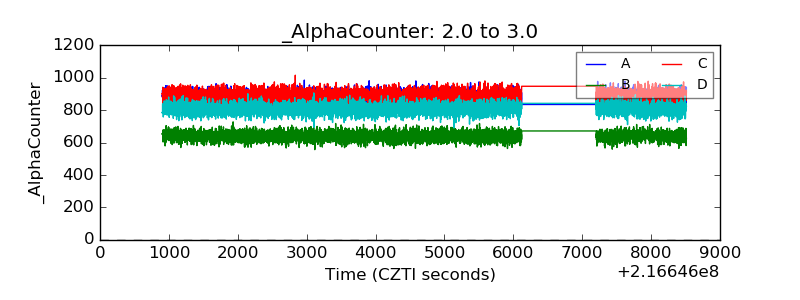

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

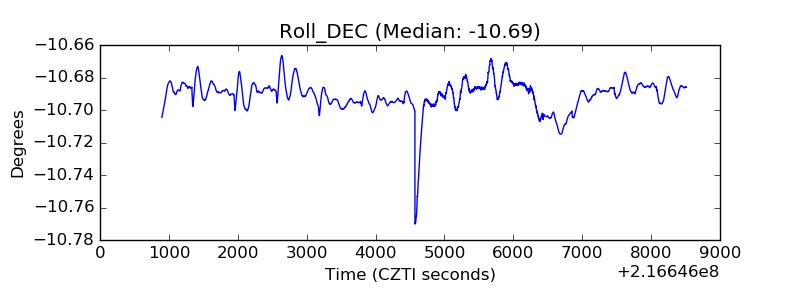

| _Roll_DEC |  |
| _Roll_RA |  |

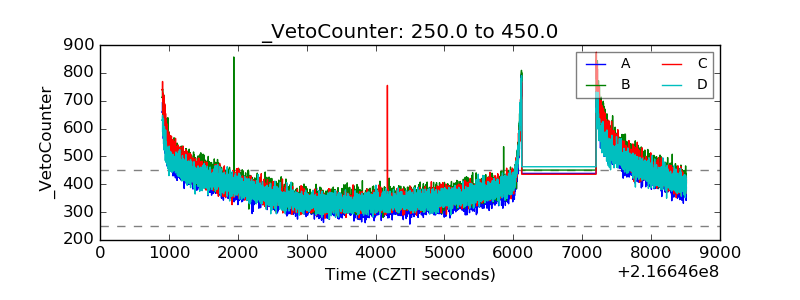

| Veto Counter |  |
