| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_104T01_9000000794_06121cztM0_level2.evt | modeM0/AS1A02_104T01_9000000794_06121cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,140,480 | 89,749,440 |
| Size | 524.7 MB | 85.6 MB |
| Events in quadrant A | 4,998,245 | 552,362 |
| Events in quadrant B | 3,780,922 | 579,092 |
| Events in quadrant C | 3,313,059 | 578,103 |
| Events in quadrant D | 4,122,003 | 549,142 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19272 | 3 |
| B | 0 | 15682 | 2 |
| C | 0 | 14227 | 2 |
| D | 0 | 16680 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6588 | 831 | 12.613843% |
| B | 6588 | 175 | 2.656345% |
| C | 6588 | 111 | 1.684882% |
| D | 6588 | 468 | 7.103825% |

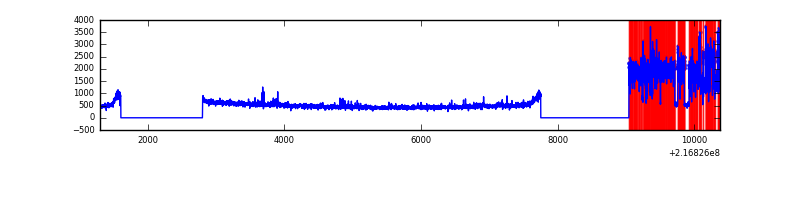

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9073 | 6589 | 496 | 496 | 5.47% | 7.53% |  |
| B | 9073 | 6589 | 39 | 39 | 0.43% | 0.59% |  |
| C | 9073 | 6588 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9073 | 6588 | 317 | 317 | 3.49% | 4.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1752868 | 10268.83 | 827 | 807 | 170.6 |
| A | 13 | 251 | 42932 | 246.89 | 827 | 807 | 170.6 |
| A | 0 | 50 | 8513 | 45.16 | 827 | 807 | 170.6 |
| B | 3 | 64 | 201860 | 1201.7 | 862 | 842 | 167.3 |
| B | 8 | 3 | 69414 | 409.93 | 862 | 842 | 167.3 |
| B | 15 | 204 | 59989 | 353.59 | 862 | 842 | 167.3 |
| C | 1 | 16 | 13417 | 63.98 | 844 | 849 | 196.4 |
| C | 14 | 67 | 8734 | 40.14 | 844 | 849 | 196.4 |
| C | 13 | 61 | 6609 | 29.32 | 844 | 849 | 196.4 |
| D | 15 | 217 | 766436 | 3884.01 | 802 | 778 | 197.1 |
| D | 2 | 33 | 214932 | 1086.35 | 802 | 778 | 197.1 |
| D | 8 | 195 | 33323 | 165.09 | 802 | 778 | 197.1 |

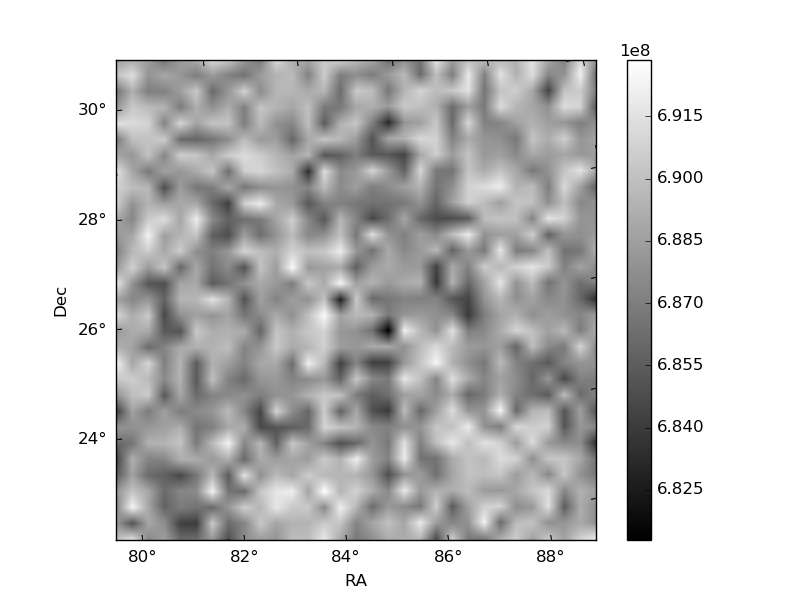

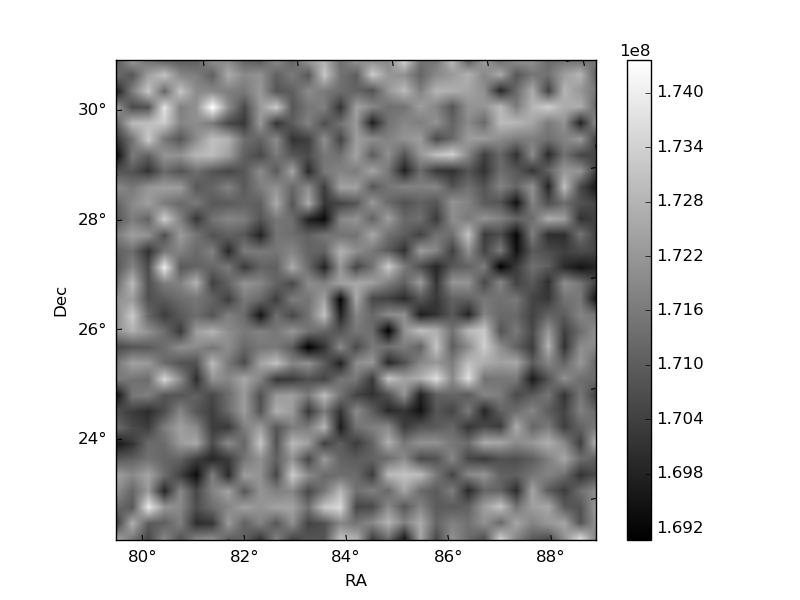

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

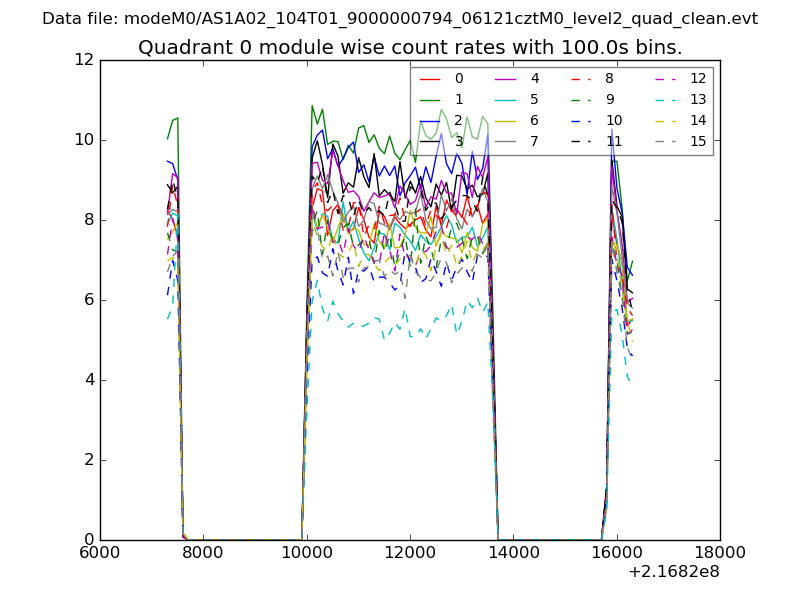

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

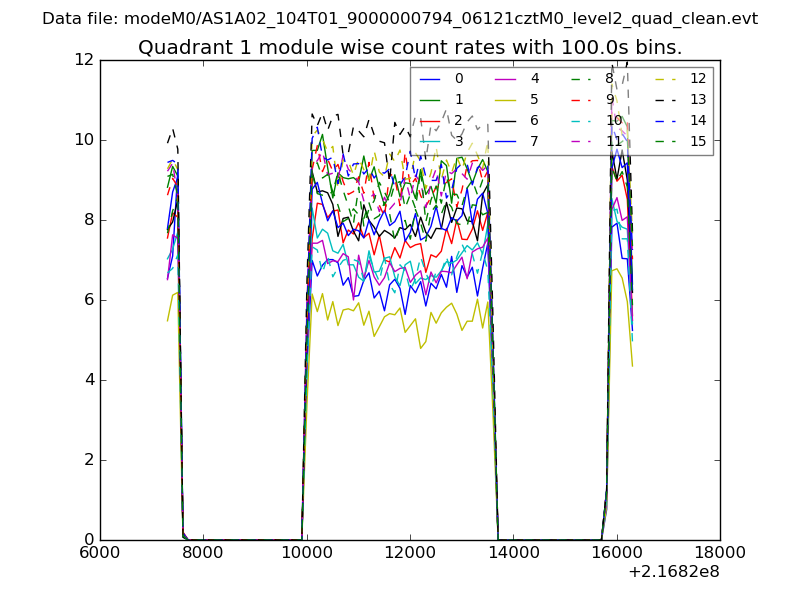

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

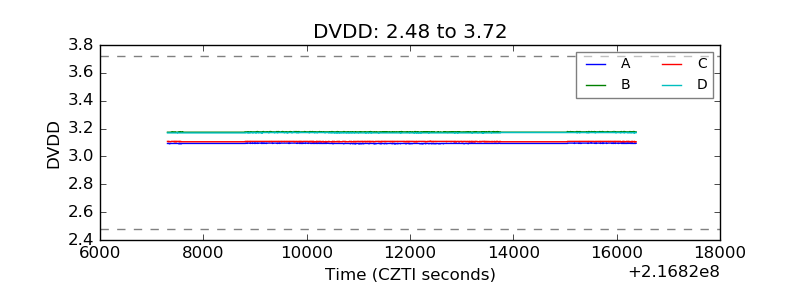

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

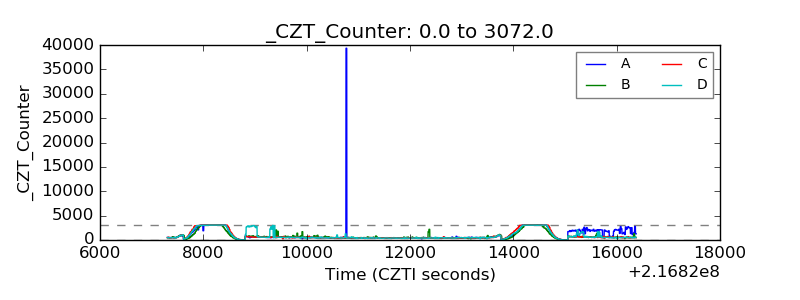

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

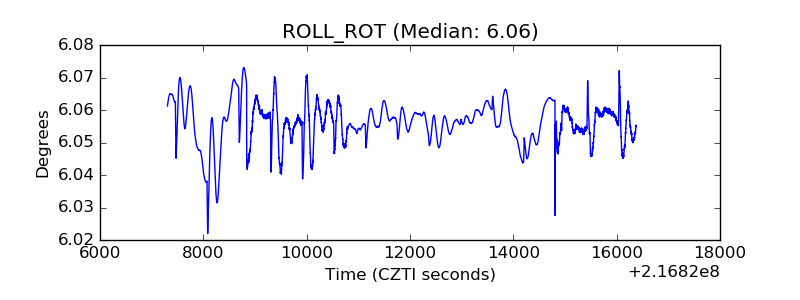

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
