| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_104T01_9000000794_06124cztM0_level2.evt | modeM0/AS1A02_104T01_9000000794_06124cztM0_level2_quad_clean.evt |
| Size (bytes) | 203,022,720 | 38,874,240 |
| Size | 193.6 MB | 37.1 MB |
| Events in quadrant A | 2,534,555 | 245,850 |
| Events in quadrant B | 1,147,213 | 266,187 |
| Events in quadrant C | 1,083,313 | 262,783 |
| Events in quadrant D | 1,233,145 | 243,829 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9058 | 22 |
| B | 0 | 4865 | 3 |
| C | 0 | 4652 | 4 |
| D | 0 | 5158 | 11 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2183 | 256 | 11.726981% |
| B | 2186 | 50 | 2.287283% |
| C | 2186 | 19 | 0.869167% |
| D | 2183 | 42 | 1.923958% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3502 | 2187 | 111 | 111 | 3.17% | 5.08% |  |
| B | 3502 | 2188 | 4 | 4 | 0.11% | 0.18% |  |
| C | 3502 | 2188 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3502 | 2188 | 28 | 28 | 0.80% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1535229 | 27616.07 | 256 | 250 | 55.6 |
| A | 3 | 1 | 7025 | 121.89 | 256 | 250 | 55.6 |
| A | 10 | 1 | 3226 | 53.54 | 256 | 250 | 55.6 |
| B | 3 | 64 | 44585 | 799.64 | 275 | 268 | 55.4 |
| B | 4 | 48 | 13911 | 246.17 | 275 | 268 | 55.4 |
| B | 4 | 81 | 5632 | 96.79 | 275 | 268 | 55.4 |
| C | 9 | 68 | 15318 | 230.09 | 268 | 268 | 65.4 |
| C | 8 | 128 | 6623 | 97.16 | 268 | 268 | 65.4 |
| C | 5 | 174 | 5263 | 76.36 | 268 | 268 | 65.4 |
| D | 11 | 241 | 84791 | 1278.63 | 260 | 251 | 66.1 |
| D | 13 | 105 | 52428 | 789.15 | 260 | 251 | 66.1 |
| D | 2 | 14 | 43576 | 655.27 | 260 | 251 | 66.1 |

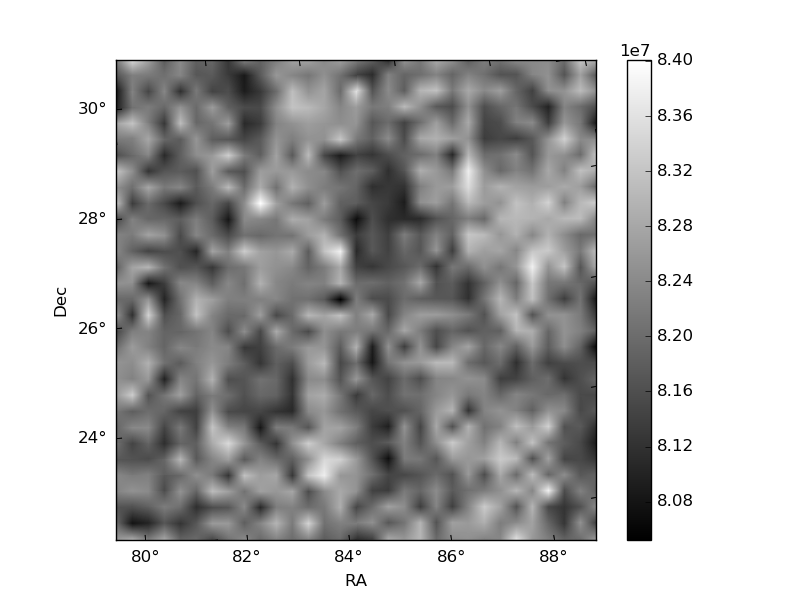

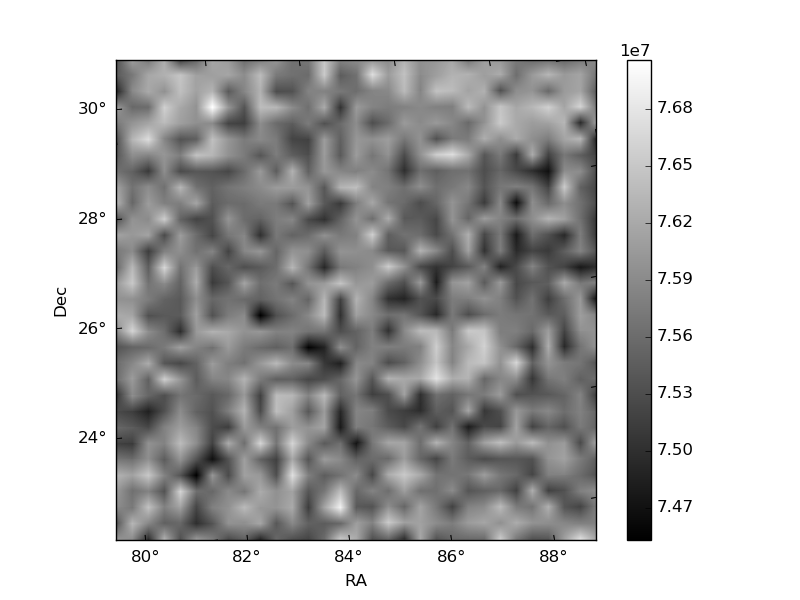

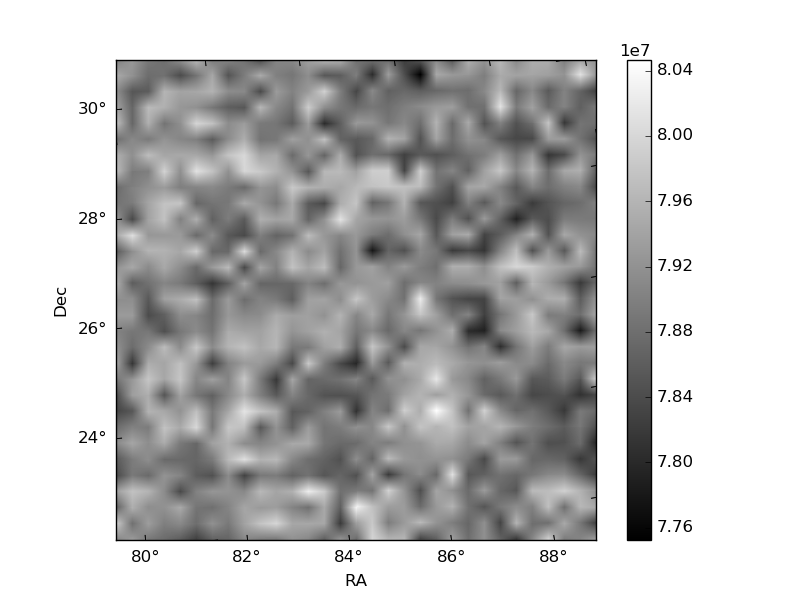

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

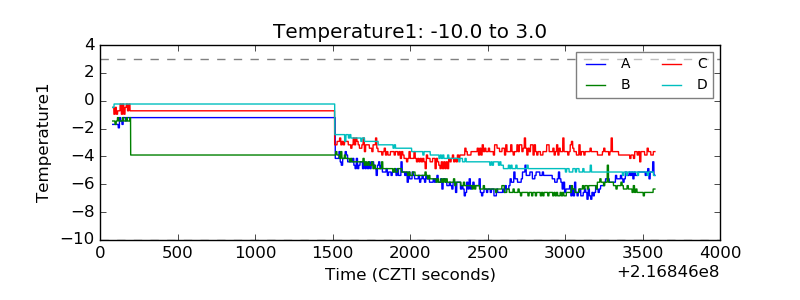

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

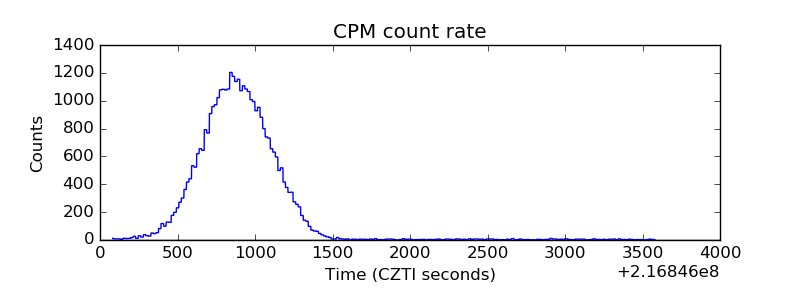

| _CPM_Rate |  |

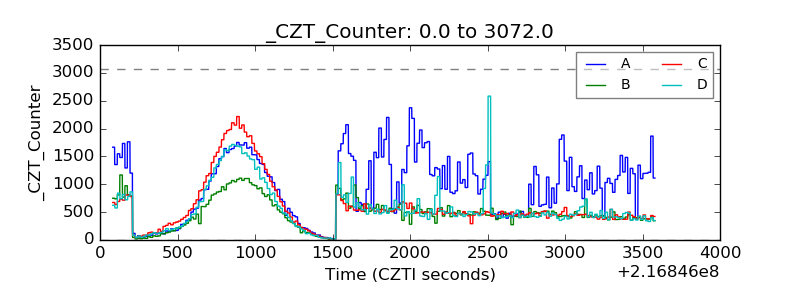

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

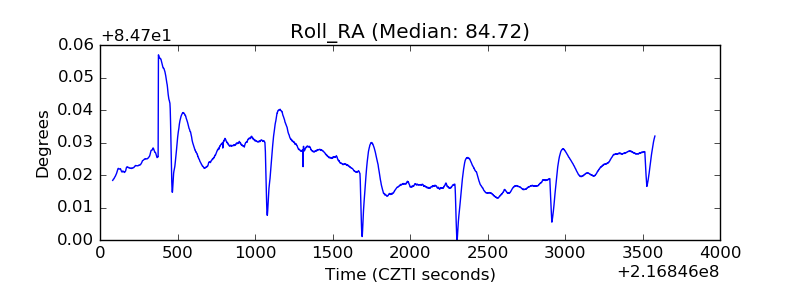

| _Roll_RA |  |

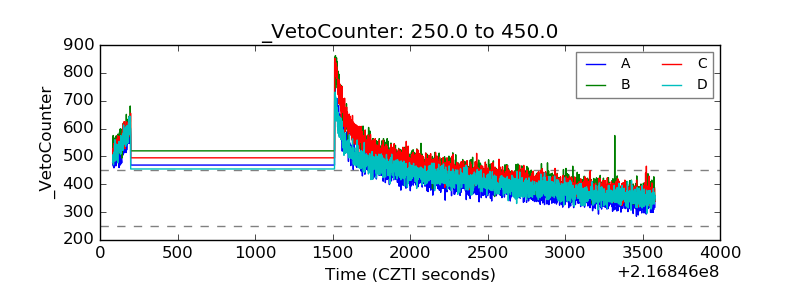

| Veto Counter |  |
