| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_019T01_9000000796_06127cztM0_level2.evt | modeM0/AS1G06_019T01_9000000796_06127cztM0_level2_quad_clean.evt |
| Size (bytes) | 200,355,840 | 39,205,440 |
| Size | 191.1 MB | 37.4 MB |
| Events in quadrant A | 1,527,917 | 229,281 |
| Events in quadrant B | 1,524,199 | 238,810 |
| Events in quadrant C | 1,412,086 | 254,434 |
| Events in quadrant D | 1,380,141 | 234,116 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 1 |
| C | 0 | 3 | 1 |
| D | 0 | 3 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19664 | 13048 |
| B | 0 | 20191 | 13574 |
| C | 0 | 18251 | 11703 |
| D | 0 | 18767 | 12254 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 98 |
| B | 0 | 177 | 109 |
| C | 0 | 177 | 97 |
| D | 0 | 181 | 101 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3093 | 10 | 0.323311% |
| B | 3147 | 16 | 0.508421% |
| C | 3258 | 13 | 0.399018% |
| D | 3184 | 10 | 0.314070% |

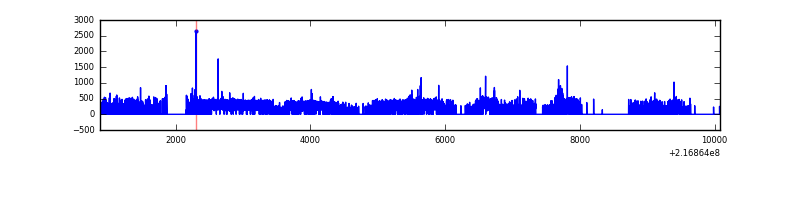

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9189 | 4475 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9180 | 4535 | 2 | 2 | 0.02% | 0.04% |  |
| C | 9186 | 4714 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9201 | 4603 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 178773 | 2433.99 | 346 | 338 | 73.3 |
| A | 4 | 2 | 13164 | 174.96 | 346 | 338 | 73.3 |
| A | 0 | 226 | 3326 | 40.76 | 346 | 338 | 73.3 |
| B | 3 | 64 | 74984 | 1050.69 | 358 | 349 | 71.0 |
| B | 15 | 204 | 13325 | 182.67 | 358 | 349 | 71.0 |
| B | 15 | 85 | 12986 | 177.9 | 358 | 349 | 71.0 |
| C | 1 | 16 | 6214 | 68.16 | 358 | 360 | 85.9 |
| C | 13 | 61 | 2830 | 28.76 | 358 | 360 | 85.9 |
| C | 8 | 222 | 2761 | 27.96 | 358 | 360 | 85.9 |
| D | 2 | 33 | 24611 | 280.97 | 348 | 336 | 86.4 |
| D | 2 | 234 | 12004 | 135.05 | 348 | 336 | 86.4 |
| D | 2 | 14 | 6796 | 74.77 | 348 | 336 | 86.4 |

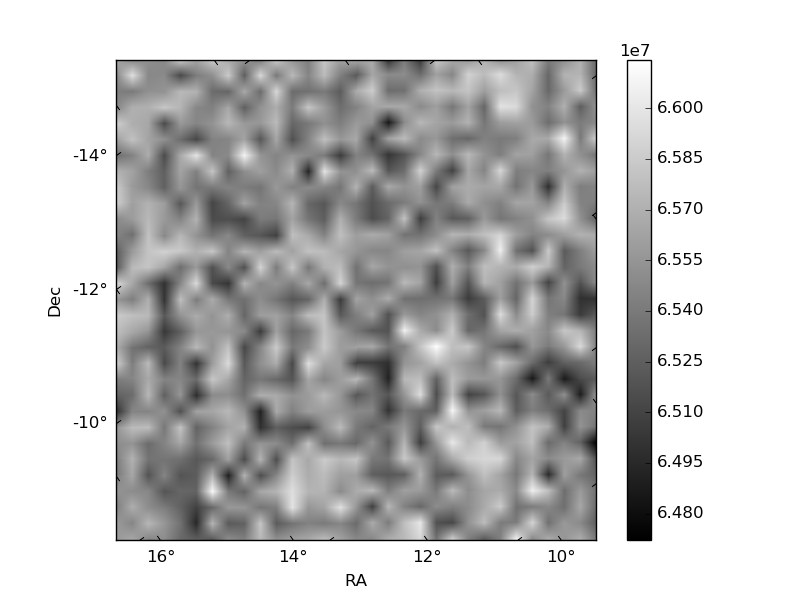

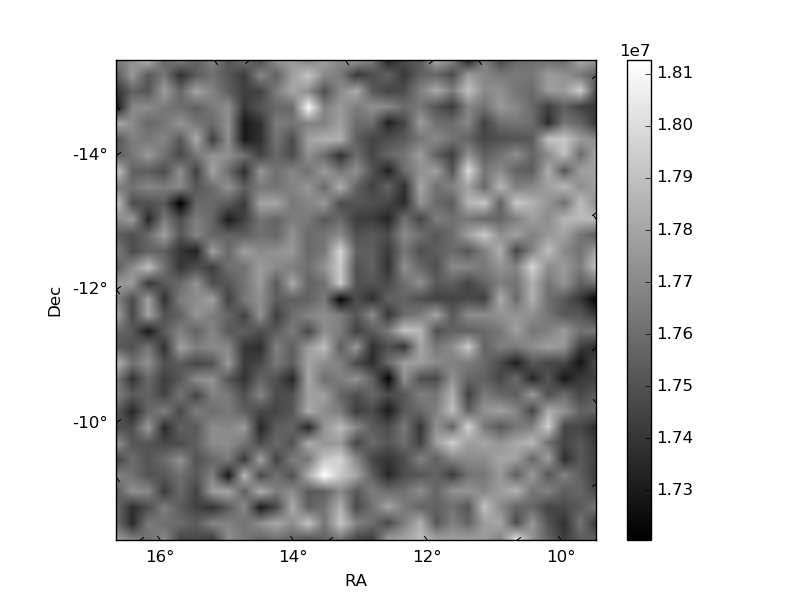

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

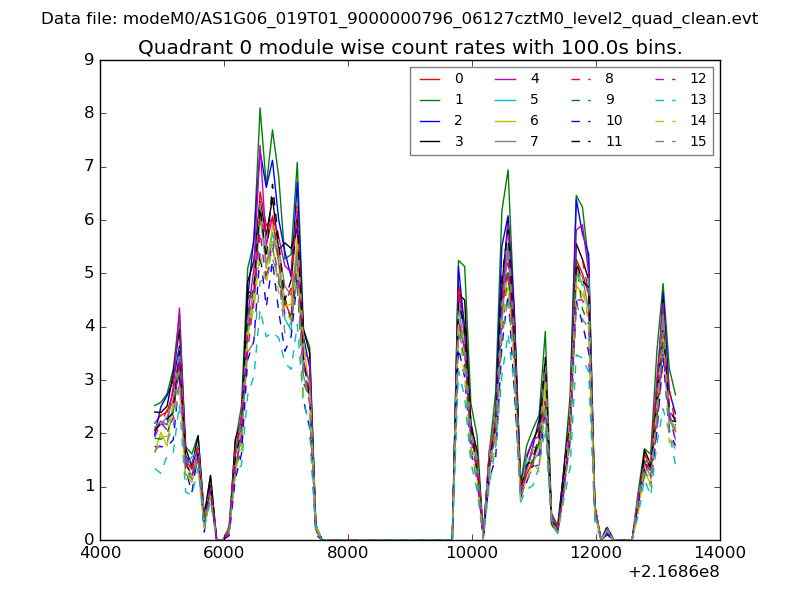

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

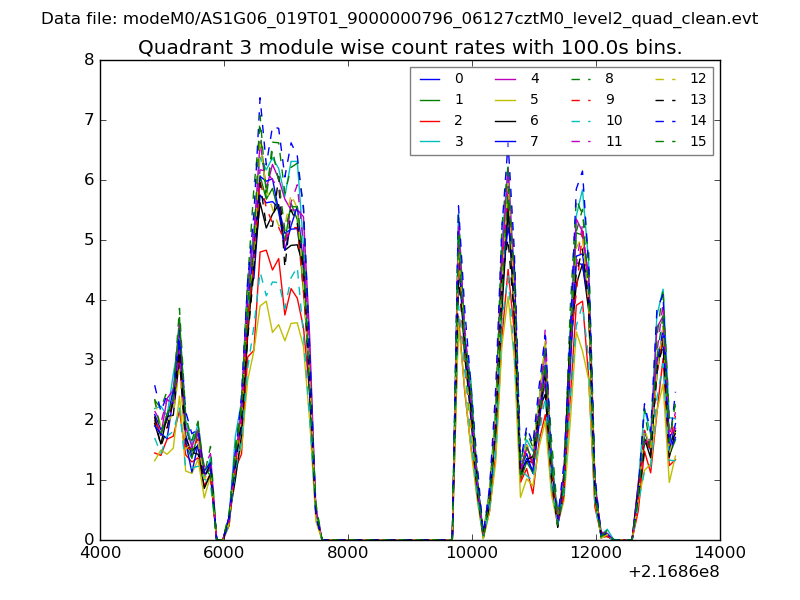

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

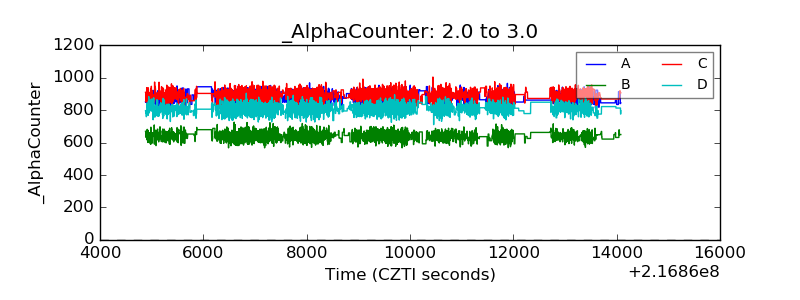

| Alpha Counter |  |
| _CPM_Rate |  |

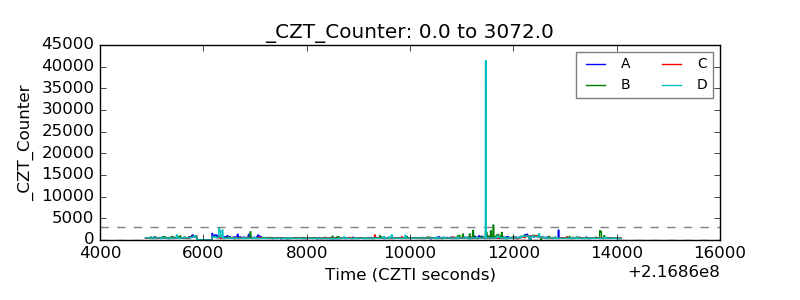

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

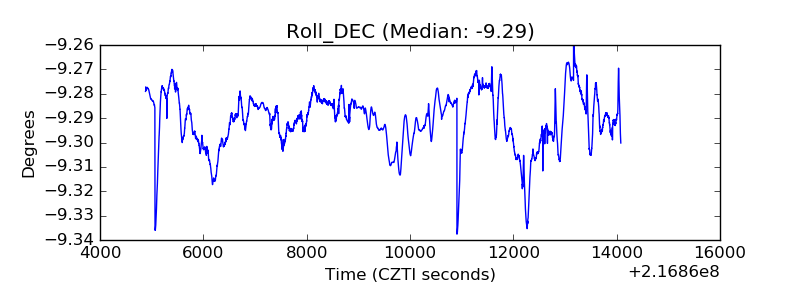

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
