| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_019T01_9000000796_06134cztM0_level2.evt | modeM0/AS1G06_019T01_9000000796_06134cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,224,640 | 84,522,240 |
| Size | 412.2 MB | 80.6 MB |
| Events in quadrant A | 3,338,095 | 533,033 |
| Events in quadrant B | 3,132,885 | 545,642 |
| Events in quadrant C | 2,908,924 | 531,762 |
| Events in quadrant D | 3,284,589 | 512,739 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14461 | 465 |
| B | 0 | 13760 | 490 |
| C | 0 | 13406 | 470 |
| D | 0 | 14654 | 664 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 4 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6250 | 123 | 1.968000% |
| B | 6232 | 92 | 1.476252% |
| C | 6236 | 68 | 1.090443% |
| D | 6213 | 116 | 1.867053% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7570 | 6450 | 20 | 20 | 0.26% | 0.31% |  |
| B | 7570 | 6453 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7570 | 6444 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7570 | 6437 | 34 | 34 | 0.45% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 244052 | 1539.72 | 772 | 757 | 158.0 |
| A | 8 | 15 | 111549 | 701.16 | 772 | 757 | 158.0 |
| A | 13 | 251 | 9127 | 52.97 | 772 | 757 | 158.0 |
| B | 3 | 64 | 54753 | 359.12 | 777 | 760 | 150.3 |
| B | 15 | 204 | 31336 | 203.37 | 777 | 760 | 150.3 |
| B | 0 | 219 | 22876 | 147.1 | 777 | 760 | 150.3 |
| C | 14 | 67 | 6393 | 32.54 | 742 | 747 | 173.5 |
| C | 1 | 16 | 6299 | 31.99 | 742 | 747 | 173.5 |
| C | 13 | 61 | 5906 | 29.73 | 742 | 747 | 173.5 |
| D | 13 | 169 | 308613 | 1666.48 | 741 | 714 | 184.8 |
| D | 5 | 97 | 49703 | 265.15 | 741 | 714 | 184.8 |
| D | 8 | 195 | 49021 | 261.46 | 741 | 714 | 184.8 |

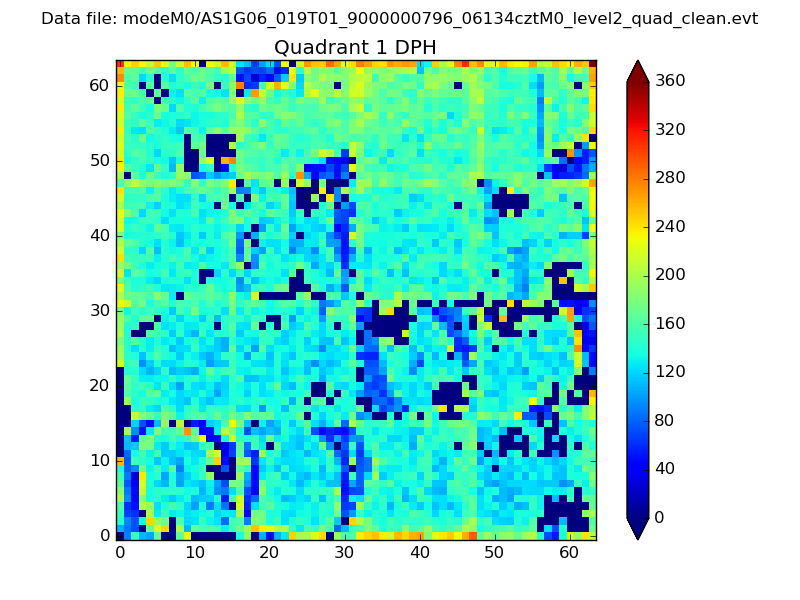

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

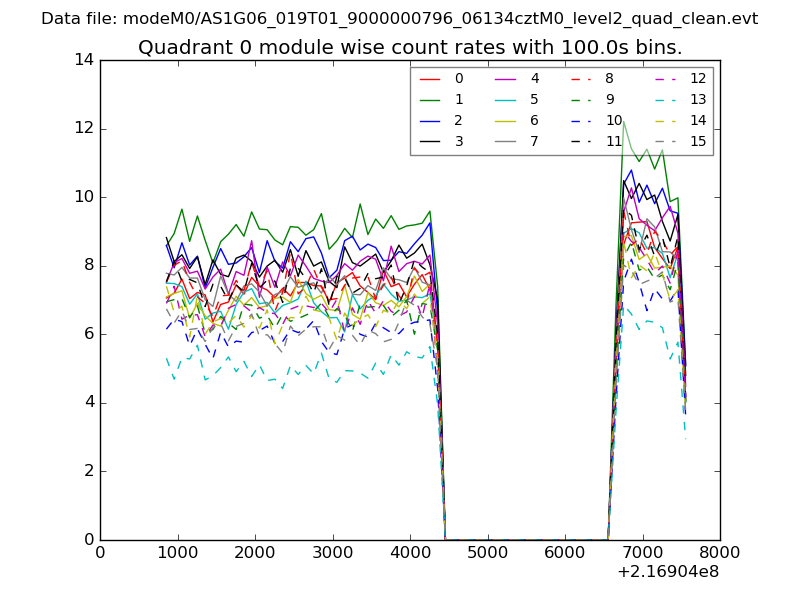

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

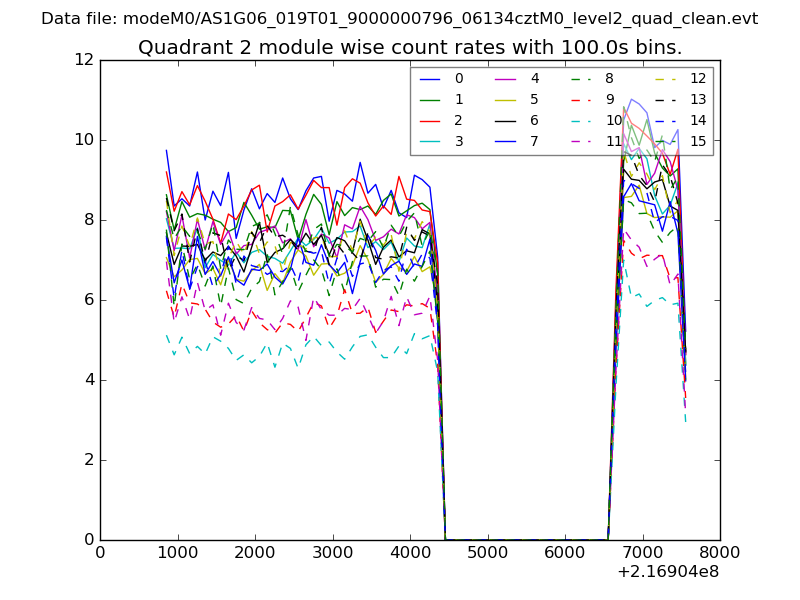

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

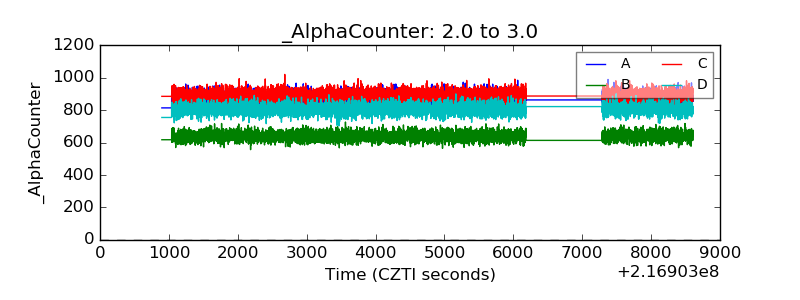

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

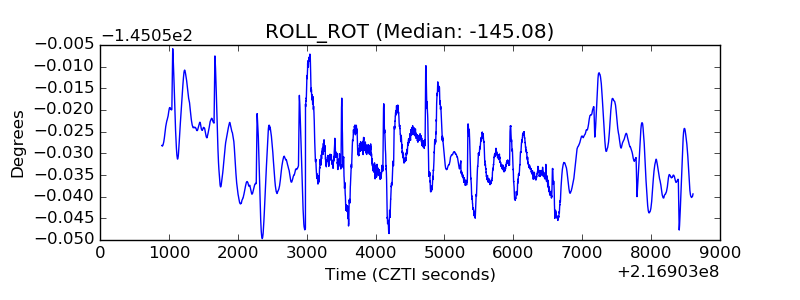

| _ROLL_ROT |  |

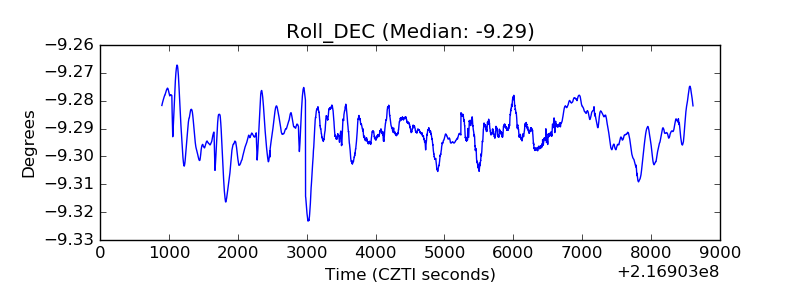

| _Roll_DEC |  |
| _Roll_RA |  |

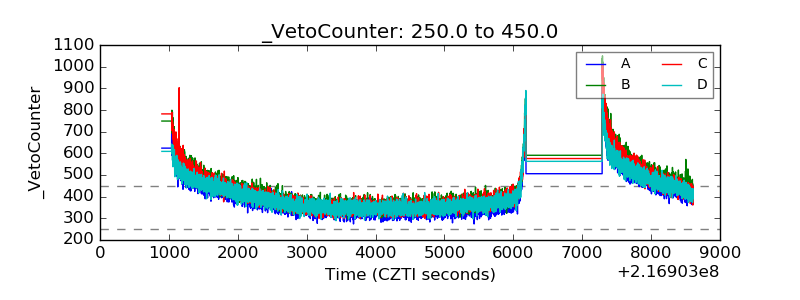

| Veto Counter |  |
