| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_018T01_9000000798_06138cztM0_level2.evt | modeM0/AS1C02_018T01_9000000798_06138cztM0_level2_quad_clean.evt |
| Size (bytes) | 303,459,840 | 49,023,360 |
| Size | 289.4 MB | 46.8 MB |
| Events in quadrant A | 2,518,423 | 289,887 |
| Events in quadrant B | 2,402,122 | 304,590 |
| Events in quadrant C | 2,010,249 | 310,075 |
| Events in quadrant D | 1,982,507 | 293,345 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10214 | 2 |
| B | 0 | 9822 | 1 |
| C | 0 | 8751 | 1 |
| D | 0 | 8742 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4054 | 162 | 3.996053% |
| B | 4054 | 143 | 3.527380% |
| C | 4054 | 31 | 0.764677% |
| D | 4054 | 51 | 1.258017% |

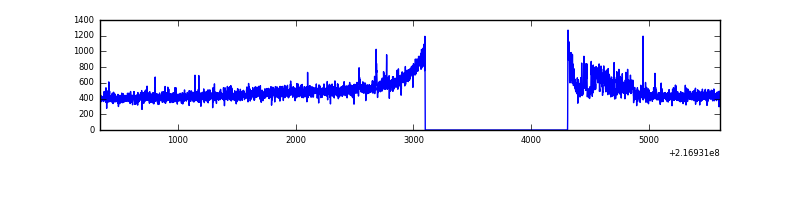

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5264 | 4055 | 116 | 116 | 2.20% | 2.86% |  |
| B | 5264 | 4055 | 46 | 46 | 0.87% | 1.13% |  |
| C | 5264 | 4055 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5264 | 4055 | 10 | 10 | 0.19% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 170 | 570168 | 5536.33 | 498 | 487 | 102.9 |
| A | 8 | 15 | 26646 | 254.22 | 498 | 487 | 102.9 |
| A | 4 | 2 | 7552 | 68.66 | 498 | 487 | 102.9 |
| B | 3 | 64 | 297846 | 3007.65 | 505 | 494 | 98.9 |
| B | 0 | 214 | 30860 | 307.15 | 505 | 494 | 98.9 |
| B | 4 | 81 | 22066 | 218.2 | 505 | 494 | 98.9 |
| C | 1 | 16 | 70880 | 608.08 | 490 | 493 | 115.8 |
| C | 9 | 16 | 16701 | 140.02 | 490 | 493 | 115.8 |
| C | 9 | 54 | 6889 | 55.26 | 490 | 493 | 115.8 |
| D | 5 | 97 | 47241 | 389.19 | 486 | 470 | 120.2 |
| D | 2 | 33 | 33708 | 276.58 | 486 | 470 | 120.2 |
| D | 8 | 195 | 29092 | 238.17 | 486 | 470 | 120.2 |

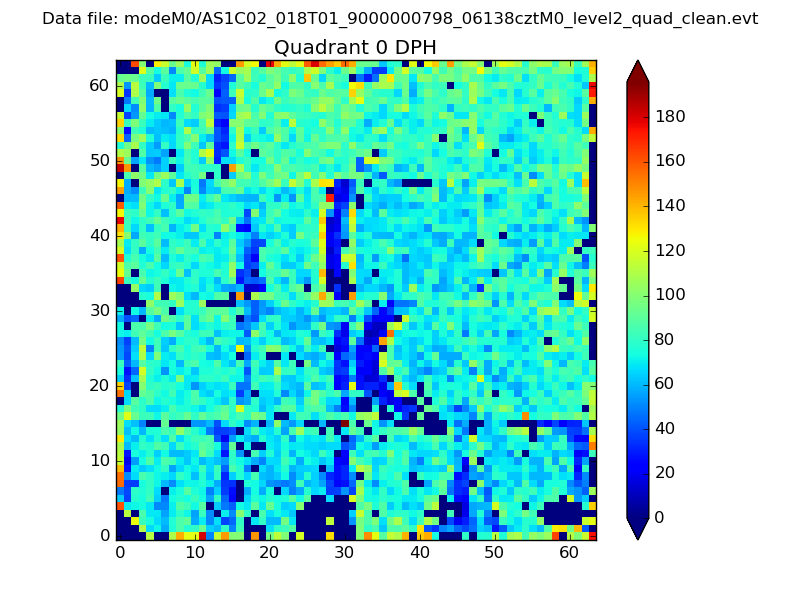

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

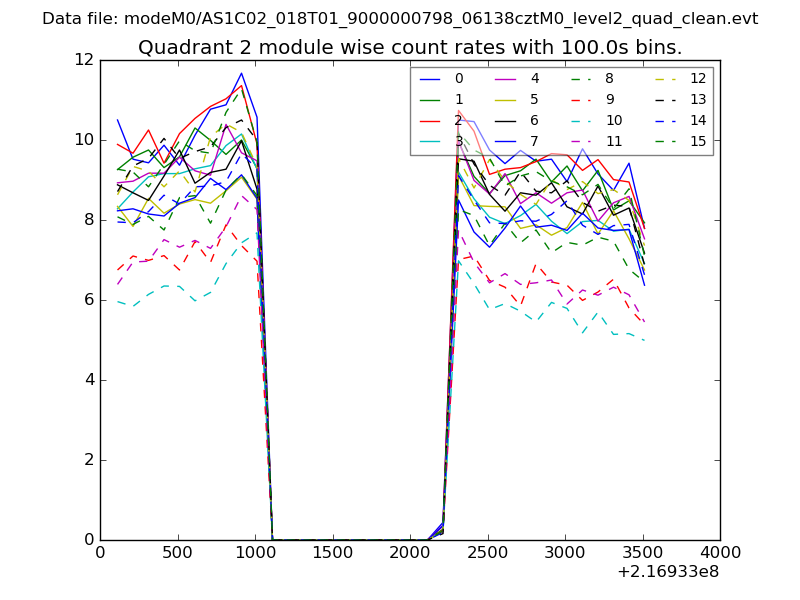

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

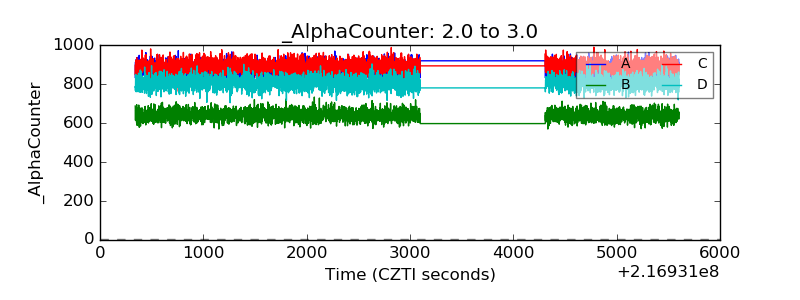

| Alpha Counter |  |
| _CPM_Rate |  |

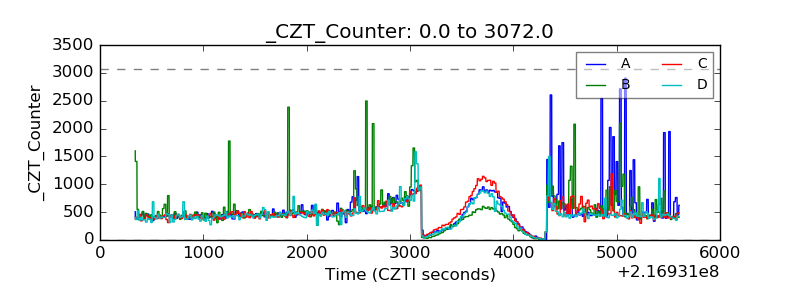

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

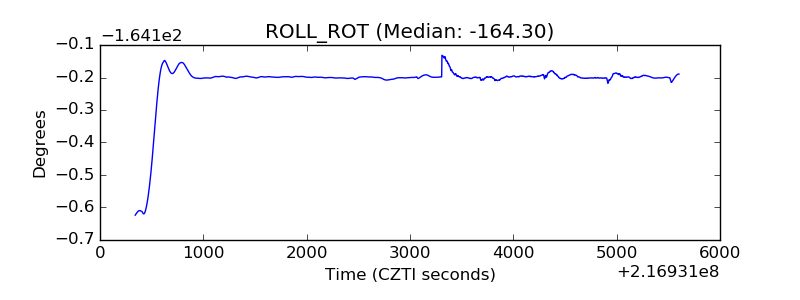

| _ROLL_ROT |  |

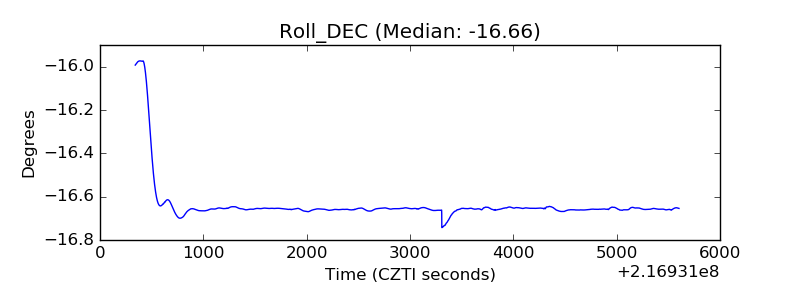

| _Roll_DEC |  |
| _Roll_RA |  |

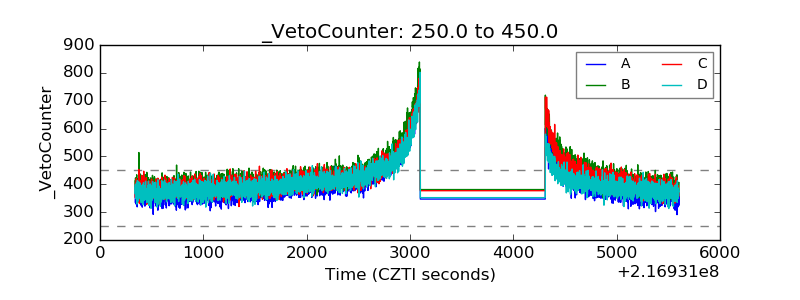

| Veto Counter |  |
