| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_199T01_9000000800_06159cztM0_level2.evt | modeM0/AS1A02_199T01_9000000800_06159cztM0_level2_quad_clean.evt |
| Size (bytes) | 99,604,800 | 22,605,120 |
| Size | 95.0 MB | 21.6 MB |
| Events in quadrant A | 435,537 | 74,522 |
| Events in quadrant B | 886,545 | 164,967 |
| Events in quadrant C | 754,143 | 163,572 |
| Events in quadrant D | 822,758 | 157,616 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 32 |
| B | 0 | 77 | 33 |
| C | 0 | 75 | 39 |
| D | 0 | 76 | 36 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7612 | 5576 |
| B | 0 | 8225 | 4326 |
| C | 0 | 7602 | 3883 |
| D | 0 | 7890 | 3989 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1017 | 0 | 0.000000% |
| B | 1832 | 2 | 0.109170% |
| C | 1859 | 1 | 0.053792% |
| D | 1877 | 0 | 0.000000% |

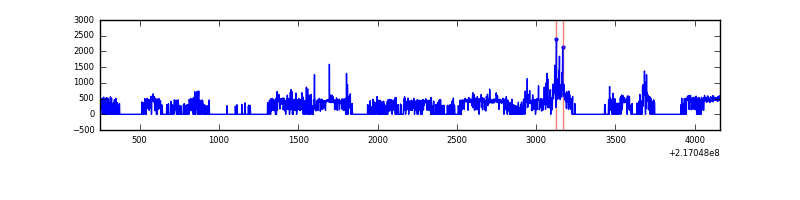

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

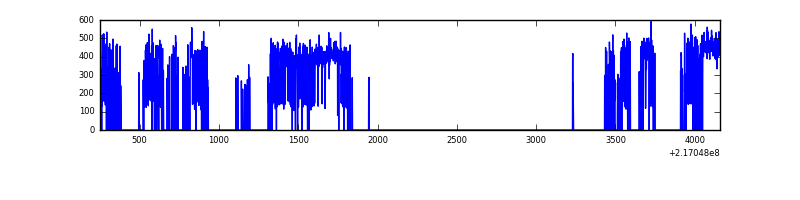

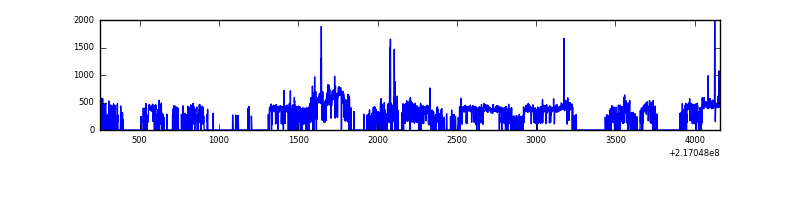

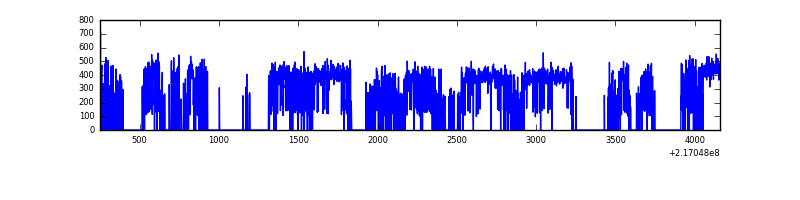

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3910 | 1304 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3906 | 2294 | 2 | 2 | 0.05% | 0.09% |  |
| C | 3910 | 2310 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3909 | 2323 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 10737 | 430.62 | 110 | 107 | 24.7 |
| A | 12 | 194 | 1087 | 39.7 | 110 | 107 | 24.7 |
| A | 0 | 226 | 1049 | 38.16 | 110 | 107 | 24.7 |
| B | 3 | 64 | 62725 | 1572.46 | 195 | 191 | 39.8 |
| B | 0 | 219 | 42705 | 1069.05 | 195 | 191 | 39.8 |
| B | 0 | 214 | 10896 | 269.19 | 195 | 191 | 39.8 |
| C | 1 | 16 | 6320 | 135.23 | 188 | 189 | 45.3 |
| C | 8 | 128 | 5088 | 108.06 | 188 | 189 | 45.3 |
| C | 8 | 112 | 2388 | 48.5 | 188 | 189 | 45.3 |
| D | 9 | 35 | 54462 | 1144.46 | 190 | 184 | 47.4 |
| D | 5 | 97 | 18041 | 376.52 | 190 | 184 | 47.4 |
| D | 8 | 195 | 13950 | 290.26 | 190 | 184 | 47.4 |

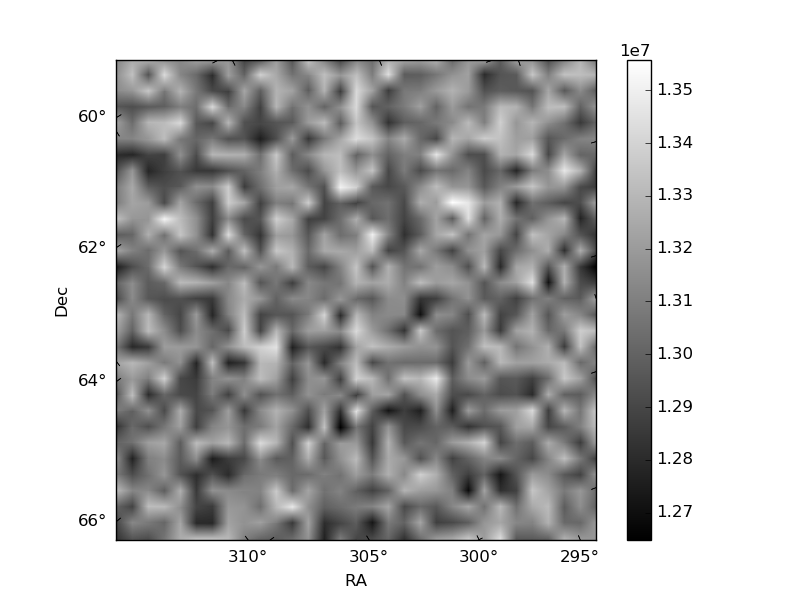

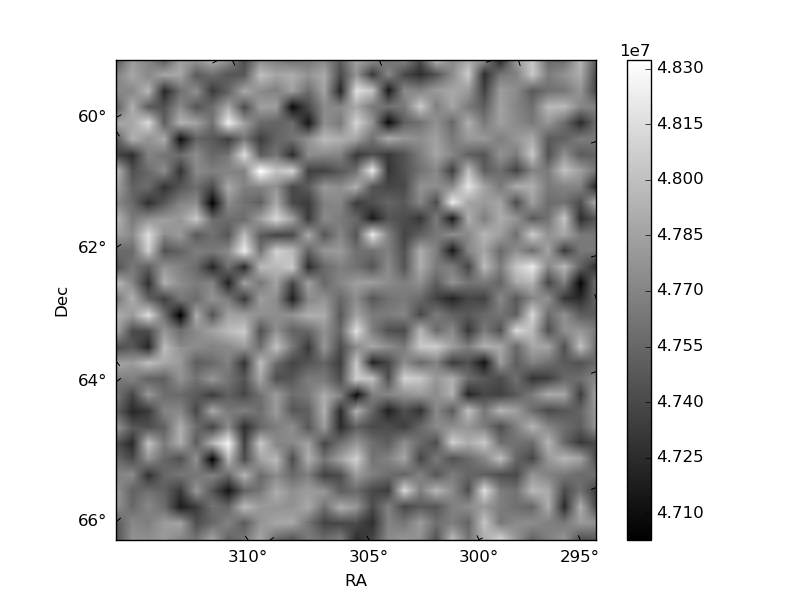

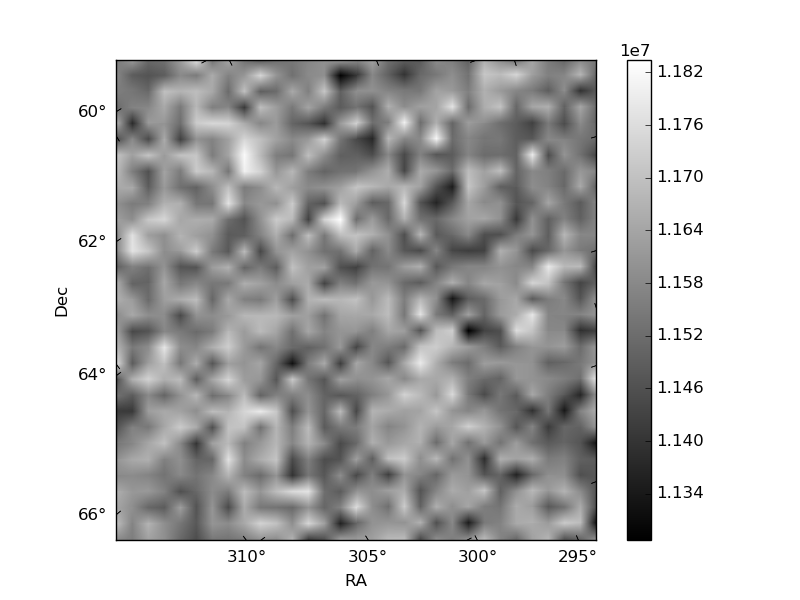

Histogram calculated using DETX and DETY for each event in the final _common_clean file

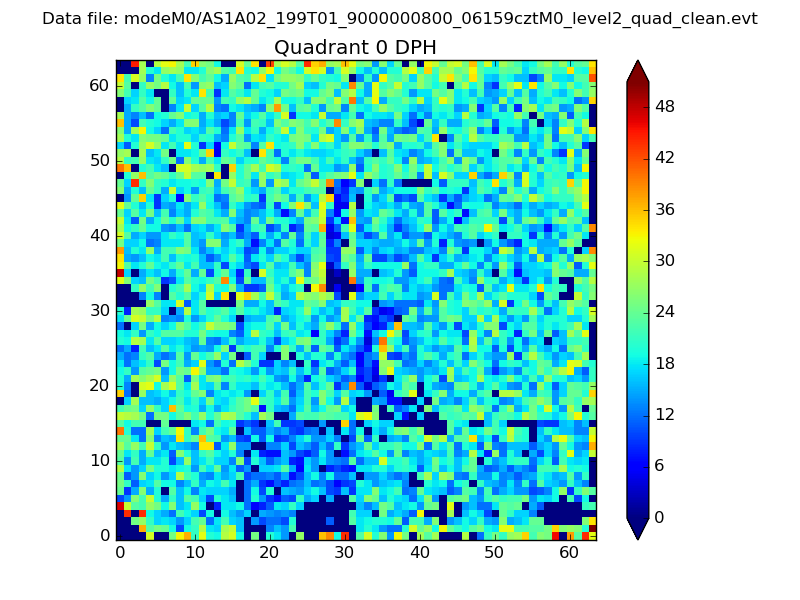

| Quadrant A |  |
 |

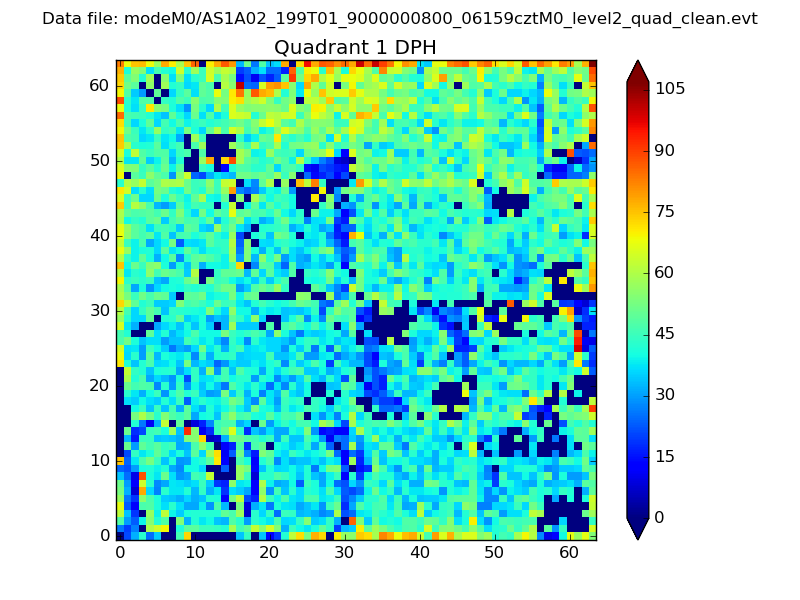

Quadrant B |

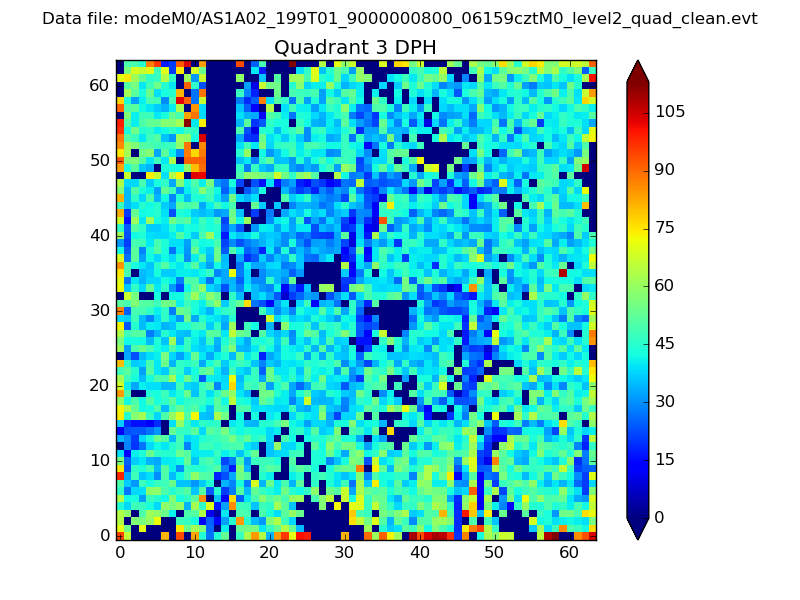

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

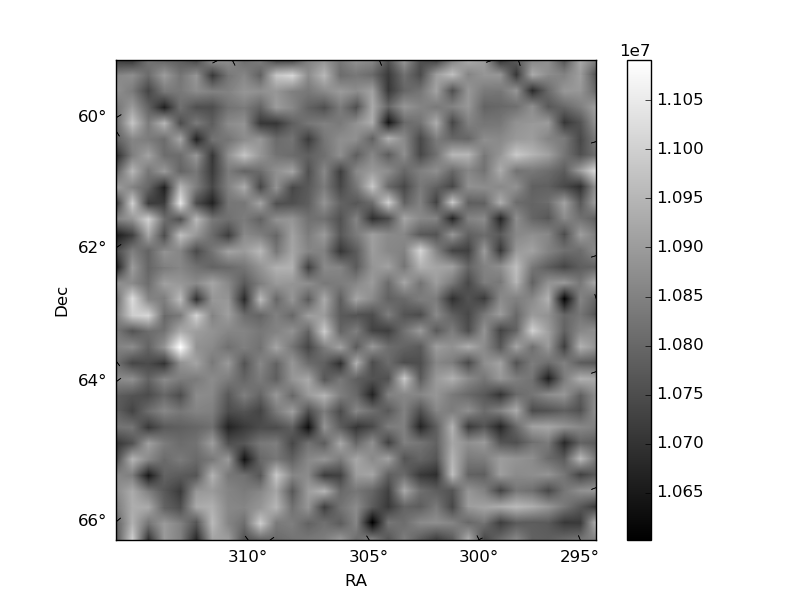

| Plot type | Count rate plots | Images |
|---|---|---|

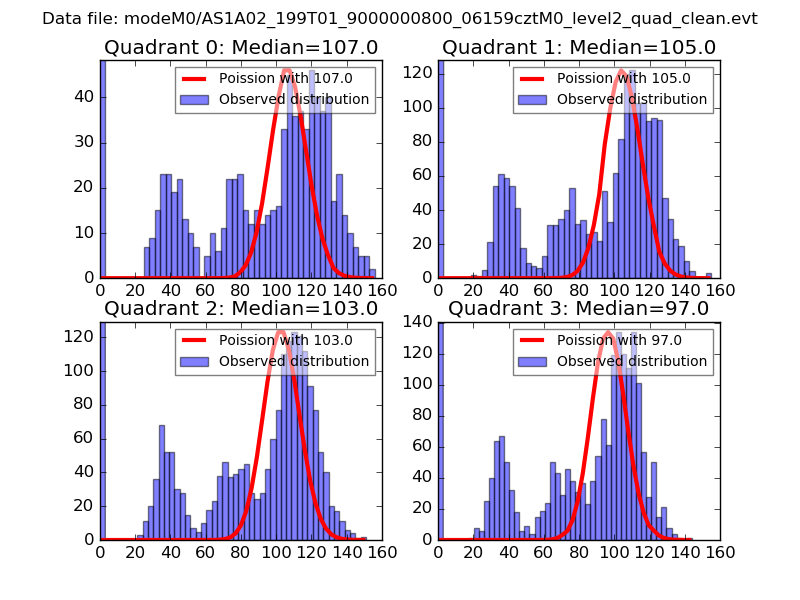

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

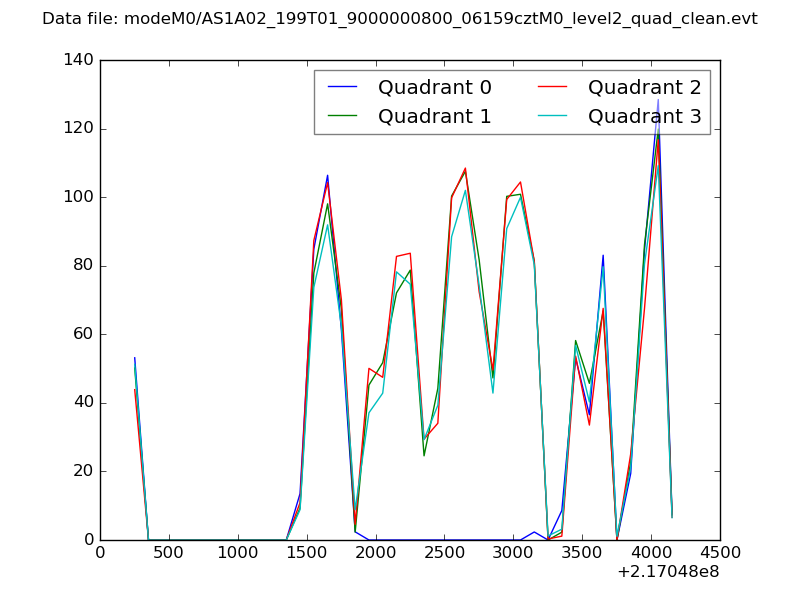

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

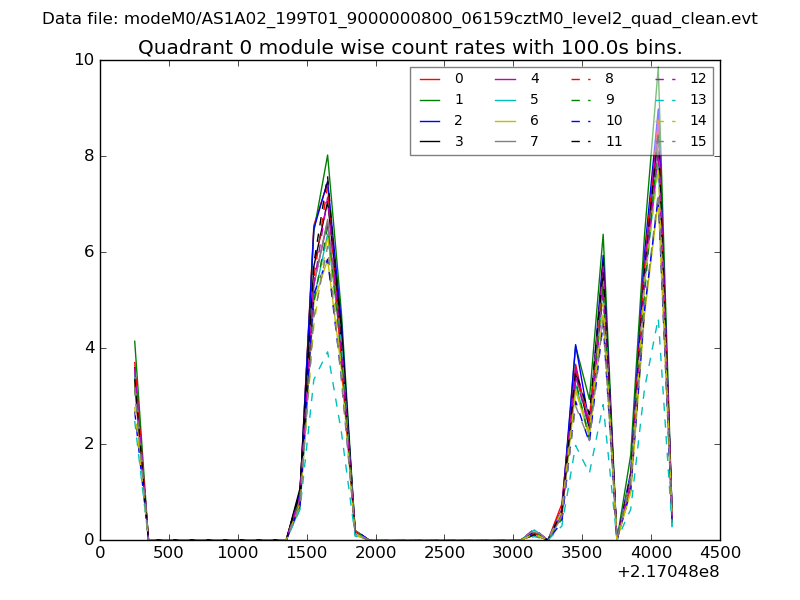

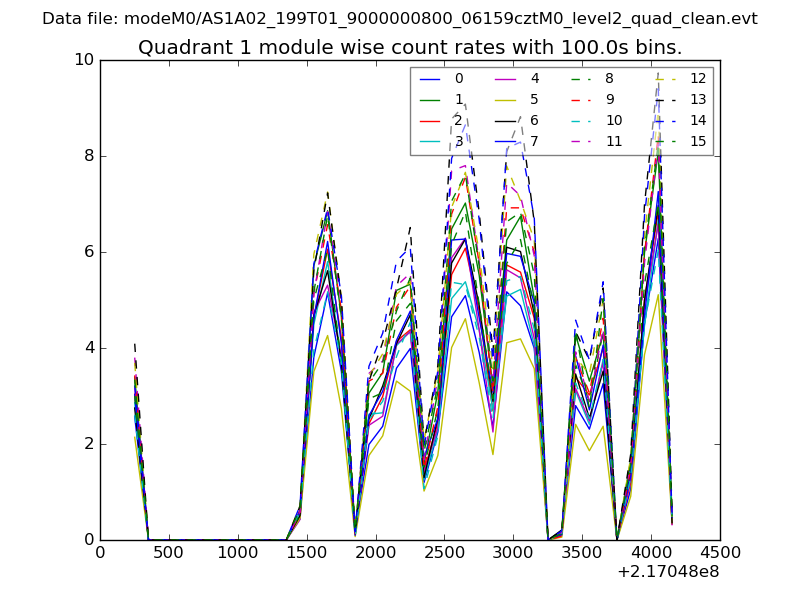

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

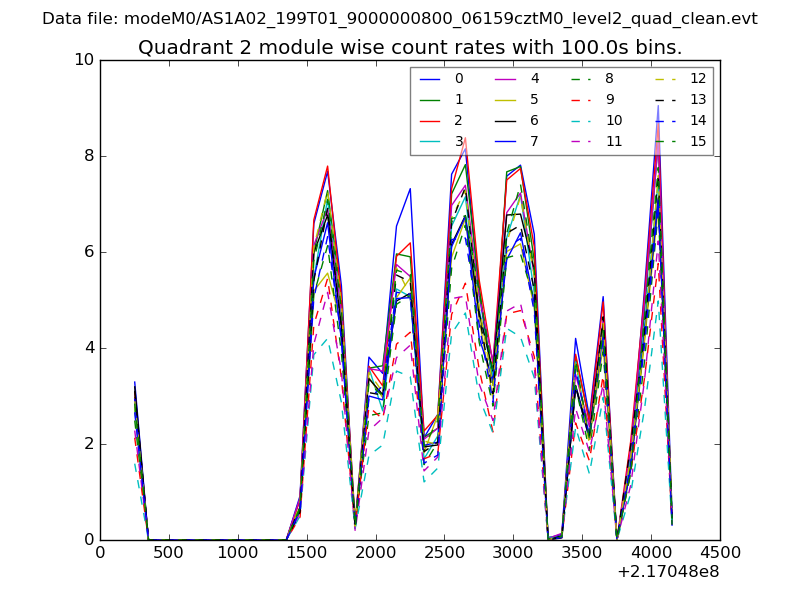

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

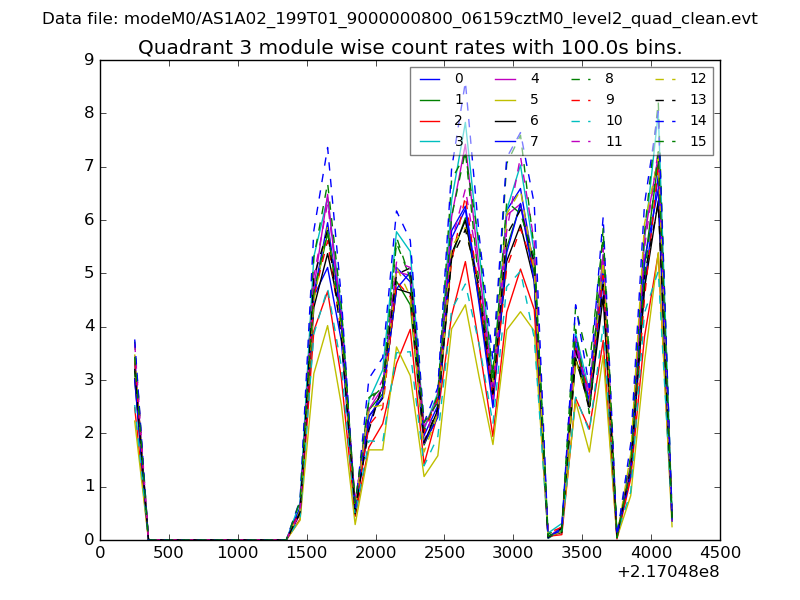

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

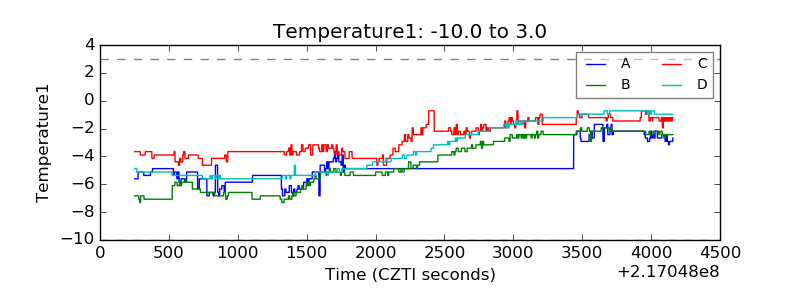

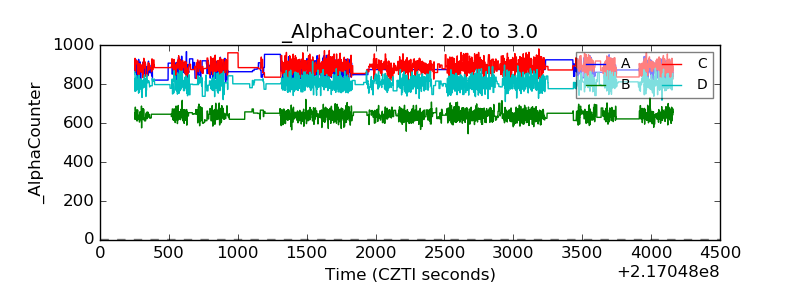

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

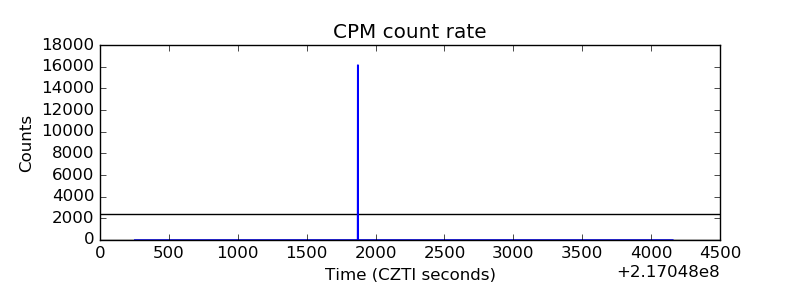

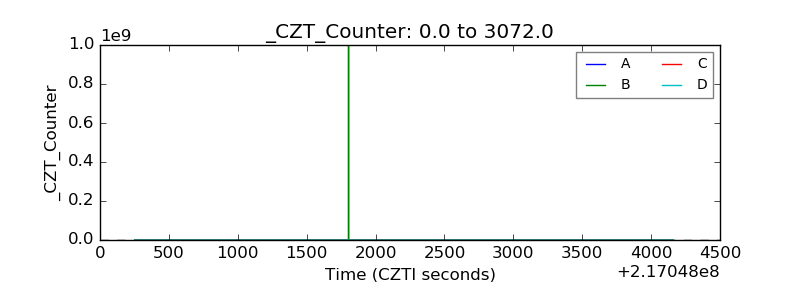

| _CPM_Rate |  |
| CZT Counter |  |

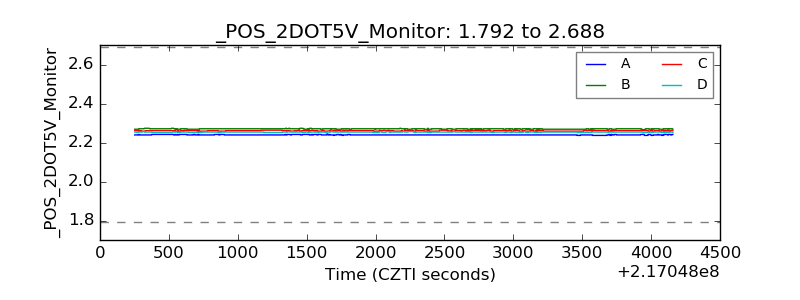

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

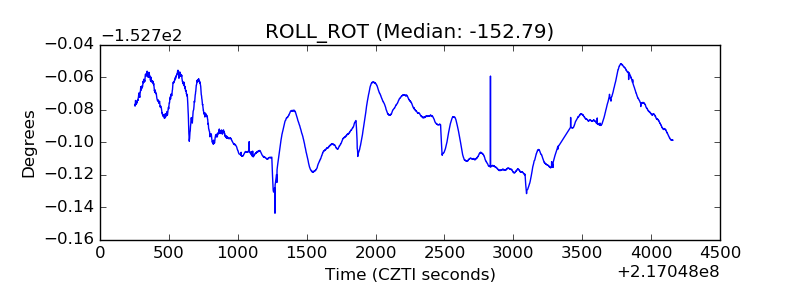

| _ROLL_ROT |  |

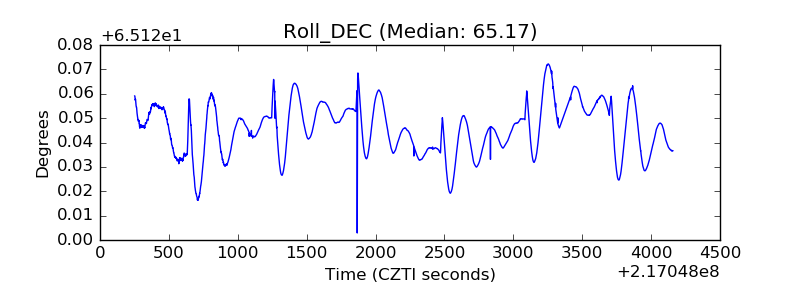

| _Roll_DEC |  |

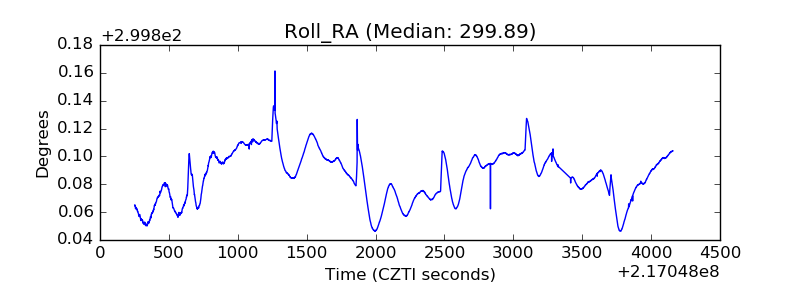

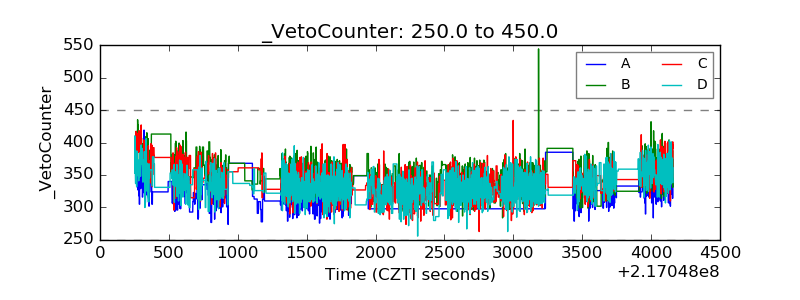

| _Roll_RA |  |
| Veto Counter |  |
