| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_085T02_9000000808_06195cztM0_level2.evt | modeM0/AS1A02_085T02_9000000808_06195cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,235,200 | 92,373,120 |
| Size | 452.3 MB | 88.1 MB |
| Events in quadrant A | 3,632,523 | 595,410 |
| Events in quadrant B | 3,838,166 | 590,255 |
| Events in quadrant C | 3,081,564 | 602,576 |
| Events in quadrant D | 3,390,450 | 577,547 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14869 | 2 |
| B | 0 | 15634 | 1 |
| C | 0 | 13206 | 1 |
| D | 0 | 14251 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 94 | 1.520790% |
| B | 6181 | 270 | 4.368225% |
| C | 6181 | 80 | 1.294289% |
| D | 6181 | 114 | 1.844362% |

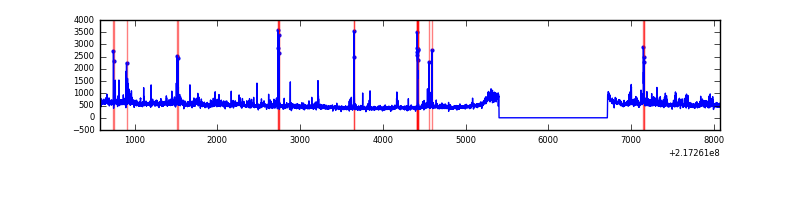

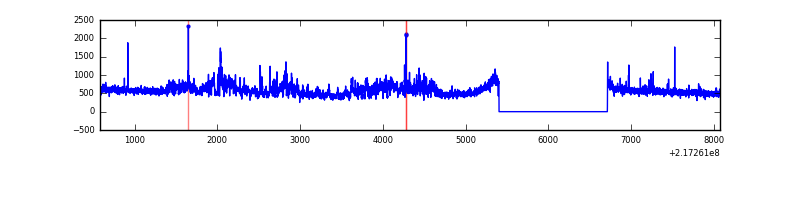

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7491 | 6181 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7491 | 6181 | 126 | 126 | 1.68% | 2.04% |  |
| C | 7491 | 6181 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7491 | 6181 | 23 | 23 | 0.31% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 548946 | 3480.89 | 779 | 763 | 157.5 |
| A | 8 | 15 | 68842 | 432.29 | 779 | 763 | 157.5 |
| A | 4 | 2 | 11921 | 70.85 | 779 | 763 | 157.5 |
| B | 3 | 64 | 470586 | 3248.7 | 775 | 758 | 144.6 |
| B | 0 | 214 | 105063 | 721.23 | 775 | 758 | 144.6 |
| B | 15 | 204 | 67315 | 460.22 | 775 | 758 | 144.6 |
| C | 1 | 16 | 87041 | 492.69 | 767 | 772 | 175.1 |
| C | 13 | 61 | 6192 | 30.95 | 767 | 772 | 175.1 |
| C | 3 | 202 | 1905 | 6.47 | 767 | 772 | 175.1 |
| D | 2 | 63 | 232875 | 1251.27 | 767 | 742 | 185.5 |
| D | 2 | 14 | 102712 | 549.65 | 767 | 742 | 185.5 |
| D | 2 | 136 | 76811 | 410.04 | 767 | 742 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

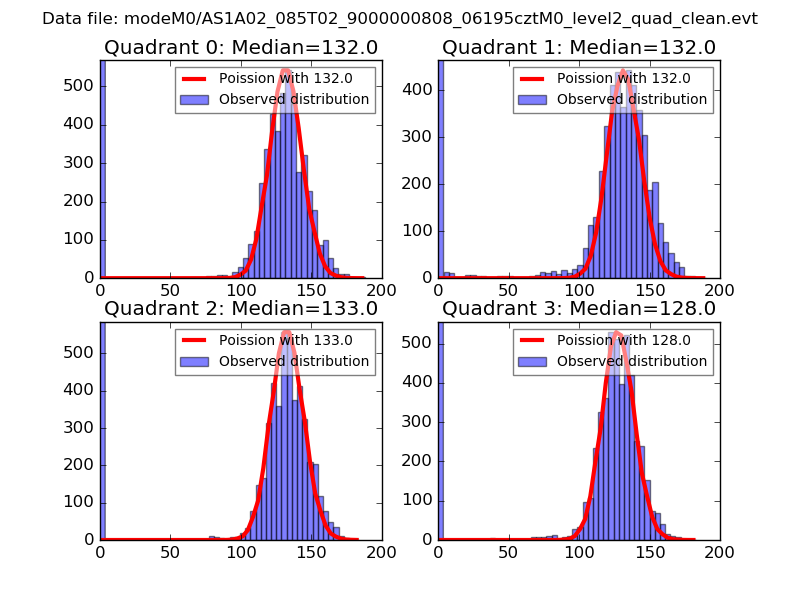

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

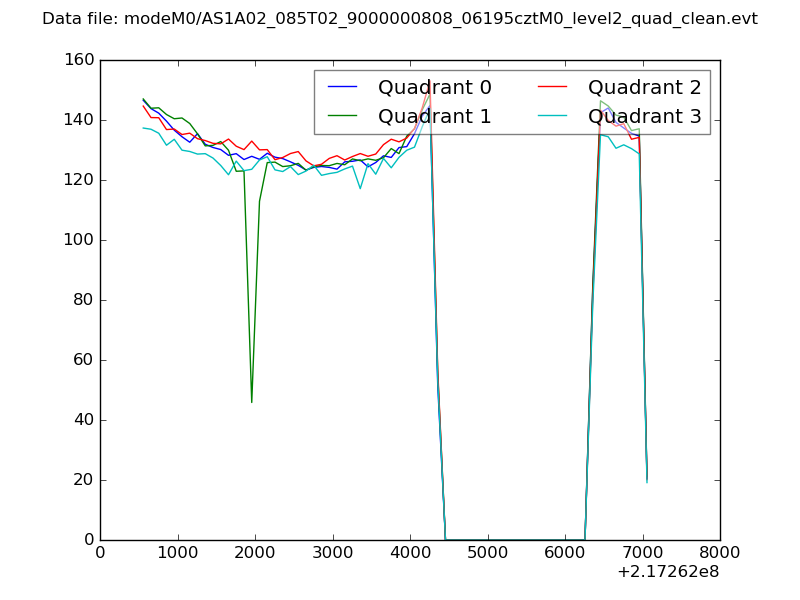

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

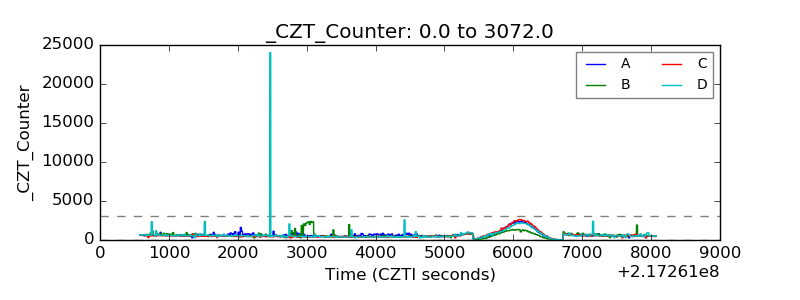

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

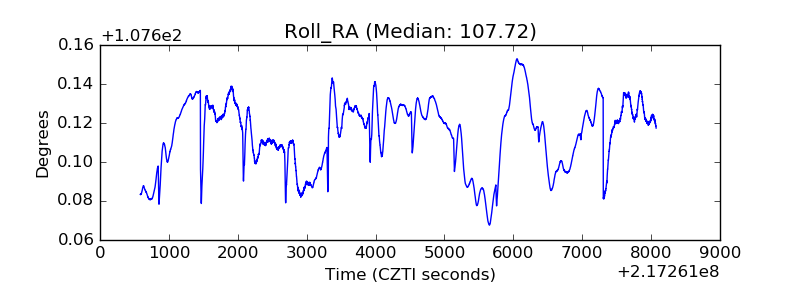

| _Roll_RA |  |

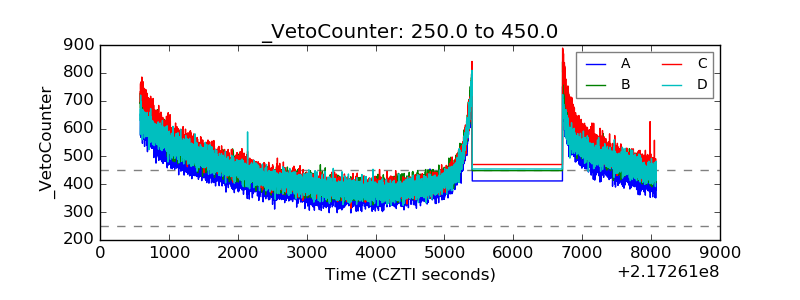

| Veto Counter |  |
