| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_151T01_9000000818_06233cztM0_level2.evt | modeM0/AS1A02_151T01_9000000818_06233cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,474,560 | 72,354,240 |
| Size | 447.7 MB | 69.0 MB |
| Events in quadrant A | 3,271,438 | 432,372 |
| Events in quadrant B | 3,503,251 | 436,578 |
| Events in quadrant C | 3,029,455 | 434,098 |
| Events in quadrant D | 3,955,072 | 416,988 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14164 | 3 |
| B | 0 | 14843 | 2 |
| C | 0 | 13792 | 2 |
| D | 0 | 16185 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6750 | 86 | 1.274074% |
| B | 6750 | 130 | 1.925926% |
| C | 6750 | 74 | 1.096296% |
| D | 6750 | 89 | 1.318519% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

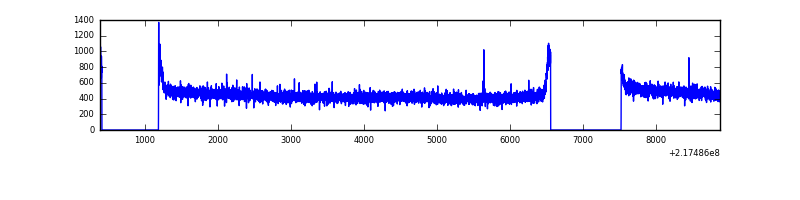

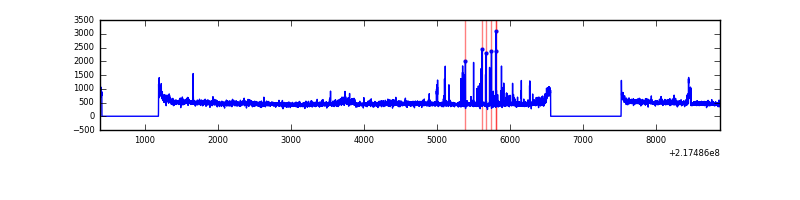

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8490 | 6751 | 6 | 6 | 0.07% | 0.09% |  |
| B | 8490 | 6750 | 24 | 24 | 0.28% | 0.36% |  |
| C | 8490 | 6750 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8490 | 6750 | 7 | 7 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 137725 | 853.71 | 784 | 766 | 160.4 |
| A | 15 | 236 | 90929 | 562.02 | 784 | 766 | 160.4 |
| A | 0 | 111 | 7796 | 43.82 | 784 | 766 | 160.4 |
| B | 3 | 64 | 256323 | 1675.57 | 792 | 772 | 152.5 |
| B | 4 | 81 | 76795 | 498.46 | 792 | 772 | 152.5 |
| B | 0 | 229 | 57253 | 370.33 | 792 | 772 | 152.5 |
| C | 13 | 61 | 6053 | 29.26 | 775 | 777 | 180.3 |
| C | 9 | 54 | 3393 | 14.51 | 775 | 777 | 180.3 |
| C | 8 | 222 | 2314 | 8.52 | 775 | 777 | 180.3 |
| D | 2 | 63 | 722189 | 3841.71 | 767 | 743 | 187.8 |
| D | 11 | 241 | 220019 | 1167.65 | 767 | 743 | 187.8 |
| D | 14 | 173 | 33494 | 174.4 | 767 | 743 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

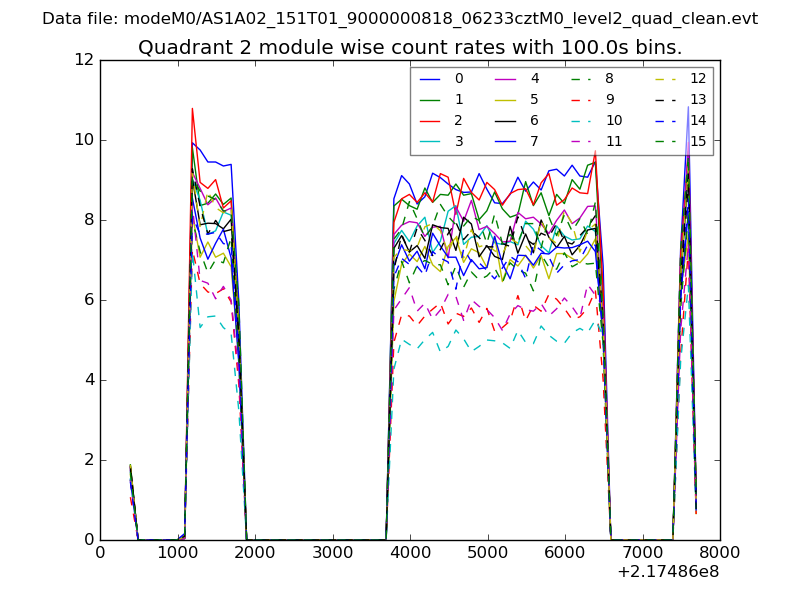

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

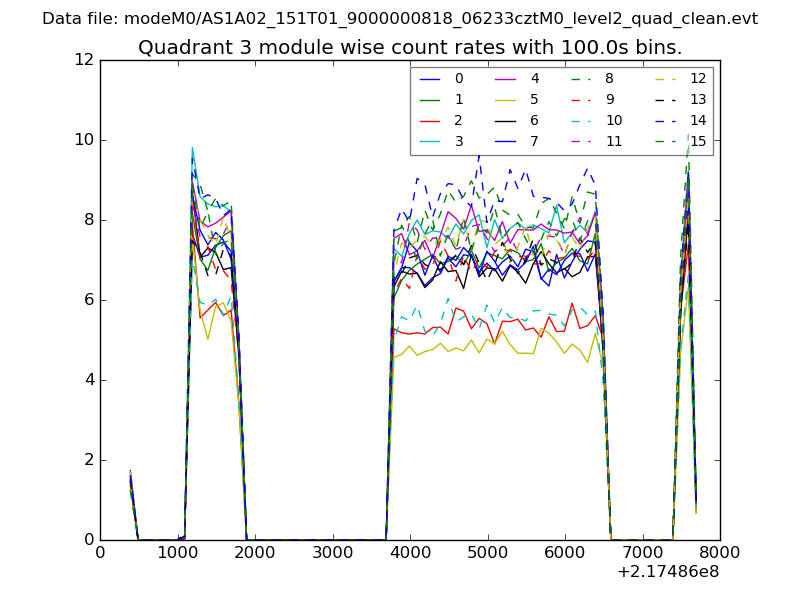

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

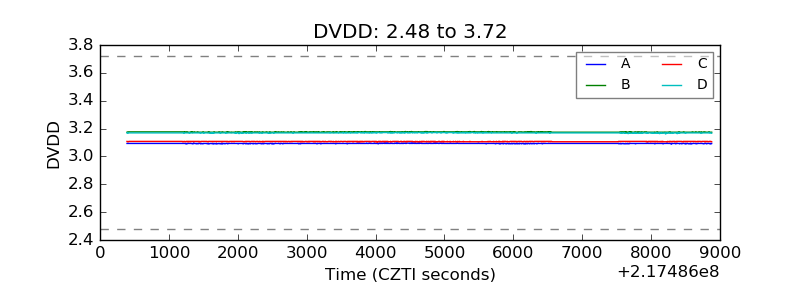

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

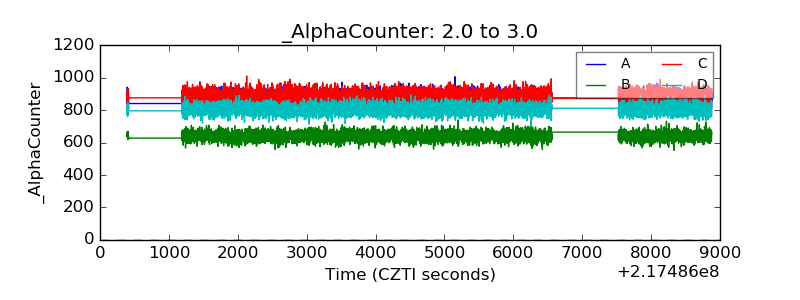

| Alpha Counter |  |
| _CPM_Rate |  |

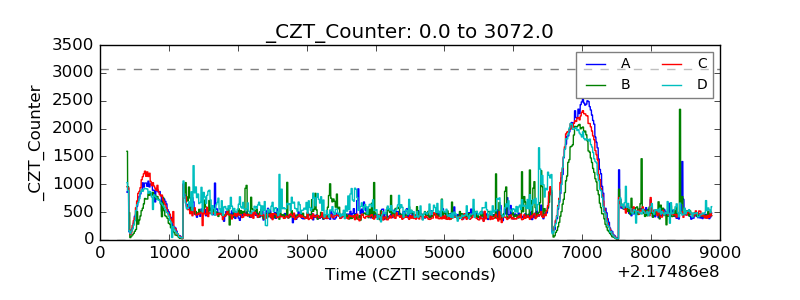

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

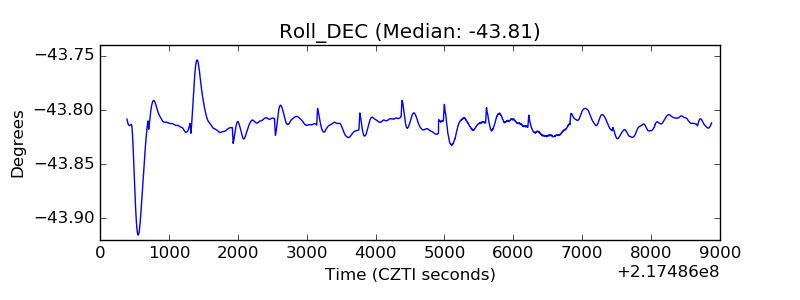

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
