| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_151T01_9000000818_06253cztM0_level2.evt | modeM0/AS1A02_151T01_9000000818_06253cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,490,880 | 101,329,920 |
| Size | 436.3 MB | 96.6 MB |
| Events in quadrant A | 3,117,133 | 662,632 |
| Events in quadrant B | 3,185,771 | 671,289 |
| Events in quadrant C | 2,991,966 | 654,790 |
| Events in quadrant D | 4,118,482 | 626,623 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13503 | 2 |
| B | 0 | 13636 | 1 |
| C | 0 | 13373 | 1 |
| D | 0 | 16485 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6503 | 85 | 1.307089% |
| B | 6503 | 84 | 1.291712% |
| C | 6503 | 67 | 1.030294% |
| D | 6503 | 204 | 3.137014% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7773 | 6503 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7773 | 6503 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7773 | 6503 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7773 | 6503 | 105 | 105 | 1.35% | 1.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 16092 | 94.18 | 801 | 786 | 162.5 |
| A | 12 | 194 | 7719 | 42.66 | 801 | 786 | 162.5 |
| A | 8 | 15 | 7703 | 42.56 | 801 | 786 | 162.5 |
| B | 3 | 64 | 32229 | 207.99 | 803 | 785 | 151.2 |
| B | 4 | 81 | 19332 | 122.68 | 803 | 785 | 151.2 |
| B | 15 | 204 | 16675 | 105.1 | 803 | 785 | 151.2 |
| C | 13 | 61 | 5995 | 29.77 | 766 | 771 | 175.5 |
| C | 9 | 54 | 4246 | 19.8 | 766 | 771 | 175.5 |
| C | 3 | 202 | 1963 | 6.79 | 766 | 771 | 175.5 |
| D | 12 | 220 | 833539 | 4502.82 | 765 | 743 | 184.9 |
| D | 2 | 63 | 158553 | 853.26 | 765 | 743 | 184.9 |
| D | 11 | 241 | 78327 | 419.49 | 765 | 743 | 184.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

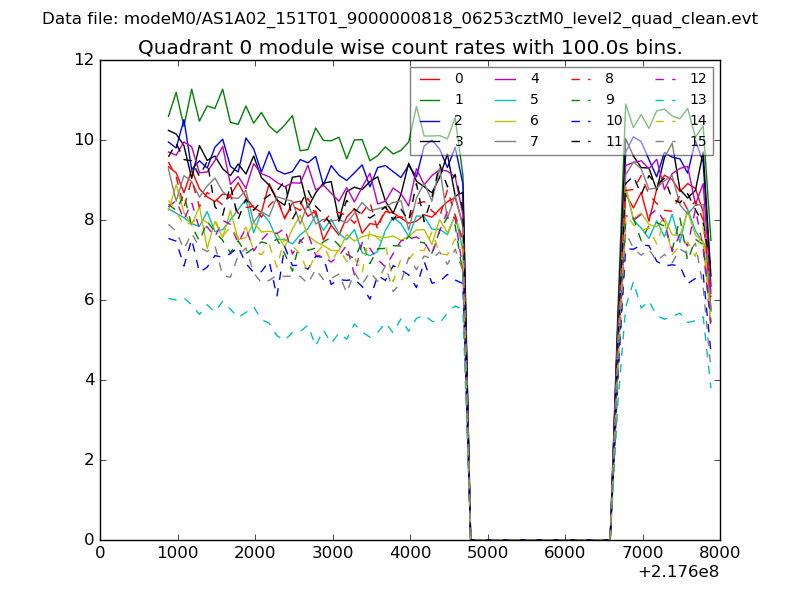

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

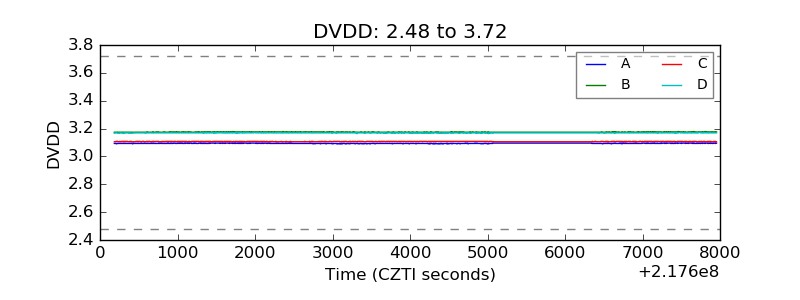

| D_VDD |  |
| Temperature 1 |  |

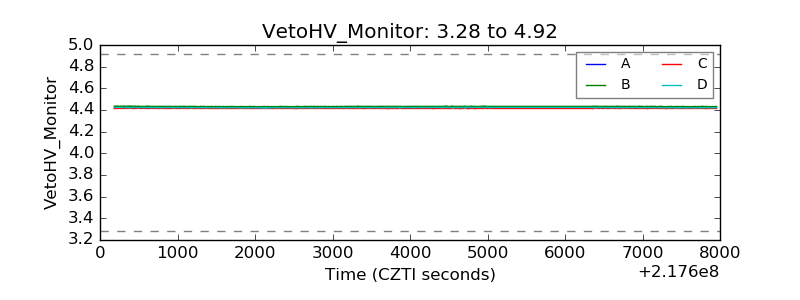

| Veto HV Monitor |  |
| Veto LLD |  |

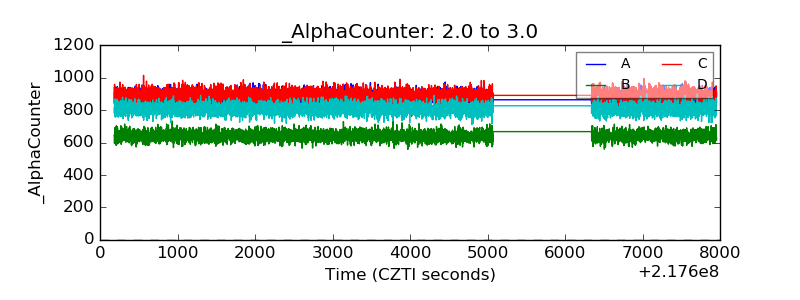

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

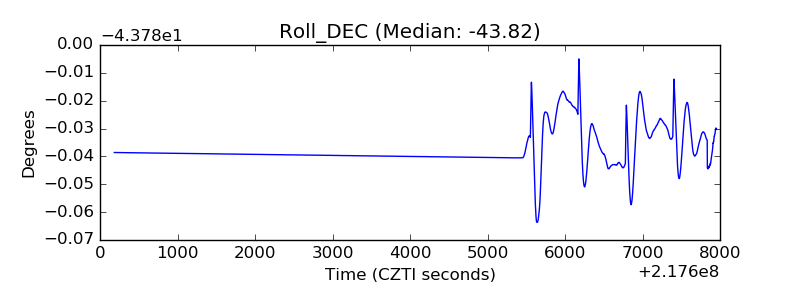

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
