| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_151T01_9000000818_06255cztM0_level2.evt | modeM0/AS1A02_151T01_9000000818_06255cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,750,720 | 97,424,640 |
| Size | 444.2 MB | 92.9 MB |
| Events in quadrant A | 3,007,853 | 631,018 |
| Events in quadrant B | 3,493,129 | 635,141 |
| Events in quadrant C | 2,920,626 | 621,461 |
| Events in quadrant D | 4,223,727 | 591,160 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13855 | 2 |
| B | 0 | 15157 | 1 |
| C | 0 | 13799 | 1 |
| D | 0 | 17349 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6765 | 75 | 1.108647% |
| B | 6765 | 158 | 2.335551% |
| C | 6765 | 26 | 0.384331% |
| D | 6765 | 201 | 2.971175% |

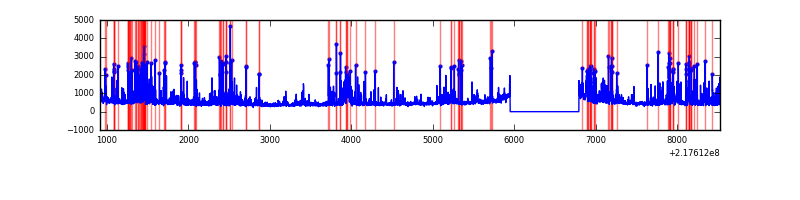

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6765 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7610 | 6765 | 39 | 39 | 0.51% | 0.58% |  |
| C | 7610 | 6766 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7610 | 6766 | 149 | 149 | 1.96% | 2.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 23959 | 146.49 | 773 | 756 | 158.4 |
| A | 0 | 226 | 7583 | 43.1 | 773 | 756 | 158.4 |
| A | 12 | 194 | 7358 | 41.68 | 773 | 756 | 158.4 |
| B | 3 | 64 | 411207 | 2755.85 | 777 | 760 | 148.9 |
| B | 15 | 204 | 22870 | 148.45 | 777 | 760 | 148.9 |
| B | 12 | 111 | 14470 | 92.05 | 777 | 760 | 148.9 |
| C | 9 | 54 | 8518 | 45.04 | 743 | 745 | 172.6 |
| C | 8 | 128 | 6953 | 35.97 | 743 | 745 | 172.6 |
| C | 13 | 61 | 5923 | 30.0 | 743 | 745 | 172.6 |
| D | 12 | 220 | 1215018 | 6757.46 | 735 | 712 | 179.7 |
| D | 2 | 152 | 64051 | 352.47 | 735 | 712 | 179.7 |
| D | 5 | 81 | 56633 | 311.19 | 735 | 712 | 179.7 |

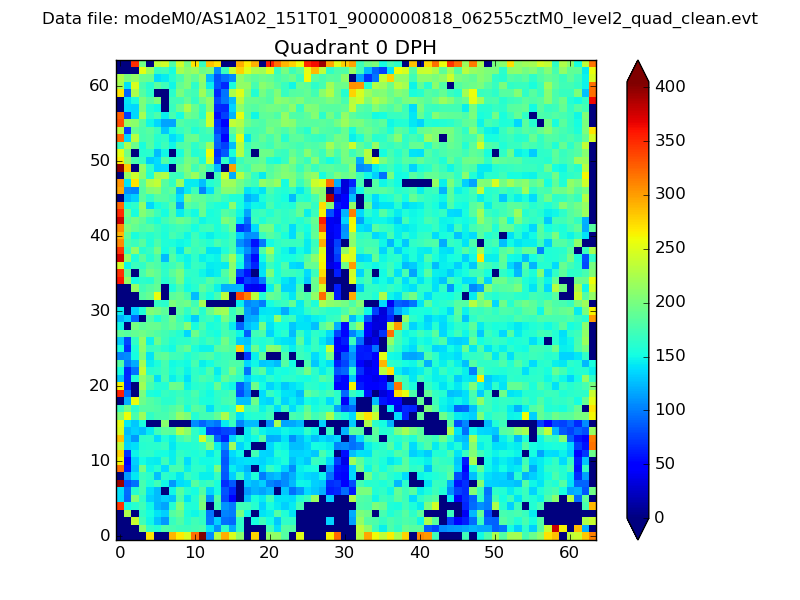

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

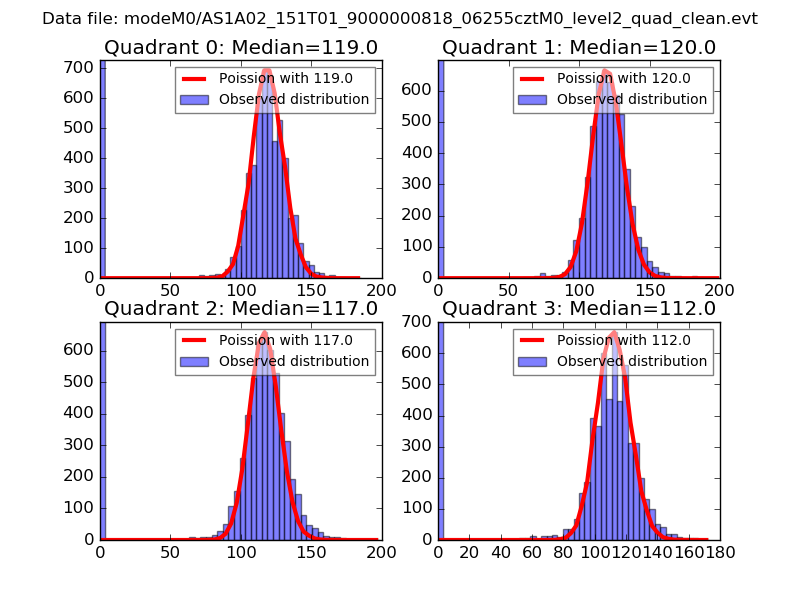

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

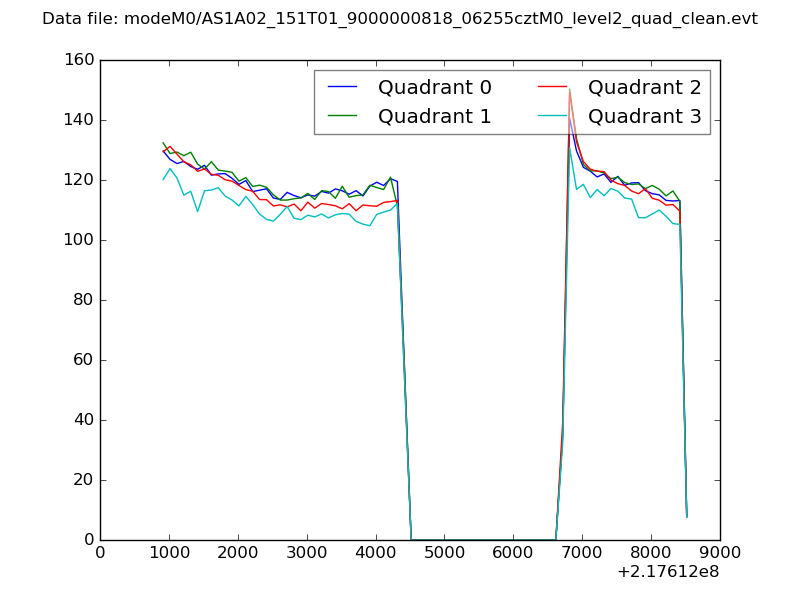

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

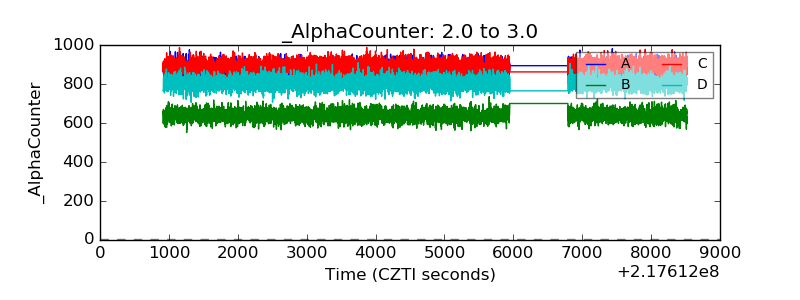

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

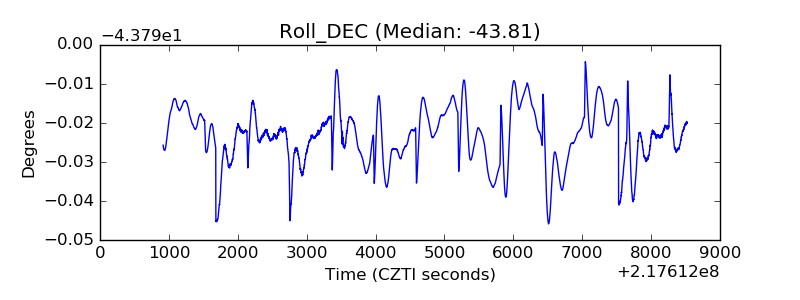

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
