| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_018T01_9000000822_06268cztM0_level2.evt | modeM0/AS1C02_018T01_9000000822_06268cztM0_level2_quad_clean.evt |
| Size (bytes) | 874,958,400 | 140,474,880 |
| Size | 834.4 MB | 134.0 MB |
| Events in quadrant A | 5,427,600 | 894,619 |
| Events in quadrant B | 6,690,055 | 879,844 |
| Events in quadrant C | 4,862,084 | 905,069 |
| Events in quadrant D | 8,795,879 | 834,676 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23330 | 3 |
| B | 0 | 27032 | 2 |
| C | 0 | 22042 | 2 |
| D | 0 | 33511 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10681 | 179 | 1.675873% |
| B | 10681 | 443 | 4.147552% |
| C | 10681 | 79 | 0.739631% |
| D | 10681 | 603 | 5.645539% |

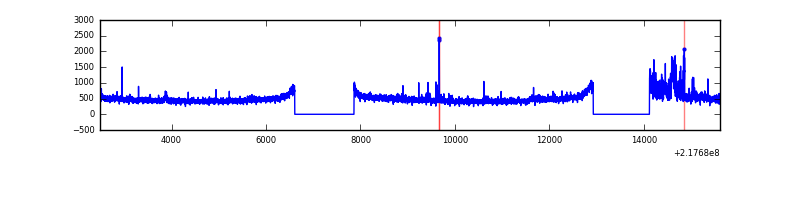

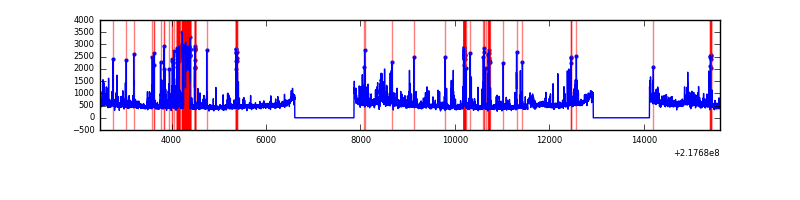

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13126 | 10681 | 3 | 3 | 0.02% | 0.03% |  |
| B | 13126 | 10681 | 263 | 263 | 2.00% | 2.46% |  |
| C | 13126 | 10683 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13126 | 10681 | 524 | 524 | 3.99% | 4.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 354098 | 1343.88 | 1284 | 1256 | 262.6 |
| A | 8 | 15 | 87716 | 329.3 | 1284 | 1256 | 262.6 |
| A | 15 | 174 | 45570 | 168.78 | 1284 | 1256 | 262.6 |
| B | 5 | 172 | 710103 | 2920.75 | 1276 | 1249 | 242.7 |
| B | 3 | 64 | 360386 | 1479.78 | 1276 | 1249 | 242.7 |
| B | 0 | 214 | 251759 | 1032.2 | 1276 | 1249 | 242.7 |
| C | 8 | 128 | 9916 | 30.4 | 1239 | 1245 | 285.3 |
| C | 13 | 61 | 9891 | 30.31 | 1239 | 1245 | 285.3 |
| C | 9 | 54 | 8935 | 26.96 | 1239 | 1245 | 285.3 |
| D | 12 | 220 | 2644304 | 8767.77 | 1218 | 1177 | 301.5 |
| D | 12 | 221 | 460525 | 1523.75 | 1218 | 1177 | 301.5 |
| D | 2 | 152 | 268912 | 888.13 | 1218 | 1177 | 301.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

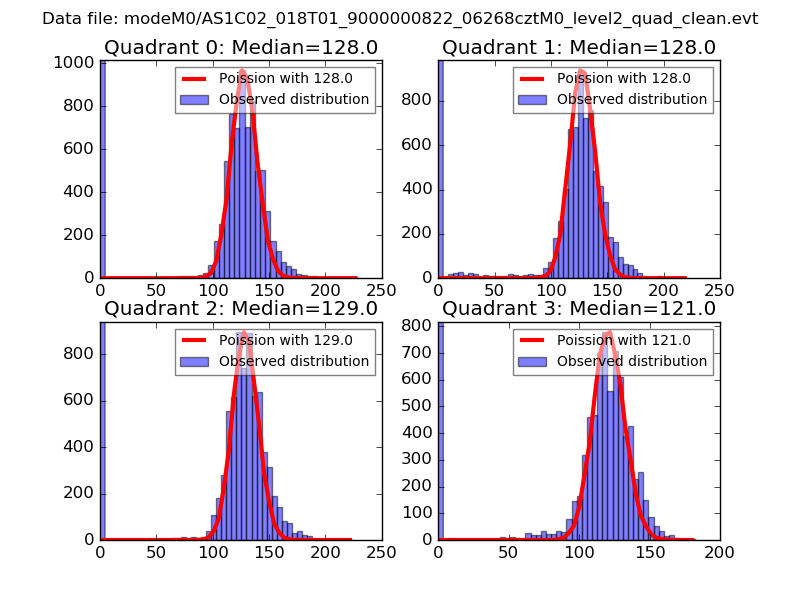

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

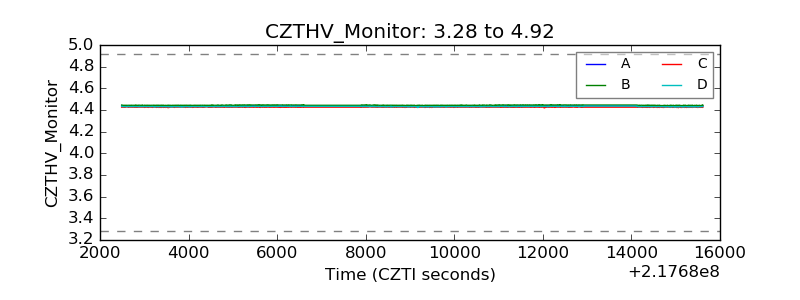

| CZT HV Monitor |  |
| D_VDD |  |

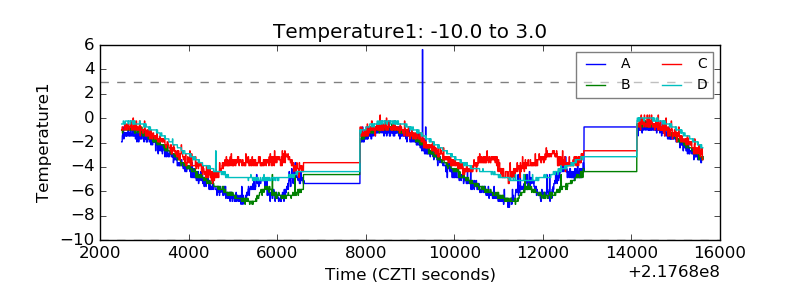

| Temperature 1 |  |

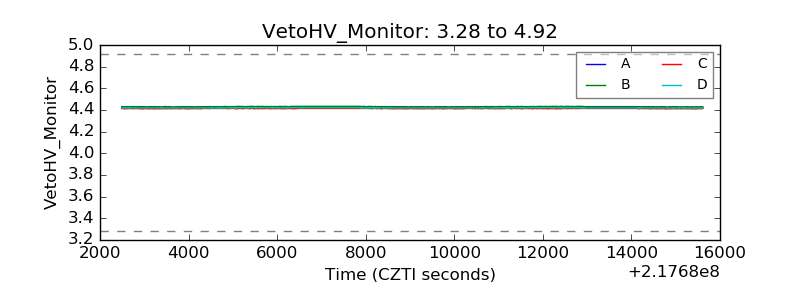

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

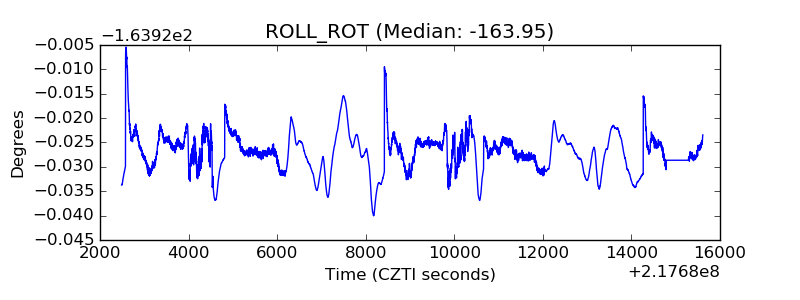

| _ROLL_ROT |  |
| _Roll_DEC |  |

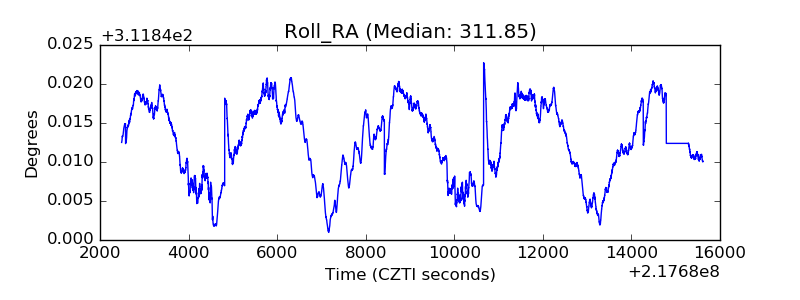

| _Roll_RA |  |
| Veto Counter |  |
