| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_018T01_9000000822_06269cztM0_level2.evt | modeM0/AS1C02_018T01_9000000822_06269cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,008,000 | 79,090,560 |
| Size | 558.9 MB | 75.4 MB |
| Events in quadrant A | 3,689,200 | 504,019 |
| Events in quadrant B | 4,058,490 | 505,372 |
| Events in quadrant C | 2,837,729 | 515,348 |
| Events in quadrant D | 6,740,665 | 435,368 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15313 | 2 |
| B | 0 | 16245 | 1 |
| C | 0 | 12947 | 1 |
| D | 0 | 24329 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6225 | 101 | 1.622490% |
| B | 6225 | 236 | 3.791165% |
| C | 6225 | 41 | 0.658635% |
| D | 6225 | 963 | 15.469880% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7210 | 6225 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7210 | 6225 | 100 | 100 | 1.39% | 1.61% |  |
| C | 7210 | 6225 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7210 | 6225 | 915 | 915 | 12.69% | 14.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 587730 | 3882.1 | 735 | 721 | 151.2 |
| A | 15 | 236 | 261789 | 1726.54 | 735 | 721 | 151.2 |
| A | 0 | 226 | 7354 | 43.87 | 735 | 721 | 151.2 |
| B | 15 | 85 | 249373 | 1752.75 | 736 | 721 | 141.9 |
| B | 0 | 219 | 248255 | 1744.87 | 736 | 721 | 141.9 |
| B | 3 | 64 | 169547 | 1190.05 | 736 | 721 | 141.9 |
| C | 9 | 54 | 43293 | 256.34 | 711 | 716 | 166.1 |
| C | 1 | 16 | 11973 | 67.77 | 711 | 716 | 166.1 |
| C | 13 | 61 | 5804 | 30.63 | 711 | 716 | 166.1 |
| D | 12 | 220 | 3523790 | 21175.26 | 658 | 635 | 166.4 |
| D | 12 | 221 | 199263 | 1193.82 | 658 | 635 | 166.4 |
| D | 7 | 55 | 113785 | 680.07 | 658 | 635 | 166.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

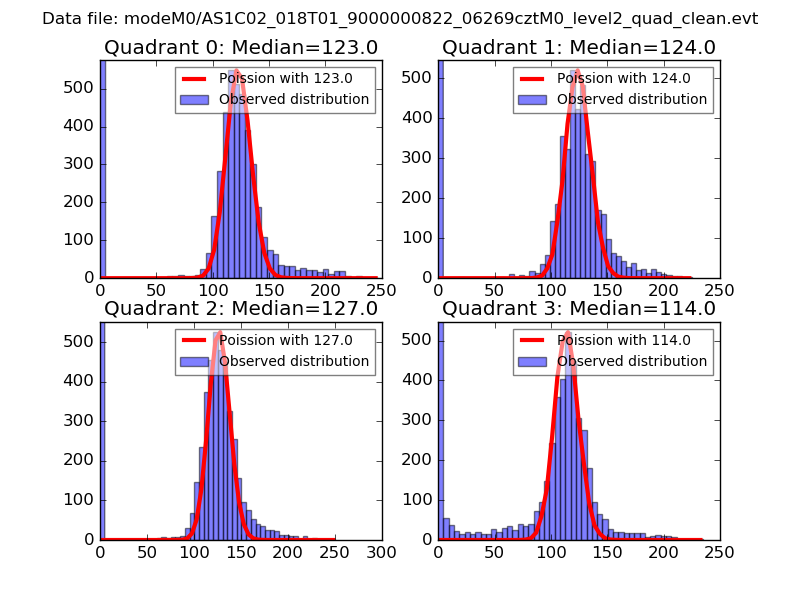

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

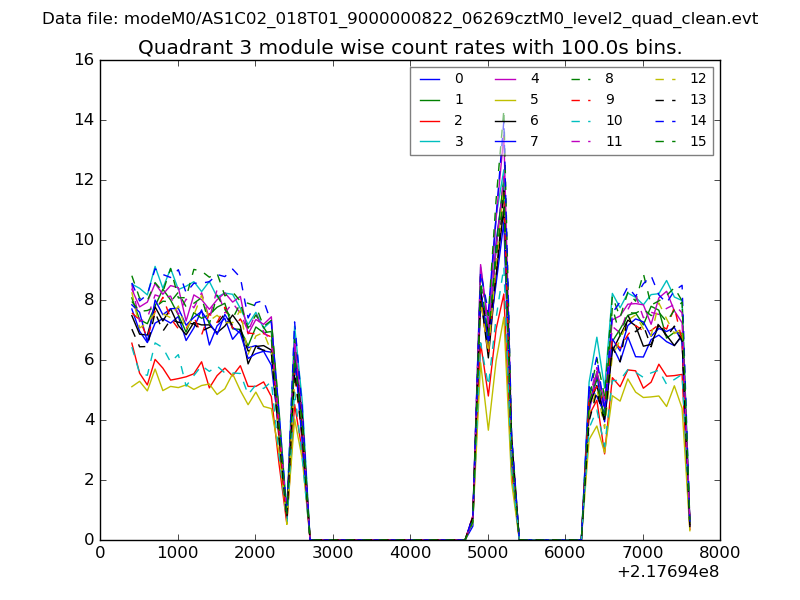

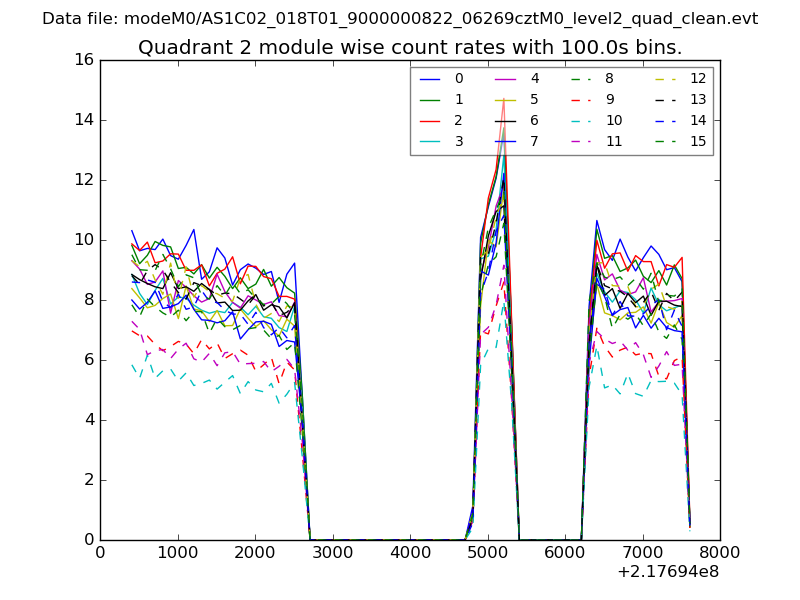

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

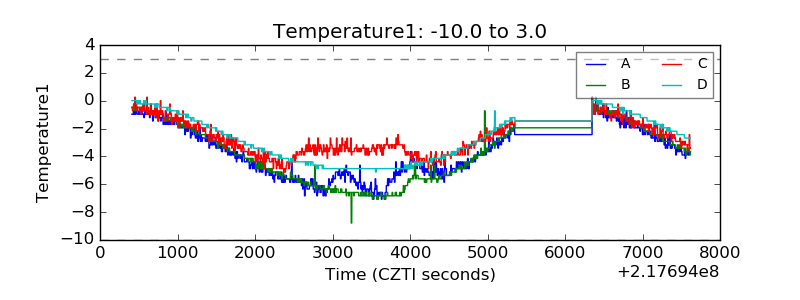

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

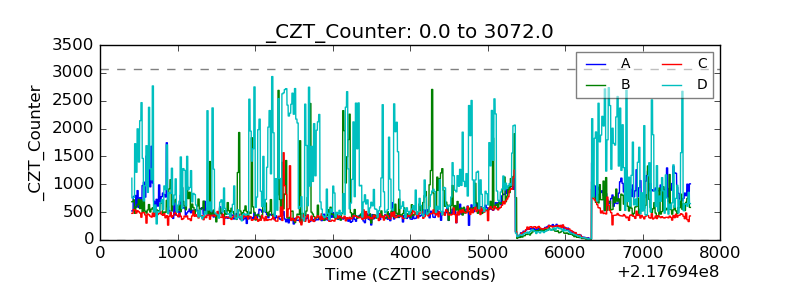

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

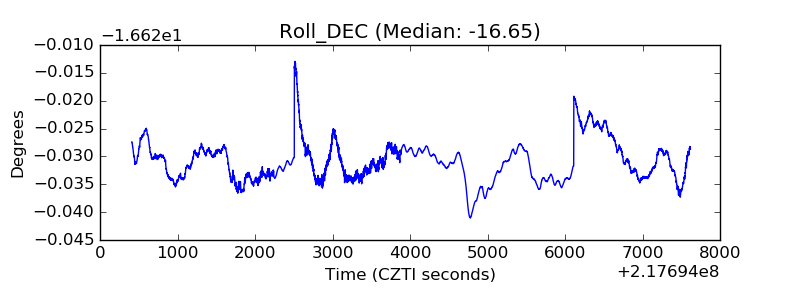

| _Roll_DEC |  |

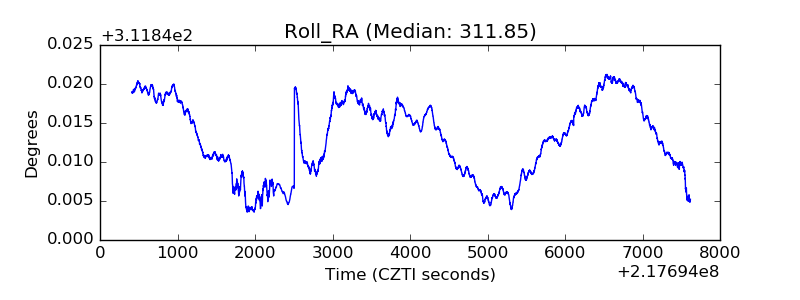

| _Roll_RA |  |

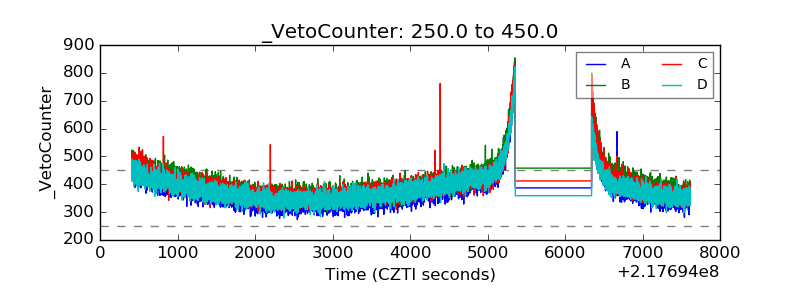

| Veto Counter |  |
