| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_118T01_9000000826_06296cztM0_level2.evt | modeM0/AS1A02_118T01_9000000826_06296cztM0_level2_quad_clean.evt |
| Size (bytes) | 691,093,440 | 94,236,480 |
| Size | 659.1 MB | 89.9 MB |
| Events in quadrant A | 4,579,698 | 615,094 |
| Events in quadrant B | 4,126,551 | 617,299 |
| Events in quadrant C | 3,160,049 | 619,435 |
| Events in quadrant D | 8,609,394 | 532,852 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18913 | 3 |
| B | 0 | 16584 | 2 |
| C | 0 | 13980 | 2 |
| D | 0 | 30310 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6724 | 152 | 2.260559% |
| B | 6724 | 331 | 4.922665% |
| C | 6724 | 113 | 1.680547% |
| D | 6724 | 1352 | 20.107079% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

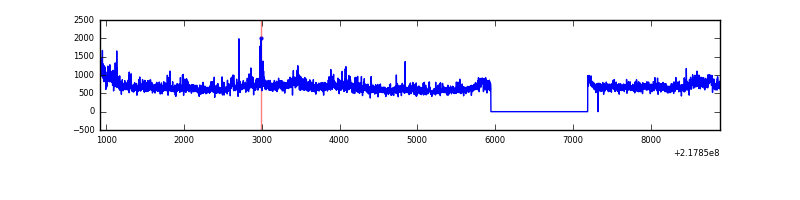

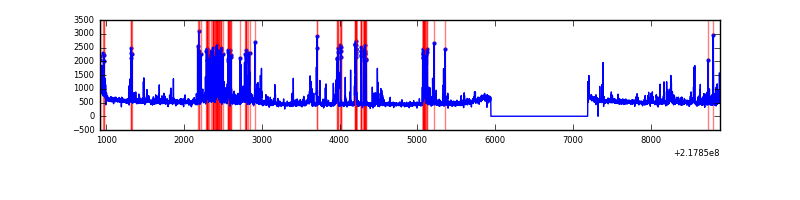

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7971 | 6725 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7971 | 6725 | 135 | 135 | 1.69% | 2.01% |  |
| C | 7971 | 6725 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7971 | 6725 | 1199 | 1199 | 15.04% | 17.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 771234 | 4617.99 | 828 | 812 | 166.8 |
| A | 15 | 236 | 588946 | 3525.34 | 828 | 812 | 166.8 |
| A | 13 | 251 | 26997 | 156.96 | 828 | 812 | 166.8 |
| B | 3 | 64 | 451661 | 2973.78 | 822 | 801 | 151.6 |
| B | 0 | 219 | 279731 | 1839.76 | 822 | 801 | 151.6 |
| B | 15 | 204 | 99653 | 652.01 | 822 | 801 | 151.6 |
| C | 1 | 16 | 17796 | 93.55 | 802 | 804 | 181.6 |
| C | 9 | 54 | 10876 | 55.45 | 802 | 804 | 181.6 |
| C | 13 | 61 | 6441 | 31.04 | 802 | 804 | 181.6 |
| D | 2 | 63 | 3468872 | 19228.07 | 752 | 729 | 180.4 |
| D | 12 | 220 | 1573056 | 8717.29 | 752 | 729 | 180.4 |
| D | 2 | 152 | 287007 | 1587.18 | 752 | 729 | 180.4 |

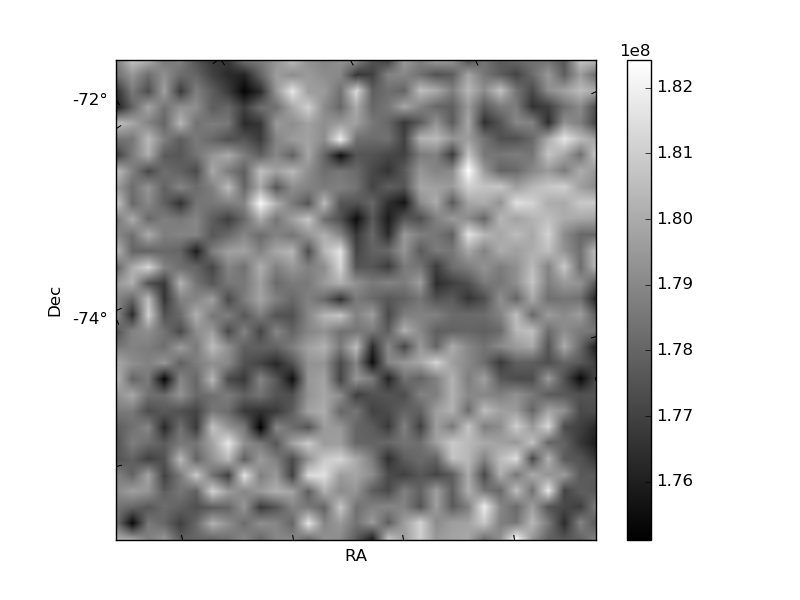

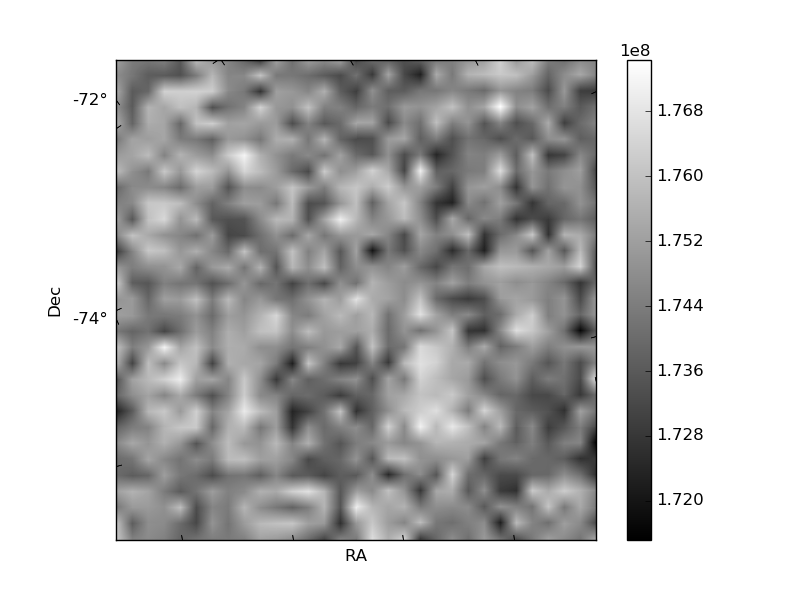

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

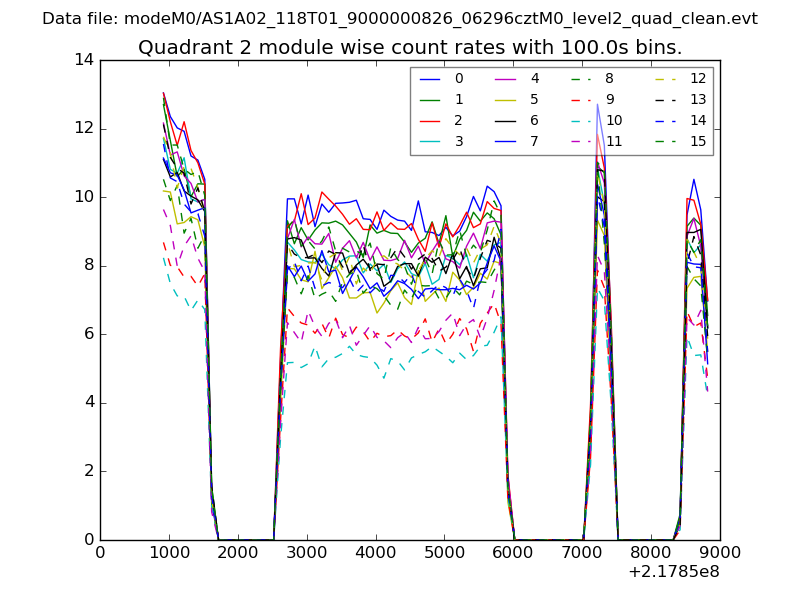

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

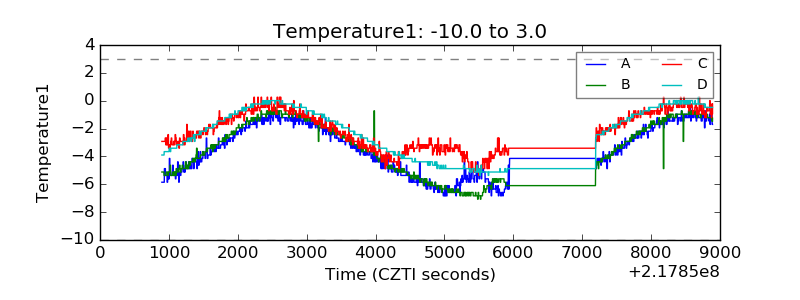

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

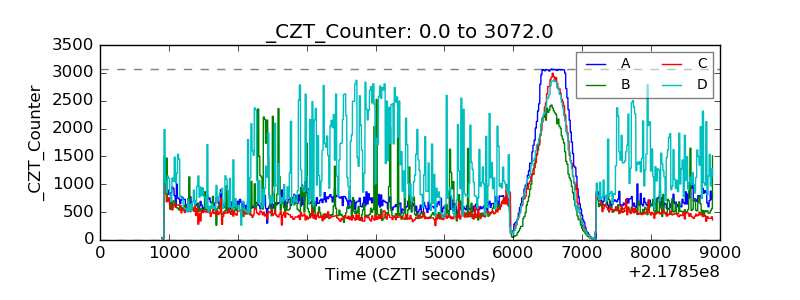

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

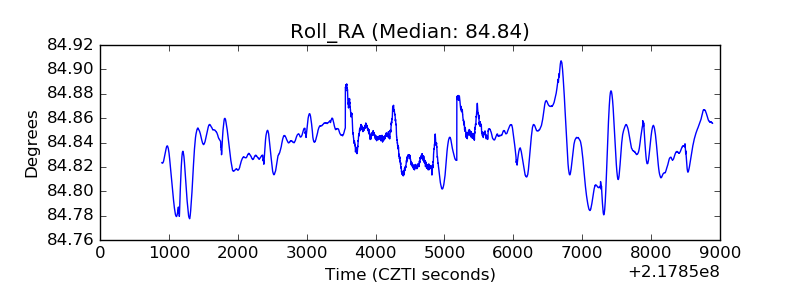

| _Roll_RA |  |
| Veto Counter |  |
