| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_070T01_9000000832_06306cztM0_level2.evt | modeM0/AS1A02_070T01_9000000832_06306cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,693,760 | 63,777,600 |
| Size | 529.0 MB | 60.8 MB |
| Events in quadrant A | 3,532,950 | 370,785 |
| Events in quadrant B | 3,785,664 | 372,668 |
| Events in quadrant C | 3,005,536 | 382,416 |
| Events in quadrant D | 6,030,642 | 347,968 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14353 | 3 |
| B | 0 | 15511 | 2 |
| C | 0 | 13429 | 2 |
| D | 0 | 22379 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6547 | 70 | 1.069192% |
| B | 6547 | 198 | 3.024286% |
| C | 6547 | 51 | 0.778983% |
| D | 6547 | 721 | 11.012678% |

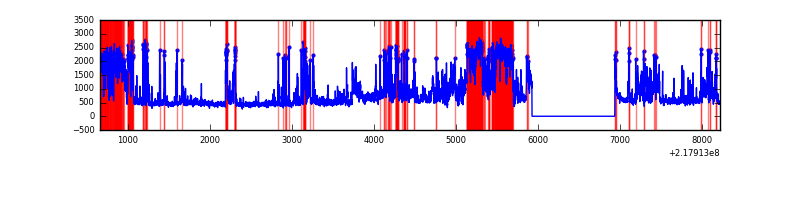

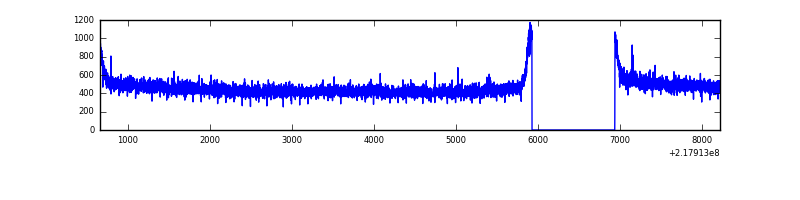

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6547 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7557 | 6547 | 101 | 101 | 1.34% | 1.54% |  |
| C | 7557 | 6547 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7557 | 6547 | 641 | 641 | 8.48% | 9.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 435643 | 2733.35 | 781 | 764 | 159.1 |
| A | 13 | 251 | 50693 | 313.82 | 781 | 764 | 159.1 |
| A | 15 | 174 | 33054 | 202.95 | 781 | 764 | 159.1 |
| B | 3 | 64 | 642133 | 4226.58 | 790 | 770 | 151.7 |
| B | 4 | 81 | 43464 | 281.35 | 790 | 770 | 151.7 |
| B | 12 | 111 | 15247 | 95.4 | 790 | 770 | 151.7 |
| C | 1 | 16 | 8271 | 41.89 | 766 | 771 | 179.0 |
| C | 13 | 61 | 5899 | 28.64 | 766 | 771 | 179.0 |
| C | 9 | 54 | 4610 | 21.44 | 766 | 771 | 179.0 |
| D | 2 | 63 | 2534012 | 13805.38 | 743 | 719 | 183.5 |
| D | 12 | 220 | 317616 | 1726.96 | 743 | 719 | 183.5 |
| D | 12 | 110 | 198703 | 1078.93 | 743 | 719 | 183.5 |

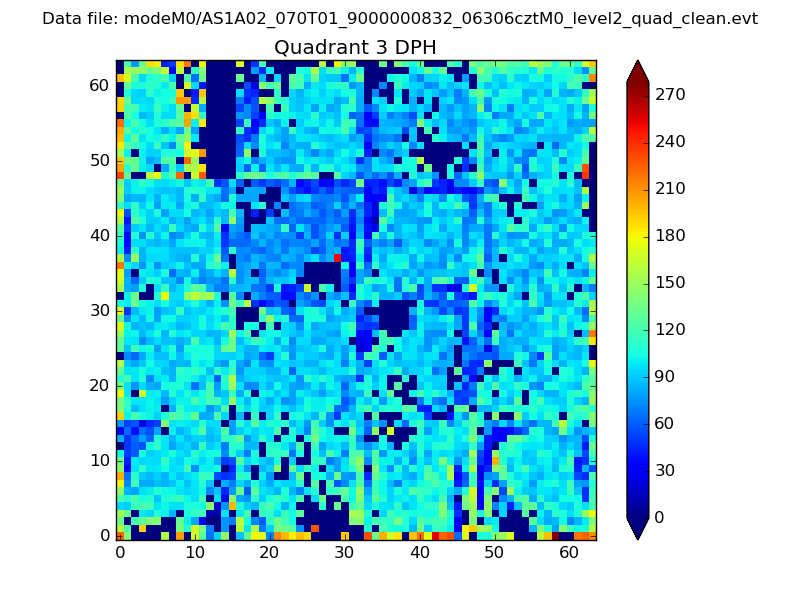

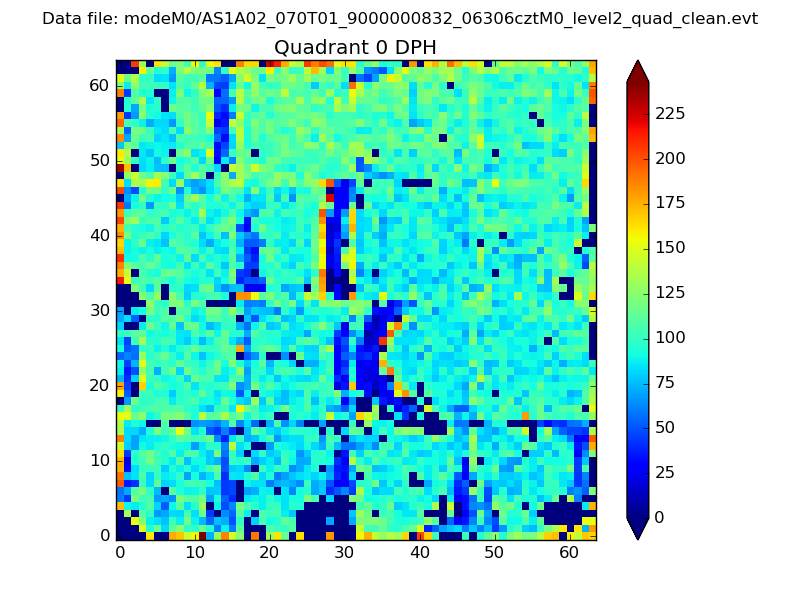

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

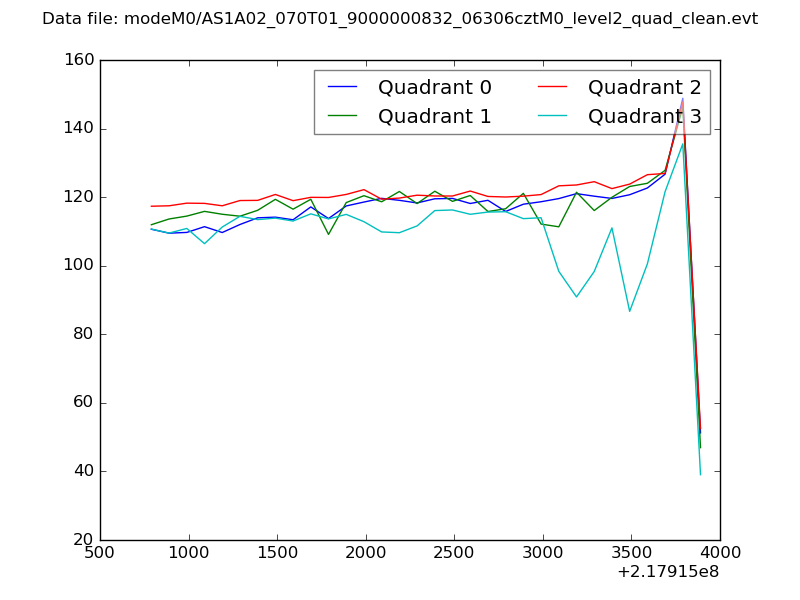

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

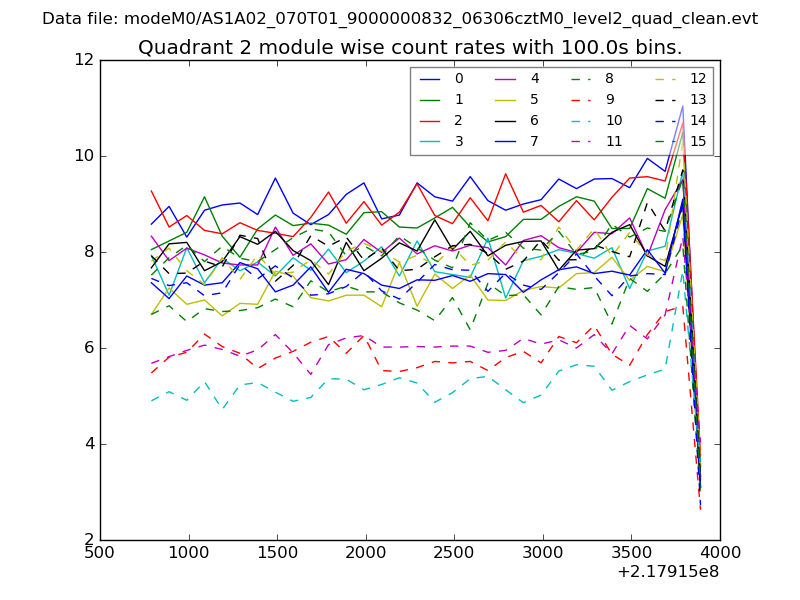

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

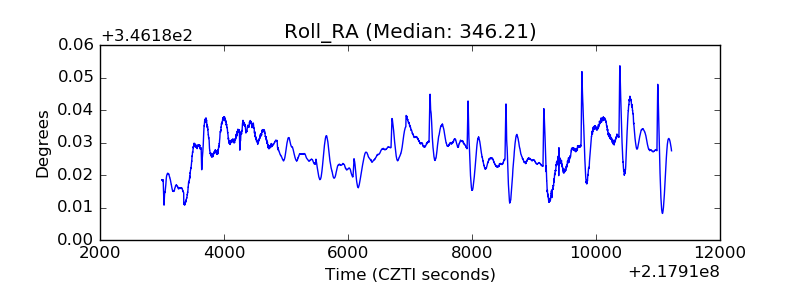

| _Roll_RA |  |
| Veto Counter |  |
