| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_070T01_9000000832_06311cztM0_level2.evt | modeM0/AS1A02_070T01_9000000832_06311cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,574,400 | 95,008,320 |
| Size | 487.9 MB | 90.6 MB |
| Events in quadrant A | 3,334,585 | 627,658 |
| Events in quadrant B | 3,759,520 | 631,139 |
| Events in quadrant C | 2,703,801 | 632,215 |
| Events in quadrant D | 5,298,264 | 577,208 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13598 | 2 |
| B | 0 | 14923 | 1 |
| C | 0 | 12006 | 1 |
| D | 0 | 19738 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5847 | 106 | 1.812896% |
| B | 5847 | 304 | 5.199247% |
| C | 5847 | 34 | 0.581495% |
| D | 5847 | 679 | 11.612793% |

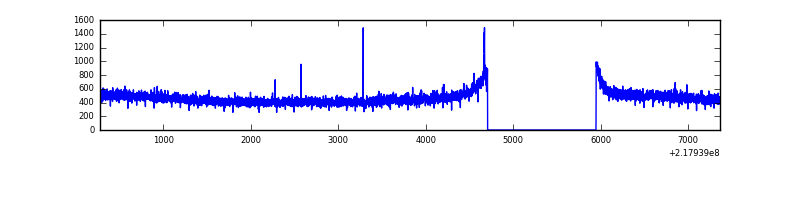

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

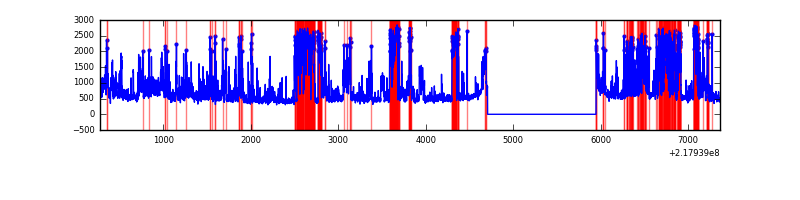

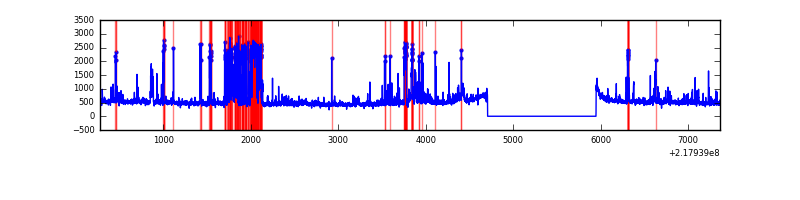

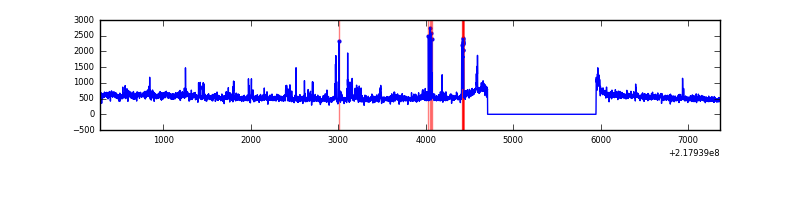

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7087 | 5847 | 15 | 15 | 0.21% | 0.26% |  |
| B | 7087 | 5847 | 222 | 222 | 3.13% | 3.80% |  |
| C | 7087 | 5848 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7087 | 5847 | 598 | 598 | 8.44% | 10.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 411713 | 2789.38 | 720 | 704 | 147.3 |
| A | 13 | 251 | 129730 | 875.66 | 720 | 704 | 147.3 |
| A | 15 | 174 | 13242 | 85.09 | 720 | 704 | 147.3 |
| B | 3 | 64 | 711733 | 5199.54 | 712 | 698 | 136.7 |
| B | 4 | 81 | 218282 | 1591.11 | 712 | 698 | 136.7 |
| B | 15 | 204 | 37247 | 267.27 | 712 | 698 | 136.7 |
| C | 9 | 54 | 7117 | 40.44 | 690 | 692 | 158.9 |
| C | 13 | 61 | 5463 | 30.03 | 690 | 692 | 158.9 |
| C | 8 | 222 | 3167 | 15.58 | 690 | 692 | 158.9 |
| D | 2 | 63 | 1579577 | 9650.81 | 671 | 652 | 163.6 |
| D | 12 | 220 | 821860 | 5019.44 | 671 | 652 | 163.6 |
| D | 13 | 238 | 157247 | 957.15 | 671 | 652 | 163.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

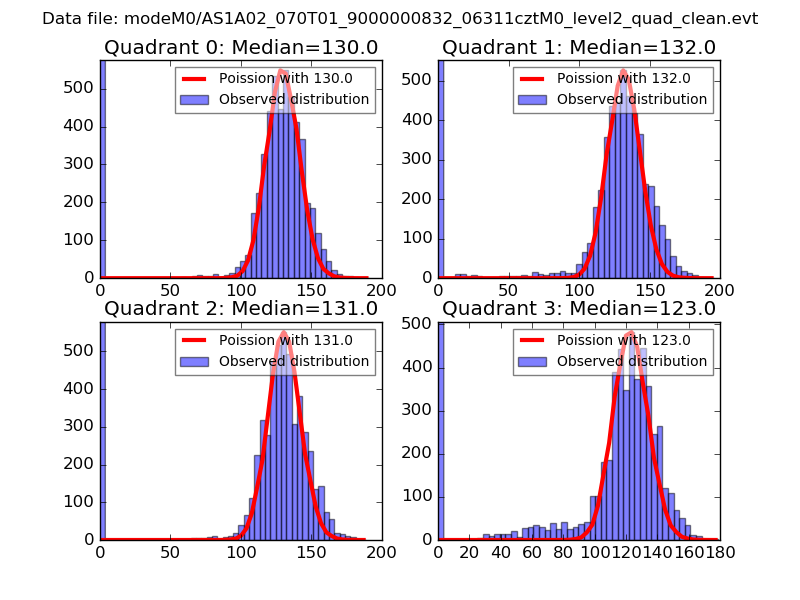

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

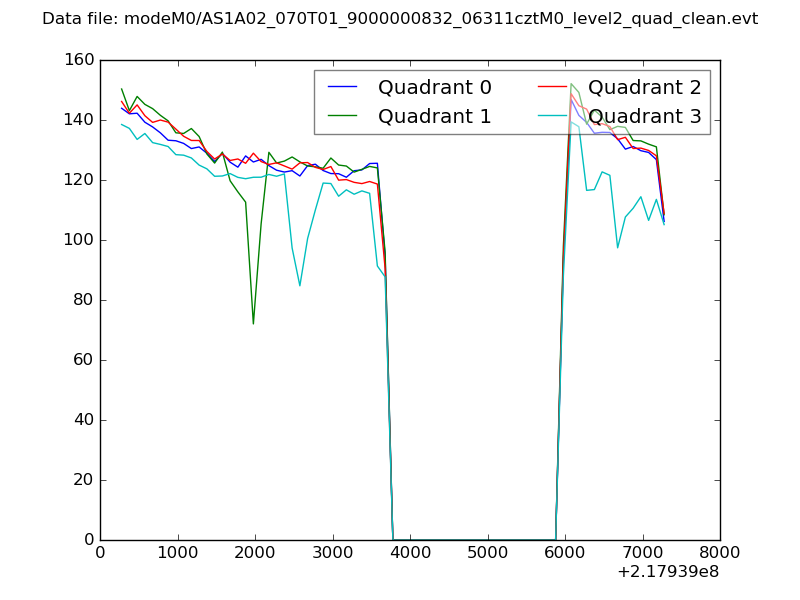

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

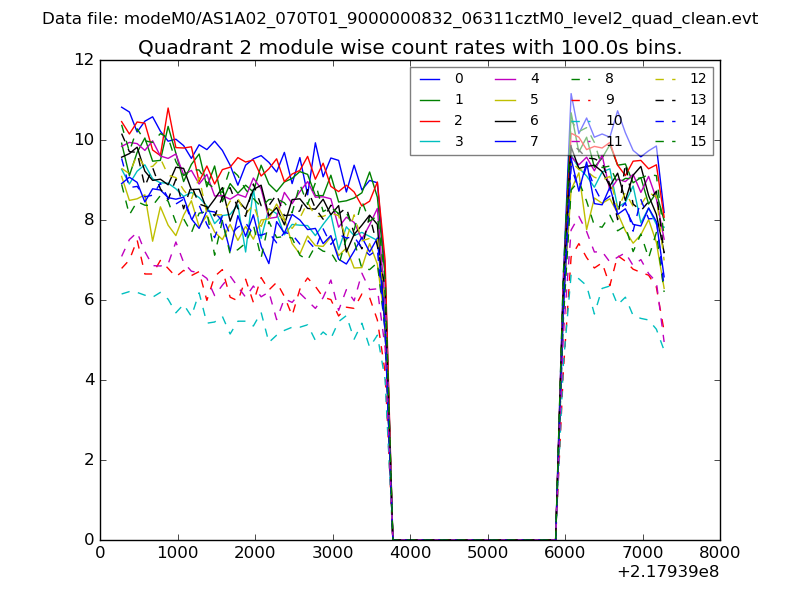

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

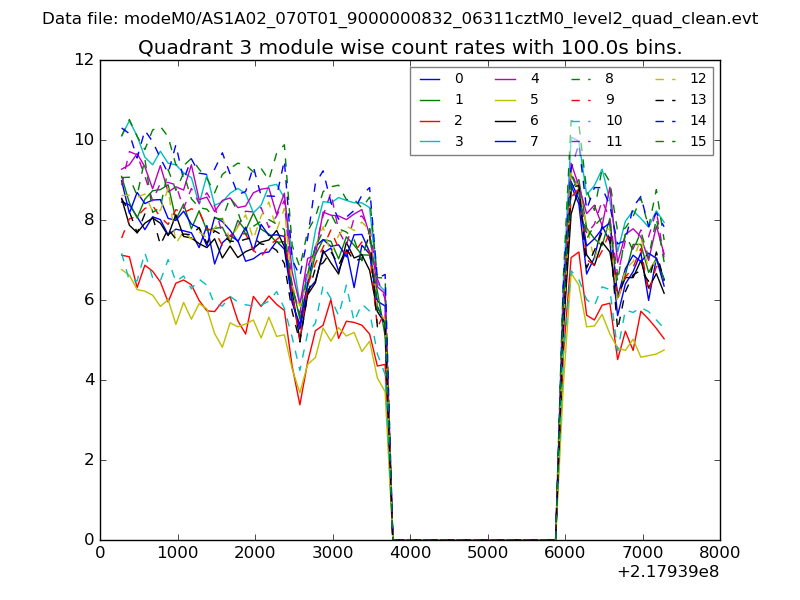

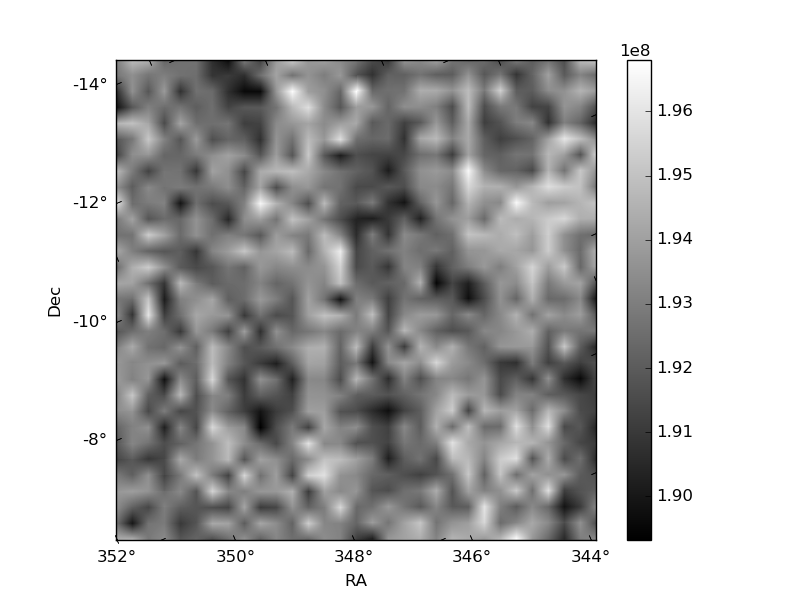

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

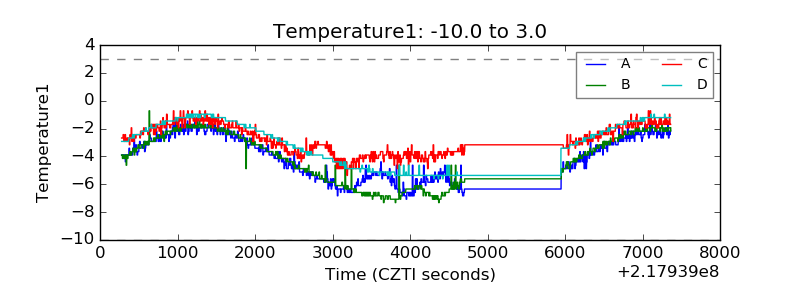

| Temperature 1 |  |

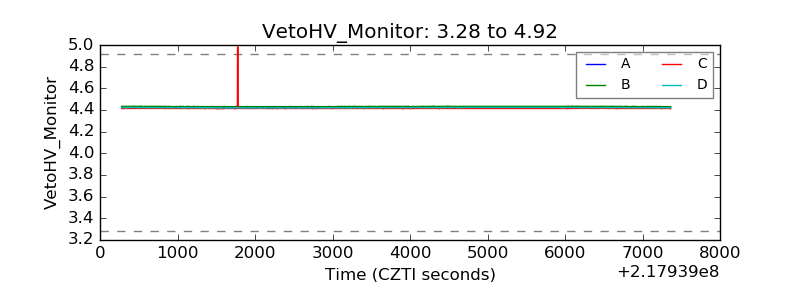

| Veto HV Monitor |  |
| Veto LLD |  |

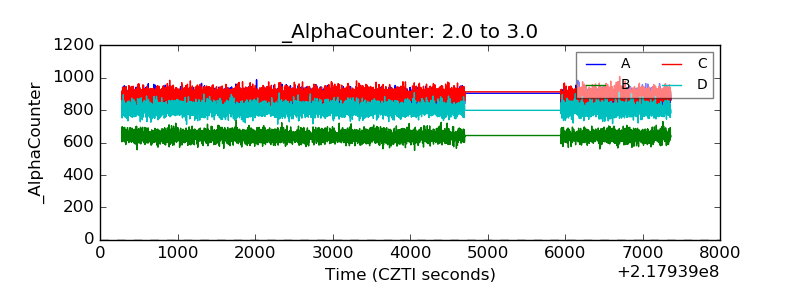

| Alpha Counter |  |

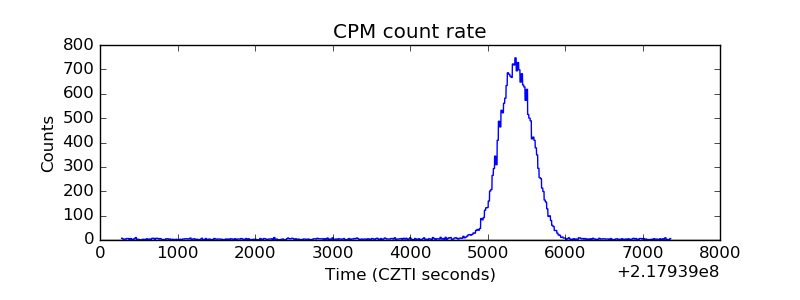

| _CPM_Rate |  |

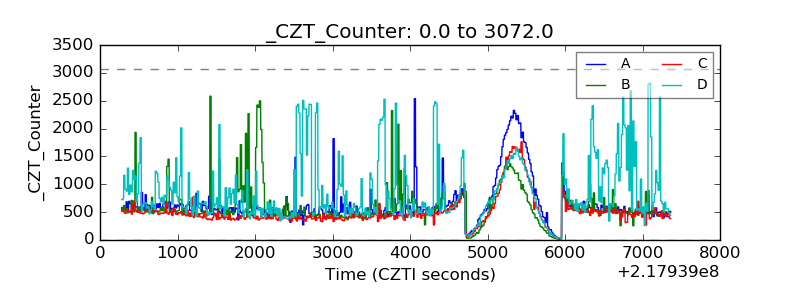

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

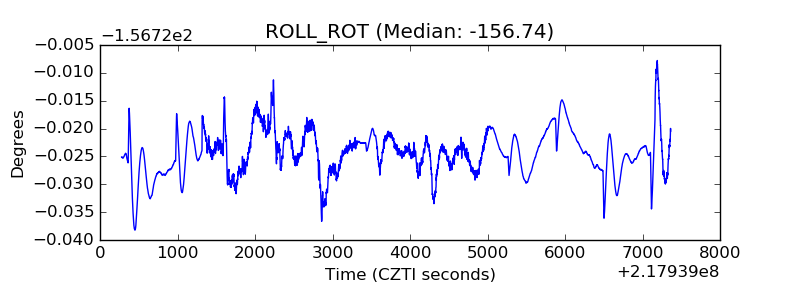

| _ROLL_ROT |  |

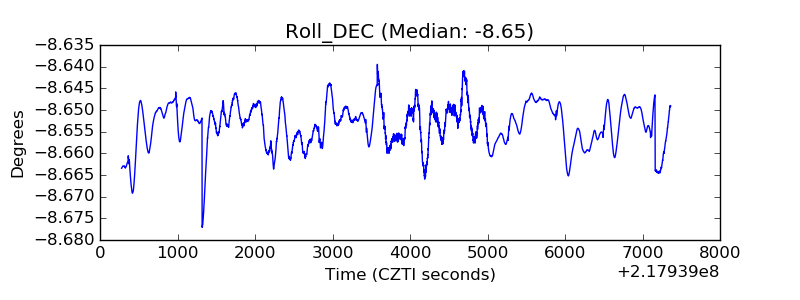

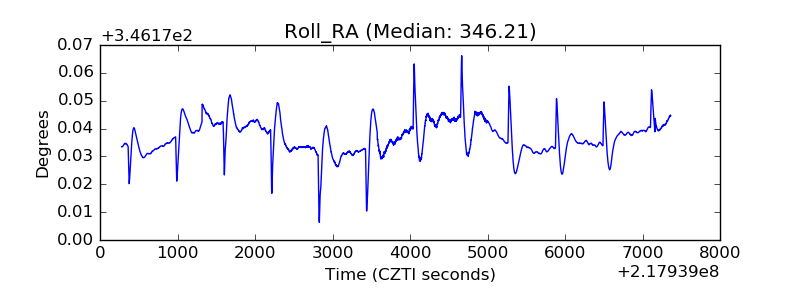

| _Roll_DEC |  |
| _Roll_RA |  |

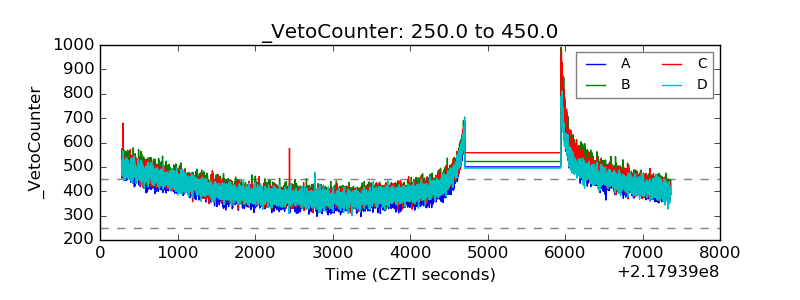

| Veto Counter |  |
