| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_070T01_9000000832_06312cztM0_level2.evt | modeM0/AS1A02_070T01_9000000832_06312cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,926,720 | 86,886,720 |
| Size | 413.8 MB | 82.9 MB |
| Events in quadrant A | 2,953,289 | 558,799 |
| Events in quadrant B | 3,243,226 | 564,529 |
| Events in quadrant C | 2,709,099 | 559,726 |
| Events in quadrant D | 3,827,915 | 528,971 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12664 | 2 |
| B | 0 | 13585 | 1 |
| C | 0 | 12354 | 1 |
| D | 0 | 15618 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6007 | 104 | 1.731313% |
| B | 6007 | 187 | 3.113035% |
| C | 6007 | 56 | 0.932246% |
| D | 6007 | 308 | 5.127351% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7082 | 6007 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7081 | 6006 | 64 | 64 | 0.90% | 1.07% |  |
| C | 7081 | 6006 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7082 | 6007 | 208 | 208 | 2.94% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 110685 | 741.46 | 721 | 705 | 148.3 |
| A | 15 | 174 | 38682 | 256.03 | 721 | 705 | 148.3 |
| A | 13 | 251 | 22796 | 148.93 | 721 | 705 | 148.3 |
| B | 3 | 64 | 374480 | 2685.15 | 718 | 701 | 139.2 |
| B | 15 | 204 | 55011 | 390.15 | 718 | 701 | 139.2 |
| B | 4 | 81 | 21700 | 150.85 | 718 | 701 | 139.2 |
| C | 1 | 16 | 6394 | 35.36 | 691 | 695 | 161.2 |
| C | 13 | 61 | 5379 | 29.06 | 691 | 695 | 161.2 |
| C | 9 | 54 | 3759 | 19.01 | 691 | 695 | 161.2 |
| D | 2 | 63 | 647541 | 3824.04 | 688 | 664 | 169.2 |
| D | 12 | 220 | 289002 | 1704.52 | 688 | 664 | 169.2 |
| D | 2 | 152 | 100721 | 591.49 | 688 | 664 | 169.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

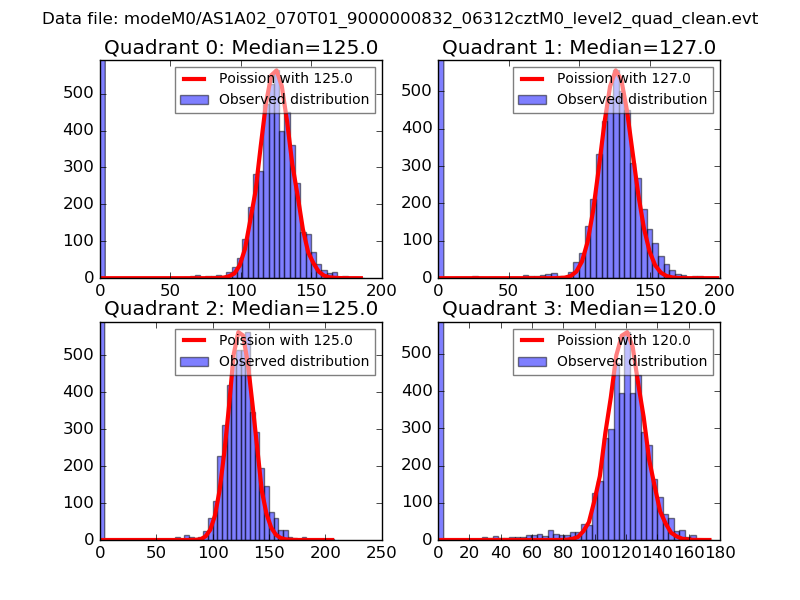

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

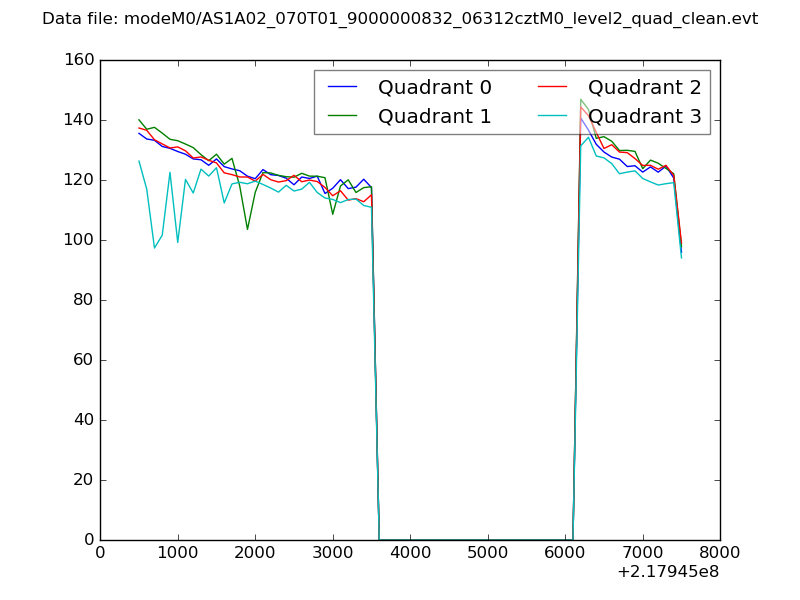

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

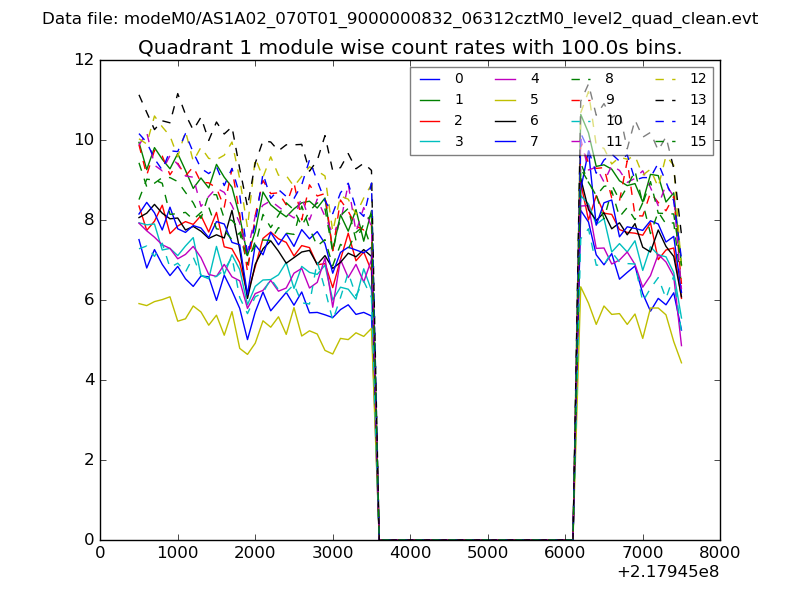

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

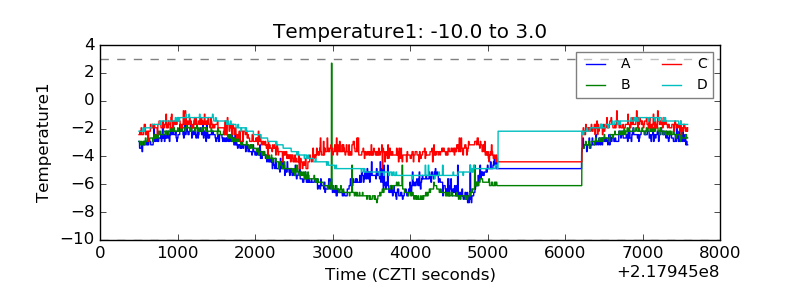

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

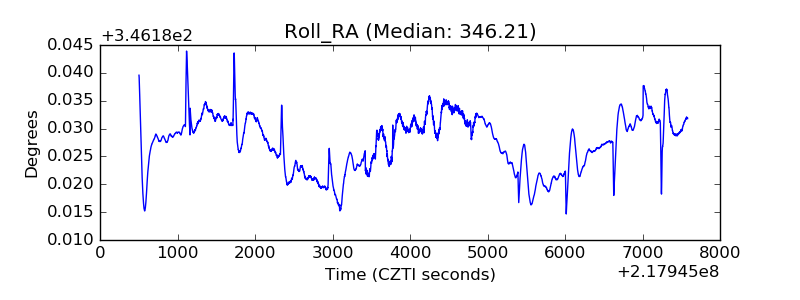

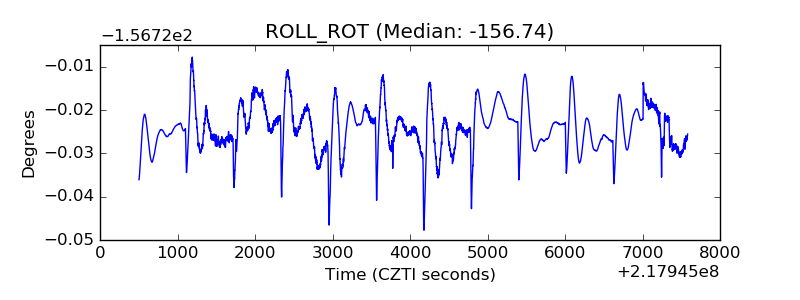

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
