| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_070T01_9000000832_06319cztM0_level2.evt | modeM0/AS1A02_070T01_9000000832_06319cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,301,575,680 | 203,440,320 |
| Size | 1.2 GB | 194.0 MB |
| Events in quadrant A | 8,822,593 | 1,227,008 |
| Events in quadrant B | 9,061,234 | 1,250,890 |
| Events in quadrant C | 8,388,073 | 1,253,367 |
| Events in quadrant D | 11,905,715 | 1,164,655 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 374 | 0 |
| B | 0 | 374 | 0 |
| C | 0 | 374 | 0 |
| D | 0 | 374 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38903 | 4 |
| B | 0 | 39390 | 3 |
| C | 0 | 37568 | 3 |
| D | 0 | 48085 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18354 | 270 | 1.471069% |
| B | 18354 | 226 | 1.231339% |
| C | 18354 | 82 | 0.446769% |
| D | 18354 | 511 | 2.784134% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20368 | 18354 | 127 | 127 | 0.62% | 0.69% |  |
| B | 20368 | 18354 | 54 | 54 | 0.27% | 0.29% |  |
| C | 20368 | 18355 | 7 | 7 | 0.03% | 0.04% |  |
| D | 20368 | 18355 | 267 | 267 | 1.31% | 1.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 223714 | 518.91 | 2093 | 2045 | 427.2 |
| A | 14 | 111 | 191520 | 443.54 | 2093 | 2045 | 427.2 |
| A | 15 | 174 | 133457 | 307.62 | 2093 | 2045 | 427.2 |
| B | 3 | 64 | 680085 | 1649.76 | 2128 | 2075 | 411.0 |
| B | 4 | 81 | 97854 | 233.05 | 2128 | 2075 | 411.0 |
| B | 15 | 204 | 42377 | 98.06 | 2128 | 2075 | 411.0 |
| C | 1 | 16 | 279626 | 584.89 | 2053 | 2064 | 474.6 |
| C | 4 | 254 | 58064 | 118.01 | 2053 | 2064 | 474.6 |
| C | 9 | 54 | 37317 | 74.29 | 2053 | 2064 | 474.6 |
| D | 12 | 221 | 1929359 | 3915.2 | 2015 | 1954 | 492.3 |
| D | 12 | 220 | 700760 | 1419.51 | 2015 | 1954 | 492.3 |
| D | 2 | 63 | 625956 | 1267.55 | 2015 | 1954 | 492.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

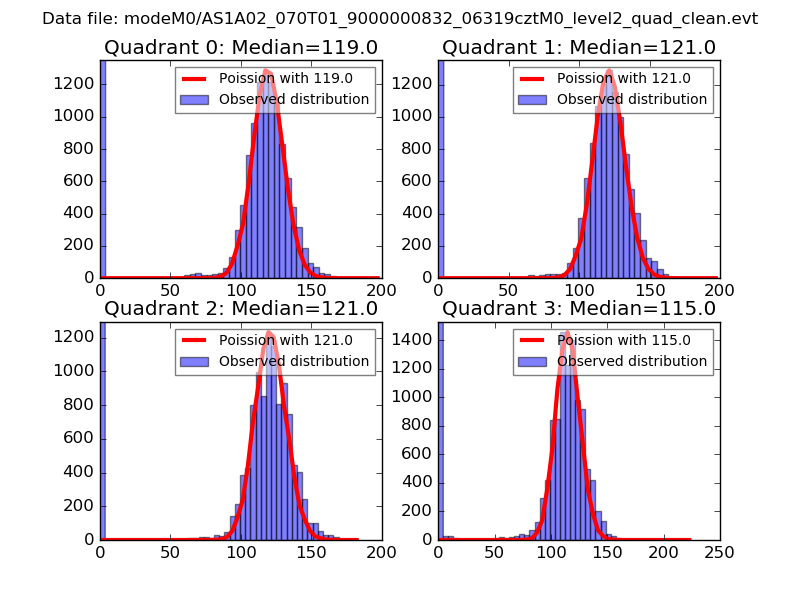

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

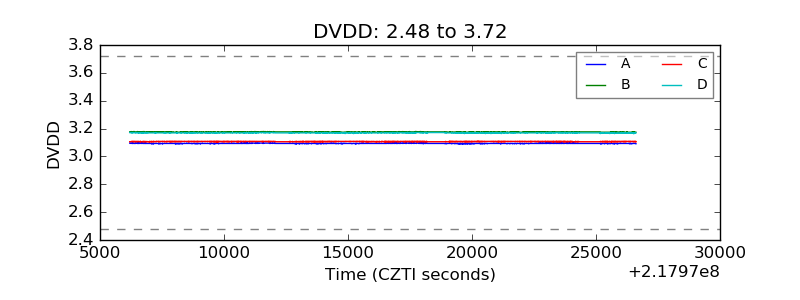

| D_VDD |  |

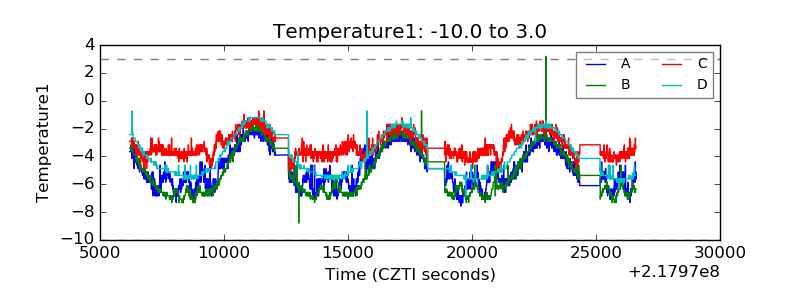

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

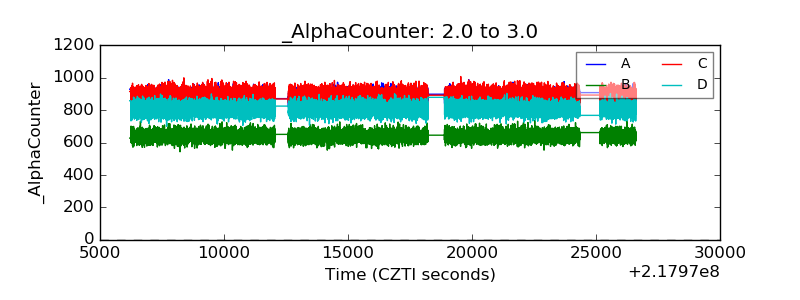

| Alpha Counter |  |

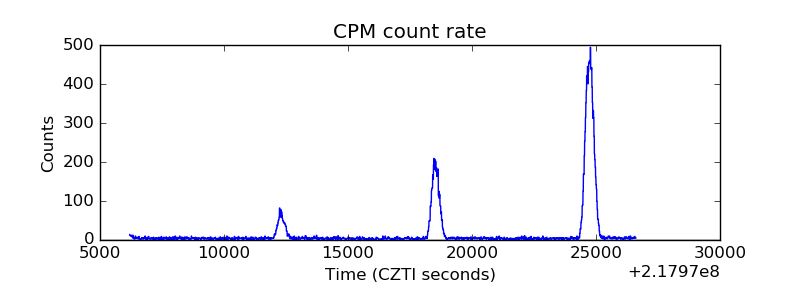

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

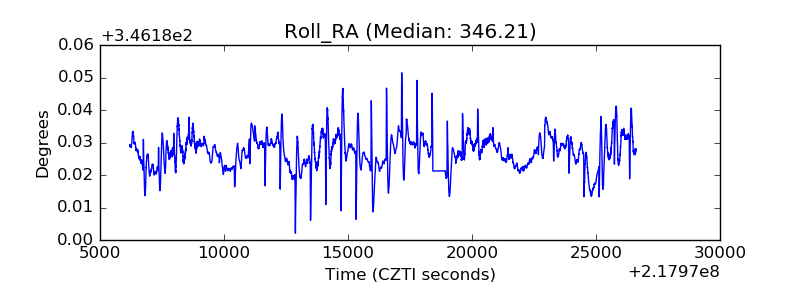

| _Roll_RA |  |

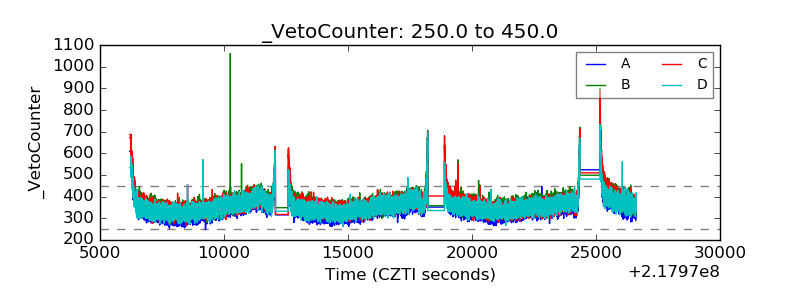

| Veto Counter |  |
