| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_070T01_9000000832_06323cztM0_level2.evt | modeM0/AS1A02_070T01_9000000832_06323cztM0_level2_quad_clean.evt |
| Size (bytes) | 308,260,800 | 51,785,280 |
| Size | 294.0 MB | 49.4 MB |
| Events in quadrant A | 2,113,947 | 316,662 |
| Events in quadrant B | 2,157,381 | 325,830 |
| Events in quadrant C | 1,950,815 | 325,844 |
| Events in quadrant D | 2,828,490 | 304,881 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9061 | 1 |
| B | 0 | 8951 | 1 |
| C | 0 | 8650 | 1 |
| D | 0 | 11102 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4179 | 18 | 0.430725% |
| B | 4179 | 33 | 0.789663% |
| C | 4179 | 11 | 0.263221% |
| D | 4179 | 98 | 2.345059% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4179 | 4179 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4179 | 4179 | 5 | 5 | 0.12% | 0.12% |  |
| C | 4179 | 4179 | 3 | 3 | 0.07% | 0.07% |  |
| D | 4179 | 4179 | 96 | 96 | 2.30% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 141500 | 1365.71 | 505 | 495 | 103.2 |
| A | 13 | 251 | 24716 | 234.59 | 505 | 495 | 103.2 |
| A | 0 | 226 | 4879 | 42.46 | 505 | 495 | 103.2 |
| B | 15 | 204 | 105883 | 1062.54 | 512 | 502 | 99.2 |
| B | 3 | 64 | 65674 | 657.12 | 512 | 502 | 99.2 |
| B | 12 | 111 | 9426 | 89.98 | 512 | 502 | 99.2 |
| C | 4 | 254 | 41960 | 365.06 | 489 | 492 | 113.6 |
| C | 13 | 61 | 3805 | 29.17 | 489 | 492 | 113.6 |
| C | 8 | 222 | 1840 | 11.87 | 489 | 492 | 113.6 |
| D | 4 | 95 | 291836 | 2439.27 | 487 | 473 | 119.4 |
| D | 12 | 220 | 251035 | 2097.69 | 487 | 473 | 119.4 |
| D | 12 | 221 | 190243 | 1588.74 | 487 | 473 | 119.4 |

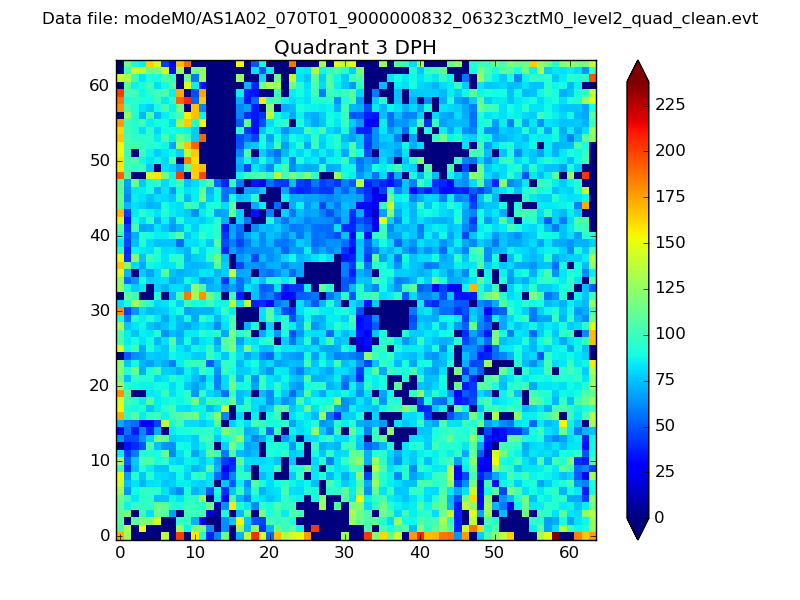

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

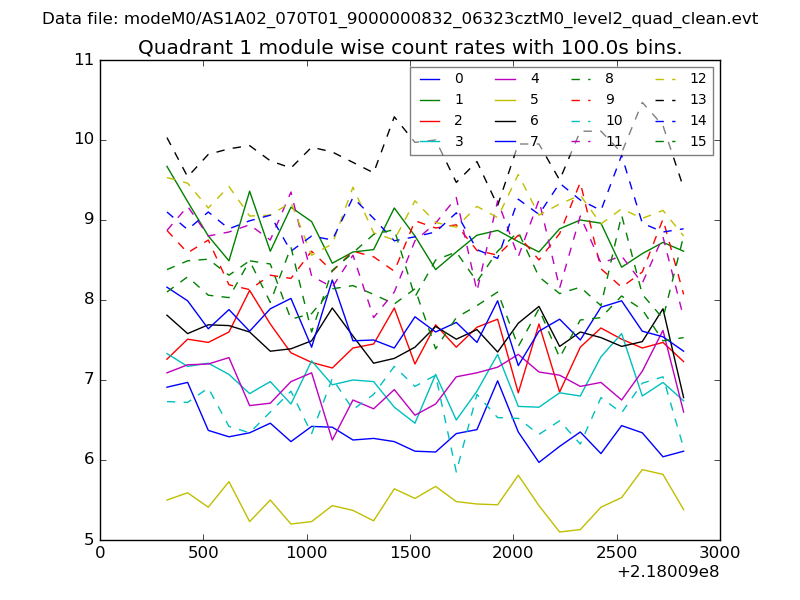

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

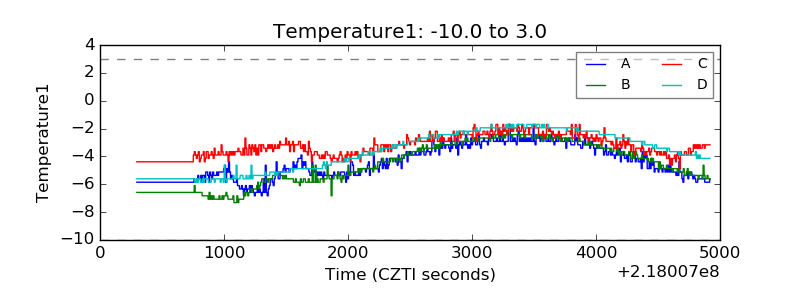

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

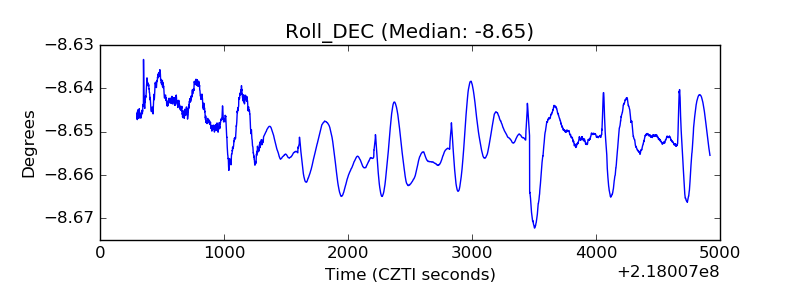

| _Roll_DEC |  |

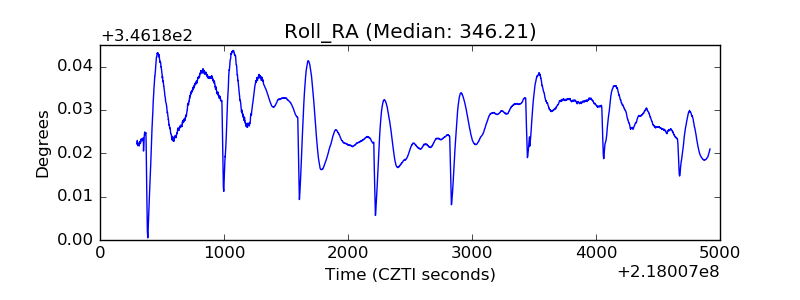

| _Roll_RA |  |

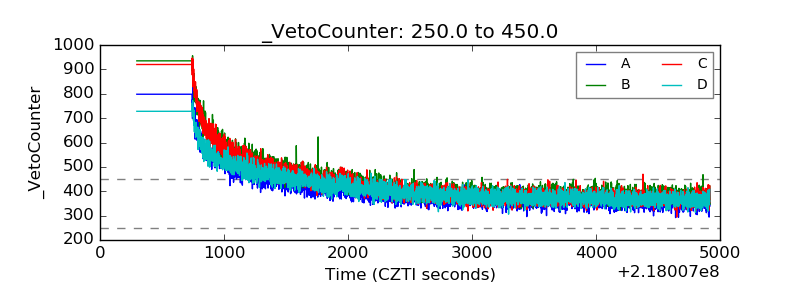

| Veto Counter |  |
