| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_028T01_9000000834_06327cztM0_level2.evt | modeM0/AS1G06_028T01_9000000834_06327cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,162,240 | 83,770,560 |
| Size | 543.7 MB | 79.9 MB |
| Events in quadrant A | 2,872,762 | 550,168 |
| Events in quadrant B | 3,353,581 | 547,818 |
| Events in quadrant C | 3,247,896 | 536,852 |
| Events in quadrant D | 7,381,360 | 476,983 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12638 | 2 |
| B | 0 | 13994 | 1 |
| C | 0 | 13750 | 1 |
| D | 0 | 26195 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6086 | 85 | 1.396648% |
| B | 6086 | 143 | 2.349655% |
| C | 6086 | 133 | 2.185343% |
| D | 6086 | 867 | 14.245810% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7021 | 6087 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7021 | 6087 | 29 | 29 | 0.41% | 0.48% |  |
| C | 7021 | 6087 | 64 | 64 | 0.91% | 1.05% |  |
| D | 7021 | 6087 | 784 | 784 | 11.17% | 12.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 26650 | 171.56 | 731 | 715 | 151.2 |
| A | 13 | 251 | 21322 | 136.32 | 731 | 715 | 151.2 |
| A | 0 | 226 | 7147 | 42.55 | 731 | 715 | 151.2 |
| B | 3 | 64 | 264082 | 1884.24 | 732 | 717 | 139.8 |
| B | 4 | 81 | 209668 | 1494.93 | 732 | 717 | 139.8 |
| B | 15 | 204 | 37519 | 263.3 | 732 | 717 | 139.8 |
| C | 4 | 254 | 470465 | 2846.91 | 706 | 713 | 165.0 |
| C | 9 | 16 | 19094 | 111.4 | 706 | 713 | 165.0 |
| C | 13 | 61 | 5455 | 28.74 | 706 | 713 | 165.0 |
| D | 12 | 221 | 2282381 | 13668.47 | 682 | 662 | 166.9 |
| D | 12 | 220 | 1894012 | 11341.97 | 682 | 662 | 166.9 |
| D | 2 | 63 | 454608 | 2719.33 | 682 | 662 | 166.9 |

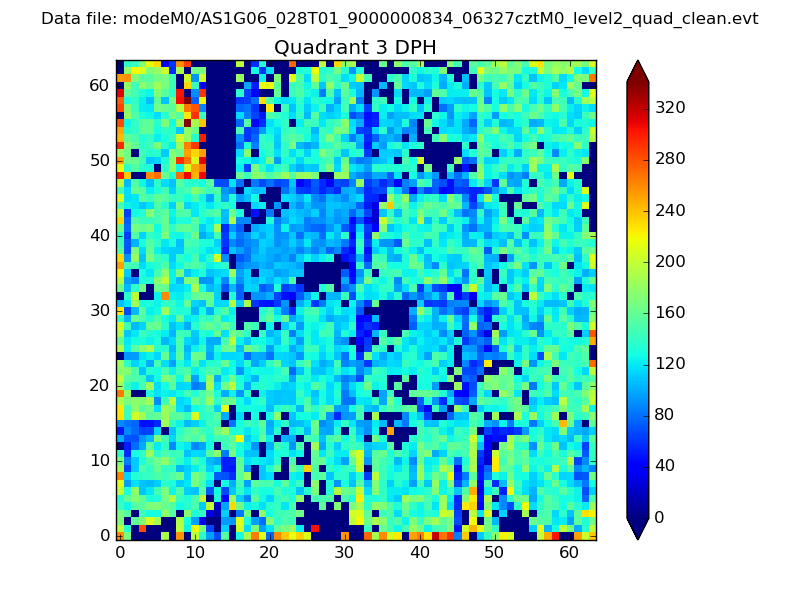

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

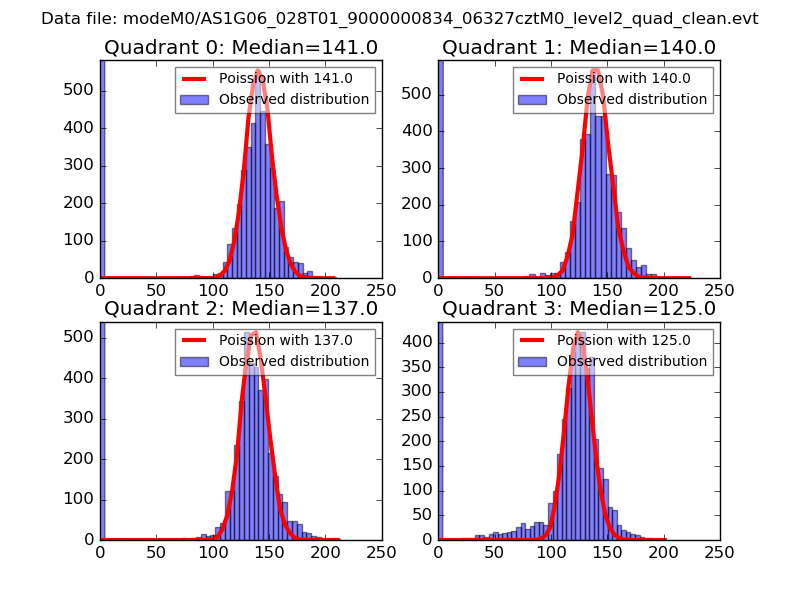

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

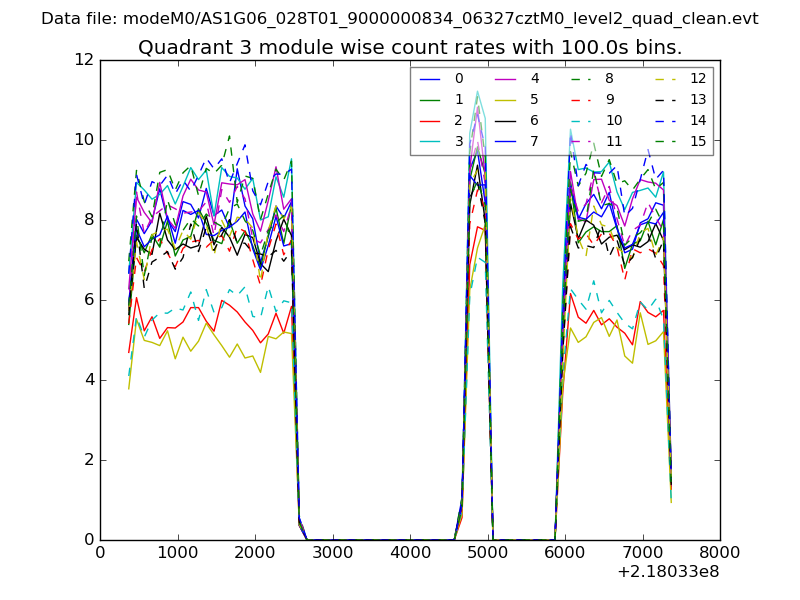

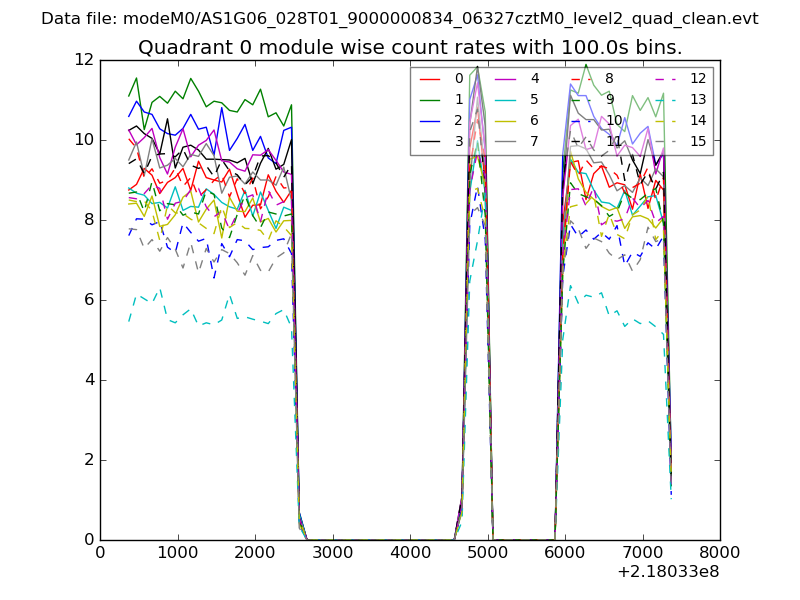

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

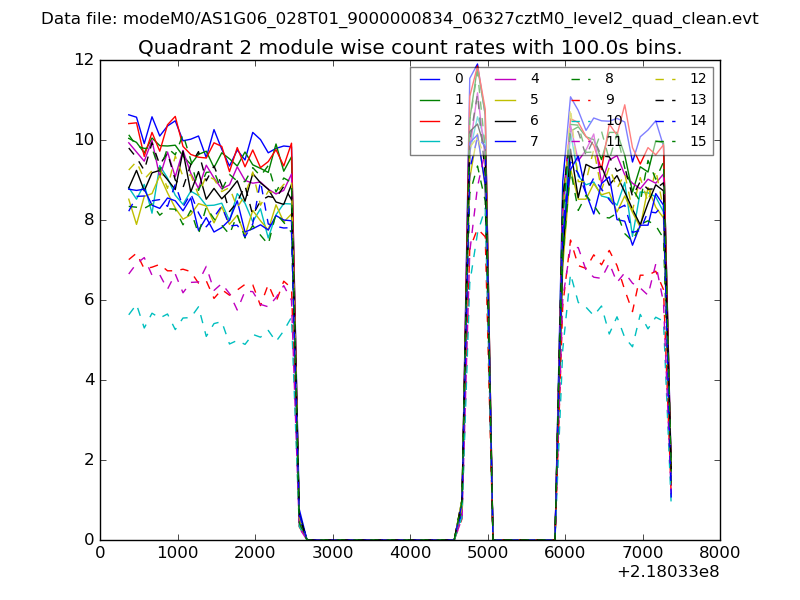

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

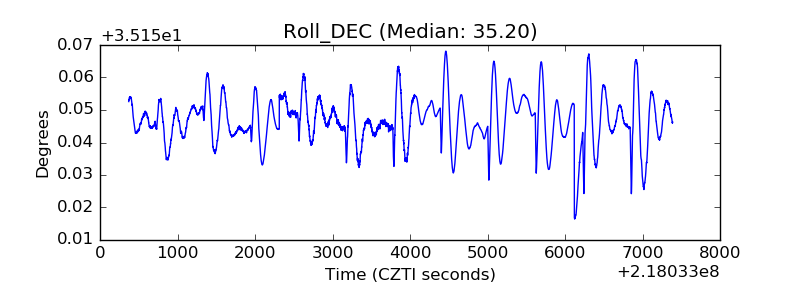

| _Roll_DEC |  |
| _Roll_RA |  |

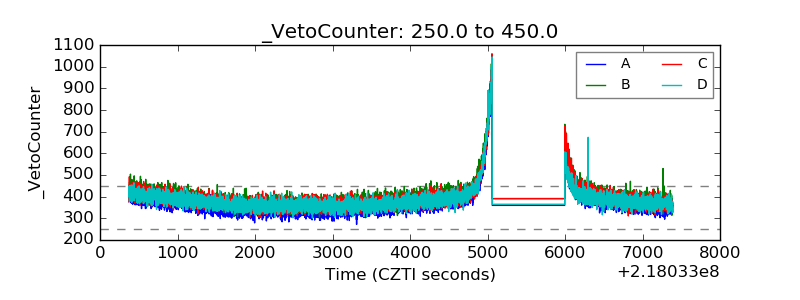

| Veto Counter |  |
