| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_151T01_9000000836_06337cztM0_level2.evt | modeM0/AS1G06_151T01_9000000836_06337cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,818,560 | 58,538,880 |
| Size | 506.2 MB | 55.8 MB |
| Events in quadrant A | 3,117,586 | 339,228 |
| Events in quadrant B | 4,881,815 | 329,952 |
| Events in quadrant C | 2,992,782 | 337,090 |
| Events in quadrant D | 4,647,938 | 317,844 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13337 | 2 |
| B | 0 | 18647 | 1 |
| C | 0 | 13156 | 1 |
| D | 0 | 18192 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6430 | 28 | 0.435459% |
| B | 6430 | 656 | 10.202177% |
| C | 6430 | 20 | 0.311042% |
| D | 6430 | 327 | 5.085537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 6431 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7595 | 6431 | 435 | 435 | 5.73% | 6.76% |  |
| C | 7595 | 6431 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7595 | 6431 | 279 | 279 | 3.67% | 4.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 29924 | 182.27 | 782 | 768 | 160.0 |
| A | 13 | 251 | 29625 | 180.4 | 782 | 768 | 160.0 |
| A | 14 | 111 | 18657 | 111.83 | 782 | 768 | 160.0 |
| B | 3 | 64 | 1902768 | 13216.01 | 758 | 741 | 143.9 |
| B | 11 | 51 | 21028 | 140.96 | 758 | 741 | 143.9 |
| B | 12 | 111 | 14506 | 95.64 | 758 | 741 | 143.9 |
| C | 9 | 54 | 20581 | 112.31 | 760 | 763 | 176.5 |
| C | 13 | 61 | 5927 | 29.26 | 760 | 763 | 176.5 |
| C | 4 | 254 | 4703 | 22.33 | 760 | 763 | 176.5 |
| D | 4 | 95 | 498885 | 2743.01 | 739 | 717 | 181.6 |
| D | 12 | 220 | 491136 | 2700.34 | 739 | 717 | 181.6 |
| D | 12 | 221 | 264856 | 1454.4 | 739 | 717 | 181.6 |

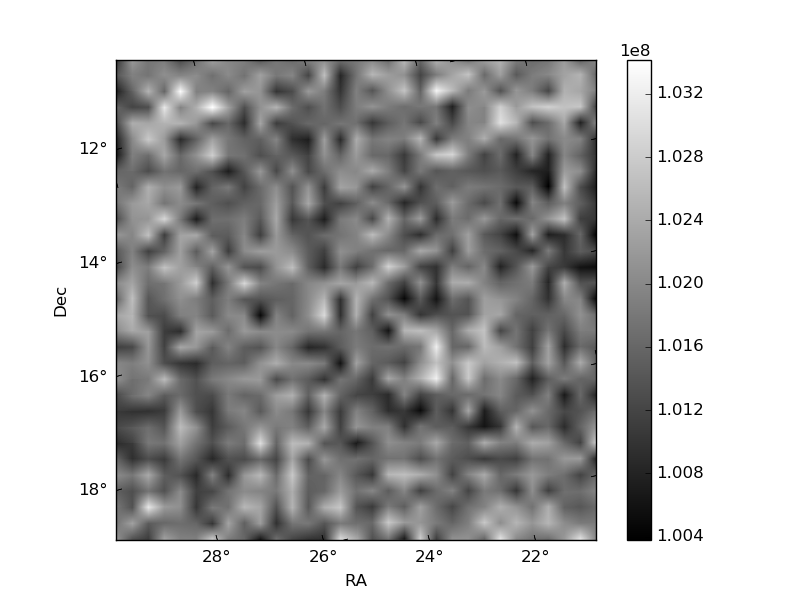

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

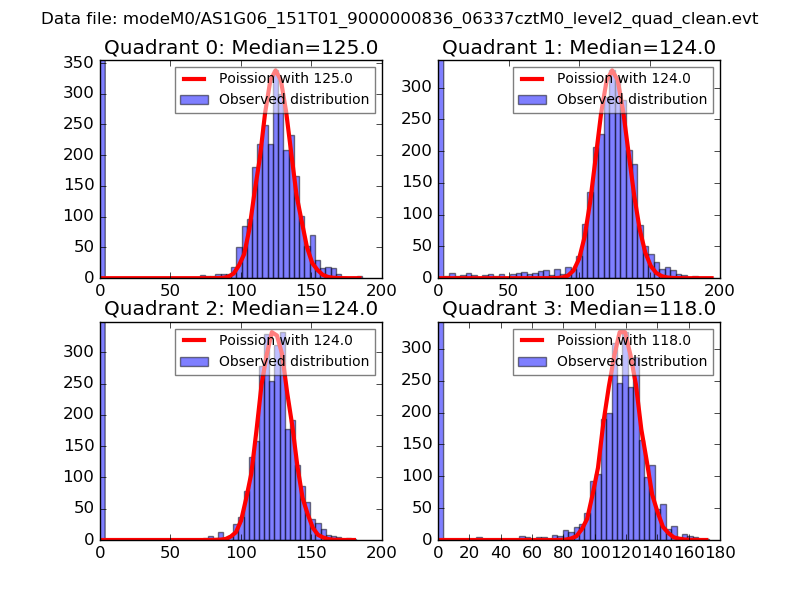

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

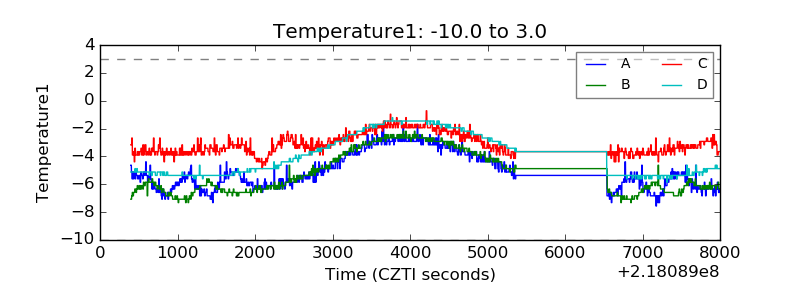

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

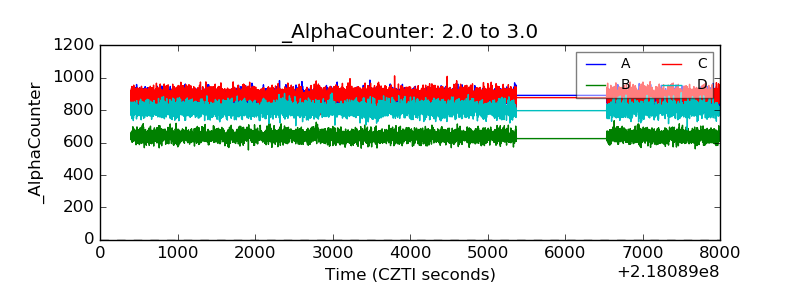

| Alpha Counter |  |

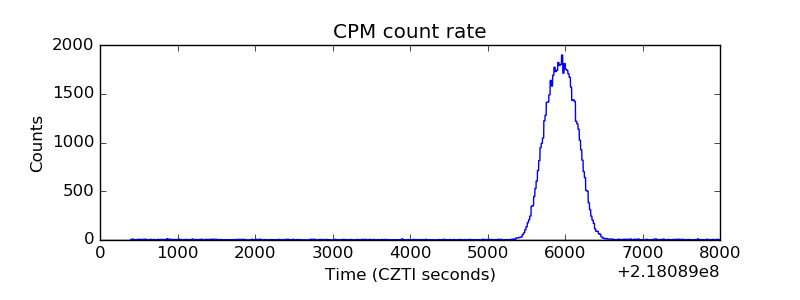

| _CPM_Rate |  |

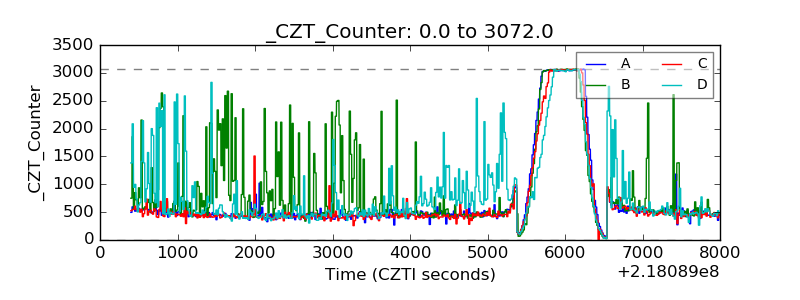

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

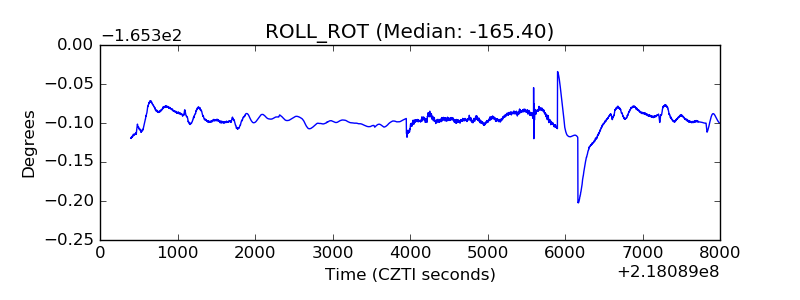

| _ROLL_ROT |  |

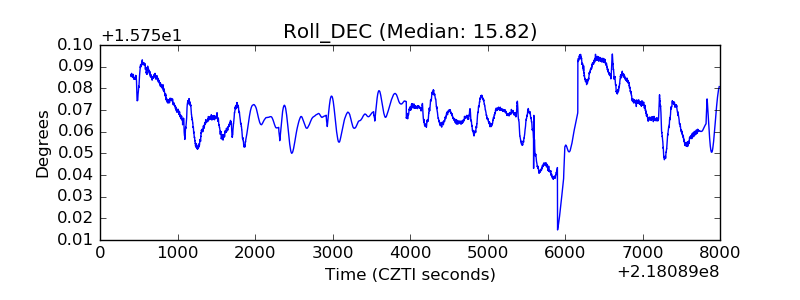

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
