| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_151T01_9000000836_06340cztM0_level2.evt | modeM0/AS1G06_151T01_9000000836_06340cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,626,240 | 86,653,440 |
| Size | 522.3 MB | 82.6 MB |
| Events in quadrant A | 3,762,345 | 553,313 |
| Events in quadrant B | 4,068,382 | 550,957 |
| Events in quadrant C | 3,248,220 | 546,015 |
| Events in quadrant D | 5,060,921 | 515,793 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15007 | 3 |
| B | 0 | 16136 | 2 |
| C | 0 | 13905 | 2 |
| D | 0 | 19363 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6568 | 213 | 3.242996% |
| B | 6568 | 375 | 5.709501% |
| C | 6568 | 147 | 2.238124% |
| D | 6568 | 309 | 4.704629% |

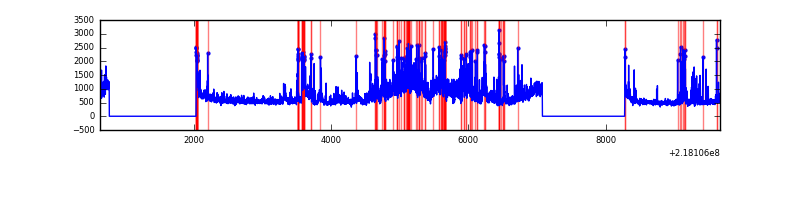

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9033 | 6570 | 8 | 8 | 0.09% | 0.12% |  |
| B | 9033 | 6570 | 131 | 131 | 1.45% | 1.99% |  |
| C | 9033 | 6570 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9033 | 6570 | 143 | 143 | 1.58% | 2.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 234505 | 1350.47 | 857 | 838 | 173.0 |
| A | 13 | 251 | 100763 | 577.51 | 857 | 838 | 173.0 |
| A | 14 | 111 | 79623 | 455.33 | 857 | 838 | 173.0 |
| B | 3 | 64 | 698361 | 4251.67 | 853 | 832 | 164.1 |
| B | 4 | 172 | 23744 | 139.66 | 853 | 832 | 164.1 |
| B | 4 | 170 | 17528 | 101.77 | 853 | 832 | 164.1 |
| C | 4 | 254 | 14702 | 72.44 | 824 | 829 | 191.5 |
| C | 9 | 54 | 9736 | 46.51 | 824 | 829 | 191.5 |
| C | 14 | 67 | 7173 | 33.13 | 824 | 829 | 191.5 |
| D | 12 | 221 | 729246 | 3603.14 | 821 | 795 | 202.2 |
| D | 13 | 46 | 469683 | 2319.26 | 821 | 795 | 202.2 |
| D | 12 | 220 | 194268 | 956.98 | 821 | 795 | 202.2 |

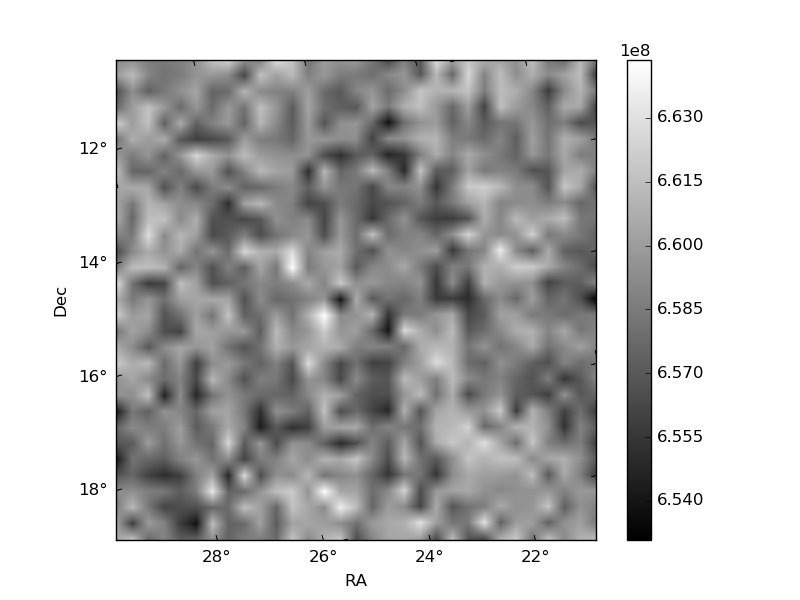

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

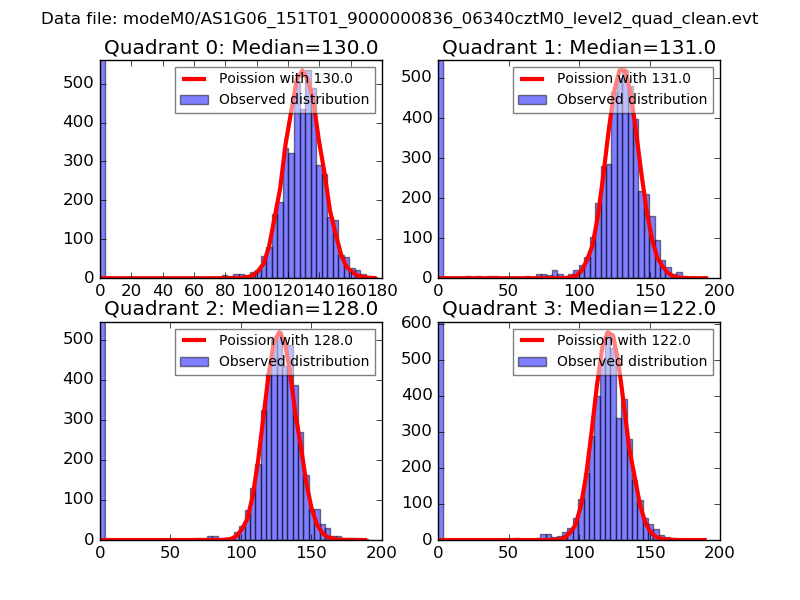

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

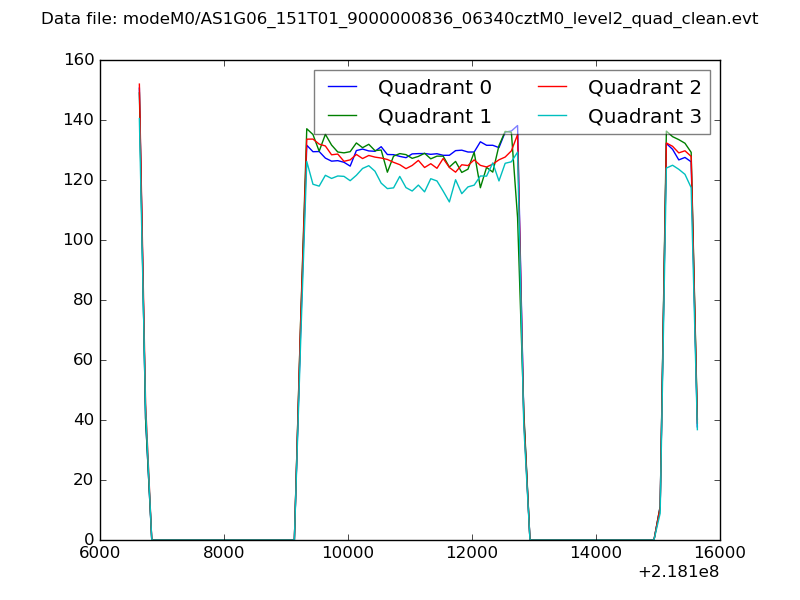

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

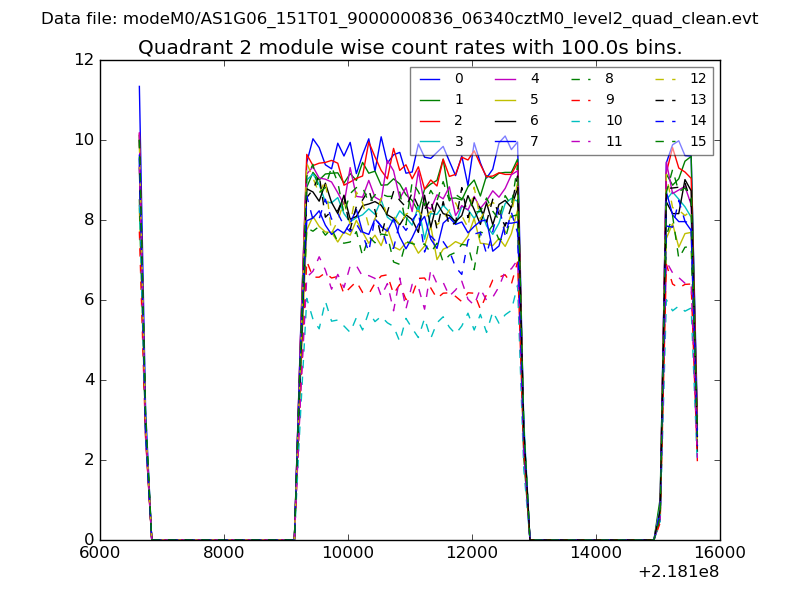

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

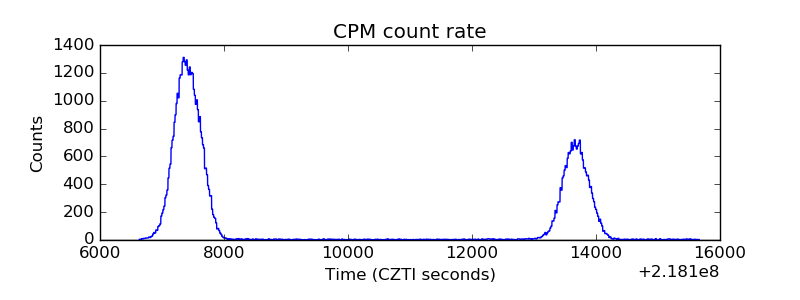

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

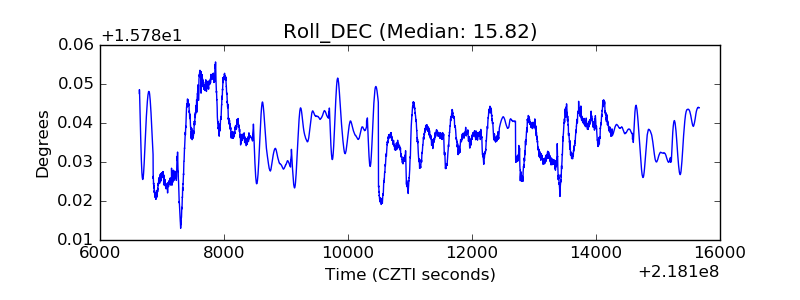

| _Roll_DEC |  |
| _Roll_RA |  |

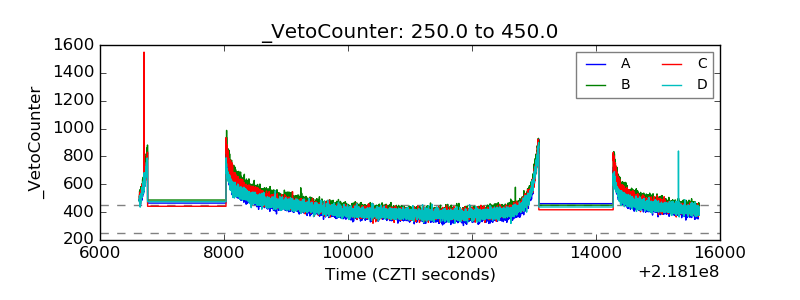

| Veto Counter |  |
