| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_151T01_9000000836_06342cztM0_level2.evt | modeM0/AS1G06_151T01_9000000836_06342cztM0_level2_quad_clean.evt |
| Size (bytes) | 213,079,680 | 47,183,040 |
| Size | 203.2 MB | 45.0 MB |
| Events in quadrant A | 1,455,800 | 307,581 |
| Events in quadrant B | 1,551,590 | 308,211 |
| Events in quadrant C | 1,380,539 | 304,052 |
| Events in quadrant D | 1,859,776 | 295,255 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6197 | 1 |
| B | 0 | 6534 | 1 |
| C | 0 | 6231 | 1 |
| D | 0 | 7487 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2993 | 18 | 0.601403% |
| B | 2993 | 28 | 0.935516% |
| C | 2993 | 8 | 0.267290% |
| D | 2993 | 42 | 1.403274% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2993 | 2993 | 3 | 3 | 0.10% | 0.10% |  |
| B | 2993 | 2993 | 14 | 14 | 0.47% | 0.47% |  |
| C | 2993 | 2993 | 4 | 4 | 0.13% | 0.13% |  |
| D | 2993 | 2993 | 30 | 30 | 1.00% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 45608 | 610.84 | 355 | 348 | 74.1 |
| A | 13 | 251 | 15334 | 202.26 | 355 | 348 | 74.1 |
| A | 8 | 15 | 9536 | 124.0 | 355 | 348 | 74.1 |
| B | 3 | 64 | 138677 | 1965.86 | 352 | 344 | 70.4 |
| B | 0 | 199 | 29246 | 410.73 | 352 | 344 | 70.4 |
| B | 15 | 204 | 8462 | 115.37 | 352 | 344 | 70.4 |
| C | 4 | 254 | 57671 | 724.09 | 336 | 338 | 79.2 |
| C | 9 | 54 | 5219 | 61.65 | 336 | 338 | 79.2 |
| C | 13 | 61 | 2681 | 29.59 | 336 | 338 | 79.2 |
| D | 12 | 221 | 219623 | 2565.03 | 341 | 330 | 85.5 |
| D | 12 | 220 | 174706 | 2039.64 | 341 | 330 | 85.5 |
| D | 13 | 46 | 81001 | 943.59 | 341 | 330 | 85.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

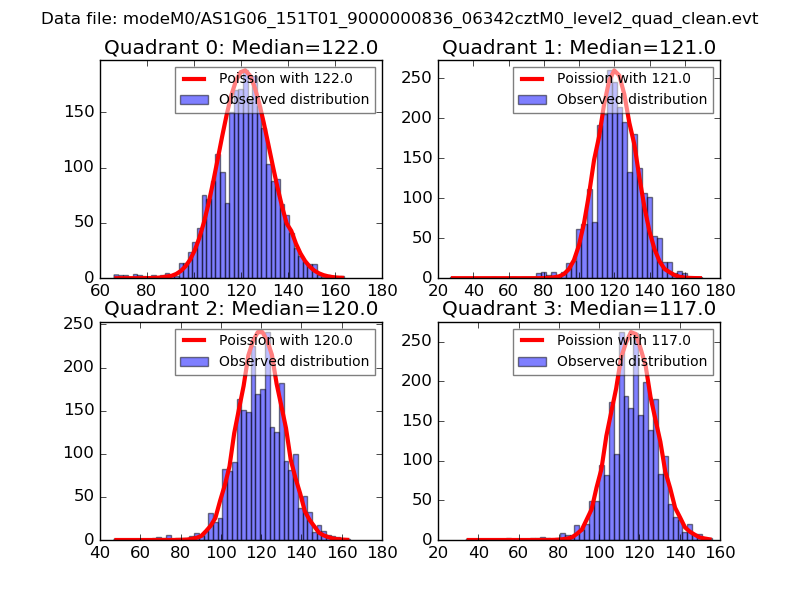

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

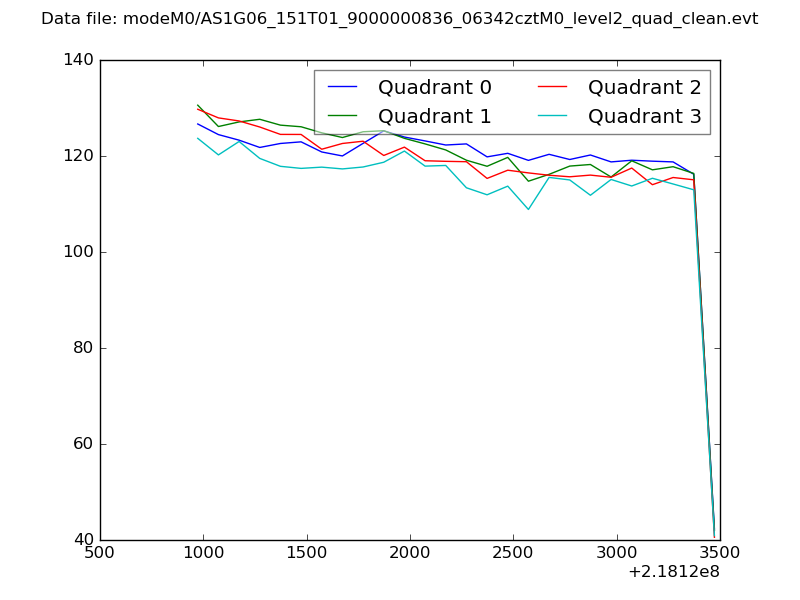

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
