| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_173T01_9000000840_06348cztM0_level2.evt | modeM0/AS1A02_173T01_9000000840_06348cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,081,280 | 70,081,920 |
| Size | 385.4 MB | 66.8 MB |
| Events in quadrant A | 2,475,425 | 447,148 |
| Events in quadrant B | 3,422,755 | 433,891 |
| Events in quadrant C | 2,437,611 | 439,621 |
| Events in quadrant D | 3,529,819 | 418,590 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11147 | 1 |
| B | 0 | 13989 | 1 |
| C | 0 | 11153 | 1 |
| D | 0 | 14348 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5465 | 12 | 0.219579% |
| B | 5465 | 257 | 4.702653% |
| C | 5465 | 7 | 0.128088% |
| D | 5465 | 126 | 2.305581% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

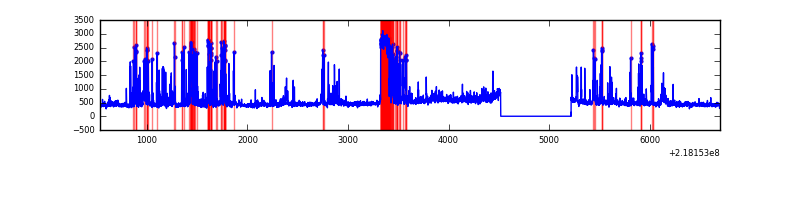

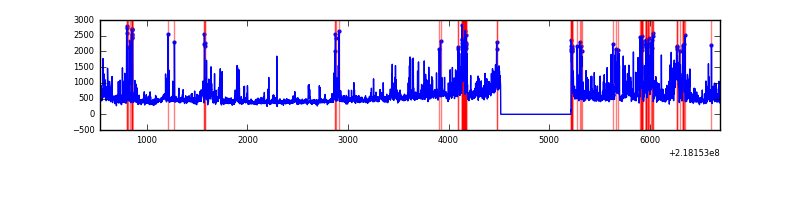

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6165 | 5466 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6165 | 5466 | 197 | 197 | 3.20% | 3.60% |  |
| C | 6165 | 5466 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6165 | 5466 | 108 | 108 | 1.75% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 64229 | 503.13 | 615 | 601 | 126.5 |
| A | 8 | 15 | 32301 | 250.66 | 615 | 601 | 126.5 |
| A | 13 | 251 | 7368 | 53.51 | 615 | 601 | 126.5 |
| B | 3 | 64 | 883573 | 7524.84 | 603 | 588 | 117.3 |
| B | 15 | 204 | 60924 | 514.19 | 603 | 588 | 117.3 |
| B | 4 | 172 | 34980 | 293.09 | 603 | 588 | 117.3 |
| C | 4 | 254 | 84181 | 601.37 | 596 | 600 | 139.0 |
| C | 8 | 128 | 8235 | 54.93 | 596 | 600 | 139.0 |
| C | 9 | 54 | 5260 | 33.53 | 596 | 600 | 139.0 |
| D | 12 | 220 | 664482 | 4538.03 | 591 | 572 | 146.3 |
| D | 2 | 152 | 146116 | 994.84 | 591 | 572 | 146.3 |
| D | 12 | 221 | 130820 | 890.28 | 591 | 572 | 146.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

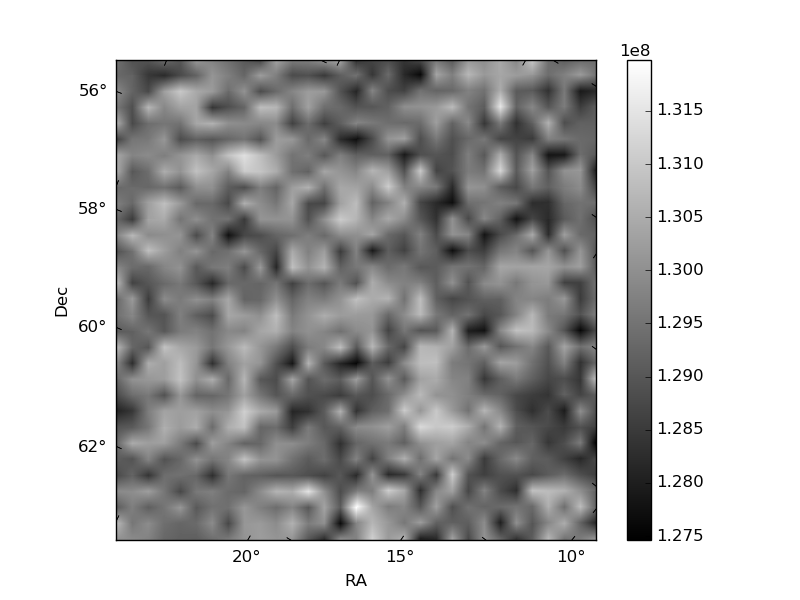

| Plot type | Count rate plots | Images |
|---|---|---|

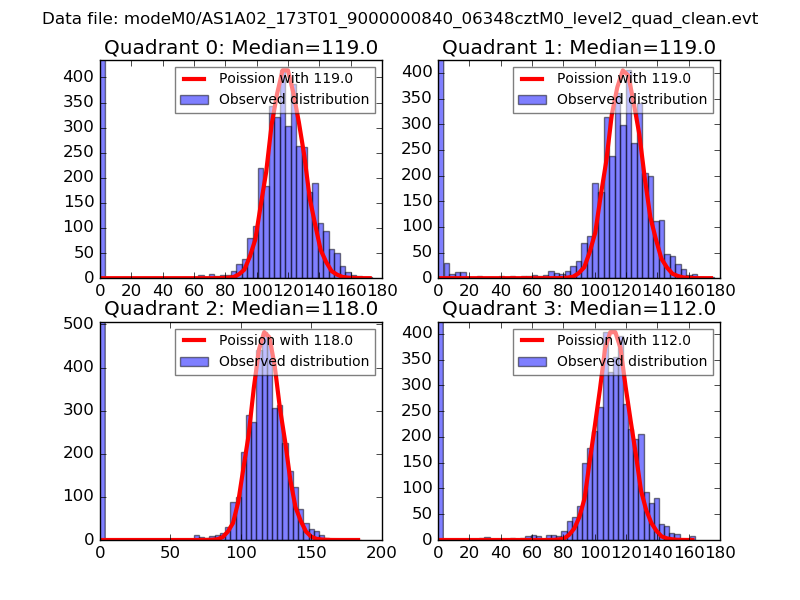

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

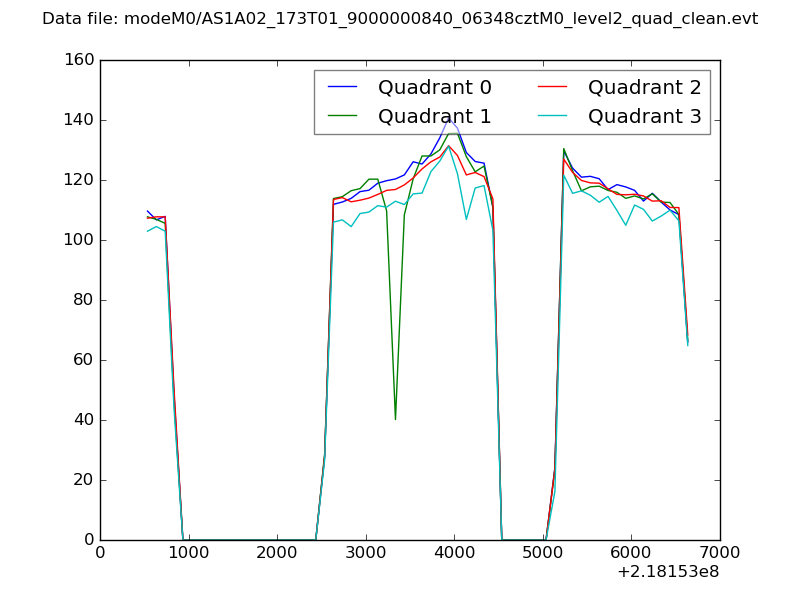

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

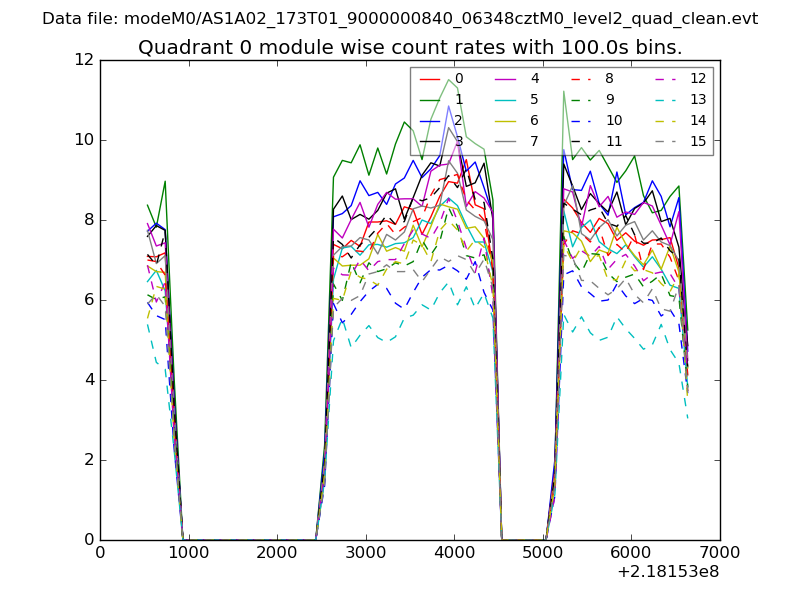

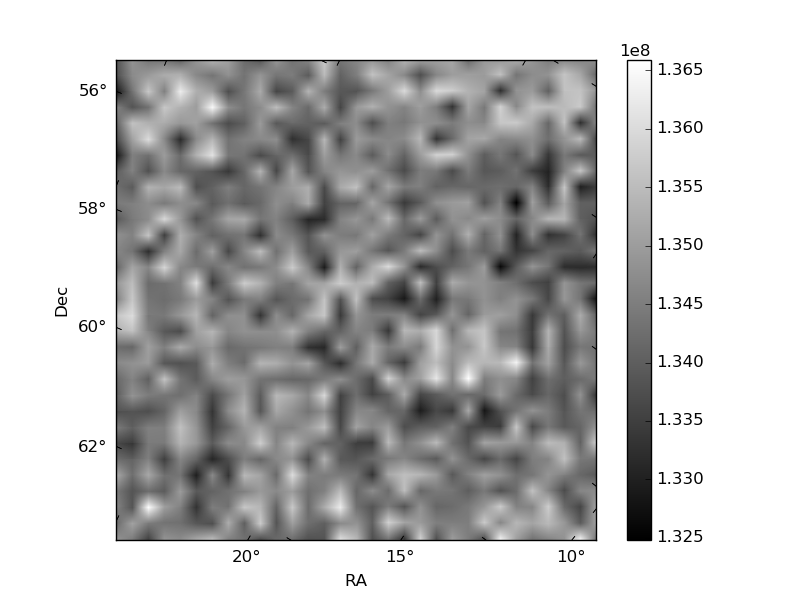

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

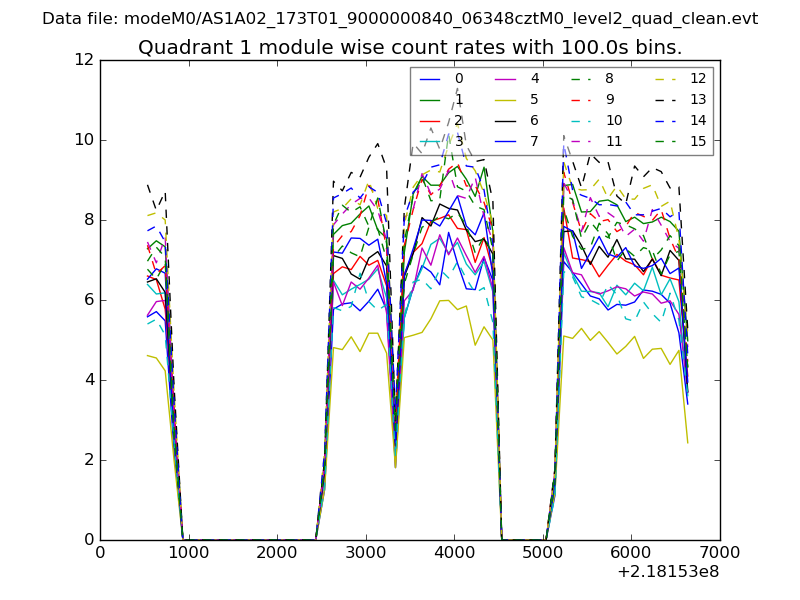

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

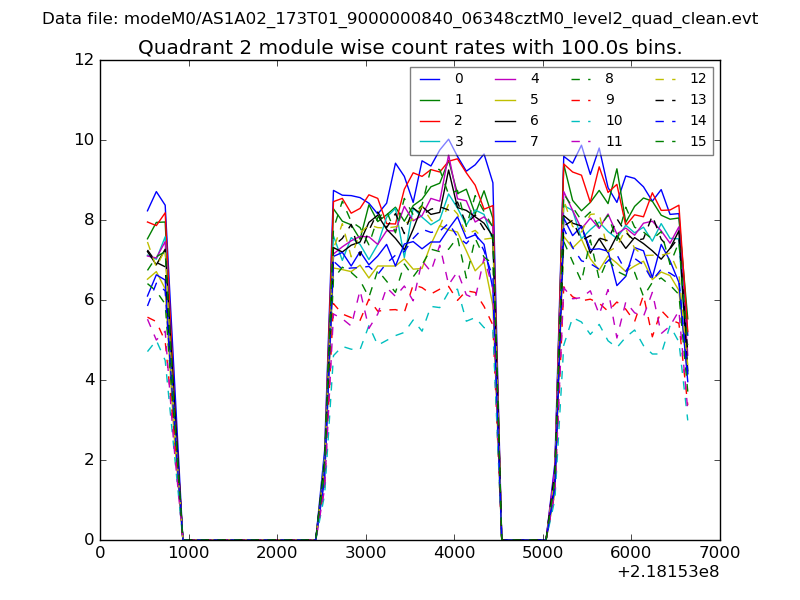

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

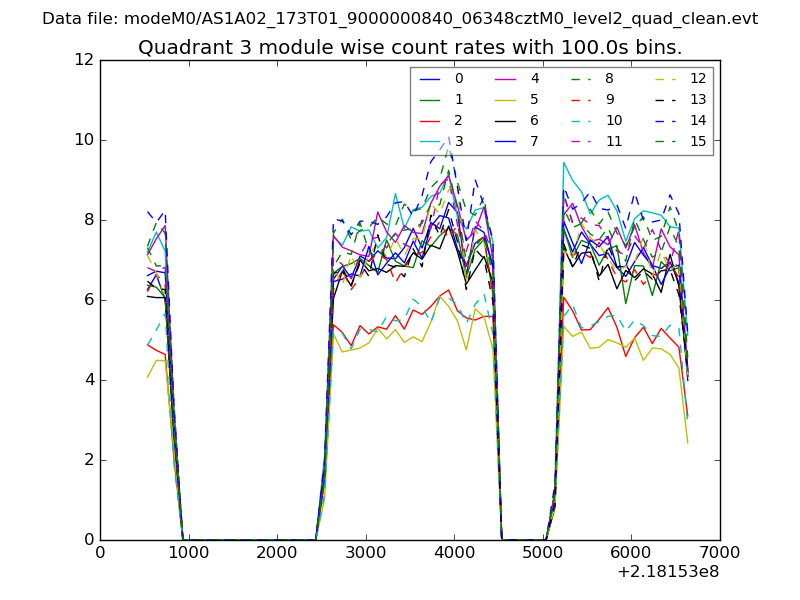

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

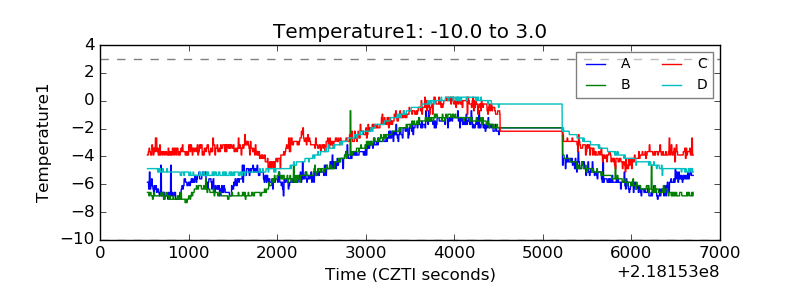

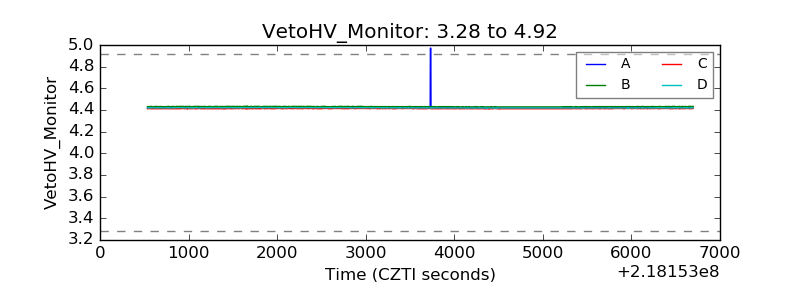

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

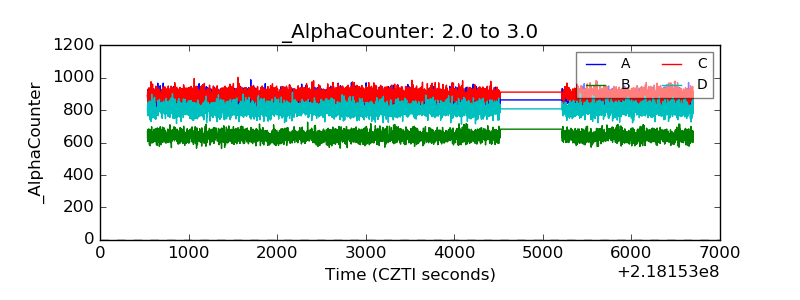

| Alpha Counter |  |

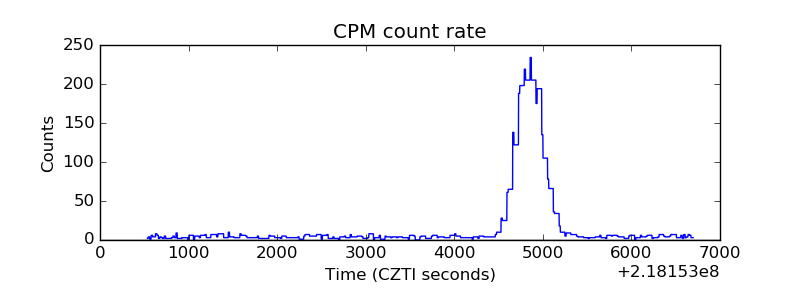

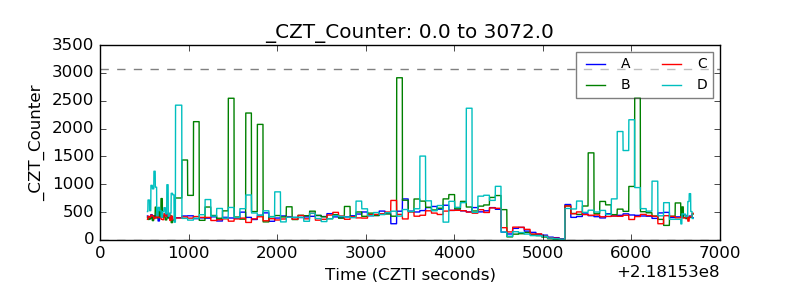

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

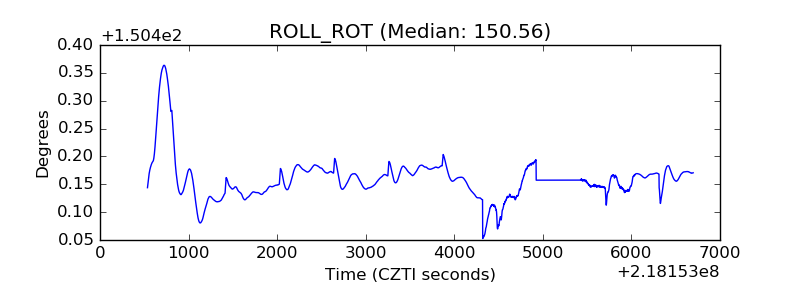

| _ROLL_ROT |  |

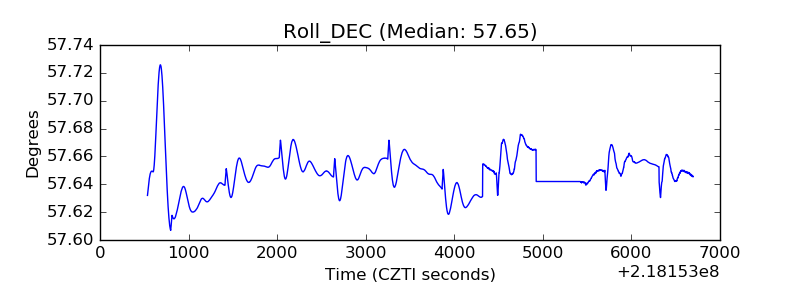

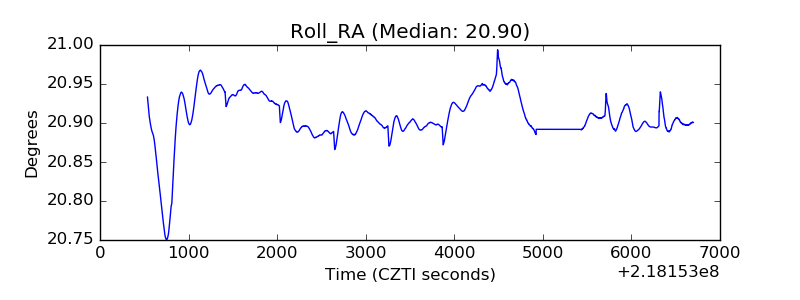

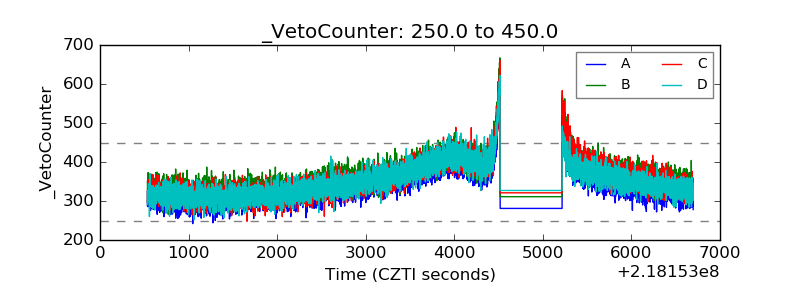

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
