| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_124T01_9000000842_06348cztM0_level2.evt | modeM0/AS1A02_124T01_9000000842_06348cztM0_level2_quad_clean.evt |
| Size (bytes) | 288,509,760 | 55,520,640 |
| Size | 275.1 MB | 52.9 MB |
| Events in quadrant A | 2,038,054 | 350,874 |
| Events in quadrant B | 2,316,858 | 350,862 |
| Events in quadrant C | 1,891,999 | 348,929 |
| Events in quadrant D | 2,207,458 | 338,072 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8698 | 2 |
| B | 0 | 9530 | 1 |
| C | 0 | 8438 | 1 |
| D | 0 | 9363 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4149 | 10 | 0.241022% |
| B | 4149 | 134 | 3.229694% |
| C | 4149 | 8 | 0.192818% |
| D | 4149 | 25 | 0.602555% |

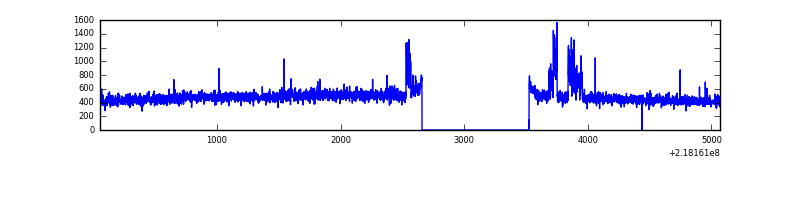

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

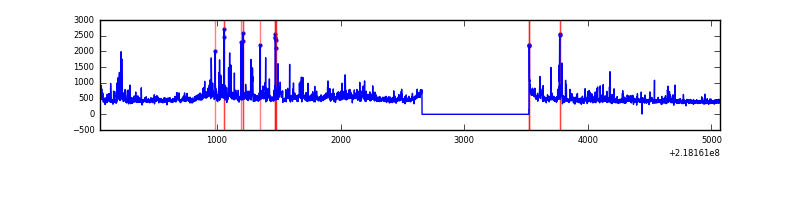

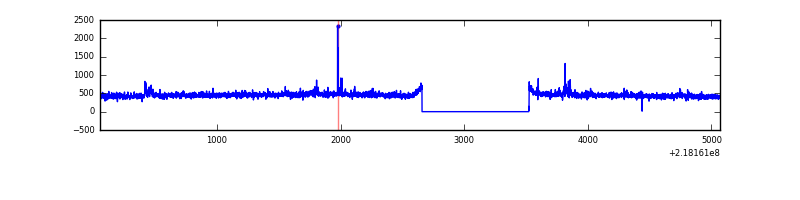

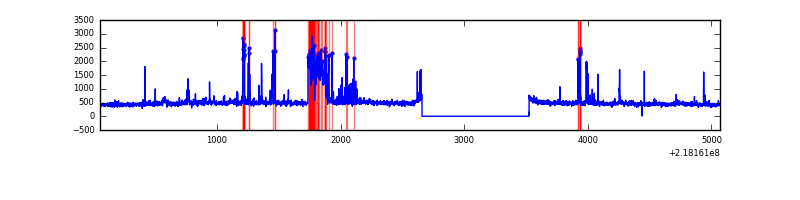

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5015 | 4151 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5015 | 4151 | 78 | 78 | 1.56% | 1.88% |  |
| C | 5015 | 4151 | 1 | 1 | 0.02% | 0.02% |  |
| D | 5015 | 4151 | 17 | 17 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 153992 | 1539.92 | 485 | 473 | 99.7 |
| A | 8 | 15 | 13948 | 135.17 | 485 | 473 | 99.7 |
| A | 0 | 226 | 4711 | 42.51 | 485 | 473 | 99.7 |
| B | 10 | 252 | 264591 | 2798.01 | 486 | 476 | 94.4 |
| B | 0 | 219 | 116980 | 1234.23 | 486 | 476 | 94.4 |
| B | 4 | 172 | 22619 | 234.58 | 486 | 476 | 94.4 |
| C | 4 | 254 | 37731 | 335.43 | 472 | 473 | 111.1 |
| C | 9 | 16 | 9365 | 80.05 | 472 | 473 | 111.1 |
| C | 13 | 61 | 3713 | 29.17 | 472 | 473 | 111.1 |
| D | 12 | 220 | 184623 | 1572.65 | 472 | 457 | 117.1 |
| D | 2 | 152 | 97442 | 828.19 | 472 | 457 | 117.1 |
| D | 11 | 241 | 70790 | 600.6 | 472 | 457 | 117.1 |

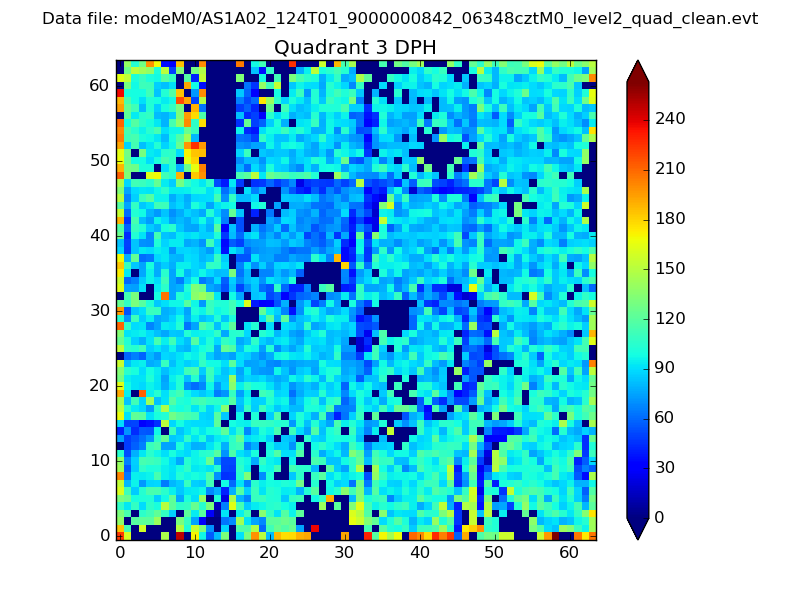

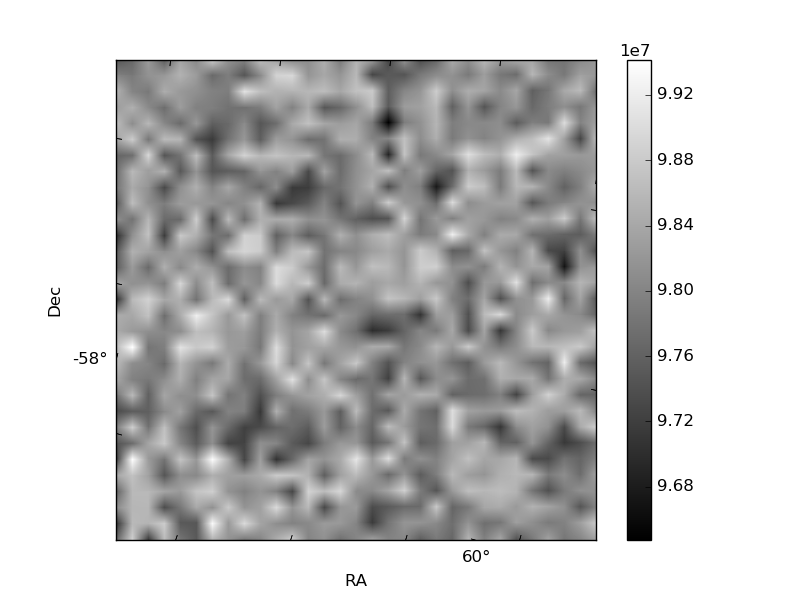

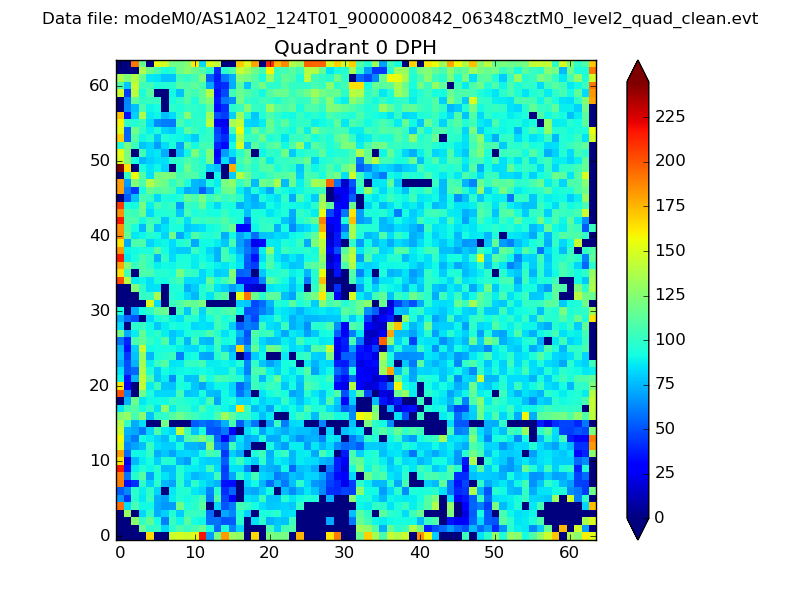

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

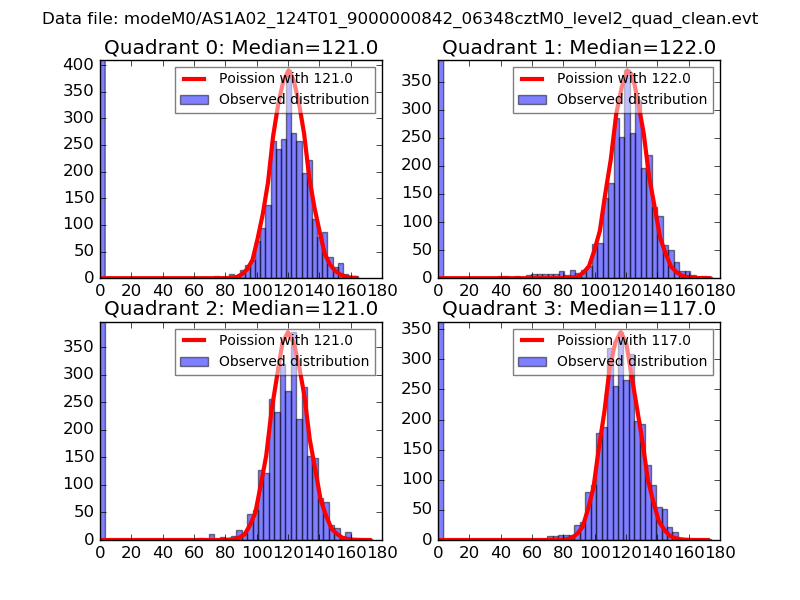

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

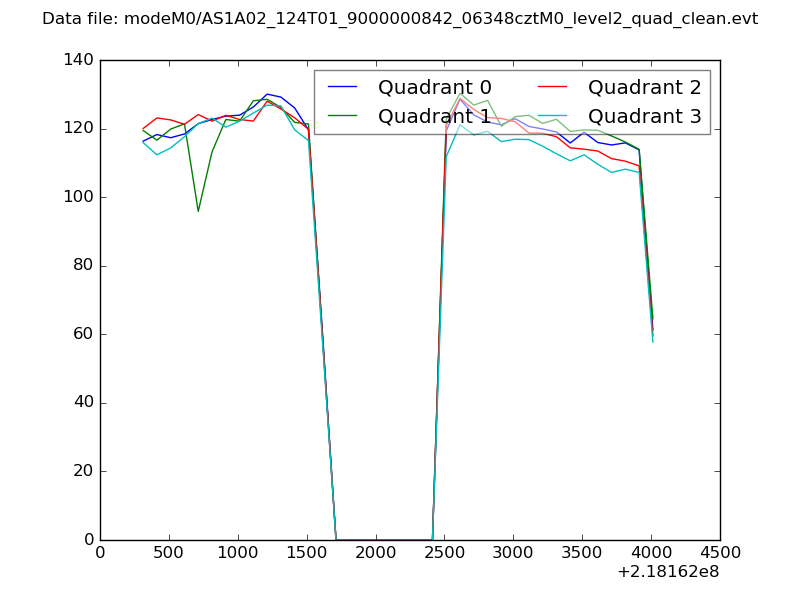

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

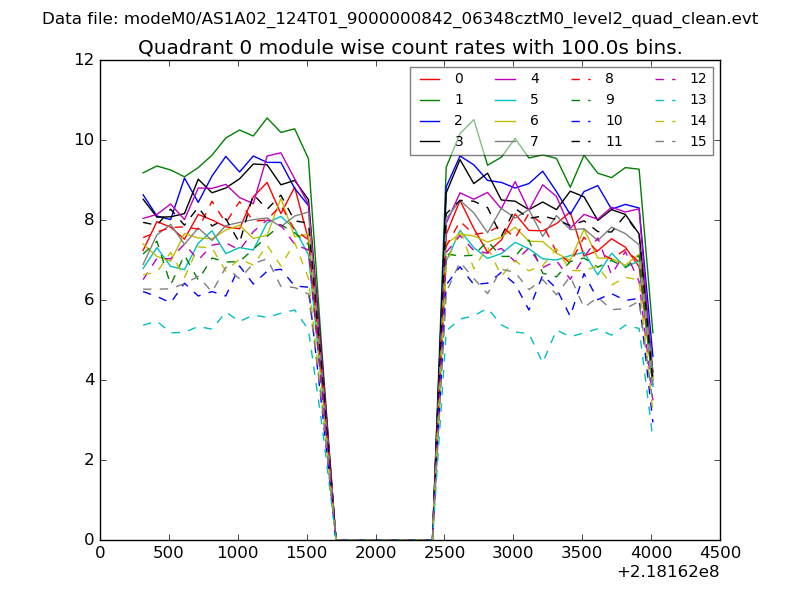

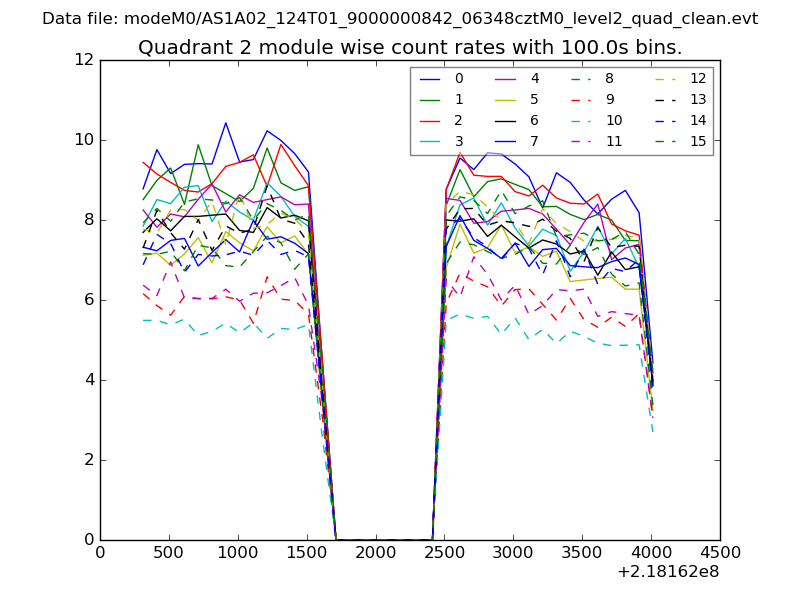

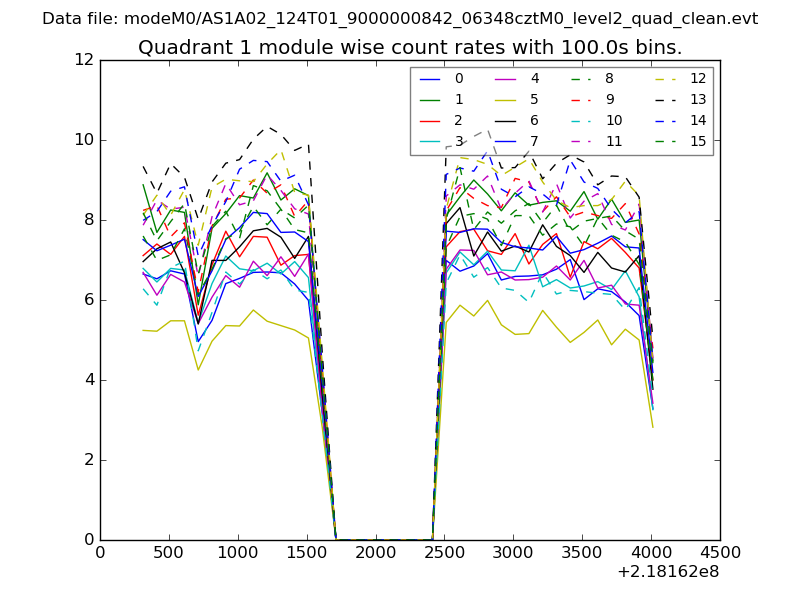

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

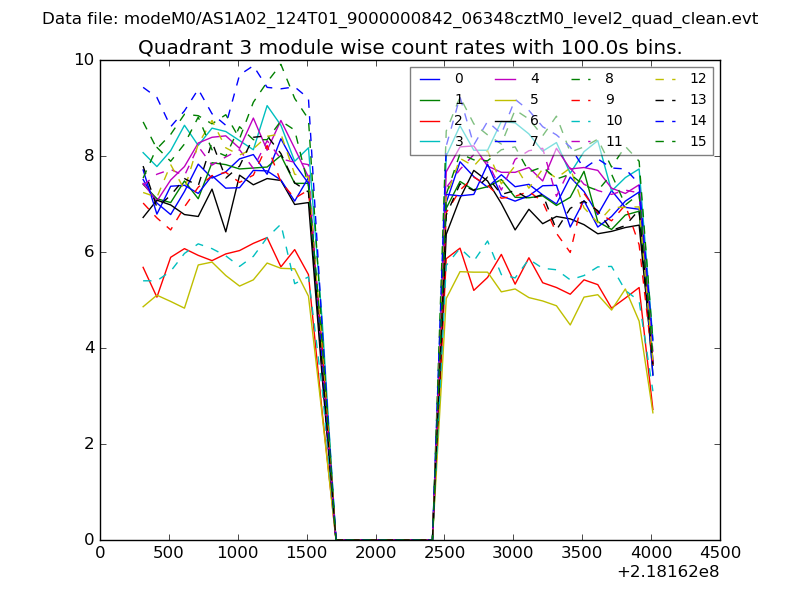

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

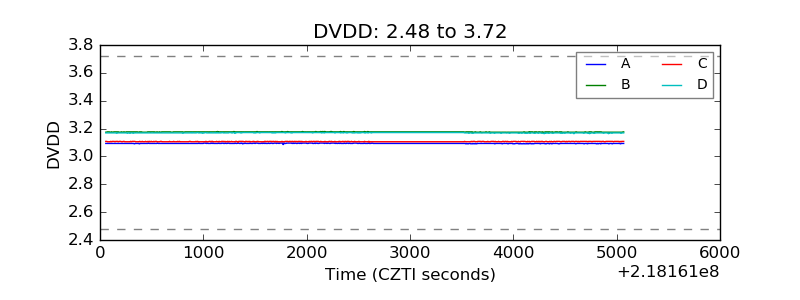

| D_VDD |  |

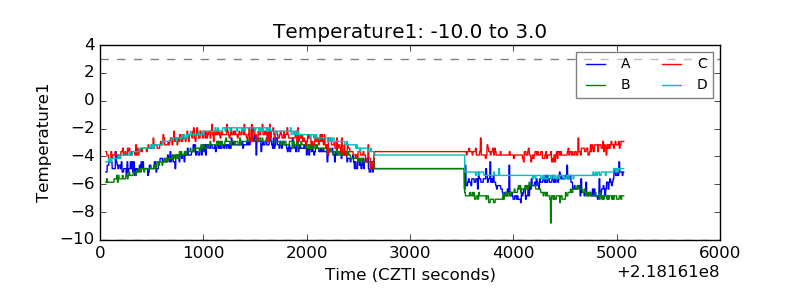

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

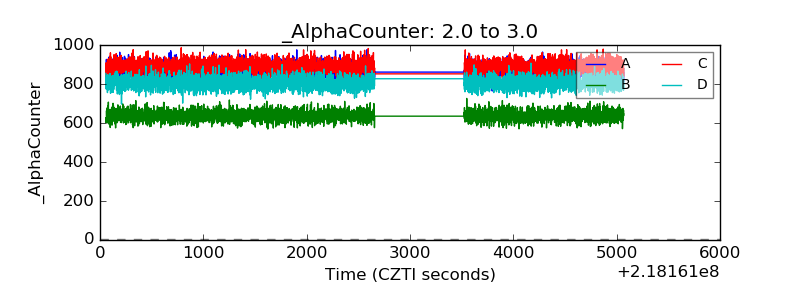

| Alpha Counter |  |

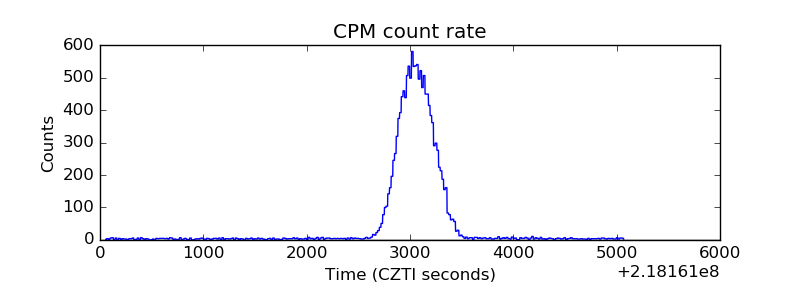

| _CPM_Rate |  |

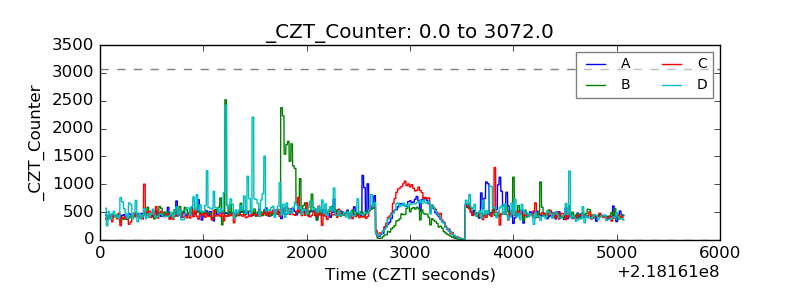

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

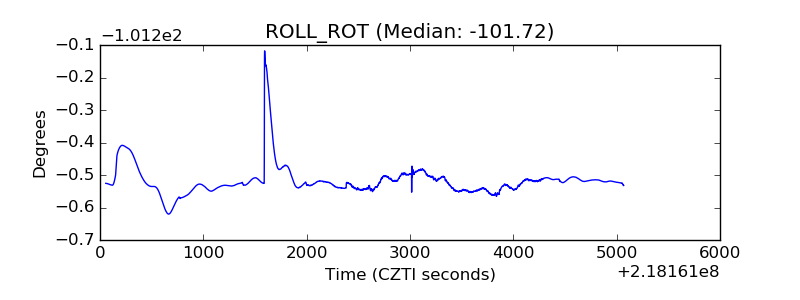

| _ROLL_ROT |  |

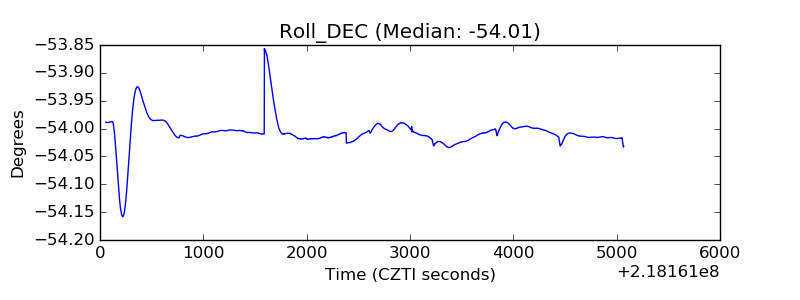

| _Roll_DEC |  |

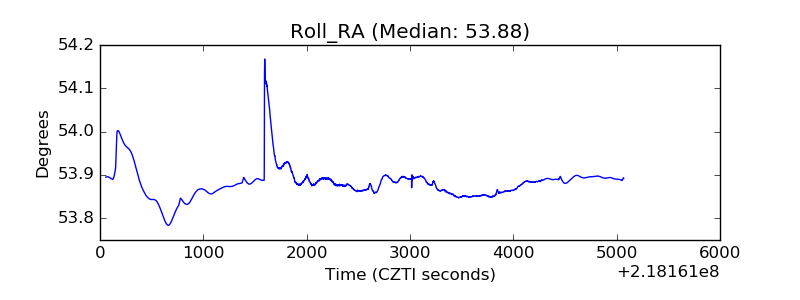

| _Roll_RA |  |

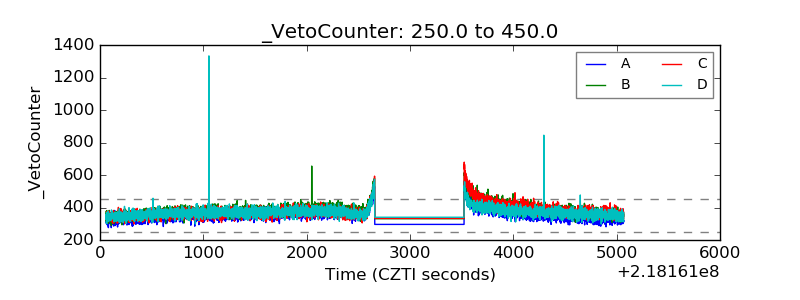

| Veto Counter |  |
