| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_124T01_9000000842_06349cztM0_level2.evt | modeM0/AS1A02_124T01_9000000842_06349cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,952,640 | 92,148,480 |
| Size | 413.8 MB | 87.9 MB |
| Events in quadrant A | 3,157,346 | 586,692 |
| Events in quadrant B | 3,219,825 | 595,351 |
| Events in quadrant C | 2,969,893 | 585,338 |
| Events in quadrant D | 3,342,880 | 559,425 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13780 | 3 |
| B | 0 | 14027 | 2 |
| C | 0 | 13480 | 2 |
| D | 0 | 14590 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6650 | 19 | 0.285714% |
| B | 6650 | 47 | 0.706767% |
| C | 6650 | 20 | 0.300752% |
| D | 6650 | 43 | 0.646617% |

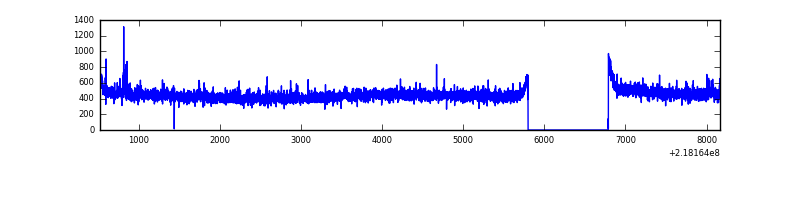

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7641 | 6652 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7641 | 6652 | 17 | 17 | 0.22% | 0.26% |  |
| C | 7641 | 6652 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7641 | 6652 | 16 | 16 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 176988 | 1154.21 | 758 | 741 | 152.7 |
| A | 8 | 15 | 33596 | 215.16 | 758 | 741 | 152.7 |
| A | 15 | 174 | 16729 | 104.7 | 758 | 741 | 152.7 |
| B | 0 | 228 | 78597 | 529.0 | 771 | 752 | 147.2 |
| B | 0 | 219 | 76889 | 517.4 | 771 | 752 | 147.2 |
| B | 4 | 80 | 31433 | 208.5 | 771 | 752 | 147.2 |
| C | 4 | 254 | 36571 | 205.51 | 750 | 753 | 174.3 |
| C | 13 | 61 | 5759 | 28.72 | 750 | 753 | 174.3 |
| C | 9 | 16 | 3546 | 16.03 | 750 | 753 | 174.3 |
| D | 12 | 220 | 214873 | 1170.7 | 741 | 717 | 182.9 |
| D | 11 | 241 | 95346 | 517.3 | 741 | 717 | 182.9 |
| D | 2 | 152 | 85350 | 462.65 | 741 | 717 | 182.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

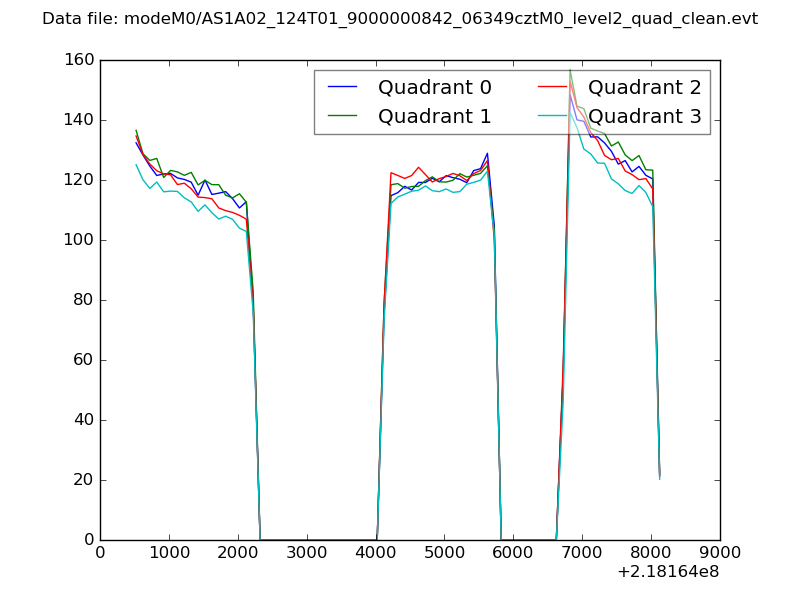

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

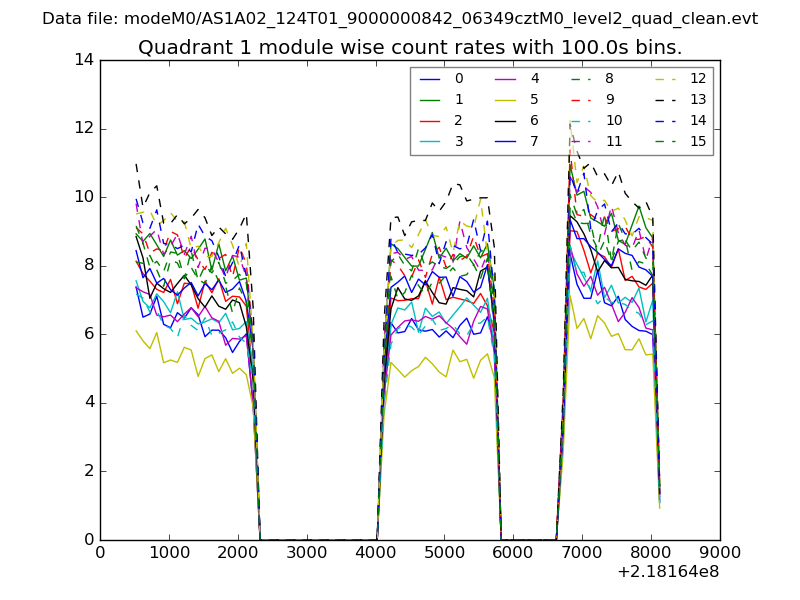

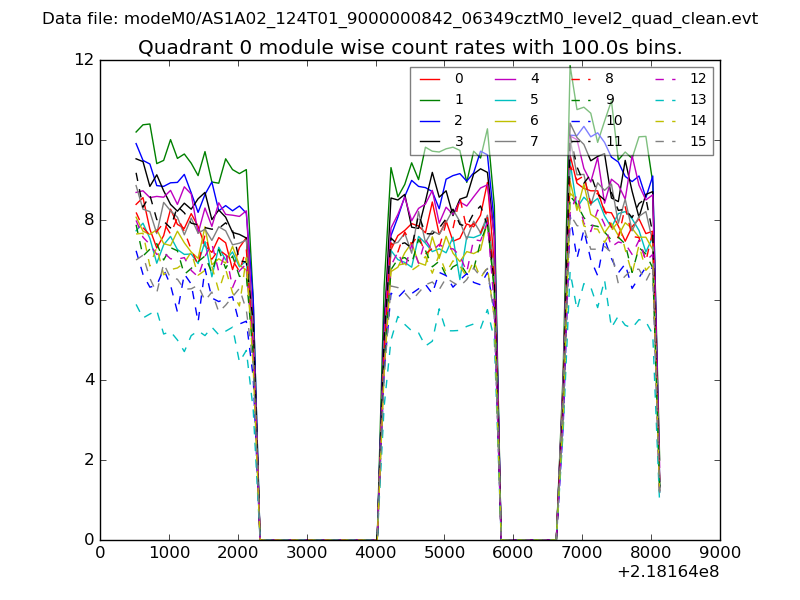

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

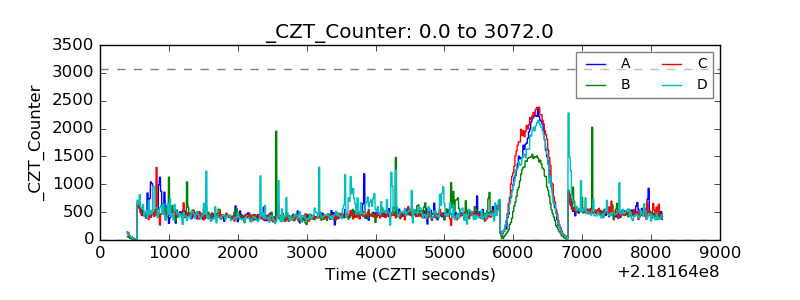

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

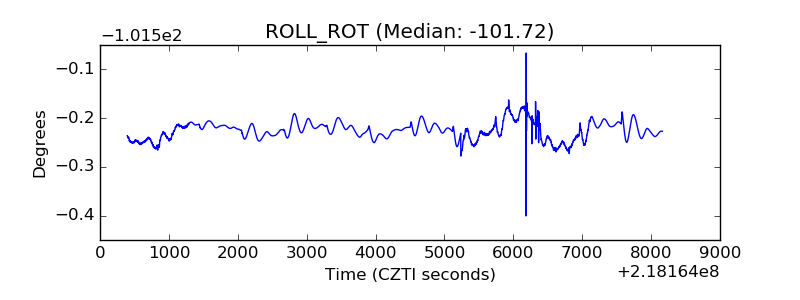

| _ROLL_ROT |  |
| _Roll_DEC |  |

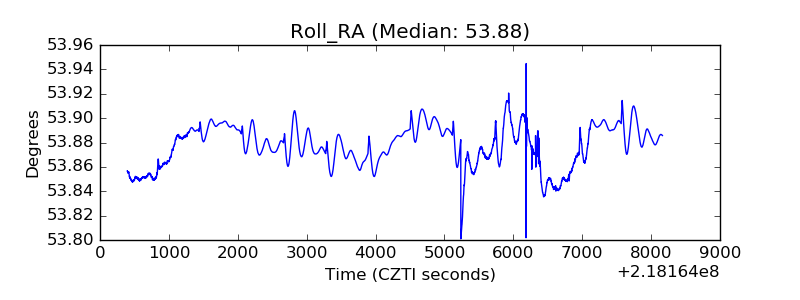

| _Roll_RA |  |

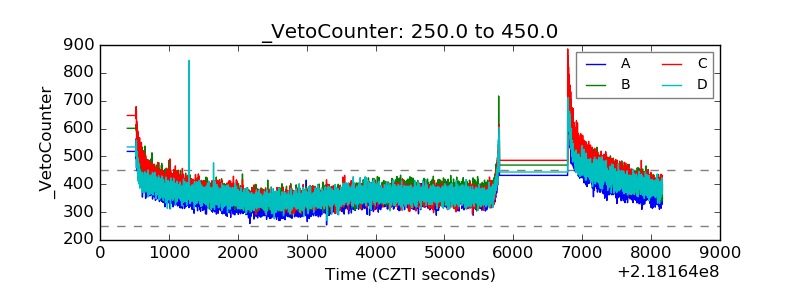

| Veto Counter |  |
