| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_124T01_9000000842_06353cztM0_level2.evt | modeM0/AS1A02_124T01_9000000842_06353cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,714,880 | 72,354,240 |
| Size | 497.5 MB | 69.0 MB |
| Events in quadrant A | 4,190,398 | 436,449 |
| Events in quadrant B | 3,769,834 | 441,832 |
| Events in quadrant C | 3,287,363 | 444,998 |
| Events in quadrant D | 4,116,685 | 418,903 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16792 | 3 |
| B | 0 | 15192 | 2 |
| C | 0 | 13801 | 2 |
| D | 0 | 16514 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6430 | 174 | 2.706065% |
| B | 6430 | 248 | 3.856921% |
| C | 6430 | 95 | 1.477449% |
| D | 6430 | 254 | 3.950233% |

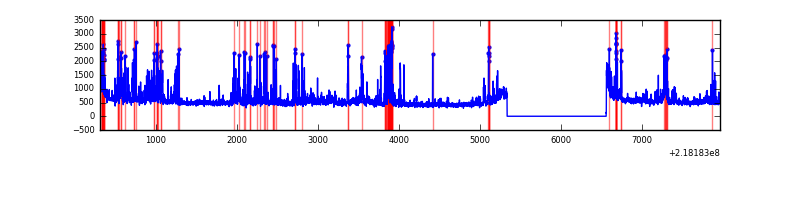

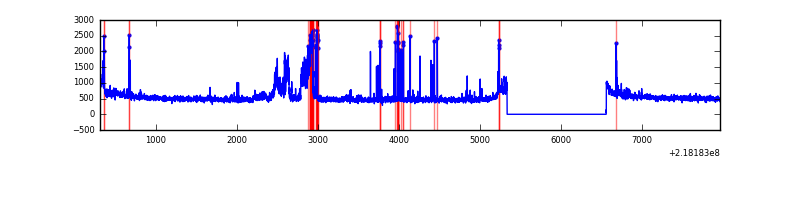

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7655 | 6431 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7655 | 6431 | 71 | 71 | 0.93% | 1.10% |  |
| C | 7655 | 6431 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7655 | 6431 | 124 | 124 | 1.62% | 1.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 722083 | 4459.0 | 809 | 791 | 161.8 |
| A | 15 | 236 | 336824 | 2077.34 | 809 | 791 | 161.8 |
| A | 13 | 251 | 10622 | 60.77 | 809 | 791 | 161.8 |
| B | 0 | 228 | 380833 | 2520.15 | 812 | 793 | 150.8 |
| B | 0 | 219 | 164538 | 1085.84 | 812 | 793 | 150.8 |
| B | 15 | 204 | 40495 | 263.28 | 812 | 793 | 150.8 |
| C | 4 | 254 | 157941 | 867.13 | 800 | 805 | 181.2 |
| C | 13 | 61 | 6222 | 29.89 | 800 | 805 | 181.2 |
| C | 1 | 16 | 5016 | 23.24 | 800 | 805 | 181.2 |
| D | 4 | 95 | 603092 | 3147.37 | 791 | 767 | 191.4 |
| D | 12 | 220 | 238052 | 1239.9 | 791 | 767 | 191.4 |
| D | 2 | 152 | 134733 | 700.02 | 791 | 767 | 191.4 |

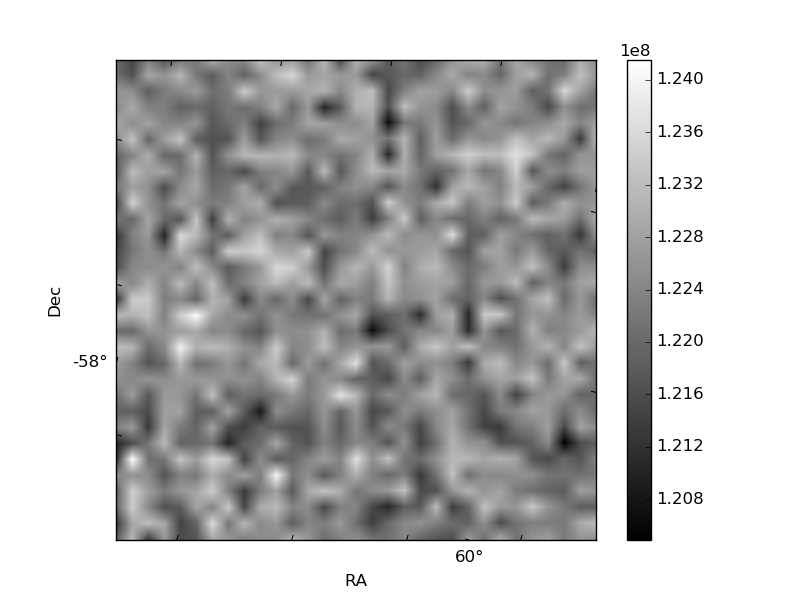

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

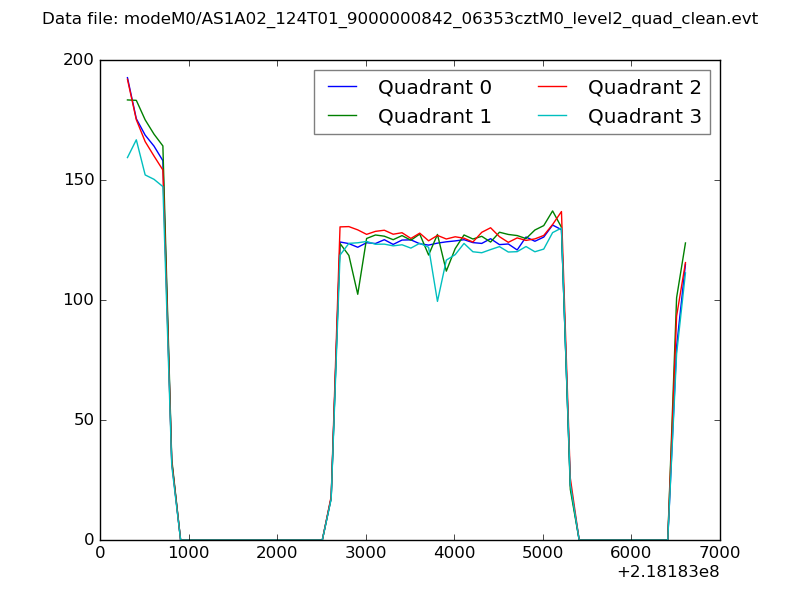

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

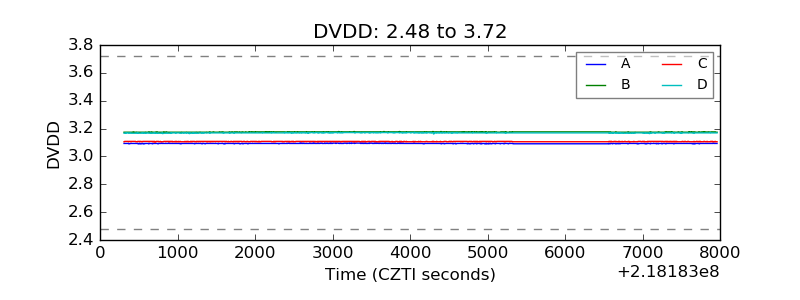

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

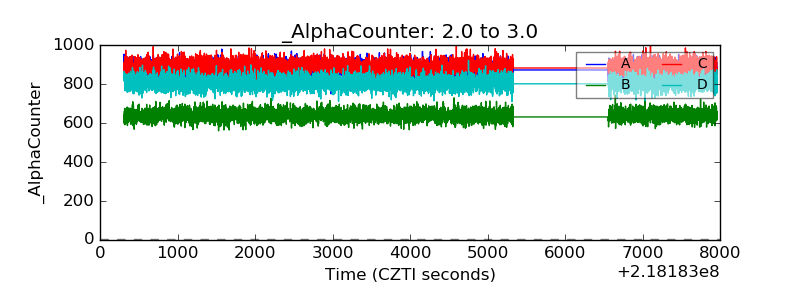

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

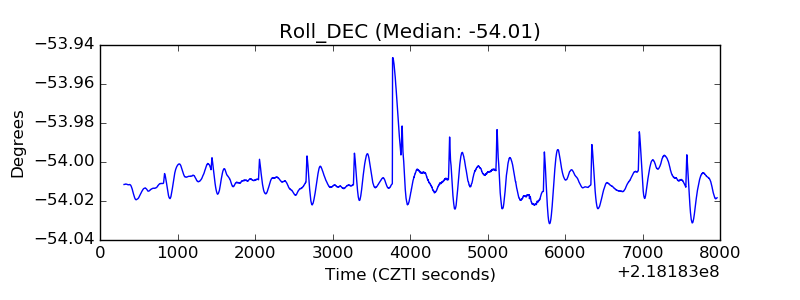

| _Roll_DEC |  |
| _Roll_RA |  |

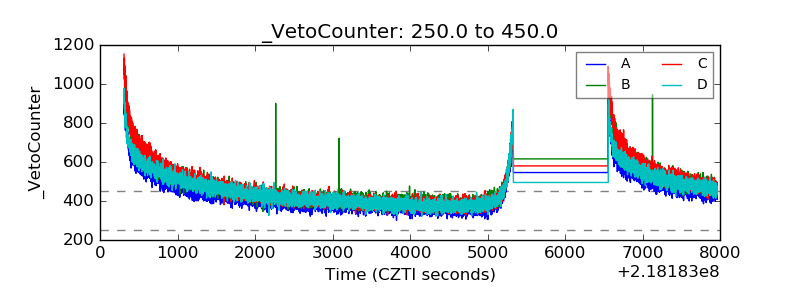

| Veto Counter |  |
