| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_124T01_9000000842_06363cztM0_level2.evt | modeM0/AS1A02_124T01_9000000842_06363cztM0_level2_quad_clean.evt |
| Size (bytes) | 954,584,640 | 174,044,160 |
| Size | 910.4 MB | 166.0 MB |
| Events in quadrant A | 6,323,424 | 1,109,381 |
| Events in quadrant B | 7,287,247 | 1,119,992 |
| Events in quadrant C | 7,362,978 | 1,079,503 |
| Events in quadrant D | 7,050,466 | 1,057,501 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27543 | 4 |
| B | 0 | 29911 | 3 |
| C | 0 | 30975 | 3 |
| D | 0 | 30179 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 268 | 0 |
| B | 0 | 268 | 0 |
| C | 0 | 268 | 0 |
| D | 0 | 268 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13095 | 30 | 0.229095% |
| B | 13095 | 82 | 0.626193% |
| C | 13095 | 387 | 2.955326% |
| D | 13095 | 161 | 1.229477% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

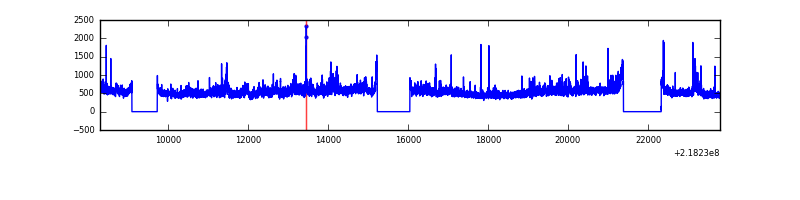

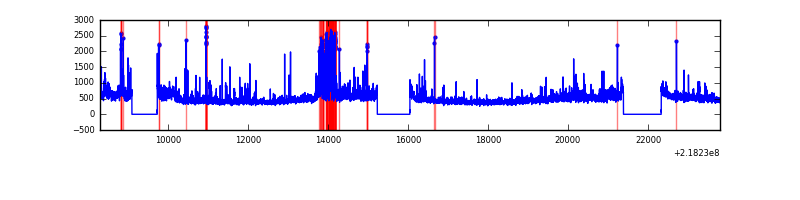

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15490 | 13098 | 2 | 2 | 0.01% | 0.02% |  |
| B | 15490 | 13098 | 2 | 2 | 0.01% | 0.02% |  |
| C | 15490 | 13098 | 364 | 364 | 2.35% | 2.78% |  |
| D | 15490 | 13098 | 132 | 132 | 0.85% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 466968 | 1540.98 | 1489 | 1457 | 302.1 |
| A | 13 | 251 | 64397 | 208.35 | 1489 | 1457 | 302.1 |
| A | 8 | 15 | 40727 | 130.0 | 1489 | 1457 | 302.1 |
| B | 0 | 228 | 1206814 | 4196.44 | 1506 | 1466 | 287.2 |
| B | 0 | 229 | 70003 | 238.61 | 1506 | 1466 | 287.2 |
| B | 15 | 204 | 65095 | 221.53 | 1506 | 1466 | 287.2 |
| C | 4 | 254 | 1717088 | 5138.98 | 1441 | 1446 | 333.8 |
| C | 9 | 16 | 12424 | 32.88 | 1441 | 1446 | 333.8 |
| C | 13 | 61 | 11499 | 30.11 | 1441 | 1446 | 333.8 |
| D | 2 | 63 | 954851 | 2689.33 | 1446 | 1401 | 354.5 |
| D | 2 | 152 | 253385 | 710.75 | 1446 | 1401 | 354.5 |
| D | 11 | 241 | 115021 | 320.48 | 1446 | 1401 | 354.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

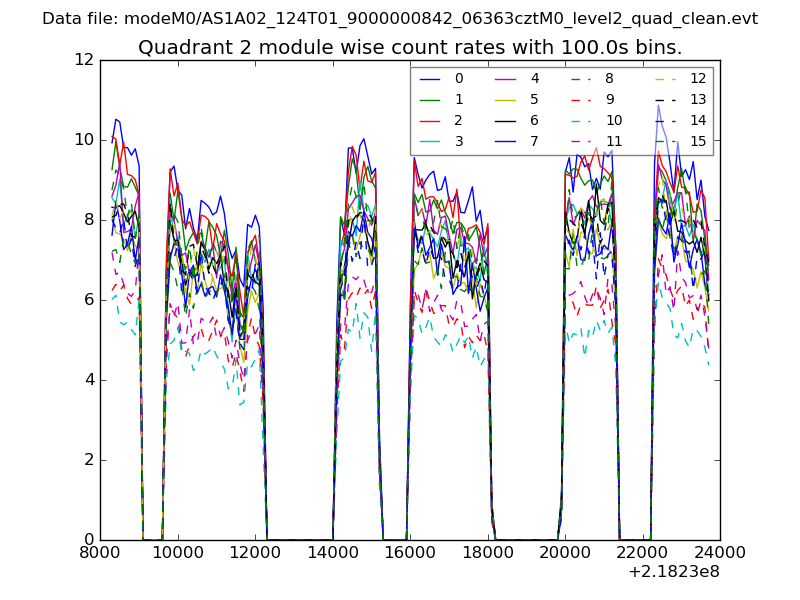

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

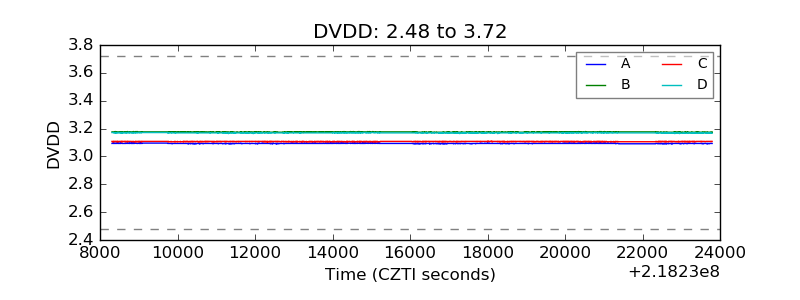

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

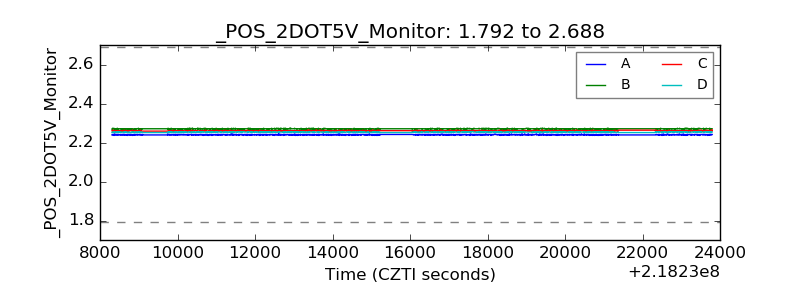

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

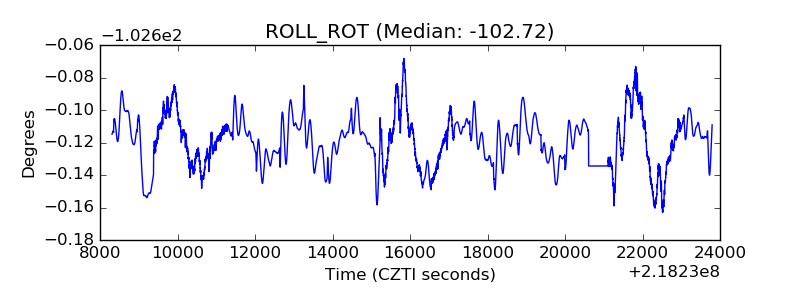

| _ROLL_ROT |  |

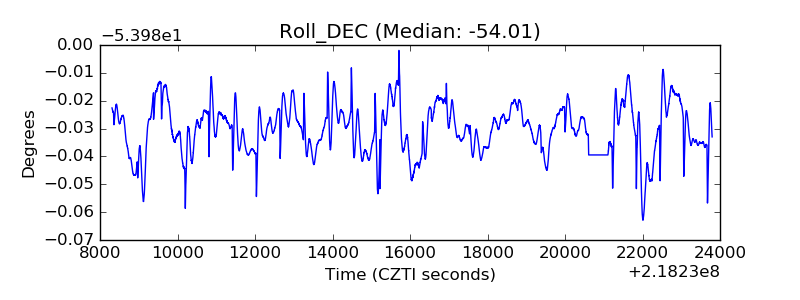

| _Roll_DEC |  |
| _Roll_RA |  |

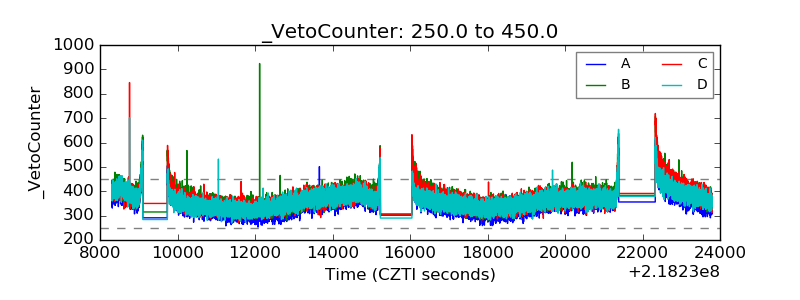

| Veto Counter |  |
