| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_124T01_9000000842_06371cztM0_level2.evt | modeM0/AS1A02_124T01_9000000842_06371cztM0_level2_quad_clean.evt |
| Size (bytes) | 168,071,040 | 33,641,280 |
| Size | 160.3 MB | 32.1 MB |
| Events in quadrant A | 1,255,119 | 214,127 |
| Events in quadrant B | 1,240,022 | 220,546 |
| Events in quadrant C | 1,187,638 | 209,053 |
| Events in quadrant D | 1,231,001 | 191,951 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 5 |
| B | 0 | 16 | 3 |
| C | 0 | 16 | 2 |
| D | 0 | 17 | 3 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15043 | 9625 |
| B | 0 | 14968 | 9504 |
| C | 0 | 14989 | 9643 |
| D | 0 | 16150 | 10821 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 92 |
| B | 0 | 148 | 94 |
| C | 0 | 147 | 95 |
| D | 0 | 147 | 105 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2573 | 101 | 3.925379% |
| B | 2593 | 85 | 3.278056% |
| C | 2552 | 59 | 2.311912% |
| D | 2397 | 91 | 3.796412% |

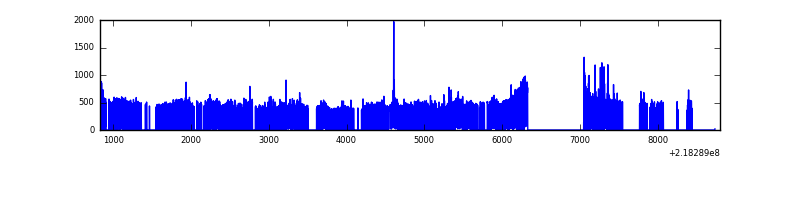

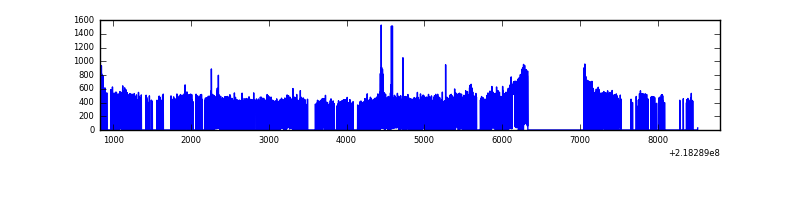

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7909 | 3705 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7687 | 3778 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7941 | 3648 | 3 | 3 | 0.04% | 0.08% |  |
| D | 7970 | 3481 | 2 | 2 | 0.03% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 70546 | 1116.25 | 304 | 297 | 62.9 |
| A | 13 | 251 | 6956 | 105.81 | 304 | 297 | 62.9 |
| A | 8 | 15 | 5939 | 89.65 | 304 | 297 | 62.9 |
| B | 0 | 219 | 13693 | 218.48 | 310 | 301 | 61.3 |
| B | 15 | 35 | 10681 | 169.34 | 310 | 301 | 61.3 |
| B | 0 | 229 | 7573 | 118.63 | 310 | 301 | 61.3 |
| C | 4 | 254 | 18719 | 264.25 | 296 | 296 | 69.7 |
| C | 1 | 241 | 10578 | 147.48 | 296 | 296 | 69.7 |
| C | 13 | 61 | 2408 | 30.29 | 296 | 296 | 69.7 |
| D | 2 | 63 | 87362 | 1254.31 | 279 | 269 | 69.4 |
| D | 2 | 152 | 36179 | 517.18 | 279 | 269 | 69.4 |
| D | 10 | 15 | 19073 | 270.81 | 279 | 269 | 69.4 |

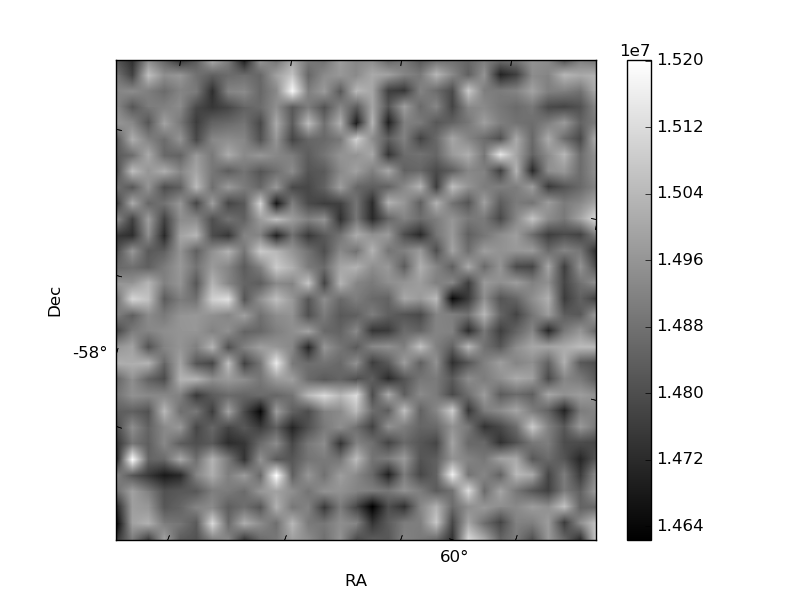

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

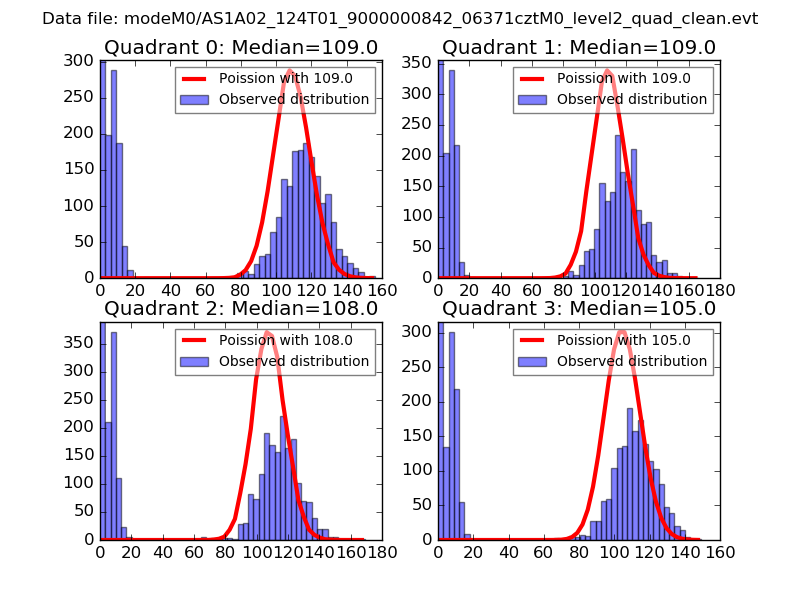

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

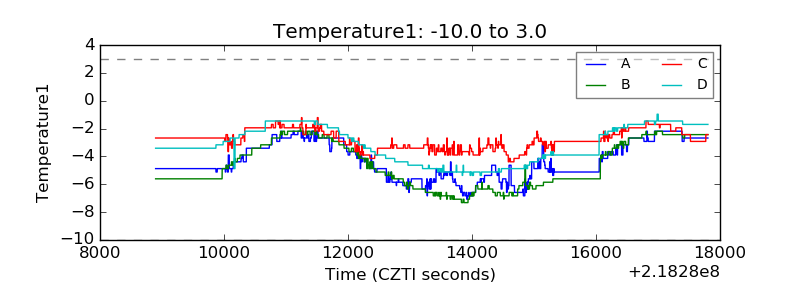

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

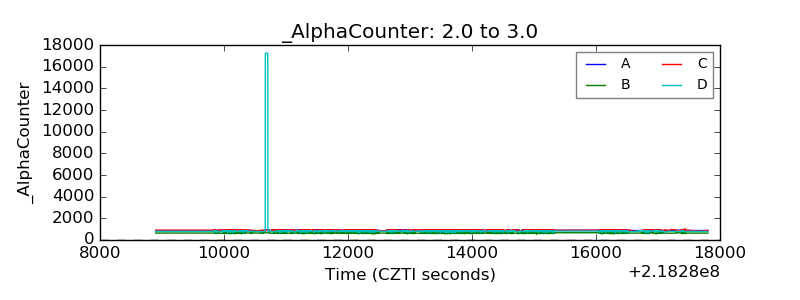

| Alpha Counter |  |

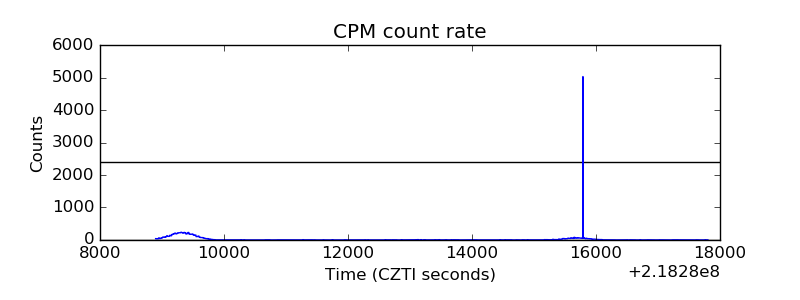

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

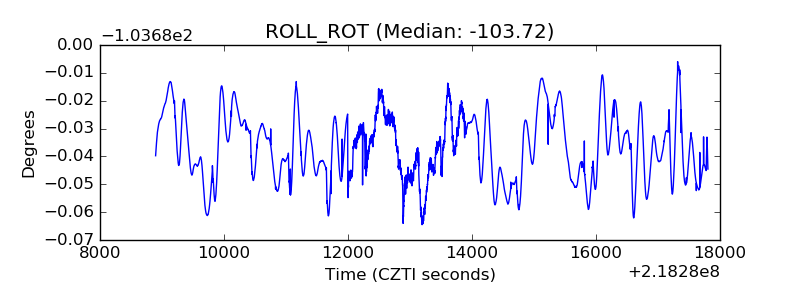

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
