| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_124T01_9000000842_06373cztM0_level2.evt | modeM0/AS1A02_124T01_9000000842_06373cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,481,600 | 132,552,000 |
| Size | 591.7 MB | 126.4 MB |
| Events in quadrant A | 4,519,694 | 844,859 |
| Events in quadrant B | 4,546,099 | 850,912 |
| Events in quadrant C | 4,371,769 | 840,477 |
| Events in quadrant D | 4,702,309 | 812,913 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20022 | 2 |
| B | 0 | 20405 | 1 |
| C | 0 | 20181 | 1 |
| D | 0 | 20880 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 194 | 0 |
| B | 0 | 194 | 0 |
| C | 0 | 194 | 0 |
| D | 0 | 194 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9597 | 107 | 1.114932% |
| B | 9597 | 153 | 1.594248% |
| C | 9597 | 67 | 0.698135% |
| D | 9597 | 101 | 1.052412% |

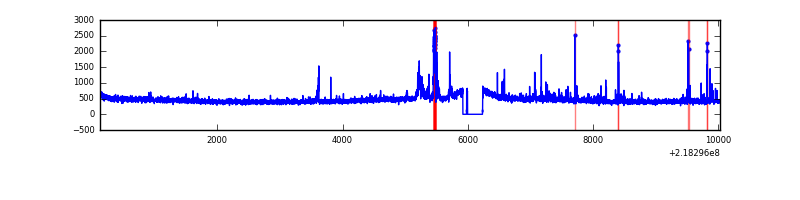

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9897 | 9599 | 2 | 2 | 0.02% | 0.02% |  |
| B | 9897 | 9599 | 30 | 30 | 0.30% | 0.31% |  |
| C | 9897 | 9599 | 11 | 11 | 0.11% | 0.11% |  |
| D | 9897 | 9599 | 34 | 34 | 0.34% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 338031 | 1532.54 | 1078 | 1053 | 219.9 |
| A | 8 | 15 | 24536 | 106.8 | 1078 | 1053 | 219.9 |
| A | 12 | 194 | 10355 | 42.3 | 1078 | 1053 | 219.9 |
| B | 0 | 229 | 195083 | 936.42 | 1086 | 1060 | 207.2 |
| B | 0 | 219 | 85871 | 409.33 | 1086 | 1060 | 207.2 |
| B | 4 | 81 | 36525 | 171.17 | 1086 | 1060 | 207.2 |
| C | 4 | 254 | 278787 | 1149.04 | 1046 | 1050 | 241.7 |
| C | 13 | 61 | 8280 | 29.91 | 1046 | 1050 | 241.7 |
| C | 9 | 54 | 6869 | 24.07 | 1046 | 1050 | 241.7 |
| D | 2 | 152 | 256348 | 1006.03 | 1045 | 1013 | 253.8 |
| D | 11 | 241 | 192088 | 752.84 | 1045 | 1013 | 253.8 |
| D | 5 | 97 | 118676 | 463.6 | 1045 | 1013 | 253.8 |

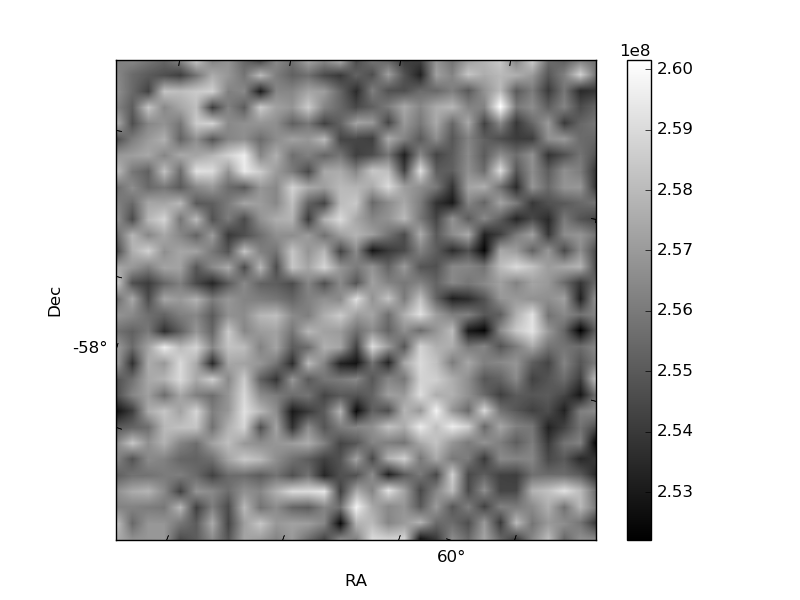

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

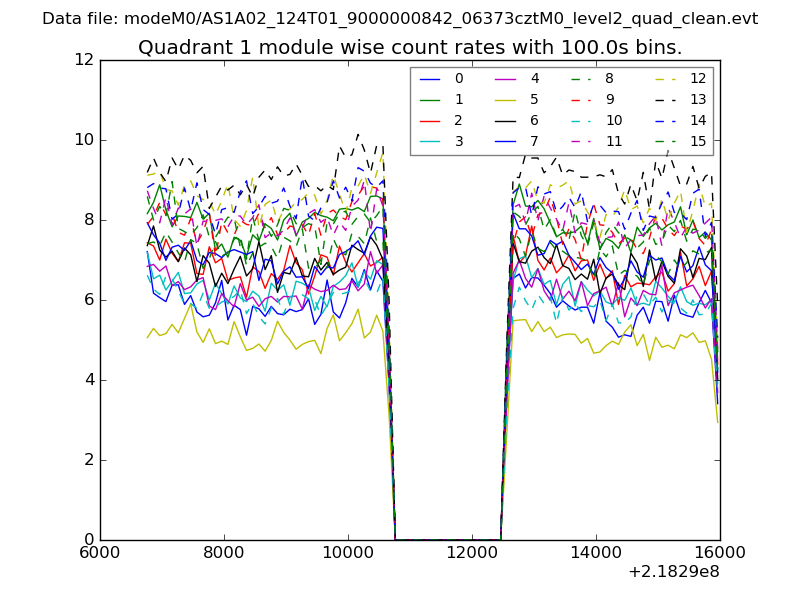

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

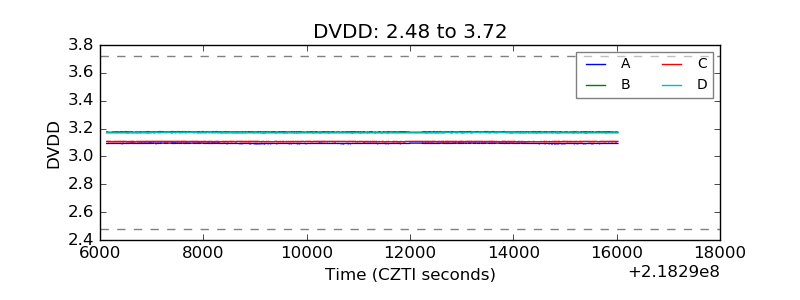

| D_VDD |  |

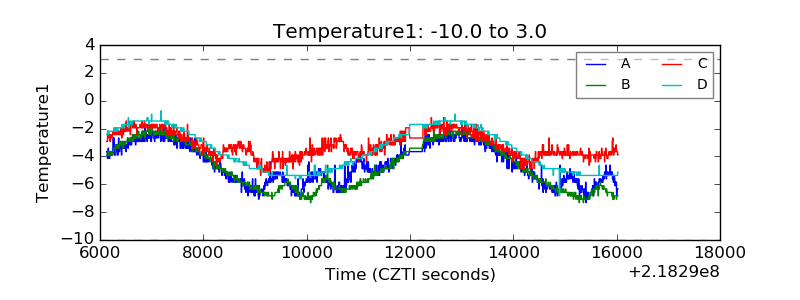

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

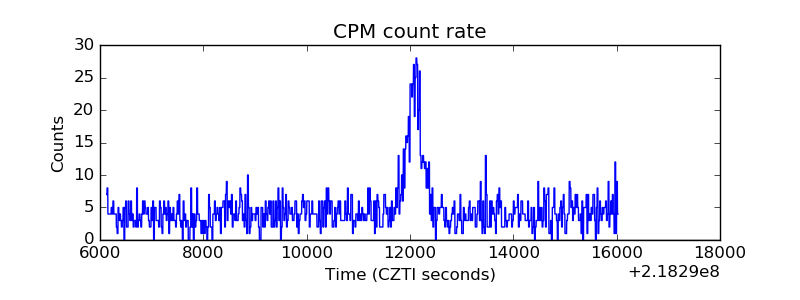

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

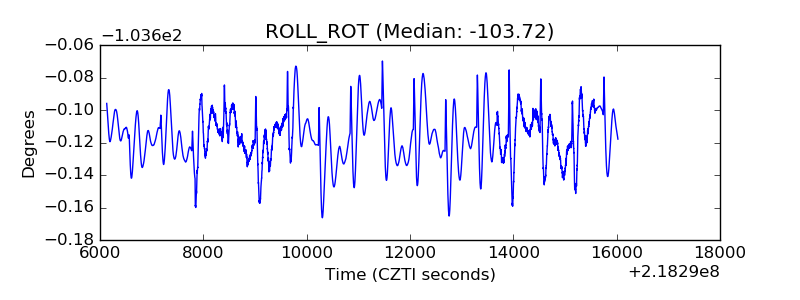

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

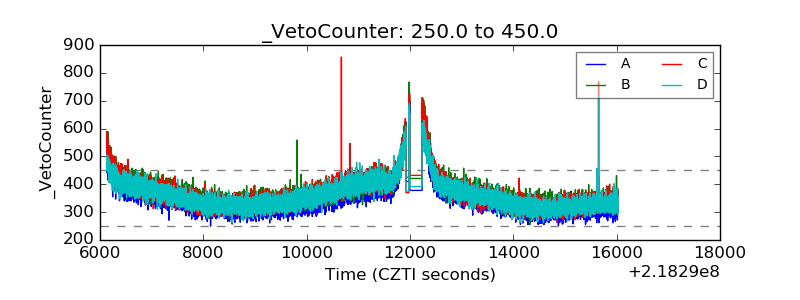

| Veto Counter |  |
