| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_017T01_9000000848_06392cztM0_level2.evt | modeM0/AS1C02_017T01_9000000848_06392cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,569,490,560 | 360,627,840 |
| Size | 1.5 GB | 343.9 MB |
| Events in quadrant A | 15,474,693 | 2,276,636 |
| Events in quadrant B | 10,309,969 | 2,466,606 |
| Events in quadrant C | 9,137,745 | 2,423,357 |
| Events in quadrant D | 11,198,068 | 2,317,656 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 426 | 0 |
| B | 0 | 426 | 0 |
| C | 0 | 426 | 0 |
| D | 0 | 426 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60647 | 5 |
| B | 0 | 45002 | 4 |
| C | 0 | 42183 | 4 |
| D | 0 | 47925 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20886 | 2308 | 11.050464% |
| B | 20886 | 216 | 1.034186% |
| C | 20886 | 51 | 0.244183% |
| D | 20886 | 249 | 1.192186% |

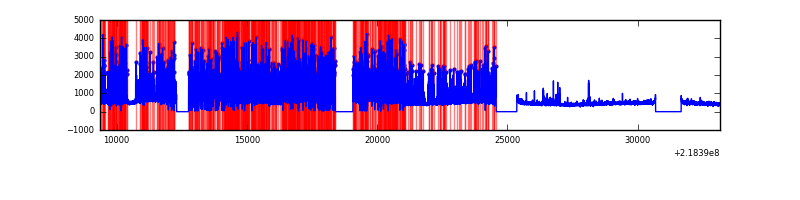

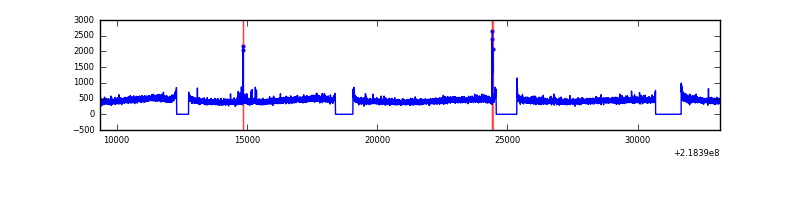

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23801 | 20890 | 900 | 900 | 3.78% | 4.31% |  |
| B | 23801 | 20890 | 44 | 44 | 0.18% | 0.21% |  |
| C | 23801 | 20890 | 5 | 5 | 0.02% | 0.02% |  |
| D | 23801 | 20890 | 150 | 150 | 0.63% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 6815569 | 15138.4 | 2220 | 2170 | 450.1 |
| A | 15 | 236 | 74553 | 160.82 | 2220 | 2170 | 450.1 |
| A | 0 | 226 | 21251 | 42.4 | 2220 | 2170 | 450.1 |
| B | 4 | 81 | 396451 | 877.77 | 2378 | 2318 | 449.0 |
| B | 4 | 170 | 337528 | 746.54 | 2378 | 2318 | 449.0 |
| B | 0 | 214 | 76663 | 165.57 | 2378 | 2318 | 449.0 |
| C | 1 | 241 | 69142 | 126.48 | 2299 | 2310 | 528.4 |
| C | 1 | 16 | 29652 | 51.74 | 2299 | 2310 | 528.4 |
| C | 8 | 208 | 26556 | 45.89 | 2299 | 2310 | 528.4 |
| D | 13 | 105 | 975216 | 1735.59 | 2292 | 2216 | 560.6 |
| D | 11 | 241 | 556642 | 988.96 | 2292 | 2216 | 560.6 |
| D | 2 | 152 | 498763 | 885.72 | 2292 | 2216 | 560.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

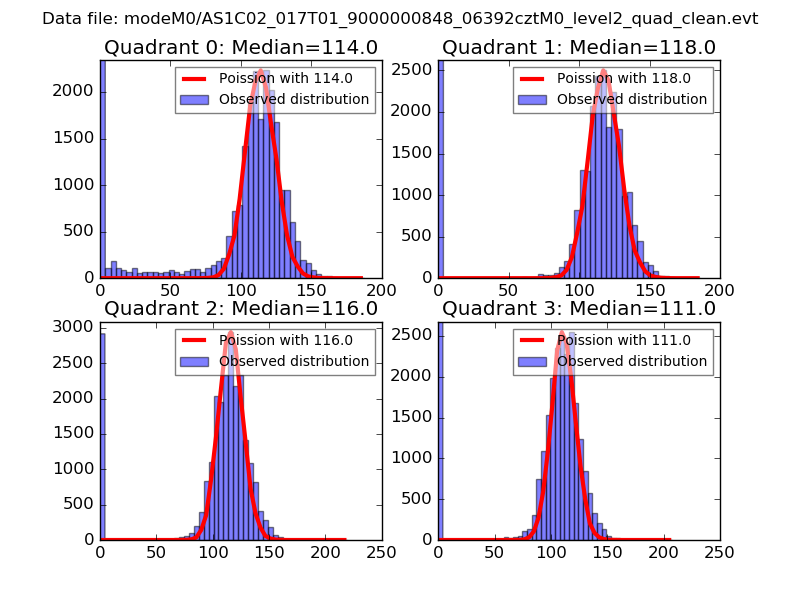

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

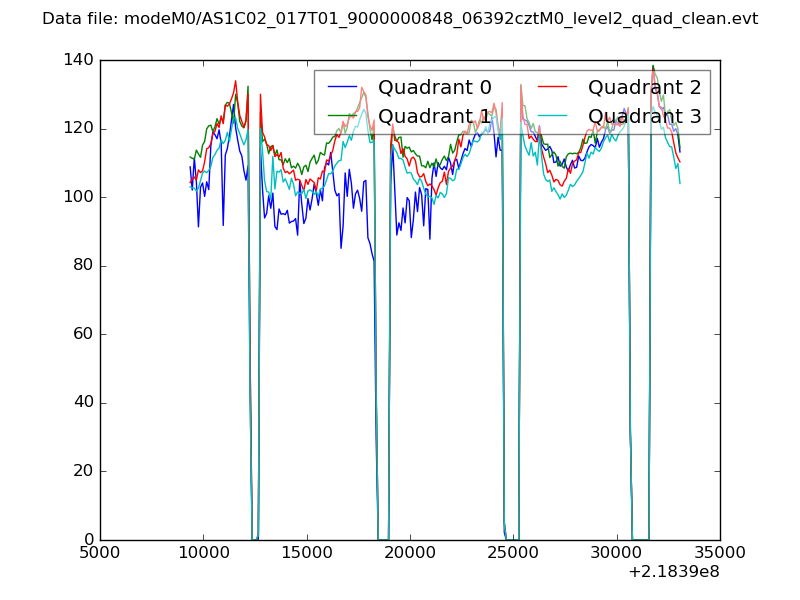

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

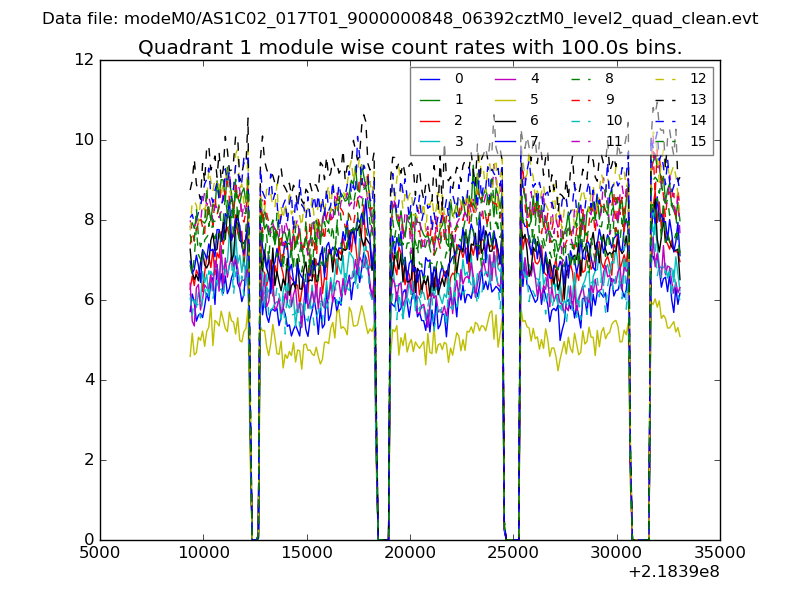

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

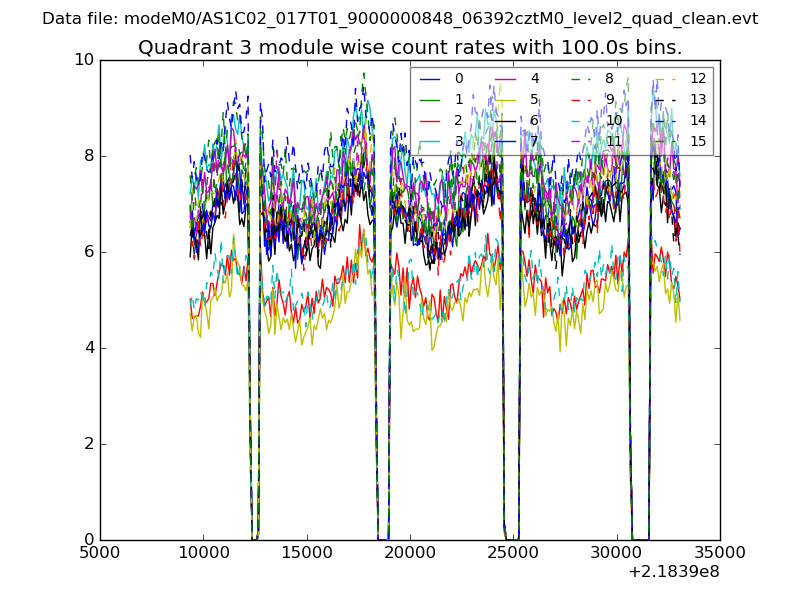

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

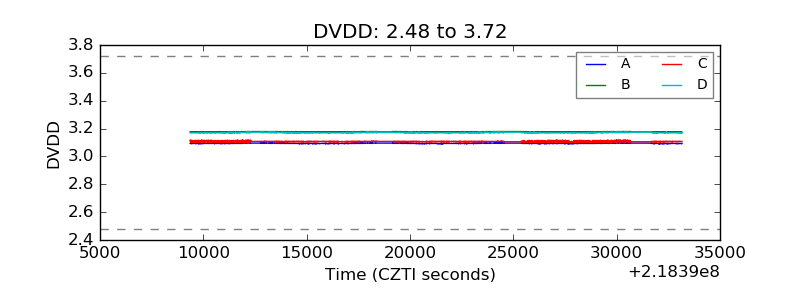

| D_VDD |  |

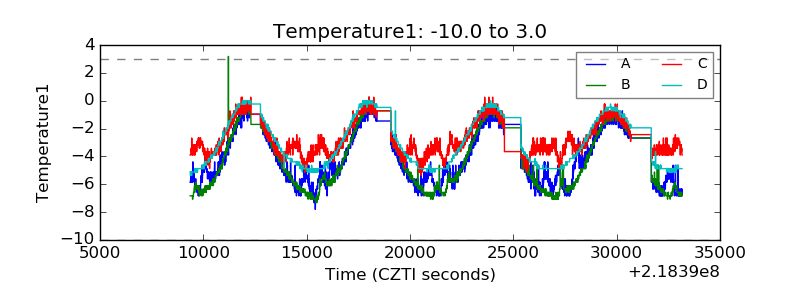

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
